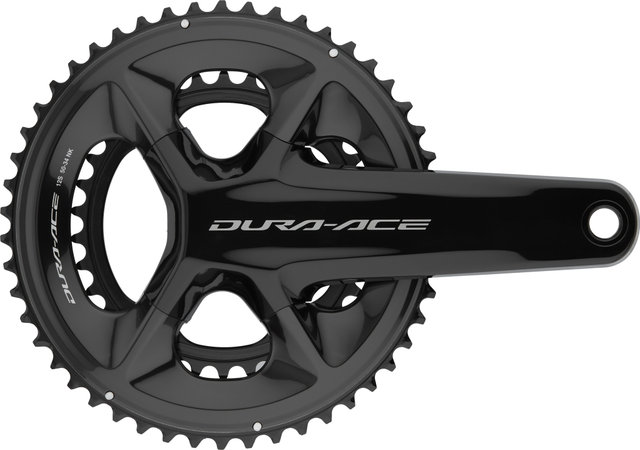

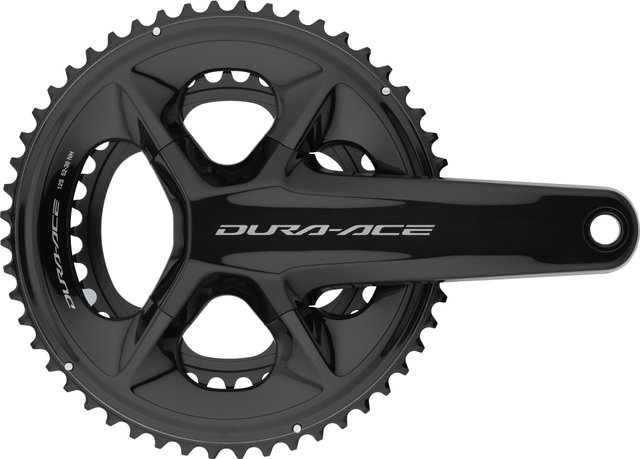

Shimano Dura-Ace Hollowtech II FC-R9200 Crankset

Item number: 84383
Dura-Ace Hollowtech II FC-R9200 Crankset - black/172.5 mm 36-52
Dura-Ace Hollowtech II FC-R9200 Crankset - black/172.5 mm 36-52
Dura-Ace Hollowtech II FC-R9200 Crankset - black/172.5 mm 36-52
Dura-Ace Hollowtech II FC-R9200 Crankset - black/172.5 mm 36-52
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

The Dura-Ace Crankset FC-R9200 by Shimano - Highly efficient and weight-optimised


The Shimano FC-R9200 crankset efficiently converts the power you put into your Dura-Ace 2x12-speed road bike groupset into propulsion. It weighs about 20 grams less than the Ultegra model and meets all your requirements for stiffness and stability thanks to the Hollowtech II design. You also benefit from the precise and fast shifting processes you are used to from Shimano drives. The crank arms are hollow-formed, as is the large chainring, which is partly made of carbon, resulting in significant weight savings. Apart from the axle, all essential parts were made of lightweight metal. FC-R9200 has an asymmetrical 4-arm bolt circle diameter of 110 mm. It produces a chainline of 44.5 mm and has a Q-factor of 148 mm. The 40-54 tooth gradation option is specifically designed for competition use.

Specifications:


Application: Road, Triathlon & Time Trial
Compatibility: Shimano 2x12-speed
Chainring Mount: 110 mm pitch circle, 4-arm asymmetrical

Technical Information:


Series: Dura-Ace R9200
Crank Arm Material: Aluminium
Chainring Material: Aluminium / Carbon, Aluminium
Axle Material: steel
Gradation: 34-50, 36-52, 40-54
Crank Arm Length: 160.0 mm, 165.0 mm, 167.5 mm, 170.0 mm, 172.5 mm, 175.0 mm, 177.5 mm
Chainline: 44.5 mm
Q-Factor: 148 mm
Axle Diameter: 24 mm
Compatible BSA Shell Width: 68 mm
Recommended Bottom Bracket: BB-R9100 or SM-BB92-41B Press Fit Hollowtech II (not included)
Recommended Chain: CN-M9100

Compatibility:


2x12-speed:
Shift/Brake Lever: ST-R9250, ST-R9270, ST-R9160, ST-R9180, ST-R8150, ST-R8170, ST-R8060, ST-R7170
Front Derailleur: FD-R9250, FD-R8150, FD-R7150
Bottom Bracket: BB-R9100, SM-BB9000, SM-BBR60, SM-BB6700, SM-BB5700, BB-RS500, SM-BB4600, SM-BB92-41B, SM-BB72-41B, SM-BB71-41B, BB-RS500-PB
Chain: CN-M9100, CN-M8100, CN-M7100, CN-M6100

Features:


- perfect balance between stiffness, stability, weight and rotational efficiency
- optimised power transfer
- fast, high-precision shifting at the front
- 40-54 T as an option for racing

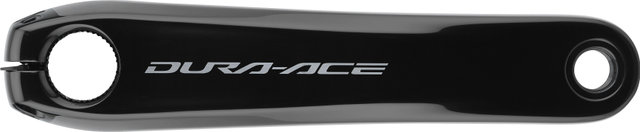

- hollow crank arms (Hollowtech)
- hollow-formed large chainring made of aluminium-carbon composite (Hollowglide)
- anodised crank arms and chainrings
- aluminium chainring bolts

Technology:


Hollowtech II

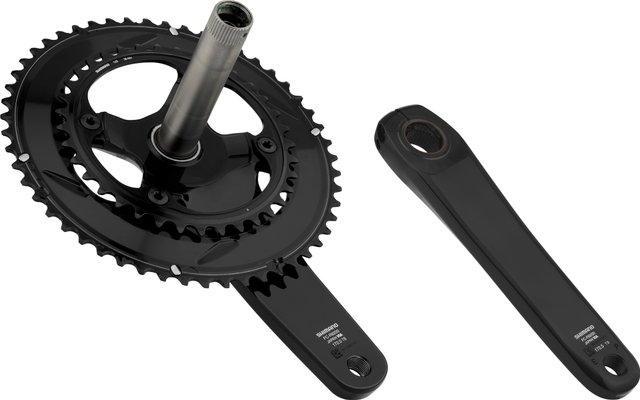

Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Numbers:


160.0 mm 34-50: I-FCR9200MX04
160.0 mm 36-52: I-FCR9200MX26
165.0 mm 34-50: I-FCR9200AX04
165.0 mm 36-52: I-FCR9200AX26
165.0 mm 40-54: I-FCR9200AX40
167.5 mm 34-50: I-FCR9200BX04
167.5 mm 36-52: I-FCR9200BX26
167.5 mm 40-54: I-FCR9200BX40
170.0 mm 34-50: I-FCR9200CX04
170.0 mm 36-52: I-FCR9200CX26
170.0 mm 40-54: I-FCR9200CX40
172.5 mm 34-50: I-FCR9200DX04
172.5 mm 36-52: I-FCR9200DX26
172.5 mm 40-54: I-FCR9200DX40
175.0 mm 34-50: I-FCR9200EX04
175.0 mm 36-52: I-FCR9200EX26
175.0 mm 40-54: I-FCR9200EX40
177.5 mm 34-50: I-FCR9200FX04
177.5 mm 36-52: I-FCR9200FX26
177.5 mm 40-54: I-FCR9200FX40

Contents:

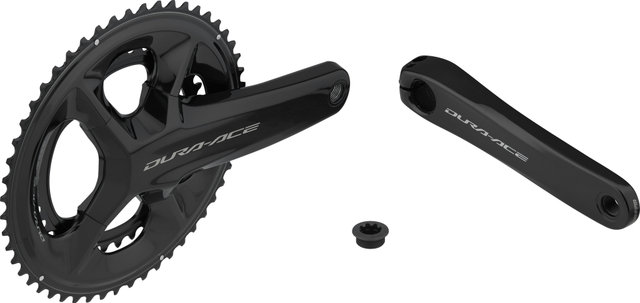

- 1 x Shimano Dura-Ace FC-R9200 Crankset (34-50, 36-52 or 40-54 tooth)
- 1 x Shimano crank bolt


Weight:

  • black/170.0 mm 34-50: 685 g
  • black/170.0 mm 36-52: 692 g
  • black/170.0 mm 40-54: 714 g

Models:

  • black/160.0 mm 34-50, in stock
    461.34€
  • black/160.0 mm 36-52, in stock
    461.34€
  • black/165.0 mm 34-50, in stock
    461.34€
  • black/165.0 mm 36-52, in stock
    461.34€
  • black/165.0 mm 40-54, sold-out
    520.17€
  • black/167.5 mm 34-50, sold-out
    520.17€
  • black/167.5 mm 36-52, sold-out
    520.17€
  • black/167.5 mm 40-54, sold-out
    520.17€
  • black/170.0 mm 34-50, sold-out
    461.34€
  • black/170.0 mm 36-52, sold-out
    461.34€
  • black/170.0 mm 40-54, sold-out
    461.34€
  • black/172.5 mm 34-50, in stock
    461.34€
  • black/172.5 mm 36-52, sold-out
    461.34€
  • black/172.5 mm 40-54, sold-out
    461.34€
  • black/175.0 mm 34-50, sold-out
    461.34€
  • black/175.0 mm 36-52, in stock
    461.34€
  • black/175.0 mm 40-54, sold-out
    461.34€
  • black/177.5 mm 34-50, in stock
    461.34€
  • black/177.5 mm 36-52, sold-out
    461.34€
  • black/177.5 mm 40-54, sold-out
    461.34€
