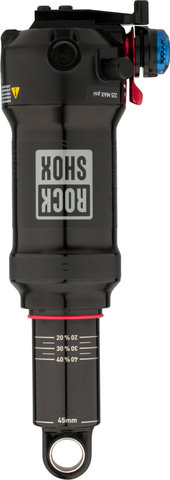

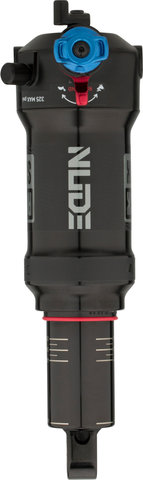

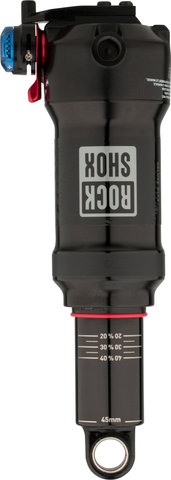

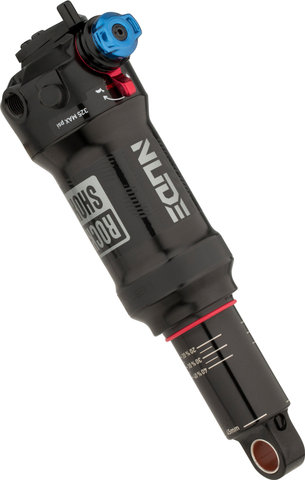

RockShox Deluxe Nude RLC3 DebonAir Trunnion Shock for Scott Spark from Model 2017

The RockShox Deluxe Nude RLC3 DebonAir shock with Trunnion mount is suitable for the Scott Spark cross-country bike as of the 2017 model.

Specifications:

Application:

Cross Country

Suspension Type:

air

Size x Stroke (mm):

165 mm x 45 mm

Rear Shock Mounts:

Trunnion

Technical Information:

Damping System:

RLC3

Bushing Material:

steel

Body Material:

Aluminium

Shaft Material:

Aluminium

Adjustment Options:

Compression:

Tune Mid

Rebound:

Tune Mid

Remote:

Scott TwinLoc Remote Lever

Compatibility:

• Scott Spark as of 2017 model

Features:

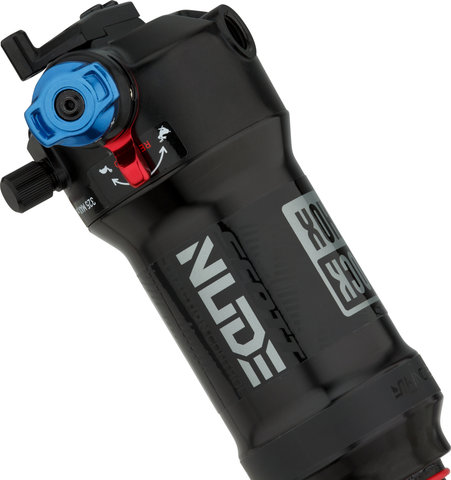

• external rebound adjustment
• additional adjustment of low-speed compression damping in open descend driving mode
• adjustment of the three Scott TwinLoc riding modes in combination with Scott Remote: Descend, Traction Control, Lockout
• 1 volume spacer installed, with No1 Sealhead Token
• 430 lb lockout force

Technology:

Damping Markings:
If you don't adjust your damping properly, you might as well be riding someone else's bike. But why waste plastic clips or rulers to adjust the suspension again and again? For easy and accurate setup of the perfect suspension, the shock markings are printed directly on the suspension fork stanchions and the rear shock housing.

Manufacturer Number:

00.4118.311.001

Contents:

• 1 x RockShox Deluxe Nude Shock

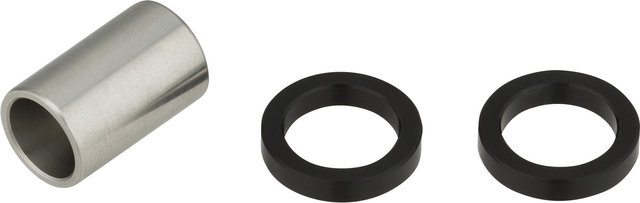

• 1 x RockShox 3-piece bushing set
