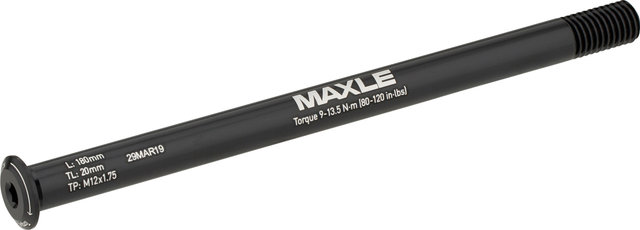

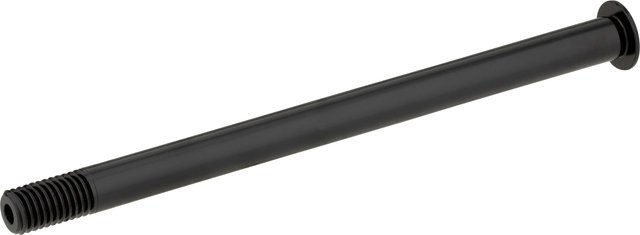

RockShox Maxle Stealth MTB Boost Rear Thru-Axle

The new Maxle Stealth is a lightweight and low-profile alternative to Maxle Lite.

Specifications:

Over Locknut Dimension:

148 mm

Axle Diameter:

12 mm

Technical Information:

Use:

front 12 x 148 mm

Type:

thru-axle

Features:

• 34 g lighter than Maxle Lite
• easy installation with a 5 mm hex tool

Models:

12 x 148 mm, 170.0 mm:

• Axle Length: 170 mm
• Nominal Diameter: M12
• Thread Pitch: 1.50
• Thread Length: 10 mm
• Compatibility: Boost E-Thru Interface frames
• Manufacturer Number: 00.4318.005.025

12 x 148 mm, 171.5 mm:

• Axle Length: 171.5 mm
• Nominal Diameter: M12
• Thread Pitch: 1.00
• Thread Length: 9 mm
• Compatibility: Boost frames
• Manufacturer Number: 00.4318.005.033

12 x 148 mm, 180.0 mm:

• Axle Length: 180.0 mm
• Nominal Diameter: M12
• Thread Pitch: 1.75
• Thread Length: 20 mm
• Compatibility: Boost frames
• Manufacturer Number: 00.4318.005.028

12 x 148 mm, 188.0 mm:

• Axle Length: 188.0 mm
• Nominal Diameter: M12
• Thread Pitch: 1.75
• Thread Length: 20 mm
• Compatibility: Boost Split Pivot frames
• Manufacturer Number: 00.4318.005.029

12 x 148 mm, 195.0 mm:

• Axle Length: 195.0 mm
• Nominal Diameter: M12
• Thread Pitch: 1.75
• Thread Length: 20 mm
• Compatibility: Boost Trek ABP frames
• Manufacturer Number: 00.4318.005.030

Contents:

• 1 x RockShox Maxle Stealth MTB Boost rear thru-axle
