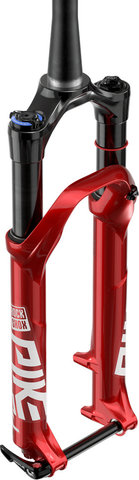

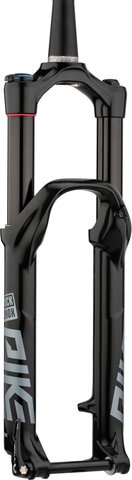

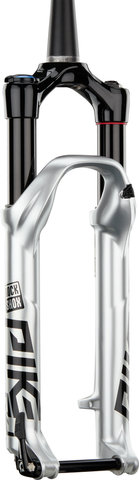

RockShox Pike DJ Solo Air 26" Suspension Fork

Specifications:

Application:

Dirtjump, Slopestyle

Wheel Size:

26"

Suspension Type:

air

Travel:

100 mm, 140 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

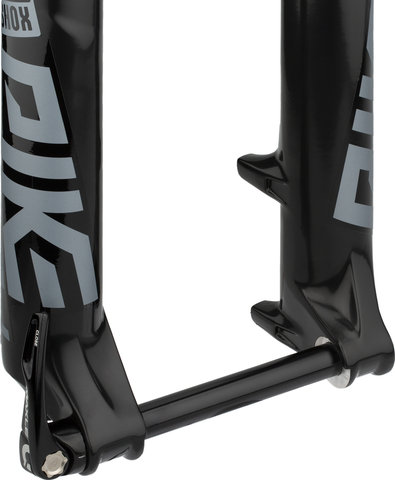

thru-axle (15 x 100 mm)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

40 mm

Steerer Tube Length:

265 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

482 mm (100 mm), 522 mm (140 mm)

Over Locknut Dimension:

100 mm

Stanchion Tube Diameter:

35 mm

Steerer Tube Material:

Aluminium

Crown Material:

aluminium (7050)

Stanchion Tube Material:

Aluminium

Lower Tube Material:

magnesium

Adjustment Options:

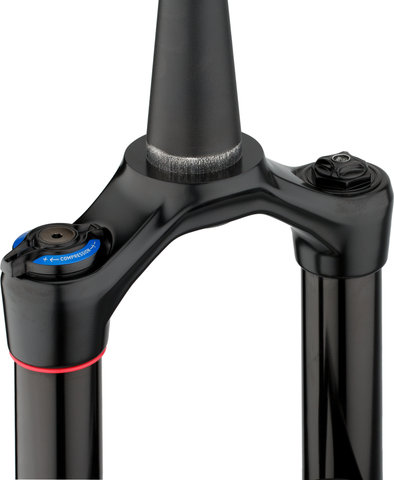

Compression:

low-speed

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

26 x 2.6"

Note:

For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 6 mm measured from the fork crown.

Rotor Size (max.):

220 mm

Features:

• Bottomless token to easily adjust the performance of the air suspension to your own riding style and preferred suspension
• external rebound adjustment

Technology:

Solo Air:
Solo Air is like a Buddhist monk. The enlightened design allows the positive and negative air chambers of your suspension fork to be filled with air at the same time using only one Schrader valve. So there is a perfect balance between them, like Yin and Yang. For a comfortable and predictable ride, you can adjust the easiest suspension fork on the market in seconds.

Models:

100 mm / 1.5 tapered / 15 x 100 mm / 40 mm:

Travel:

100 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

40 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 100 mm)

Model ID:

FS-PIKE-DJ-A4

Manufacturer Number:

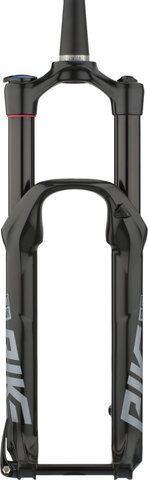

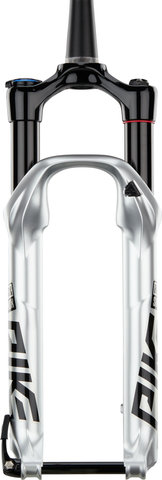

00.4019.905.003 (gloss black), 00.4019.905.002 (gloss silver)

140 mm / 1.5 tapered / 15 x 100 mm / 40 mm:

Travel:

140 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

40 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 100 mm)

Model ID:

FS-PIKE-DJ-A4

Manufacturer Number:

00.4019.905.004

Contents:

• 1 x RockShox Pike DJ Solo Air 26" suspension fork
• 1 x RockShox Maxle Ultimate thru-axle, 15 mm

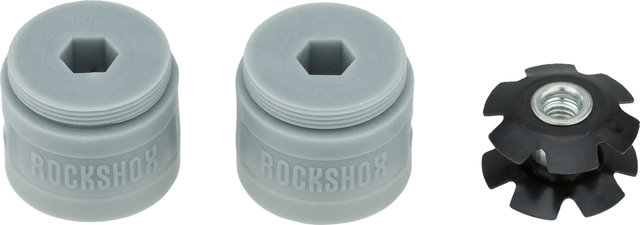

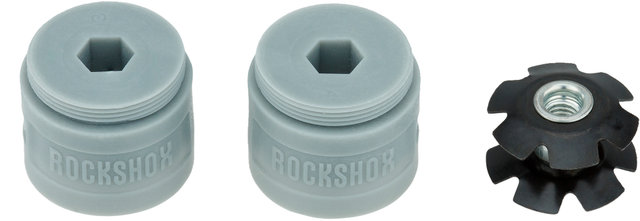

• 2 x RockShox tokens
• 1 x star nut
