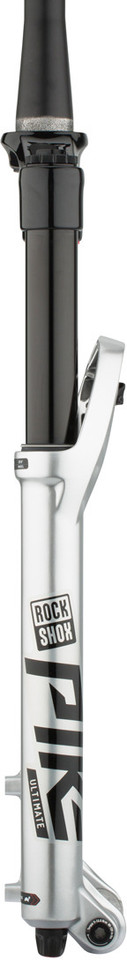

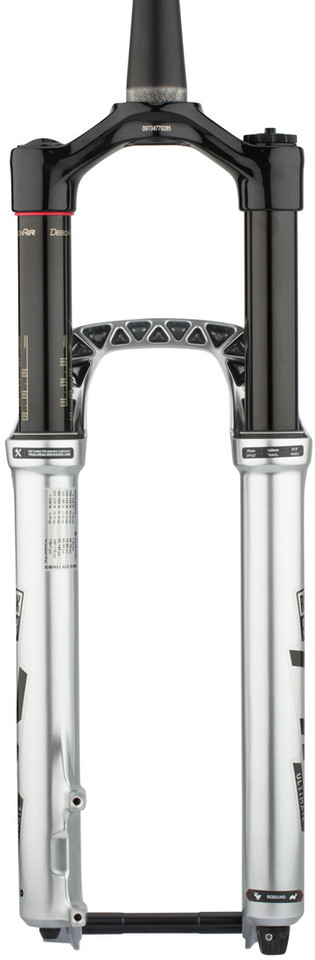

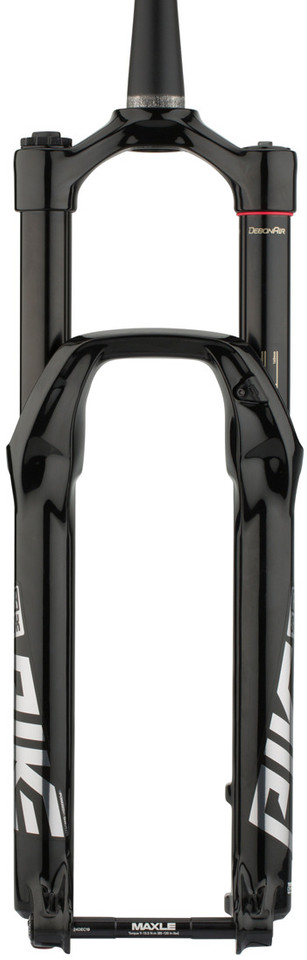

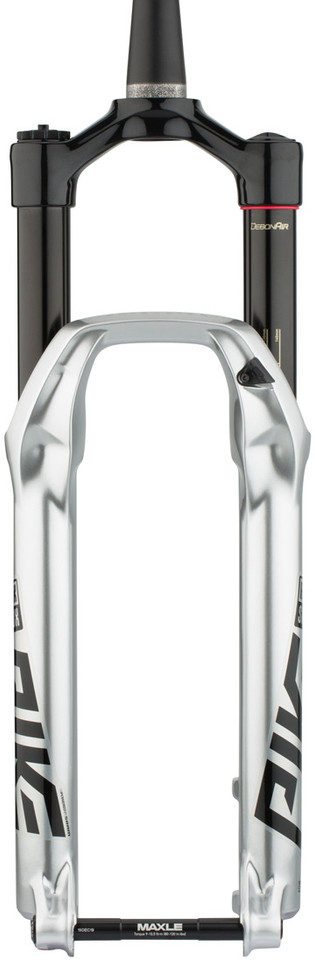

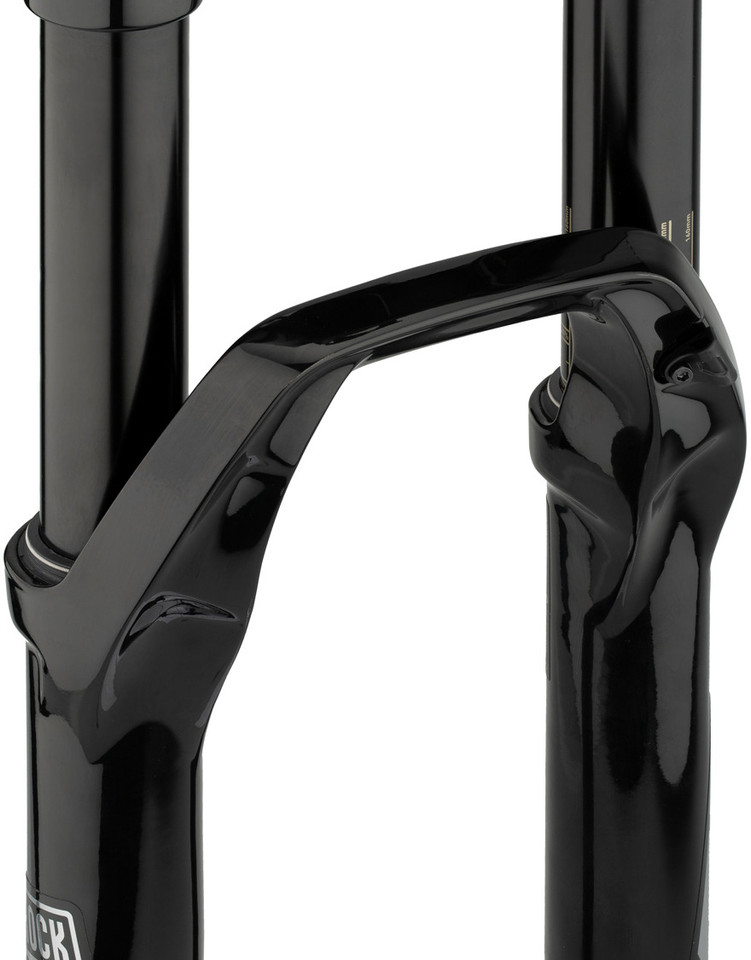

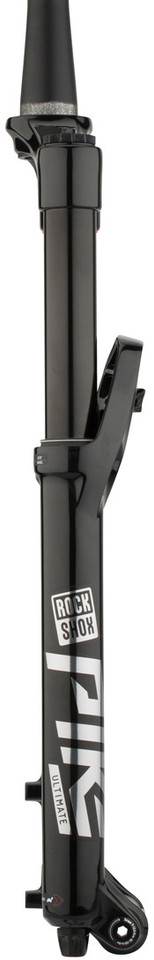

RockShox Pike Ultimate RC2 DebonAir Boost 27.5" Suspension Fork

Specifications:

Application:

All Mountain

Wheel Size:

27.5" (650B)

Suspension Type:

air

Travel:

130 mm, 140 mm, 150 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle (15 x 110 mm)

Brake Mount:

disc PM7 (direct mount 180 mm)

Technical Information:

Offset:

37 mm, 46 mm

Steerer Tube Length:

245 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

522 mm (130 mm), 532 mm (140 mm), 542 mm (150 mm)

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

35 mm

Steerer Tube Material:

Aluminium

Crown Material:

Aluminium

Stanchion Tube Material:

Aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

low-speed, high-speed

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

27.5 x 3.2"

Note:

For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 6 mm measured from the fork crown.

Rotor Size (max.):

220 mm

Features:

• low friction SKF dust seals, for high durability and improved suspension behaviour
• Maxima Plush damping oil for less friction and improved response
• Ultimate high gloss designs (sticker set)

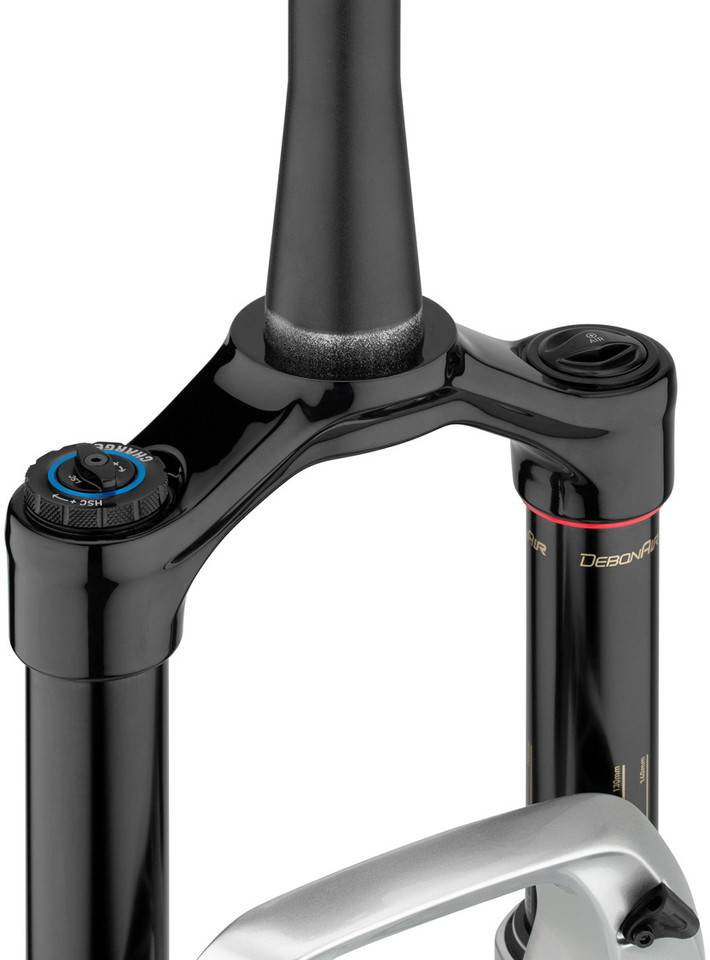

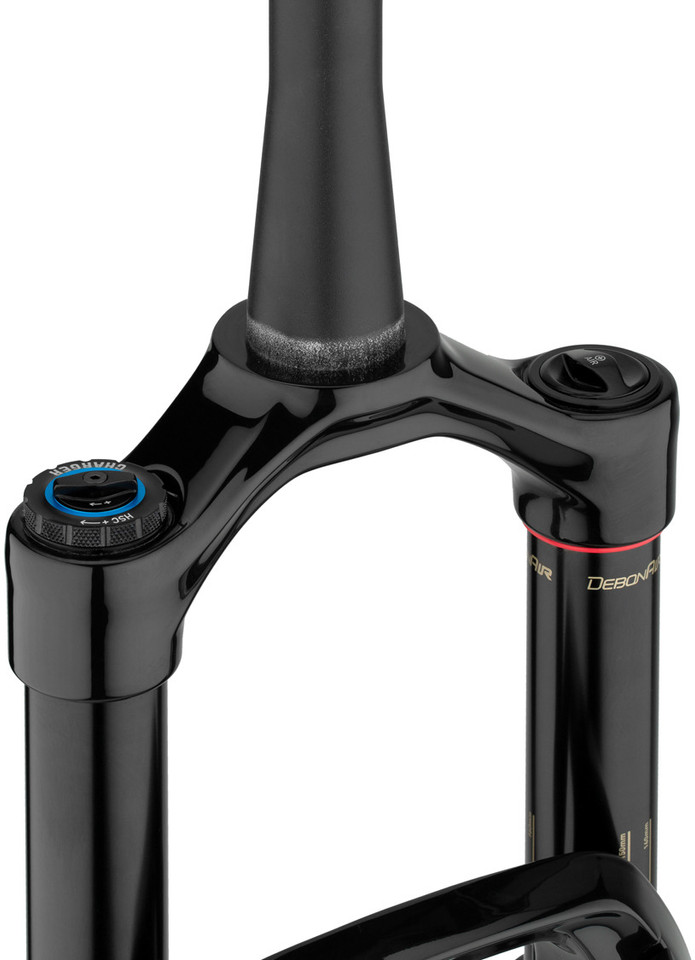

• Charger 2.1 RC2 damper with independent adjustment of high and low speed compression
• Charger 2.1 designed for less hand fatigue and unwanted friction
• improved and adjustable DebonAir air suspension for a smooth response
• crown adjust

Models:

130 mm / 1.5 tapered / 15 x 110 mm / 37 mm:

Travel:

130 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

37 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-PIKE-ULT-B4

Manufacturer Number:

00.4020.565.017 (gloss black), 00.4020.565.014 (gloss silver)

140 mm / 1.5 tapered / 15 x 110 mm / 37 mm:

Travel:

140 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

37 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-PIKE-ULT-B4

Manufacturer Number:

00.4020.565.016 (gloss black), 00.4020.565.013 (gloss silver)

150 mm / 1.5 tapered / 15 x 110 mm / 37 mm:

Travel:

150 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

37 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-PIKE-ULT-B4

Manufacturer Number:

00.4020.565.015 (gloss black), 00.4020.565.012 (gloss silver)

130 mm / 1.5 tapered / 15 x 110 mm / 46 mm:

Travel:

130 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

46 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-PIKE-ULT-B4

Manufacturer Number:

00.4020.565.005 (gloss black), 00.4020.565.002 (gloss silver)

140 mm / 1.5 tapered / 15 x 110 mm / 46 mm:

Travel:

140 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

46 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-PIKE-ULT-B4

Manufacturer Number:

00.4020.565.004 (gloss black), 00.4020.565.001 (gloss silver)

150 mm / 1.5 tapered / 15 x 110 mm / 46 mm:

Travel:

150 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

46 mm

Brake Mount:

disc PM7 (direct mount 180 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-PIKE-ULT-B4

Manufacturer Number:

00.4020.565.003 (gloss black), 00.4020.565.000 (gloss silver)

Contents:

• 1 x RockShox Pike Ultimate RC2 DebonAir suspension fork

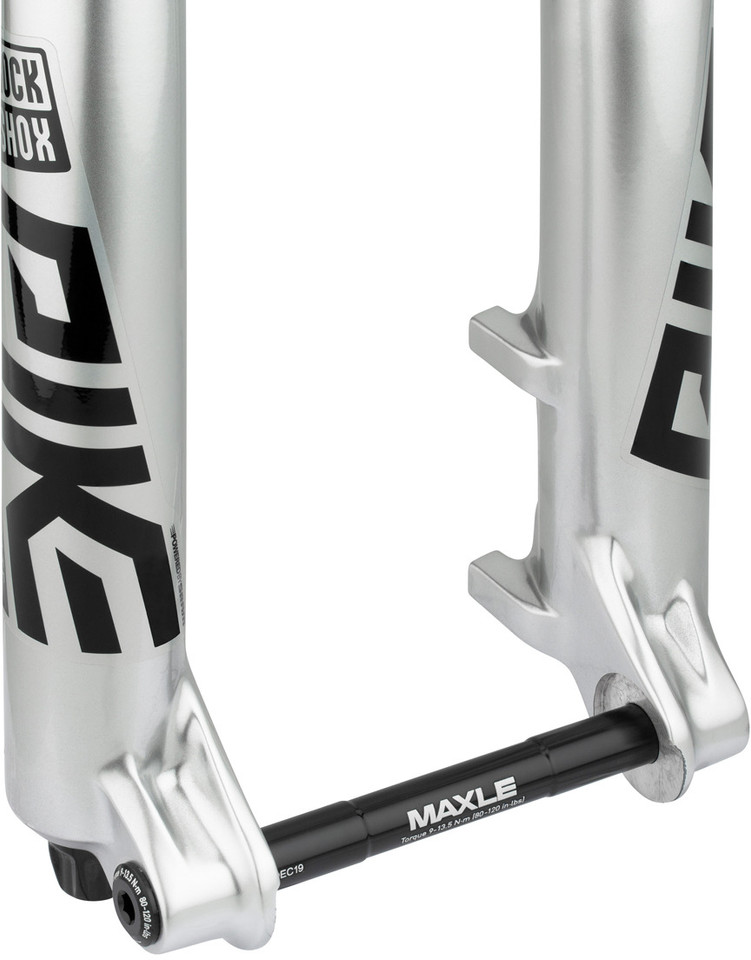

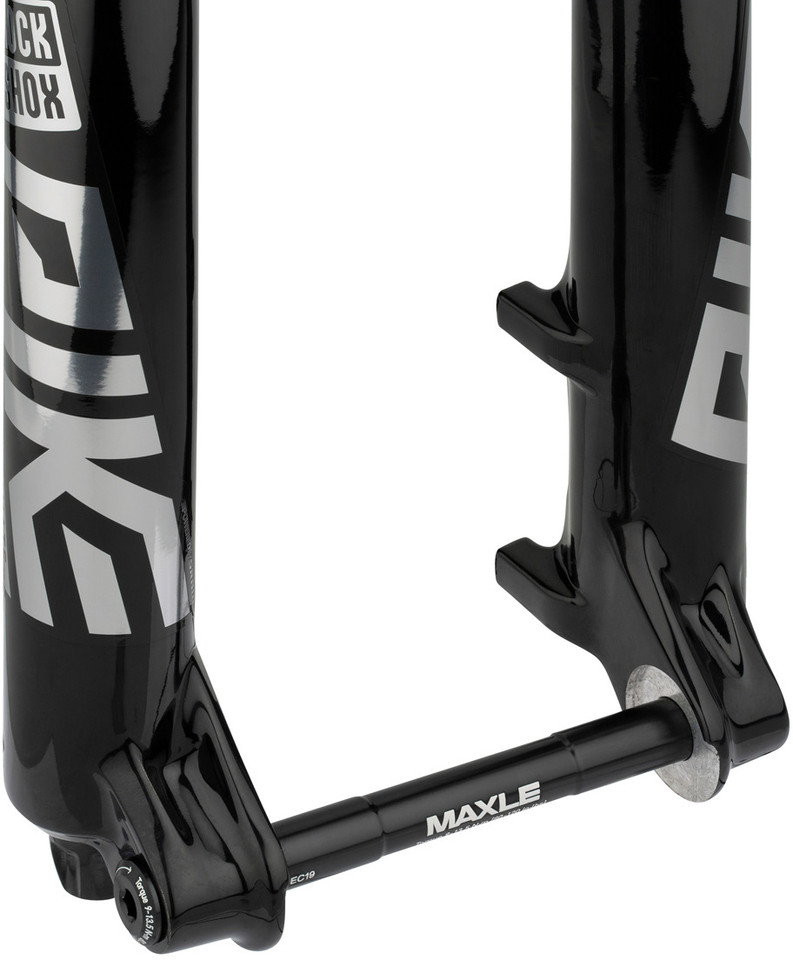

• 1 x RockShox Maxle Stealth thru-axle
• 2 x RockShox bottomless tokens
• 1 x RockShox fender
• 1 x star nut
