Rotor ALDHU 24 Crank Arms

Item number: 67489

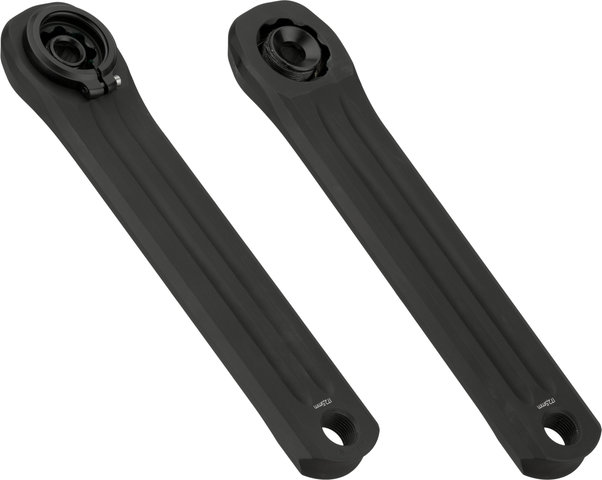

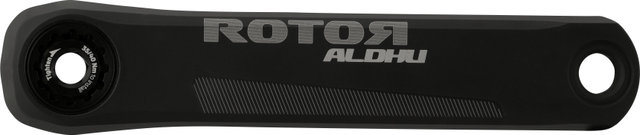

ALDHU 24 Crank Arms - black-matte/172.5 mm
ALDHU 24 Crank Arms - black-matte/172.5 mm
ALDHU 24 Crank Arms - black-matte/172.5 mm
ALDHU 24 Crank Arms - black-matte/172.5 mm
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00
These crank arms (together with the 24 mm axle) allow the use of the ALDHU crank system with a standard Shimano bearing. Soon everyone will be able to benefit from the advantages of the Rotor ALDHU, e.g. the variable chainring positioning with OCP Mount.

Specifications:

Application:
Road
Compatibility:
1x, 2x
Chainring Mount:
Rotor direct mount*

* optional 110 mm bolt circle diameter, 4-arm asymmetrical to spider

Technical Information:

Series:
ALDHU
Crank Arm Material:
aluminium (7055)
Crank Arm Length:
170.0 mm, 172.5 mm, 175.0 mm
Q-Factor:
147 mm
Recommended Bottom Bracket:
BB86, BSA, ITA*

* A complete overview of compatible bottom brackets and any necessary spacers can be found in the spacer chart by Rotor.

Features:

  • ALDHU: innovative modular structure with different axle and chainring options
  • OCP (Optimum Chainring Position) Mount Technology: The orientation of the oval chainrings can be finely adjusted through five mounting positions of the crank on the axle; numerous mounting options for spidering or chainrings
  • easy chainring exchange with allen wrench
  • Name ALDHU (Alpe d'Huez) stands for the competition tradition of Rotor
  • version for 24 mm axle

Technology:

Aluminium 7055
Rotor uses only the best materials to make the best cranks. 7055 combines the superior physical properties of a 7000 alloy with incredible wear resistance. Each bar of raw material is ultrasonically inspected to ensure that it is free from internal defects.

Aluminium CNC
Made with the latest technologies. Computer Numerical Control (CNC) milling ensures a precise and uniform production process. This is particularly important when manufacturing components that must function properly and work in congruity with other parts. Thanks to state-of-the-art CNC equipment, Rotor parts are manufactured with extreme precision, down to a hundredth of a millimetre.

TDS
Rotor CNC cranks are stiffer than competitive cranksets thanks to Trinity Drilling System (TDS). In this procedure, three full holes are drilled from the bottom bracket to the pedal. This creates a box-like grid, similar to a box girder bridge. This makes the cranks extremely stiff while at the same time reducing weight, resulting in an excellent stiffness-to-weight ratio.

Twin Leg
Rotor's Twin Leg Concept (TLC) offers the stiffest possible crankset by balancing the left-right stiffness of the cranks. A super stiff right crank arm is of little use if the left crank arm cannot keep up. By designing the pedal cranks as a set instead of two separate crank arms, TLC contributes to the best balanced cranks available.

OCP Mount
The exclusive Rotor technology OCP Mount stands for biomechanical optimisation of the pedal stroke when using Q-Rings. OCP Mount allows you to adjust the alignment of the chainring on the crank in 1 degree increments. The shape of the axle allows independent positioning of the crank arms and Spider or Direct Mount chainring, changing the relative position so that the optimum setting can be found for the user.
The multiple positioning possibilities of OCP Mount allow a super fine adjustment of the OCP (Optimum Chainring Position). This makes it possible to prevent or eliminate knee problems, to optimise the effectiveness of the crank rotation or to improve the traction on the MTB and cyclocross.
Position your chainrings with Rotor's OCP Mount System to get the most out of your ride.

Manufacturer Numbers:

170.0 mm:
C02-108-19010-0
172.5 mm:
C02-108-20010-0
175.0 mm:
C02-108-21010-0

Contents:



Weight:

  • black-matte/170.0 mm: 355 g

Models:

  • black-matte/170.0 mm, out of stock
    176.56€
  • black-matte/172.5 mm, in stock
    173.10€
  • black-matte/175.0 mm, out of stock
    176.56€
