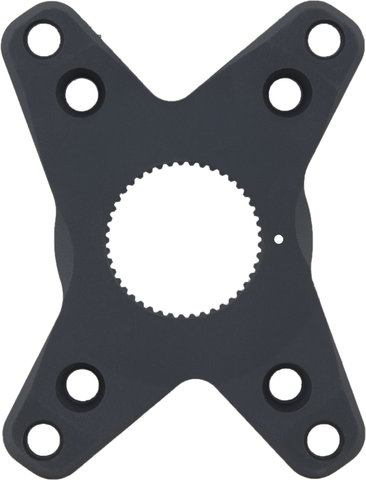

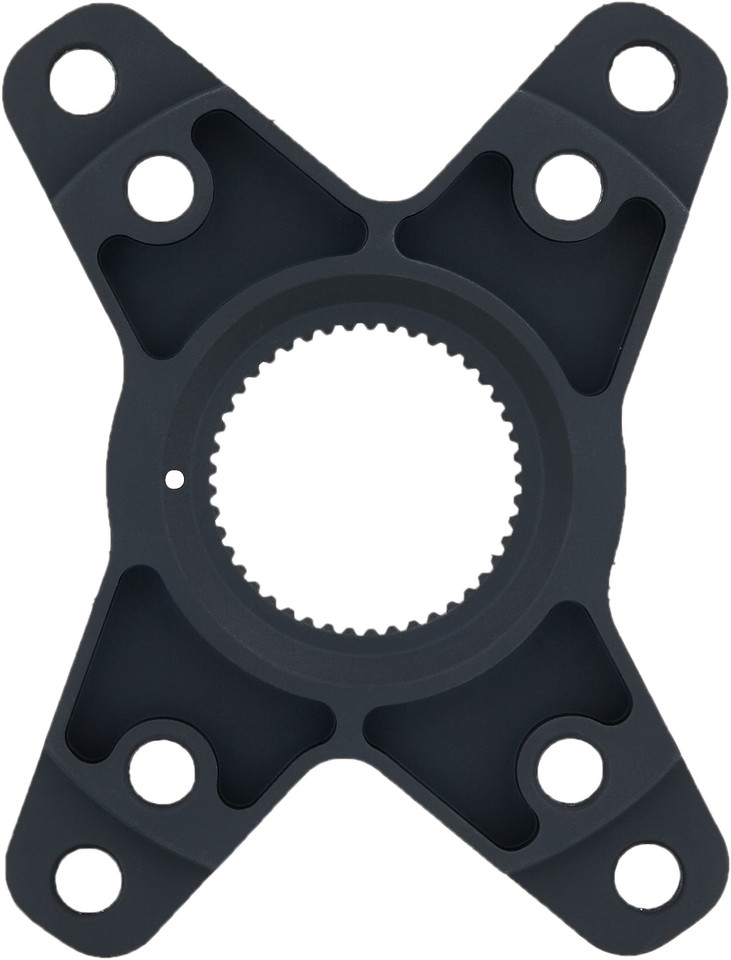

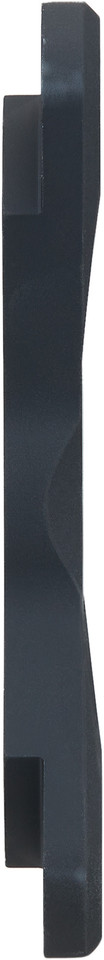

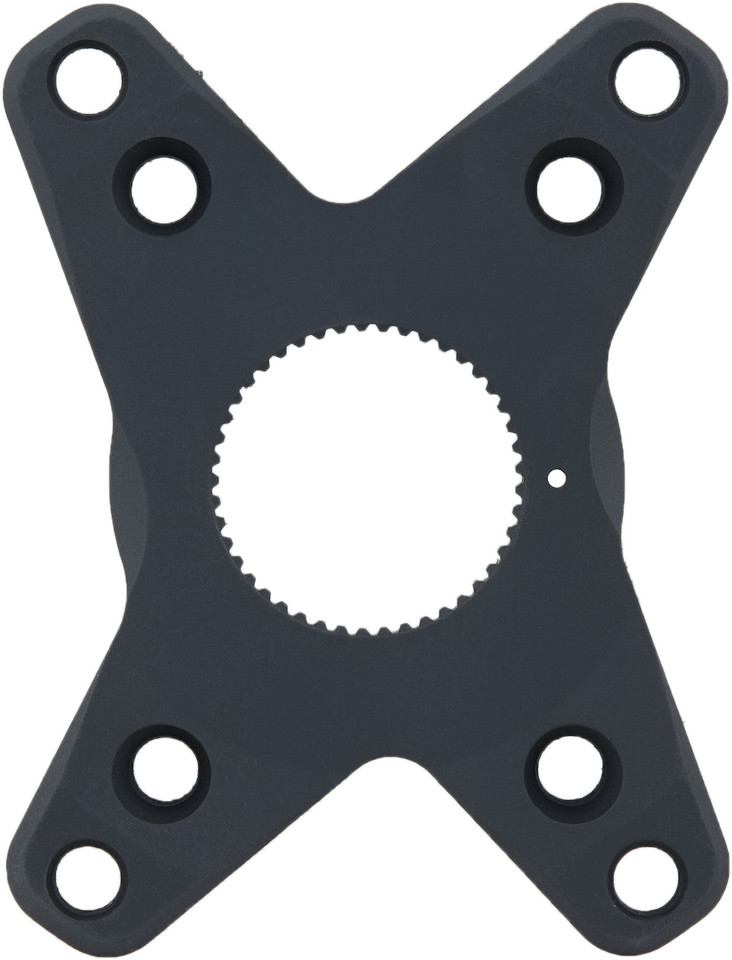

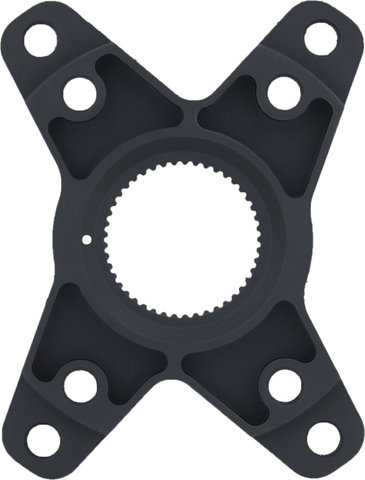

Rotor Gravel Spider, 4-arm, 110/80 mm Bolt Circle Diameter - black/universal

Rotor Gravel Spider, 4-arm, 110/80 mm Bolt Circle Diameter

Item number: 90489

Rotor Gravel Spider for Shimano GRX bolt circle diameters of 110 mm and 80 mm


The Gravel Spider from Rotor has four asymmetrically arranged arms and is designed for mounting large chainrings with a 110 mm bolt circle diameter as well as small chainrings with an 80 mm bolt circle diameter. This bolt circle combination is characteristic for cranks of the Shimano GRX groupset and is therefore also present in gravel-specific chainrings from Rotor. The spider has the special OCP Mount toothing, which allows fine adjustment of oval chainrings in 1 degree increments when using a matching axle. This way you can benefit from the advantages of the Rotor OCP mount technology even if you ride with a Shimano GRX derailleur.

Specifications:

Application:
Gravel
Compatibility:
2x
Chainring Mount:
110/80 mm bolt circle diameter, 4-arm asymmetrical

Technical Information:

Material:
aluminium

Compatibility:

  • Rotor INPower DM Road cranks
  • Rotor ALDHU cranks
  • Rotor VEGAST cranks
  • Rotor GRX chainrings
  • Shimano GRX chainrings

Features:

  • spider with Gravel/GRX-typical bolt circle diameter 110/80 mm
  • OCP Mount toothing
  • matt black finish

Technology:

OCP Mount
The exclusive Rotor technology OCP Mount stands for biomechanical optimisation of the pedal stroke when using Q-Rings. OCP Mount allows you to adjust the alignment of the chainring on the crank in 1 degree increments. The shape of the axle allows independent positioning of the crank arms and spider or direct mount chainring, changing the relative position so that the optimum setting for the user can be found.
The multiple positioning possibilities of OCP Mount allow a super fine adjustment of the OCP (Optimum Chainring Position). This makes it possible to prevent or eliminate knee problems, to optimise the effectiveness of the crank rotation or to improve the traction on the MTB and cyclocross.
Position your chainrings with Rotor's OCP Mount System to ride as efficiently as possible.

Manufacturer Number:

C02-972-99010-0

Contents:

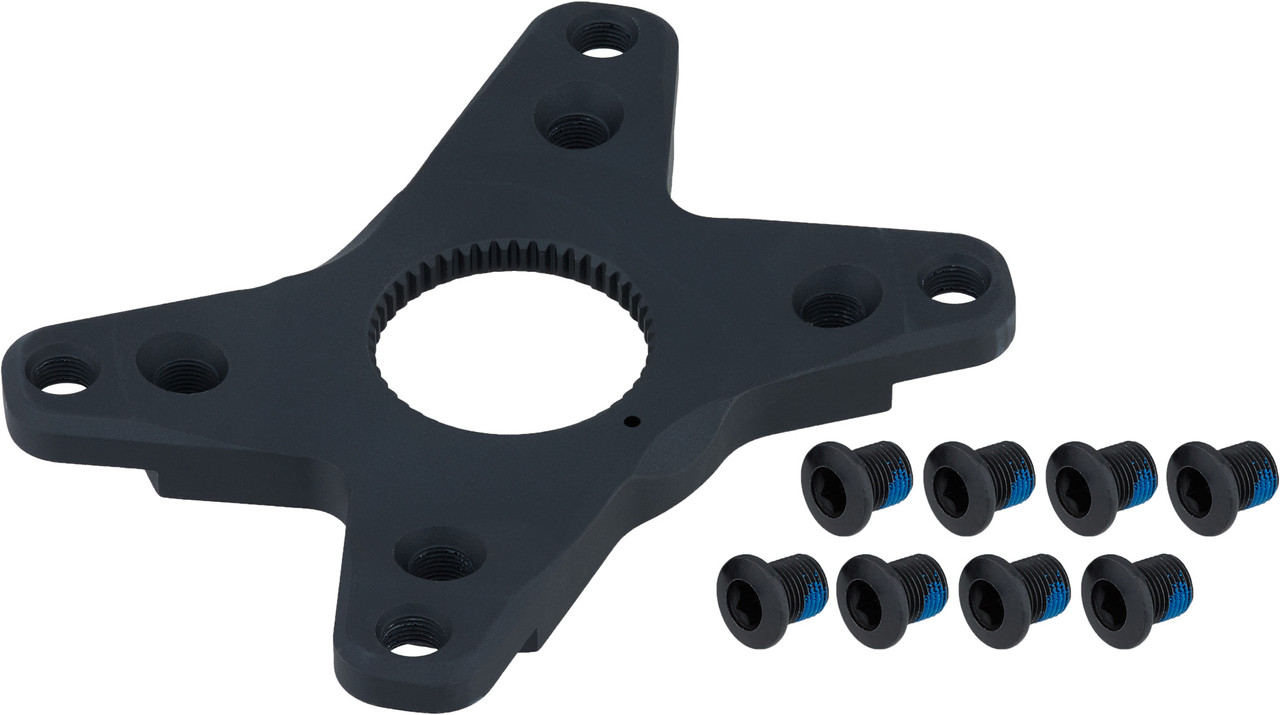

  • 1 x Rotor Gravel Spider 4-arm, 110/80 mm bolt circle
  • 8 x bolts


  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

Models:

  • black/universal, in stock
    56.25€
