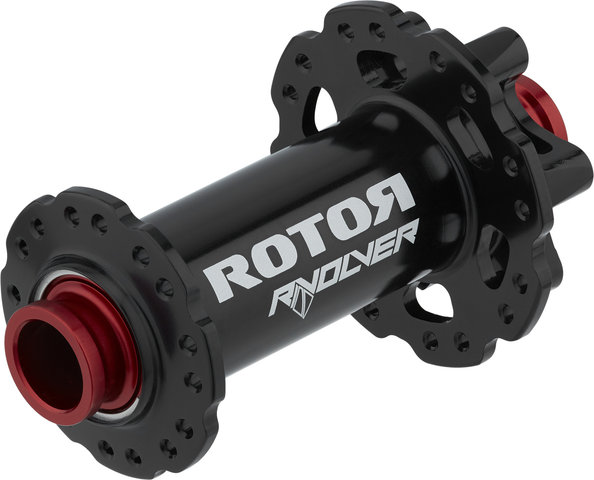

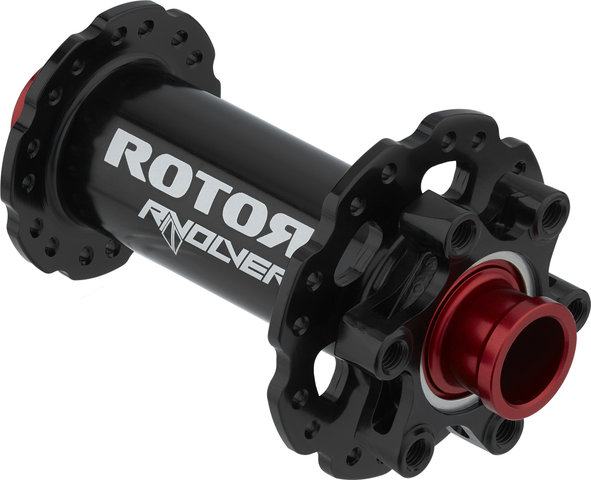

Rotor R-VOLVER MTB Boost Disc 6-bolt Front Hub

Ingenious smooth running: the R-VOLVER Front Wheel Hub by Rotor

Rotor R-VOLVER is the name of the first hub from the component forge in Madrid. The very light front hub for MTB Boost is 100% CNC machined. The contact-reduced bearing seals significantly improve rolling resistance and durability.

Specifications:

Series:

R-VOLVER

Application:

Cross Country, Enduro, Trail

Over Locknut Dimension:

15 x 110 mm thru-axle

Spoke Hole Count:

28 hole, 32 hole

Brake Type:

6-bolt disc

Technical Information:

Body Material:

aluminium (7075)

Bearings:

Steel (6902, 6803)

Flange Distance (L/R):

68 mm (27 mm/41 mm)

Partial Bolt Circle Diameter (L/R):

41.1 mm/55.3 mm

Spoke Hole Diameter:

2.4 mm

Features:

• Boost hub
• CNC manufactured
• sealed bearings
• low rolling resistance
• weight-optimised milled spoke flange
• for cranked spokes (J-bend), twice or triple crossed
• black anodised with laser engraving (red end caps)

Manufacturer Numbers:

15 x 110 mm / 28 hole:

C19-020-53010-0

15 x 110 mm / 32 hole:

C19-020-63010-0

Contents:

• 1 x Rotor R-VOLVER MTB Boost Front Hub
