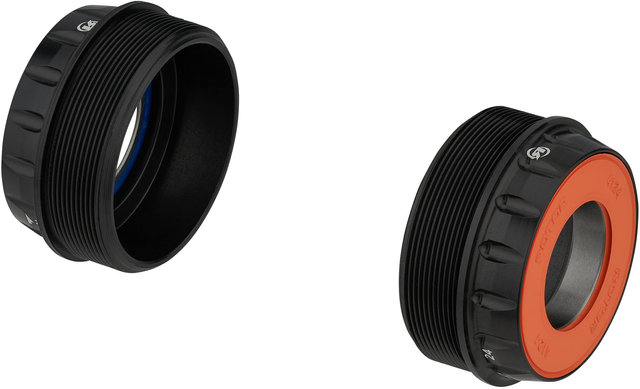

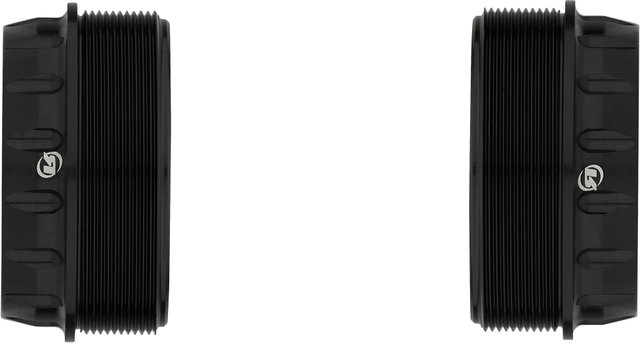

Rotor T4724 External Steel Bottom Bracket

This bottom bracket with steel bearings and external bearing cups permits the installation of a Rotor crank with 24 mm axle diameter in a T47 frame with 68 mm or 73 mm wide bottom bracket.

Specifications:

Application:

Road, Triathlon & Time Trial, Cyclocross, Cross Country, Enduro, Downhill

Type:

T47

Shell Width:

68 mm / 73 mm

Axle Diameter:

24 mm

Technical Information:

Bearings:

steel

Bottom Bracket Cup Material:

aluminium (7075)

Seals:

silicone

Compatibility:

• Rotor cranks with a 24 mm axle
• Shimano cranks with a 24 mm axle
• Road frame with 68 mm bottom bracket width
• MTB frame with 73 mm bottom bracket width

Features:

• 100% CNC milled

Technology:

Aluminium CNC
Computer Numerical Control (CNC) milling ensures a precise and uniform production process. This is particularly important when manufacturing components that must function properly and work in congruity with other parts. Thanks to state-of-the-art CNC equipment, Rotor parts are manufactured with extreme precision, down to a hundredth of a millimetre.

Manufacturer Number:

C04-034-01010-0

Contents:

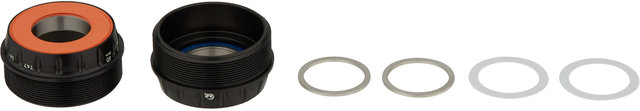

Rotor T4724 External Bottom Bracket, consisting of:

• 1 x bearing cup with steel bearings, left
• 1 x bearing cup with steel bearings, right
• 2 x spacers
• 2 x O-ring

Order Together:

• Assembly tool (Shimano)
