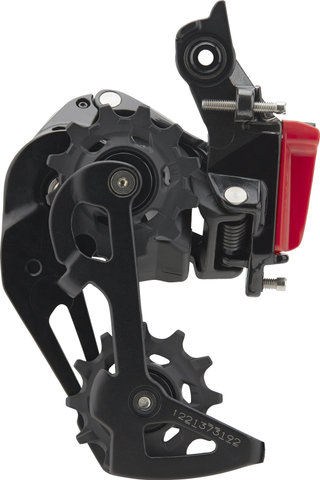

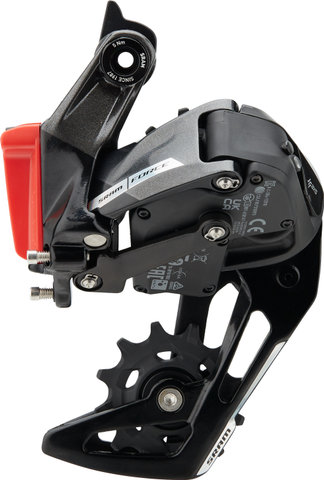

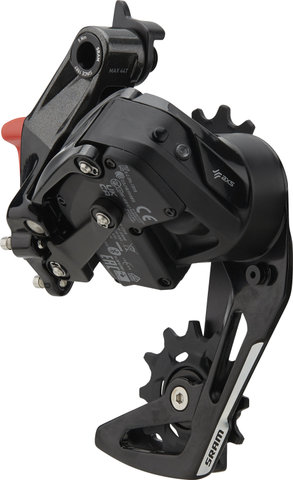

SRAM Force D2 XPLR eTap AXS 12-speed Rear Derailleur

The SRAM Force D2 XPLR eTap AXS rear derailleur for 12-speed drivetrains on gravel bikes

The SRAM Force D2 rear derailleur shifts cassettes up to 44 teeth smoothly and reliably in the XPLR version for electronic 12-speed gravel drivetrains. This gives you more range than a classic road rear derailleur. The colourful shimmering detail around the logo and series name draws attention discreetly but effectively. The X-Sync™ cogs with steel bearings are resistant to dirt and grime. The chain stays exactly where it belongs on both paved and unpaved roads with the help of Orbit damping. The rear derailleur comes with proven features such as electronic control with AXS and the simple eTap shifting logic. With AXS you save yourself the hassle of cable routing and can use the app to adjust the shifting behaviour and evaluate your shifting actions. It is best to order the required battery at the same time.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Series:

Force XPLR eTap AXS

Application:

Gravel

Gearing:

12-speed

Mount:

standard

Cassette Teeth (max.):

44-tooth

Compatibility:

SRAM Road 12-speed

Compatibility - Chains:

Force 12-speed PowerLock

Technical Information:

Derailleur Pulleys:

12-tooth

Material:

aluminium

Outer Cage Material:

aluminium

Inner Cage Material:

aluminium

Other Materials:

steel

Compatibility:

• SRAM XPLR 12-speed cassette with 10-44 teeth
• SRAM Road 12-speed cassette with 10-36 teeth

Features:

• electronic gravel rear derailleur up to 44 teeth
• secure chain retaining even off-road when riding gravel (XPLR = Explore)
• electronic, wireless shifting
• large, durable X-Sync derailleur pulleys with steel bearings
• Orbit damping for quiet, reliable operation
• easy personalisation with SRAM AXS
• intuitive eTap shifting logic

Technology:

AXS™
AXS is SRAM's electronic integration platform that combines electronic bicycle components and software. The SRAM AXS app allows you to view battery status, change component behaviour, adjust controls, receive maintenance reminders and update firmware.

eTap™
SRAM's eTap is a simple, unambiguous and intuitive shifting logic. With the shift lever on the left-hand side you move the rear derailleur inwards to a larger sprocket, with the shift lever on the right-hand side you move the derailleur outwards to a smaller sprocket. With the shift lever pressed down, you can directly shift several gears. Pressing both shift levers at the same time causes a front derailleur movement in 2x shifting systems.

X-Sync™
The X-Sync tooth design is characterised by long, rounded and slanted tooth edges with a narrow profile. Derailleur pulleys with X-Sync technology support the chain guide and remain unaffected by dust and mud.

Orbit™
Orbit technology is an innovative form of rear derailleur movement control. It uses silicone fluid as part of an elegant and ultralight damper system. Compared to a conventional friction clutch system, the Orbit technology generates no additional resistance at the rear derailleur spring during slow or light movement. This results in easier shifting and removal of the rear wheel. During the ride, the liquid damper holds the chain back in a sophisticated and elegant way. With the highest reliability and chain tension, for 2x and 1x systems.

Manufacturer Number:

00.7518.174.000

Contents:

• 1 x SRAM Force D2 XPLR eTap AXS rear derailleur

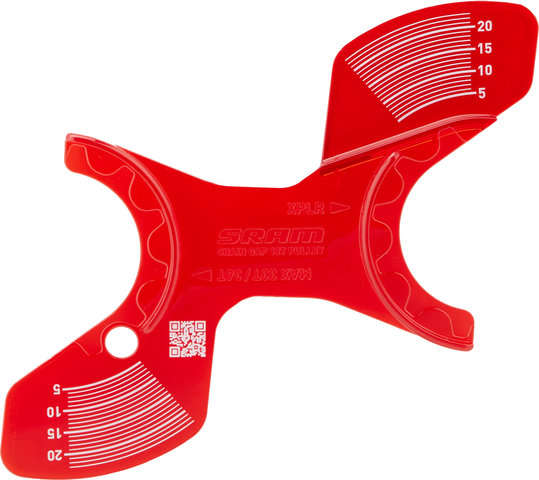

• 1 x SRAM chain gap adjustment gauge
• 1 x SRAM battery cover

Order Together:

• SRAM battery for eTap / AXS
