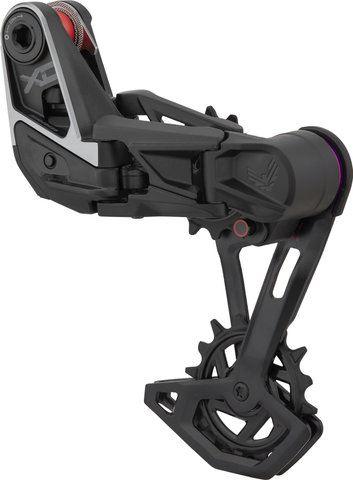

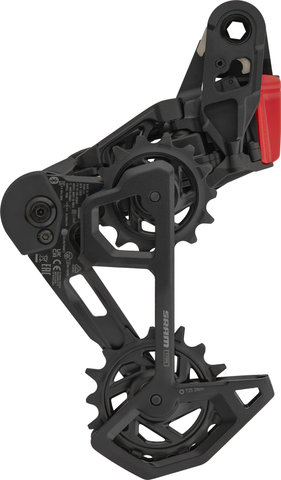

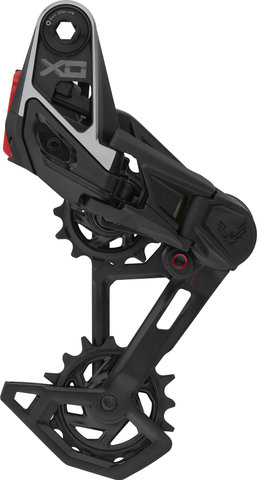

SRAM X0 Eagle Transmission AXS T-Type Rear Derailleur 12-speed

The X0 Eagle Transmission AXS T-Type rear derailleur by SRAM for fantastic shifting performance on a mountain bike with 12-speed drivetrain

The electronically controlled T-Type 12-speed AXS rear derailleur from SRAM forms the heart of the X0 Eagle Transmission mountain bike series, which is designed for robustness. The rear derailleur stands out especially thanks to Full Mount: it is mounted directly on the rear wheel axle instead of the UDH universal derailleur hanger. Use is therefore only possible on frames with this derailleur hanger. This assembly results in an exact, tolerance-free alignment of the rear derailleur and an unprecedented harmony in combination with a matching cassette. This also makes adjustment and limit bolts superfluous. In addition, the rear derailleur has an extremely robust design and is equipped with Overload Clutch technology, so that it easily absorbs impacts from all sides and you can continue riding after a fall without any problems. With AXS you can control the rear derailleur without cables and make fine adjustments in the app. It is best to order the battery for the rear derailleur directly.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

X0 Eagle Transmission

Application:

Enduro, All Mountain

Gearing:

12-speed

Mount:

Full Mount

Cassette Teeth (max.):

52-tooth

Compatibility:

SRAM MTB 12-speed

Compatibility - Chains:

recommended: X0 Eagle Transmission 12-speed PowerLock T-Type

Technical Information:

Derailleur Pulleys:

16-tooth

Outer Cage Material:

aluminium

Inner Cage Material:

aluminium

Compatibility:

• Frame: UDH universal derailleur hanger required
• Cassette: Eagle Transmission Cassettes
• Chain: T-type chains
• Shifter: AXS

Features:

• robust, wirelessly controlled rear derailleur with Full Mount assembly directly on the wheel axle
• resistant
• tolerance-free direct mount, thus strong connection to the frame
• forms a unit with matching cassette, thus taking shifting experience to a new level
• Overload Clutch protection
• maintenance-friendly
• replaceable outer joint and cover
• possible to upgrade to XX skid plates
• easy setting and personalisation with AXS
• also very well-suited for e-bikes

Technology:

Overload Clutch
In case of an impact against the rear derailleur, the motor decouples to give the rear derailleur a maximum of movement and returns to its original position after the impact.

AXS™
AXS is SRAM's electronic integration platform that combines electronic bicycle components and software. The SRAM AXS app allows you to view battery status, change component behaviour, adjust controls, receive maintenance reminders and update firmware.

Manufacturer Number:

00.7518.162.000

Contents:

• 1 x SRAM X0 Eagle Transmission AXS rear derailleur

Order Together:

• SRAM battery for eTap / AXS
