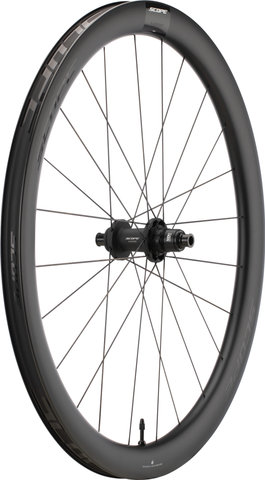

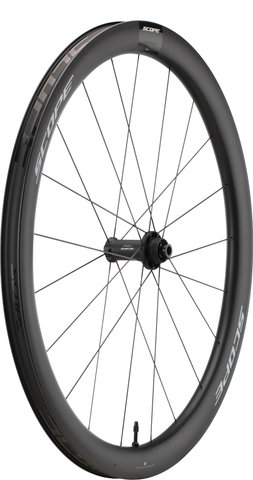

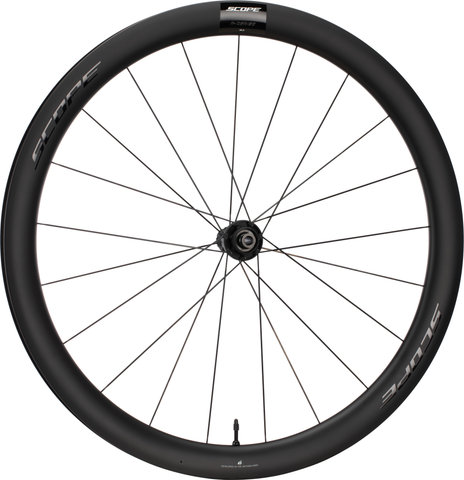

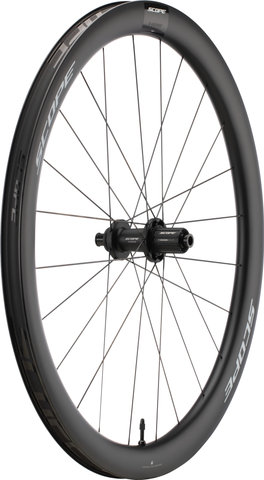

Scope Cycling R4.A Disc Centre-Lock 28'' Wheelset
Product Description

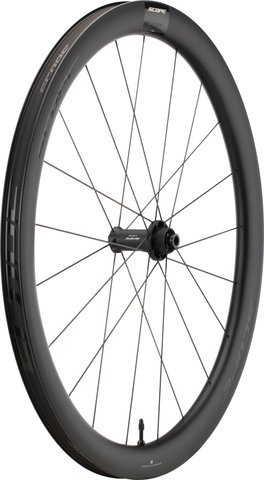

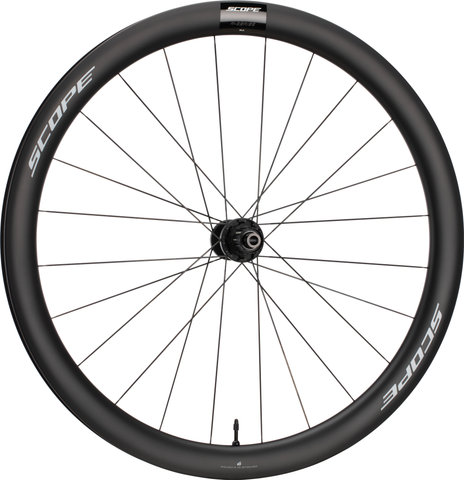

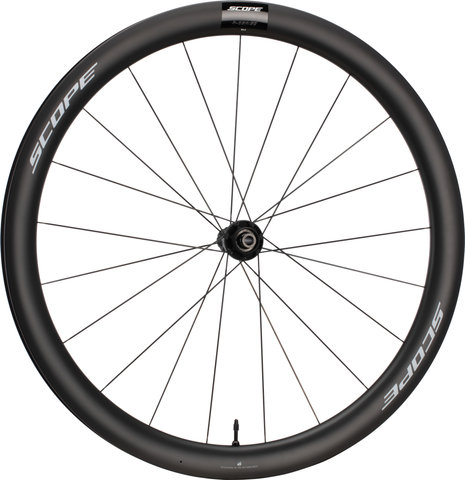

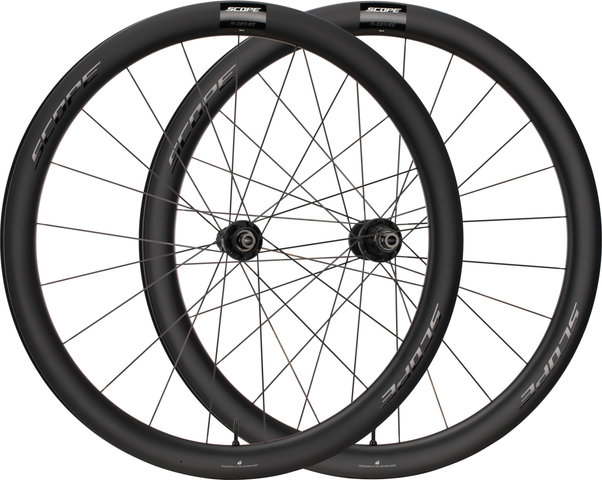

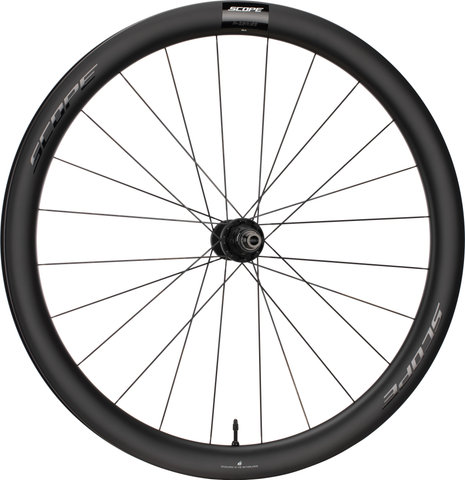

Scope R4.A wheelset – lightweight all-road carbon wheelset from the Race Series
The Scope R4.A wheelset is derived from the Artech series and developed for fast road riding, climbs, racing, intensive training and light gravel routes. With a 45 mm rim depth and a set weight of just 1398 g, it combines aerodynamic efficiency with a light, race-ready construction. The 25 mm internal width and 33.7 mm external width are aerodynamically optimised for 30 mm road and gravel tyres and offer tyre compatibility from 29 to 71 mm. Due to the wide rim, tyres may measure wider than usual once mounted. We therefore recommend checking whether your frame and fork provide clearance for at least 32 mm tyres before installation.

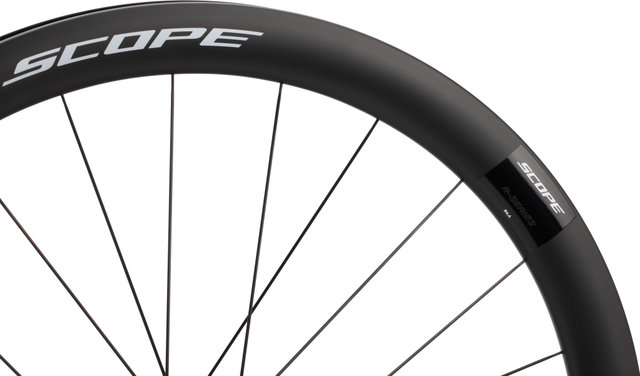

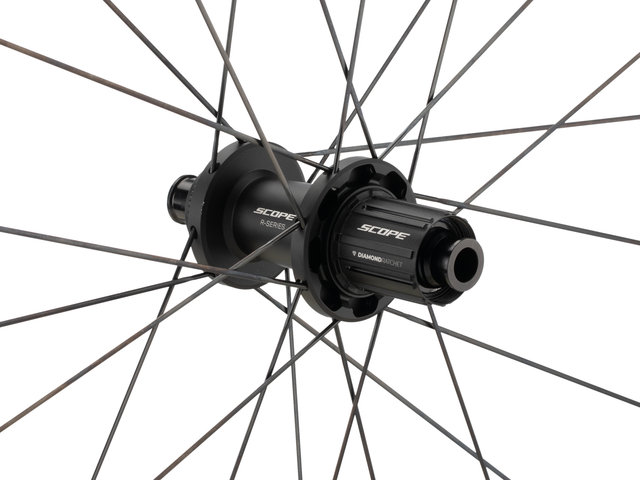

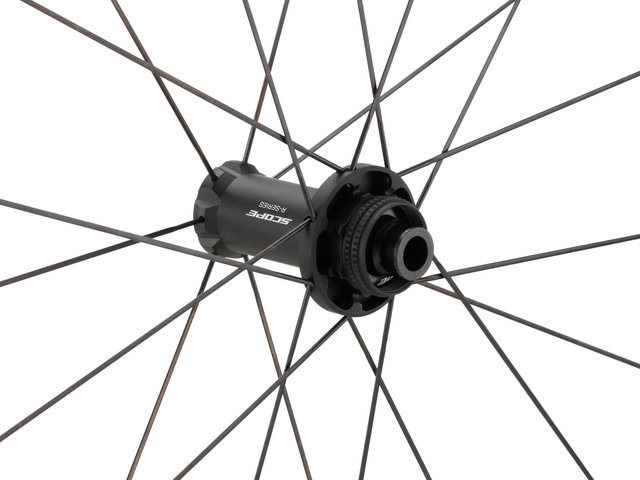

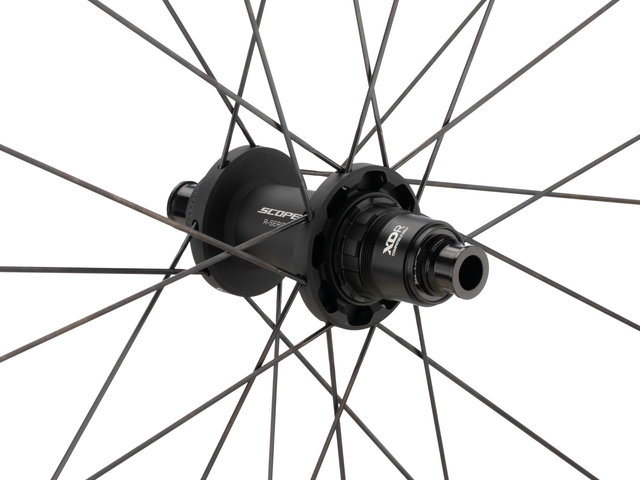

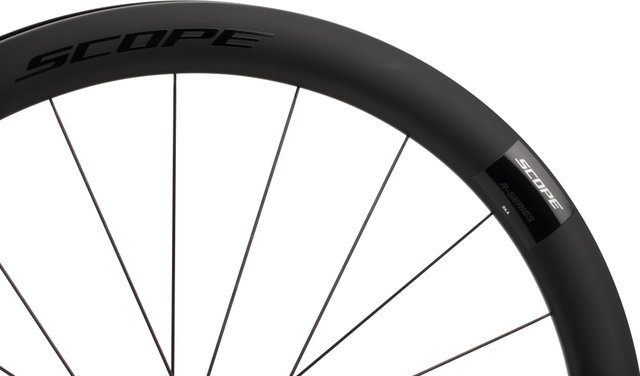

The rim profile is based on Scope Algorithm Enhanced Aerodynamics and designed for high efficiency at speed. Local Reinforcement Carbon strengthens the areas around the spoke holes to reduce weight while maintaining stiffness and stability. R-Series hubs with a mechanical labyrinth system help protect against dirt ingress and support long-lasting function. The 36T Diamond Ratchet SL system, SKF bearings, Sapim CX-Ray spokes and Centerlock brake interface make the R4.A a fast and versatile race wheelset for modern road and all-road bikes.
Scope offers a 3-year warranty for the first owner after registration, as well as a 3-year crash replacement discount for the first owner after registration. According to the manufacturer, there is no maximum rider weight.
Product Specifications:
- Rim material:
- Carbon
- Rim height rear:
- 45 mm
- Inner rim width:
- 25 - 25 mm
- Brake system:
- Disc Center Lock
- Number of spokes:
- 21 (front), 24 (rear)
- Rim flange:
- With hook
- Rim height front:
- 45 mm
- Outer rim width:
- 30 - 30 mm
- Tubeless system:
- Tubeless Ready
- Valve hole (diameter):
- SV (6.5 mm)
- Application:
- Cyclocross, Gravel, Road
white | 100 mm | Shimano Road | 28" | 142 mm:
- Wheel size:
- 28"
white | 100 mm | SRAM XDR | 28" | 142 mm:
- Wheel size:
- 28"
white | 100 mm | Campagnolo N3W | 28" | 142 mm:
- Wheel size:
- 28"
black | 100 mm | Shimano Road | 28" | 142 mm:
- Wheel size:
- 28"
black | 100 mm | SRAM XDR | 28" | 142 mm:
- Wheel size:
- 28"
black | 100 mm | Campagnolo N3W | 28" | 142 mm:
- Wheel size:
- 28"
Technical Information:
- Rear hub bearings:
- Steel bearings
- Front hub bearings:
- Steel bearings
- Front hub shell material:
- Aluminum
- Rear hub shell material:
- Aluminum
- Spoke material:
- Stainless steel
- Spoke type/construction:
- Sapim CX-Ray / Straightpull / Blade spoke
- Rear freehub body material:
- Aluminum
white | 100 mm | Shimano Road | 28" | 142 mm:
- Rear installation width:
- 142 mm
- Front installation width:
- 100 mm
- Freehub:
- Shimano Road
- Axle diameter front:
- 12 mm
- Gear steps:
- 8-/9-/10-/11-/12-speed
- Axle diameter rear:
- 12 mm
white | 100 mm | SRAM XDR | 28" | 142 mm:
- Freehub:
- SRAM XDR
- Axle diameter rear:
- 12 mm
- Axle diameter front:
- 12 mm
- Rear installation width:
- 142 mm
- Front installation width:
- 100 mm
- Gear steps:
- 11-/12-speed, 13-speed
white | 100 mm | Campagnolo N3W | 28" | 142 mm:
- Front installation width:
- 100 mm
- Freehub:
- Campagnolo N3W
- Axle diameter front:
- 12 mm
- Rear installation width:
- 142 mm
- Gear steps:
- 11-/12-/13-speed
- Axle diameter rear:
- 12 mm
black | 100 mm | Shimano Road | 28" | 142 mm:
- Front installation width:
- 100 mm
- Freehub:
- Shimano Road
- Gear steps:
- 8-/9-/10-/11-/12-speed
- Axle diameter front:
- 12 mm
- Rear installation width:
- 142 mm
- Axle diameter rear:
- 12 mm
black | 100 mm | SRAM XDR | 28" | 142 mm:
- Freehub:
- SRAM XDR
- Axle diameter rear:
- 12 mm
- Axle diameter front:
- 12 mm
- Rear installation width:
- 142 mm
- Front installation width:
- 100 mm
- Gear steps:
- 11-/12-speed, 13-speed
black | 100 mm | Campagnolo N3W | 28" | 142 mm:
- Freehub:
- Campagnolo N3W
- Axle diameter front:
- 12 mm
- Front installation width:
- 100 mm
- Rear installation width:
- 142 mm
- Gear steps:
- 11-/12-/13-speed
- Axle diameter rear:
- 12 mm
Product Features:
• 45 mm deep carbon rims for lightweight aero performance
• Only 1398 g set weight for racing, climbing and training
• 25 mm internal width and 33.7 mm external width
• Aerodynamically optimised for 30 mm road and gravel tyres
• Tyre compatibility from 29 to 71 mm
• Hooked tubeless rim bed
• Compatible with tubeless and clincher tyres
• Wide rim – check tyre clearance before installation
• Recommendation: frame and fork should provide clearance for at least 32 mm tyres
• Scope Algorithm Enhanced Aerodynamics rim profile
• Local Reinforcement Carbon around the spoke holes
• R-Series hubs with mechanical labyrinth protection system
• 36T Diamond Ratchet SL system for direct power transfer
• SKF bearings for reliable performance
• Sapim CX-Ray spokes
• Centerlock brake interface
• 3-year warranty for the first owner after registration
• 3-year crash replacement discount for the first owner after registration
• No maximum rider weight according to the manufacturer
Manufacturer Number:
- white | 100 mm | Shimano Road | 28" | 142 mm: SC2025310
- white | 100 mm | SRAM XDR | 28" | 142 mm: SC2025312
- white | 100 mm | Campagnolo N3W | 28" | 142 mm: SC2025314
- black | 100 mm | Shimano Road | 28" | 142 mm: SC2025315
- black | 100 mm | SRAM XDR | 28" | 142 mm: SC2025317
- black | 100 mm | Campagnolo N3W | 28" | 142 mm: SC2025319
Contents:

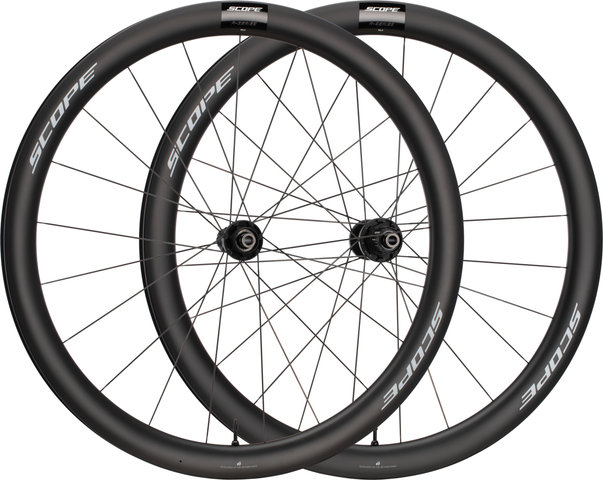

- 1 × Scope R4.A 28" wheelset
- 1 pair of Scope Tubeless Valves (pre-installed)
- 2 × Scope Tubeless Rim Tape (pre-installed)
Weight:
- white | 100 mm | Shimano Road | 28" | 142 mm: 1398 g
- white | 100 mm | SRAM XDR | 28" | 142 mm: 1398 g
- white | 100 mm | Campagnolo N3W | 28" | 142 mm: 1398 g
- black | 100 mm | Shimano Road | 28" | 142 mm: 1398 g
- black | 100 mm | SRAM XDR | 28" | 142 mm: 1398 g
- black | 100 mm | Campagnolo N3W | 28" | 142 mm: 1398 g
