Scope Cycling R4 Disc Centre-Lock 28'' Wheelset
Product Description

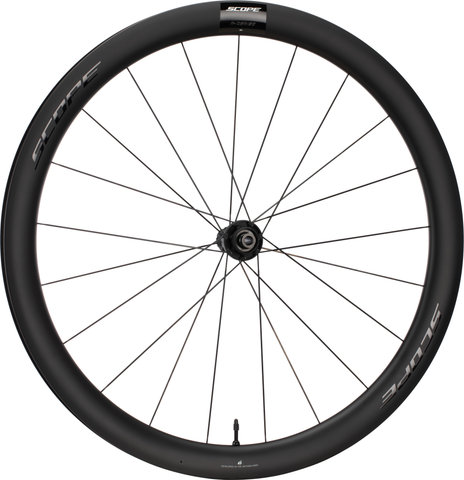

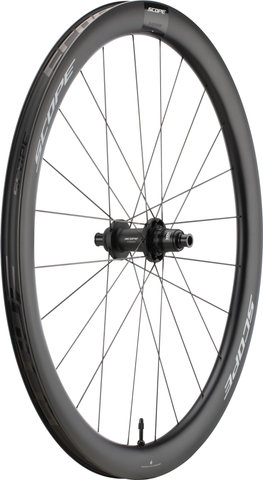

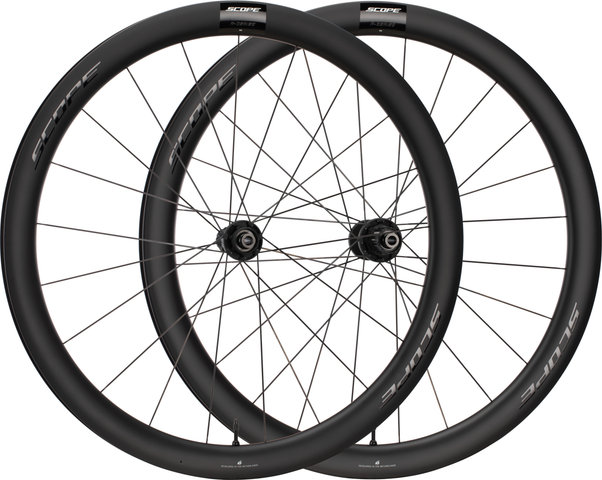

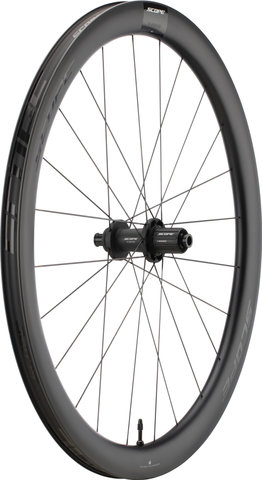

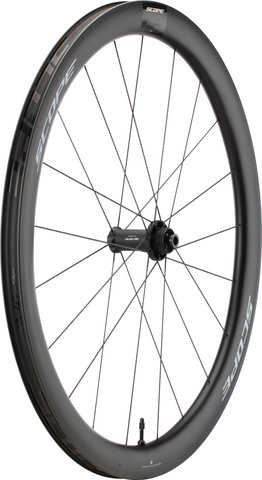

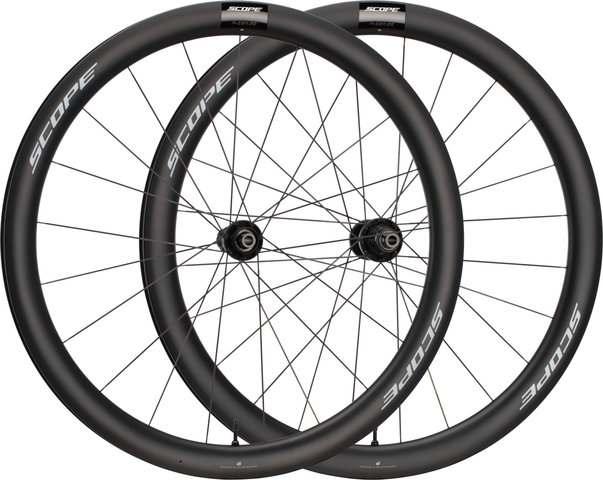

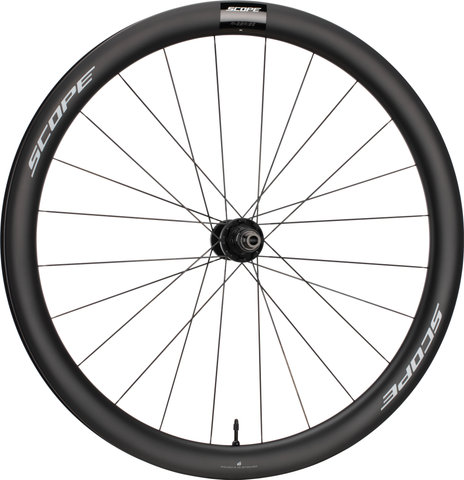

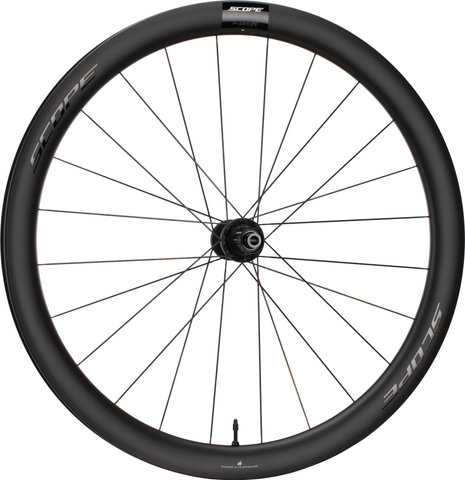

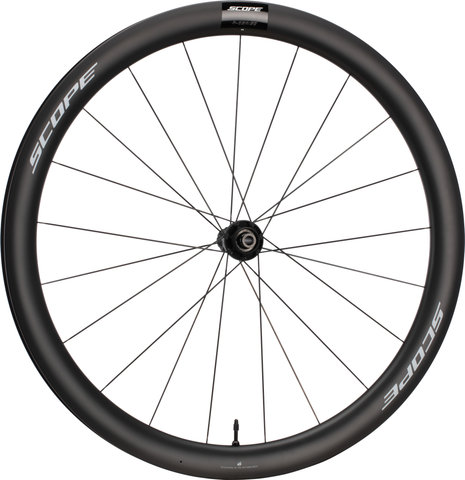

Scope R4 wheelset – lightweight road race carbon wheelset from the Race Series
The Scope R4 wheelset is derived from the Artech series and developed for fast road riding, climbs, racing and intensive training. With a 45 mm rim depth and a set weight of just 1349 g, it combines aerodynamic efficiency with a very light, race-ready construction. The 23 mm internal width and 31 mm external width are aerodynamically optimised for 28 mm road tyres and offer tyre compatibility from 28 to 65 mm. The hooked tubeless rim bed is compatible with tubeless and clincher tyres.

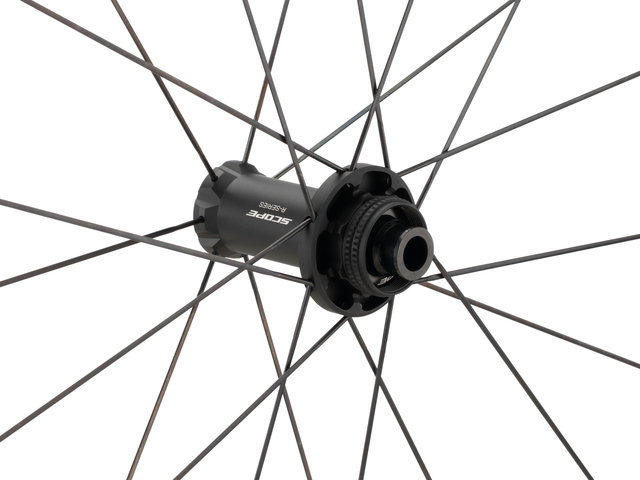

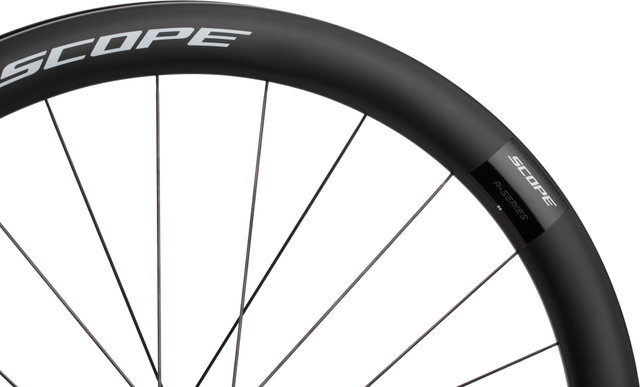

The rim profile is based on Scope Algorithm Enhanced Aerodynamics and designed for high efficiency at speed. Local Reinforcement Carbon strengthens the areas around the spoke holes to reduce weight while maintaining stiffness and stability. R-Series hubs with a mechanical labyrinth system help protect against dirt ingress and support long-lasting function. The 36T Diamond Ratchet SL system, SKF bearings, Sapim CX-Ray spokes and Centerlock brake interface make the R4 a light and fast all-round wheelset for modern road bikes.
Scope offers a 3-year warranty for the first owner after registration, as well as a 3-year crash replacement discount for the first owner after registration. According to the manufacturer, there is no maximum rider weight.
Product Specifications:
- Tire type:
- Clincher tire/folding tire
- Tubeless system:
- Tubeless Ready
- Valve hole (diameter):
- SV (6.5 mm)
- Rim material:
- Carbon
- Number of spokes:
- 21 (front), 24 (rear)
- Application:
- Road
- Outer rim width:
- 31 - 31 mm
- Rim height rear:
- 45 mm
- Rim flange:
- With hook
- Brake system:
- Disc Center Lock
- Inner rim width:
- 23 - 23 mm
- Rim height front:
- 45 mm
white | Shimano Road | 142 mm | 100 mm | 28":
- Wheel size:
- 28"
white | Shimano Micro Spline | 142 mm | 100 mm | 28":
- Wheel size:
- 28"
white | SRAM XDR | 142 mm | 100 mm | 28":
- Wheel size:
- 28"
white | Campagnolo N3W | 142 mm | 100 mm | 28":
- Wheel size:
- 28"
black | Shimano Road | 142 mm | 100 mm | 28":
- Wheel size:
- 28"
black | SRAM XDR | 142 mm | 100 mm | 28":
- Wheel size:
- 28"
black | Campagnolo N3W | 142 mm | 100 mm | 28":
- Wheel size:
- 28"
Technical Information:
- Front hub shell material:
- Aluminum
- Rear hub shell material:
- Aluminum
- Spoke material:
- Stainless steel
- Spoke type/construction:
- Sapim CX-Ray / Straightpull / Blade spoke
- Rear freehub body material:
- Aluminum
- Freehub type:
- 36T Diamond Ratchet SL
- Rear hub type:
- Scope R-Series
- Front hub type:
- Scope R-Series
- Rear hub bearings:
- Steel bearings
- Front hub bearings:
- Steel bearings
white | Shimano Road | 142 mm | 100 mm | 28":
- Freehub:
- Shimano Road
- Gear steps:
- 8-/9-/10-/11-/12-speed
- Axle diameter rear:
- 12 mm
- Rear installation width:
- 142 mm
- Axle diameter front:
- 12 mm
- Front installation width:
- 100 mm
white | Shimano Micro Spline | 142 mm | 100 mm | 28":
- Freehub:
- Shimano Micro Spline
- Gear steps:
- 12-speed
- Rear installation width:
- 142 mm
- Axle diameter rear:
- 12 mm
- Axle diameter front:
- 12 mm
- Front installation width:
- 100 mm

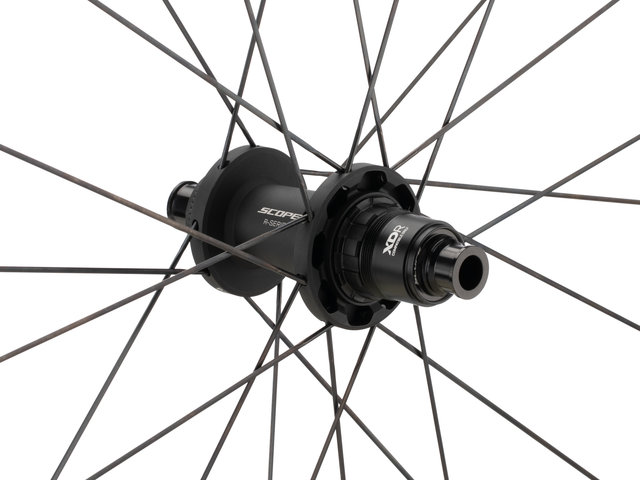

white | SRAM XDR | 142 mm | 100 mm | 28":
- Freehub:
- SRAM XDR
- Gear steps:
- 11-/12-speed, 13-speed
- Rear installation width:
- 142 mm
- Axle diameter rear:
- 12 mm
- Front installation width:
- 100 mm
- Axle diameter front:
- 12 mm
white | Campagnolo N3W | 142 mm | 100 mm | 28":
- Freehub:
- Campagnolo N3W
- Gear steps:
- 11-/12-/13-speed
- Axle diameter front:
- 12 mm
- Rear installation width:
- 142 mm
- Axle diameter rear:
- 12 mm
- Front installation width:
- 100 mm
black | Shimano Road | 142 mm | 100 mm | 28":
- Freehub:
- Shimano Road
- Gear steps:
- 8-/9-/10-/11-/12-speed
- Axle diameter rear:
- 12 mm
- Axle diameter front:
- 12 mm
- Front installation width:
- 100 mm
- Rear installation width:
- 142 mm
black | SRAM XDR | 142 mm | 100 mm | 28":
- Freehub:
- SRAM XDR
- Gear steps:
- 11-/12-speed, 13-speed
- Axle diameter rear:
- 12 mm
- Axle diameter front:
- 12 mm
- Front installation width:
- 100 mm
- Rear installation width:
- 142 mm
black | Campagnolo N3W | 142 mm | 100 mm | 28":
- Freehub:
- Campagnolo N3W
- Gear steps:
- 11-/12-/13-speed
- Front installation width:
- 100 mm
- Axle diameter rear:
- 12 mm
- Axle diameter front:
- 12 mm
- Rear installation width:
- 142 mm
Product Features:
• 45 mm deep carbon rims for lightweight aero performance
• Only 1349 g set weight for climbing, racing and training
• 23 mm internal width and 31 mm external width
• Aerodynamically optimised for 28 mm road tyres
• Tyre compatibility from 28 to 65 mm
• Hooked tubeless rim bed
• Compatible with tubeless and clincher tyres
• Scope Algorithm Enhanced Aerodynamics rim profile
• Local Reinforcement Carbon around the spoke holes
• R-Series hubs with mechanical labyrinth protection system

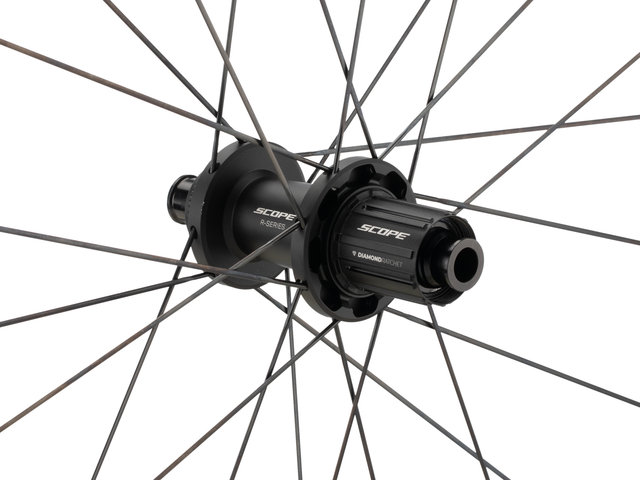

• 36T Diamond Ratchet SL system for direct power transfer
• SKF bearings for reliable performance
• Sapim CX-Ray spokes
• Centerlock brake interface
• 3-year warranty for the first owner after registration
• 3-year crash replacement discount for the first owner after registration
• No maximum rider weight according to the manufacturer
Manufacturer Number:
- white | Shimano Road | 142 mm | 100 mm | 28": SC2025300
- white | Shimano Micro Spline | 142 mm | 100 mm | 28": SC2025301
- white | SRAM XDR | 142 mm | 100 mm | 28": SC2025302
- white | Campagnolo N3W | 142 mm | 100 mm | 28": SC2025304
- black | Shimano Road | 142 mm | 100 mm | 28": SC2025305
- black | SRAM XDR | 142 mm | 100 mm | 28": SC2025307
- black | Campagnolo N3W | 142 mm | 100 mm | 28": SC2025309
Contents:
- 1 × Scope R4 28" wheelset
- 1 pair of Scope Tubeless Valves (pre-installed)
- 2 × Scope Tubeless Rim Tape (pre-installed)
Weight:
- white | Shimano Road | 142 mm | 100 mm | 28": 1349 g
- white | Shimano Micro Spline | 142 mm | 100 mm | 28": 1349 g
- white | SRAM XDR | 142 mm | 100 mm | 28": 1349 g
- white | Campagnolo N3W | 142 mm | 100 mm | 28": 1349 g
- black | Shimano Road | 142 mm | 100 mm | 28": 1349 g
- black | SRAM XDR | 142 mm | 100 mm | 28": 1349 g
- black | Campagnolo N3W | 142 mm | 100 mm | 28": 1349 g
