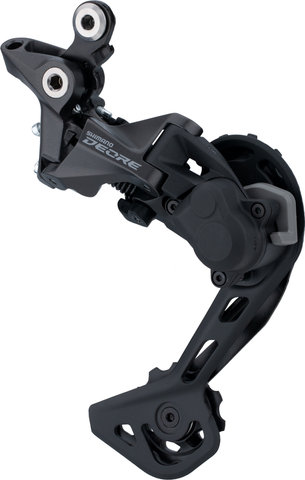

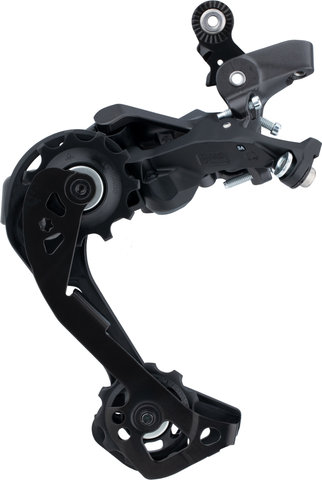

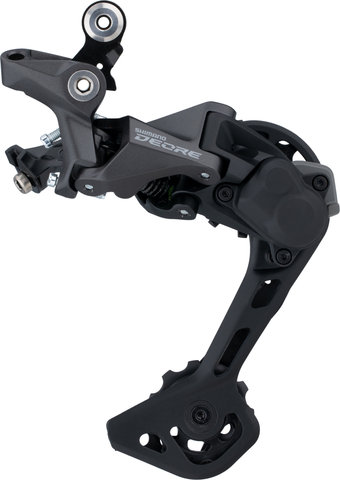

Shimano Deore RD-M5120 10/11-speed Shadow Plus Rear Derailleur

Shimano Deore rear derailleur RD-M5120 - can take 10-speed sprockets up to 46 teeth

The Shimano Deore RD-M5120 rear derailleur can be combined with 2x10-speed and 2x11-speed drivetrains as well as 1x10-speed drivetrains. It is designed for 42 tooth on the largest cassette sprocket when using a drivetrain with two chainrings, and can handle up to 46 teeth on the largest sprocket when using a 1x set-up. The rear derailleur features Shadow+ clutch technology, where a stabilizer counteracts chain sag, slap and drop. RD-M5120 is either mounted via a standard derailleur hanger or directly.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

Deore M5100

Application:

All Mountain, Cross Country, Touring

Gearing:

10-speed, 11-speed

Mount:

standard (Direct Mount compatible)

Capacity:

41-tooth

Compatibility:

Shimano MTB / Touring 10-speed, Shimano MTB 11-speed

Compatibility - Chains:

HG-X 10-speed, HG-X 11-speed

Technical Information:

Derailleur Pulleys:

11-tooth

Outer Cage Material:

steel

Inner Cage Material:

steel

Other Materials:

Aluminium, stainless steel, steel, synthetic resin (resin)

Compatibility:

MTB 2x11-speed:

Shifter:

SL-M9000, SL-M8000, SL-M7000-11, SL-M5100

Cassette:

CS-M8000, CS-M7000-11, CS-M5100-11 (11-42 T only)

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

E-Bike:

EP8 for MTB / Trekking

MTB 10-speed:

Shifter:

SL-M7000-10, SL-M6000, SL-M4100, SL-M820, SL-M640, SL-M610

Cassette:

• 1x10-speed: CS-M4100-10 (only 11-42, 11-46 T), CS-M5100-11 (only 11-42 T)
• 2x10-speed: CS-M4100-10, CS-HG500-10 (only 11-42 T)

Chain:

CN-HG95, CN-HG54

E-Bike:

EP8 EP800 for MTB / Touring

Features:

• low-noise drivetrain in all switching positions
• reduced tension of rear derailleur and chain in low gears
• compact profile limits damage from rocks and roots
• chain stabilizer (Shadow+) against chain drops, chain slaps and noise
• painted cage plates
• 4 pivot bushings, fluorine-coated

Technology:

Shadow RD+
Shadow Plus rear derailleurs are just as low-profile as Shimano's Shadow rear derailleurs. In addition, a stabilizer with on/off switch is used to reduce chain slap and thus counteract chain drop. At the same time, this results in a quieter drive. Weight is also saved compared to other chain restraint devices.

Models:

long:

Cage Length:

SGS

Max. Largest Sprocket Teeth:

42 teeth (2x10-speed, 2x11-speed), 46 teeth (1x10-speed)

Min. Largest Sprocket Teeth:

42-tooth

Max. Smallest Sprocket Teeth:

11-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

10-tooth

Total Capacity:

41-tooth

Manufacturer Number:

E-RDM5120SGS

Contents:

• 1 x Shimano Deore RD-M5120 Shadow+ rear derailleur
