Shimano Disc Brake Adapter for 180 mm Rotors

Shimano disc brake adapter for 180 mm rotors - adapts fork and frame to the brake

The Shimano disc brake adapter for 180 mm brake rotors adapts different standards of brake calipers and frames or forks. This allows IS brake calipers to be operated on post mount forks and vice versa. There are also versions to adapt IS forks, which only allow the direct mount of 160 mm brake rotors, and IS frames, which are designed for 140 mm brake rotors, to a 180 mm rotors. The same is also true for post mount: Here the difference between 160 mm (direct mount) and 180 mm is bridged. The flat mount versions are intended exclusively for frames or forks that are designed for 160 mm and 180 mm brake rotors. The scope of delivery varies from version to version.

Technical Information:

Adapter Material:

Aluminium

Bolt Material:

steel

Rotor Size:

180 mm

Models:

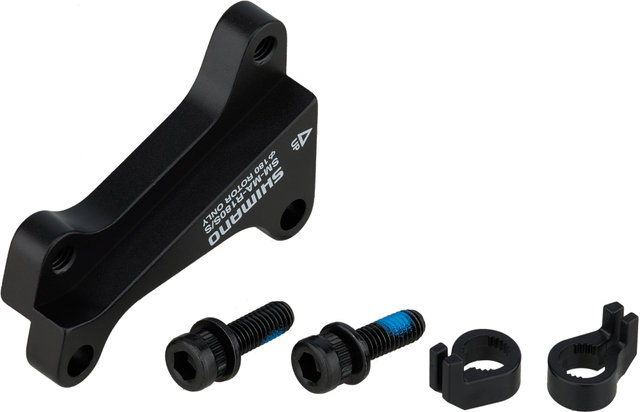

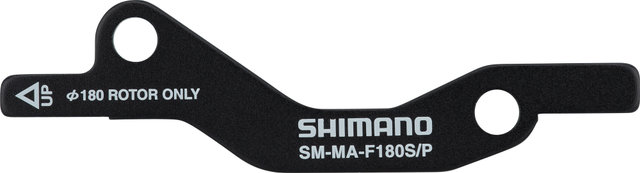

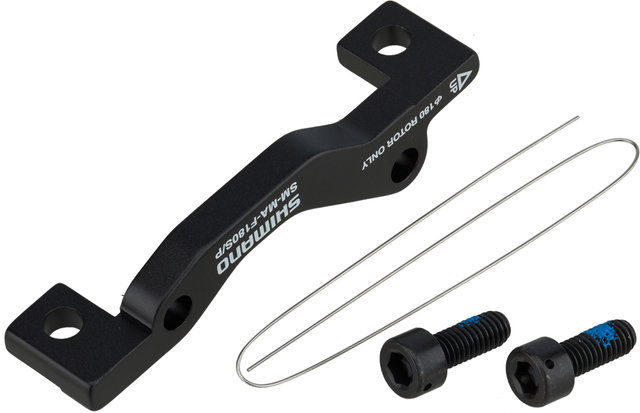

front PM to IS:

Fork Mount:

post mount

Caliper Mount:

international standard

Included in Delivery:

2 x bolts, 1 x safety wire

Manufacturer Number:

I-SMMAF180SPA

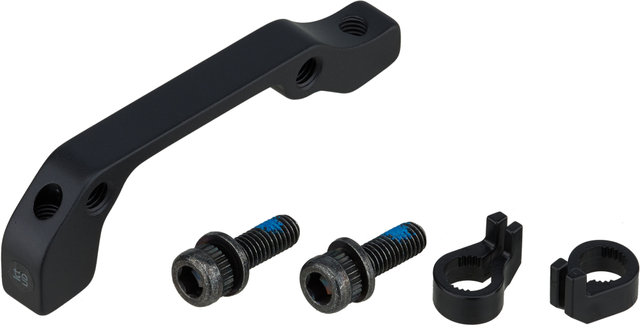

front IS to PM:

Fork Mount:

international standard

Caliper Mount:

post mount

Included in Delivery:

2 x bolts, 2 x stop rings

Manufacturer Number:

I-SMMAF180PSA

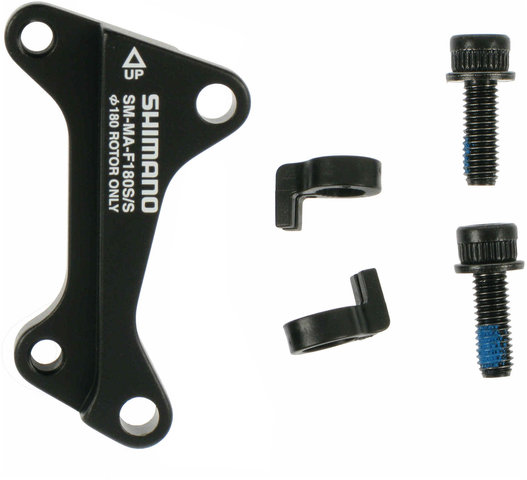

front IS to IS:

Fork Mount:

international standard

Caliper Mount:

international standard

Included in Delivery:

2 x bolts, 2 x stop rings

Manufacturer Number:

I-SMMAF180SSA

PM on PM: Closeout

Frame/Fork Mount:

post mount 6"

Caliper Mount:

post mount

Increased Height:

20 mm

Included in Delivery:

1 x long bolt, 1 x short bolt, 1 x stop-ring, 2 x A-type washers, 2 x B-type washers

Manufacturer Number:

E-SMMAF180PP2

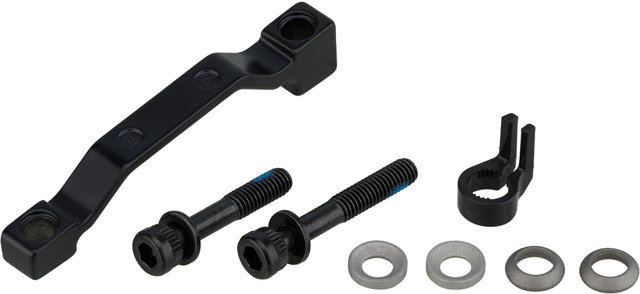

PM 6" to PM +20 mm:

Frame/Fork Mount:

post mount 6"

Caliper Mount:

post mount

Increased Height:

20 mm

Included in Delivery:

1 x long bolt, 1 x short bolt, 1 x snap ring (also compatible with BR-M7100/M7120/M8100/M8120), 2 x washers A, 2 x washers B

Manufacturer Number:

E-SMMAF180PP2A

rear IS to PM:

Frame Mount:

international standard

Caliper Mount:

post mount

Included in Delivery:

2 x bolts, 2 x stop rings

Manufacturer Number:

I-SMMAR180PSA

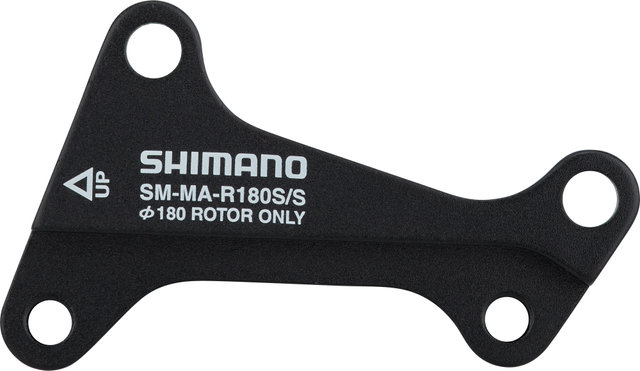

rear IS to IS:

Frame Mount:

international standard

Caliper Mount:

international standard

Included in Delivery:

2 x bolts, 2 x stop rings

Manufacturer Number:

I-SMMAR180SSA

Front FM 160/180 to FM 180:

Fork Mount:

Flat Mount 160 mm / 180 mm

Caliper Mount:

flat mount

Note:

Please note the alignment type. To install a 180 mm rotor, the " UP" arrow on the side marked " For Ø160 or Ø180 for 160/180 mount" must point upwards. Not compatible with BR-UR300.

Manufacturer Number:

Y-8N230000

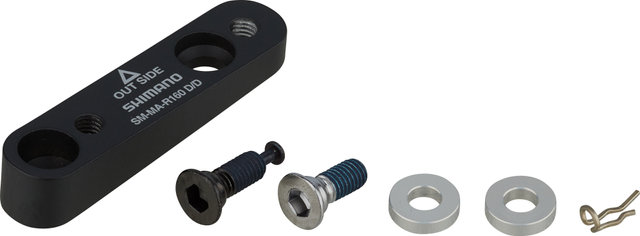

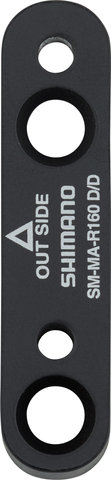

Rear FM 160/180 to FM 180:

Frame Mount:

Flat Mount 160 mm / 180 mm

Caliper Mount:

flat mount

Included in Delivery:

2 x flat mount type B bolts, 2 x washers, 1 x lockring

Note:

Not compatible with BR-UR300.

Manufacturer Number:

I-SMMAR160DDA

Contents:

• 1 x Shimano 180 mm adapter
