Shimano Disc Brake Adapter for 203 mm Rotors

The disc brake adapter for 203 mm brake rotors by Shimano - IS to PM, PM to IS and more

The Shimano disc brake adapter for 203 mm brake rotors compensates for differences between the mounting standards of the brake caliper and frame or fork. Depending on the version, it can be used to operate a post mount brake on an international standard fork or frame or an IS brake on a PM fork. Furthermore, there are versions to adapt IS forks, which only allow direct mounting of 160 mm brake rotors, and IS frames, which are designed for a 140 mm brake rotor, to a 203 mm rotor. The same is found with post mount: here, the difference between 160 mm, 180 mm or 200 mm direct mount and 203 mm is bridged. The scope of delivery varies from version to version.

Technical Information:

Adapter Material:

Aluminium

Bolt Material:

steel

Rotor Size:

203 mm

Models:

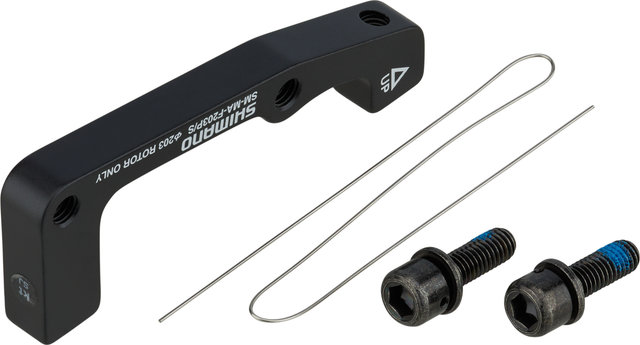

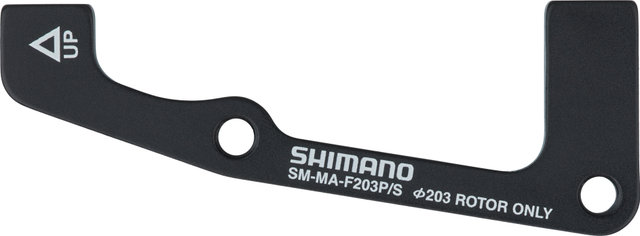

front IS to PM:

Fork Mount:

international standard

Caliper Mount:

post mount

Included in Delivery:

2 x bolts, 1 x safety wire

Manufacturer Number:

I-SMMAF203PSA

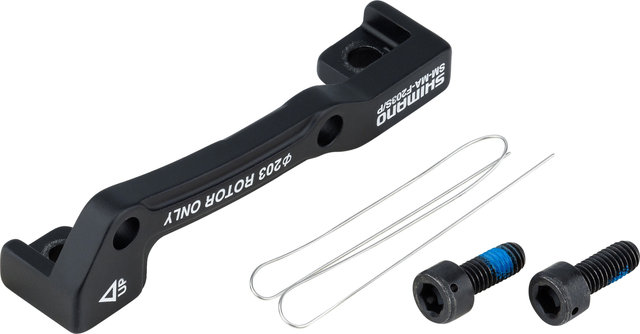

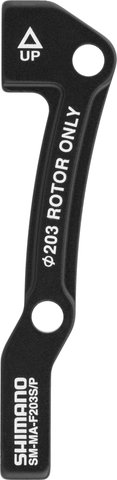

front PM to IS:

Fork Mount:

post mount

Caliper Mount:

international standard

Included in Delivery:

2 x bolts, 1 x safety wire

Manufacturer Number:

I-SMMAF203SPA

front IS to IS:

Fork Mount:

international standard

Caliper Mount:

international standard

Included in Delivery:

2 x bolts, 1 x safety wire

Manufacturer Number:

I-SMMAF203SSA

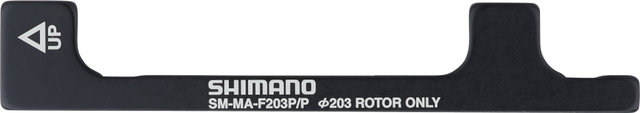

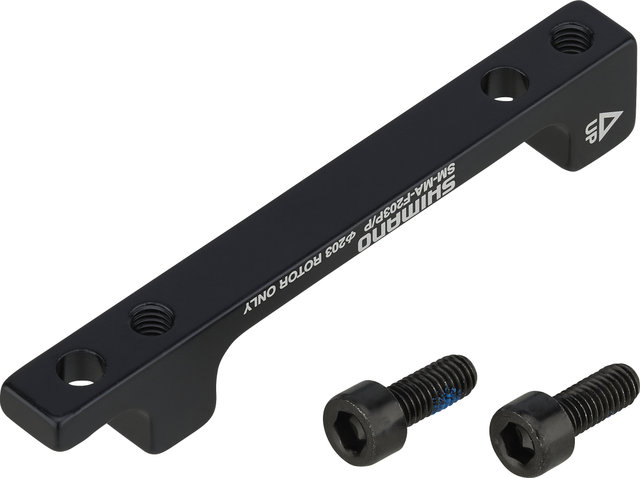

PM 6" to PM +43 mm:

Frame/Fork Mount:

post mount 6"

Caliper Mount:

post mount

Increased Height:

43 mm

Included in Delivery:

2 x screws

Manufacturer Number:

I-SMMAF203PPA

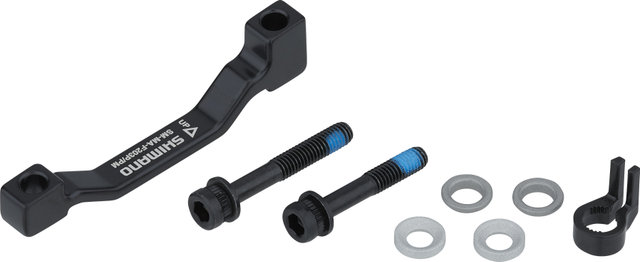

PM 7" to PM +23 mm:

Frame/Fork Mount:

post mount 7"

Caliper Mount:

post mount

Increased Height:

23 mm

Included in Delivery:

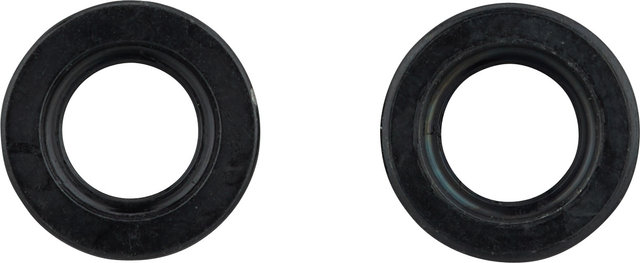

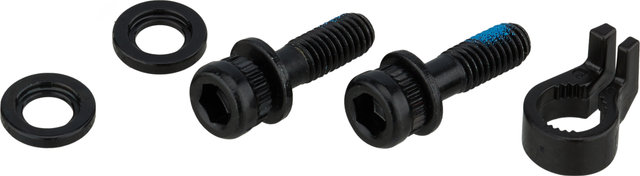

1 x long bolt, 1 x short bolt, 1 x snap ring (also compatible with BR-M7100/M7120/M8100/M8120), 2 x washers A, 2 x washers B

Manufacturer Number:

E-SMMAF203PPMA

PM 8" to PM +3 mm:

Frame/Fork Mount:

post mount 8"

Caliper Mount:

post mount

Increased Height:

3 mm

Included in Delivery:

2 x bolts, 1 x snap ring

Manufacturer Number:

E-SMMAF203PPL2

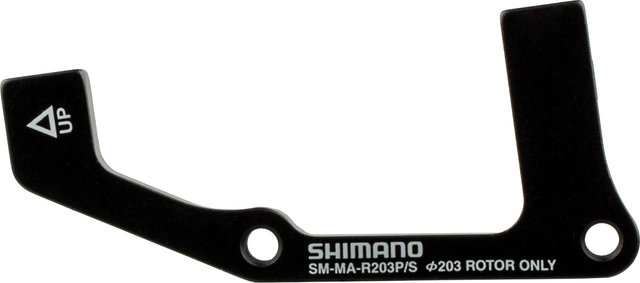

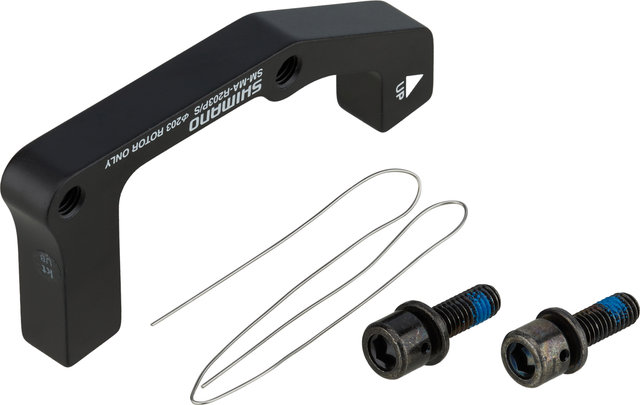

rear IS to PM:

Frame Mount:

international standard

Caliper Mount:

post mount

Included in Delivery:

2 x bolts, 1 x safety wire

Manufacturer Number:

I-SMMAR203PSA

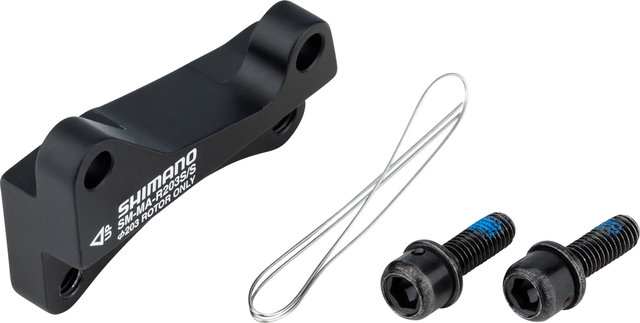

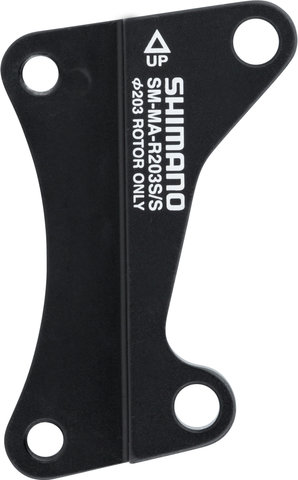

rear IS to IS:

Frame Mount:

international standard

Caliper Mount:

international standard

Included in Delivery:

2 x bolts, 1 x safety wire

Manufacturer Number:

I-SMMAR203SSA

Contents:

• 1 x Shimano 203 mm disc brake adapter
