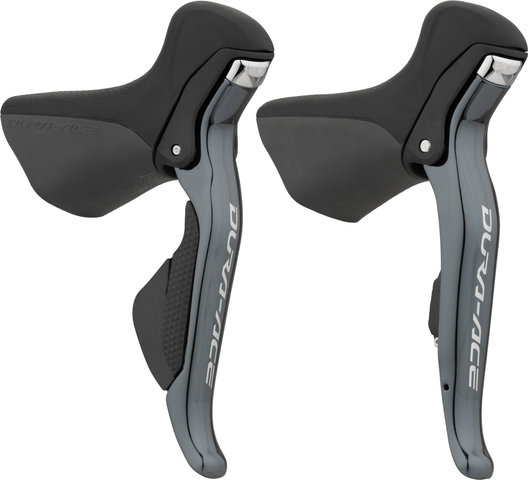

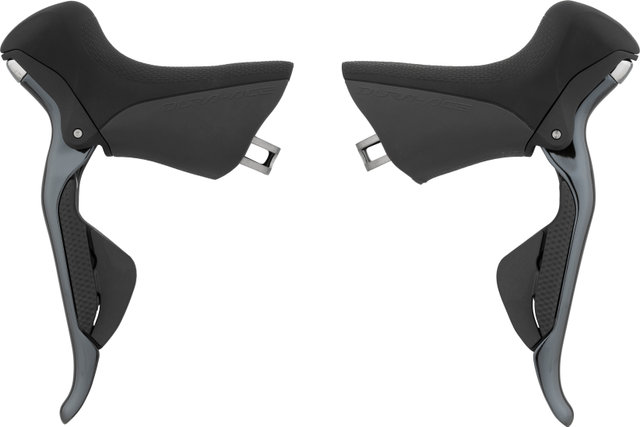

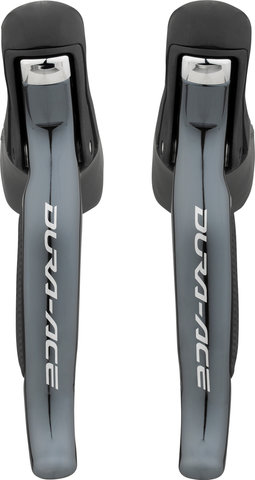

Shimano Dura-Ace Di2 STI ST-9070 2-/11-speed Shift/Brake Levers

The Dura-Ace Di2 ST-9070 Shift/Brake Levers by Shimano - New precision standards

The Shimano Dura-Ace Di2 ST-9070 shift/brake levers - from the second generation of Shimano electronic road shifters and therefore 2x11-speed compatible - inspire with high-precision gear changes that can be controlled without any effort. Its smaller lever diameter makes it also suitable for riders with smaller hands. Two connections for sprinter shifters allow for further possibilities. On the brake side, SLR-EV technology ensures optimum modulation. Of course, the ST-9070 STI Di2 Dual Control levers can always be kept up-to-date using the E-Tube platform.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Series:

Dura-Ace Di2 9070

Application:

Road

Gearing:

2-speed, 11-speed

Shifting System:

electronic

Brake Type:

mechanical

Technical Information:

Brake Lever Material:

carbon (CFRP)

Lever Body Material:

carbon (CFRP)

Hood Material:

composite (dual compound)

Mount:

clamp (closed)

Reach Adjust:

bolt

Adjustment Options:

reach adjust

Compatibility:

Clamp Diameter:

23.8 - 24.2 mm

Power Cable:

EW-SD50

Rear Derailleur:

RD-R9150, RD-R8050, RD-9070, RD-6870, RD-RX805, RD-RX815, RD-RX817

Front Derailleur:

FD-R9150, FD-R8050, FD-9070, FD-6870, FD-RX815

Crank:

FC-R9100, FC-R9100-P, FC-R8000, FC-R7000, FC-RS510, FC-9000, FC-6800

FC-5800, FC-RS500, FC-U5000-2, FC-RX810-2, FC-RX600-11

Cassette:

CS-R9100, CS-9000, CS-6800, CS-5800, CS-R8000, CS-HG800-11, CS-R7000, CS-HG700-11, CS-M8000-11, CS-M7000-11, CS-M5100-11

Chain:

CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Brake Caliper:

BR-R9200, BR-R9210, BR-R9100, BR-R9110, BR-9000, BR-9010, BR-7900, BR-R8100, BR-R8110, BR-RS811-R, BR-R8000, BR-R8010, BR-6800, BR-6810, BR-6700, BR-R7000, BR-R7010, BR-5800, BR-5810, BR-5710, BR-5700, BR-4700, BR-4600, BR-R3000, BR-3500, BR-R561, BR-R2000, BR-CX70, BR-CX50, BR-CX77, BR-R517, BR-R317, BR-RS305, BR-R650*, BR-R451*, BR-R450*, BR-R550*

Satellite Shifter:

SW-R610, SW-R600

* with reduced braking force

Features:

• short lever travel for 11-speed
• SLR-EV brake technology
• smaller lever diameter, therefore also suitable for smaller hands (as already with the ST-7970)
• remote control switch
• E-Tube project ensures firmware updates
• painted main lever
• number of E-Tube ports: 4
• number of sprinter shifter ports: 2

Technology:

STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).

Digital Integrated Intelligence (Di2)
Di2 systems are the electronic shifting systems from Shimano. They are based on the SEIS, the Shimano Electronic Intelligent System, which takes over the index shifting function from the mechanical components, only via power cables or radio signals and not via a Bowden cable. Shifting is done by simply pressing a button. This has the advantage that no great effort is required, your concentration on the ride is not disturbed and operation is easy even with cold hands. In addition, the electronic gear changes are very fast and highly precise. There is also no risk of a defective circuit due to dirty cables or other problems. You can adjust individual settings via the E-Tube Project, such as adjusting the shifting speed, the number of shifting operations per button press or the Synchro or Semi-Synchro shifting function. Shimano offers an app for this purpose. Gear maintenance and firmware updates are also done via E-Tube, with the bike connected to a PC running the appropriate E-Tube software for more extensive workshop work.

Models:

2x11-speed:

Gearing:

2-speed, 11-speed

Manufacturer Number:

I-ST9070PA

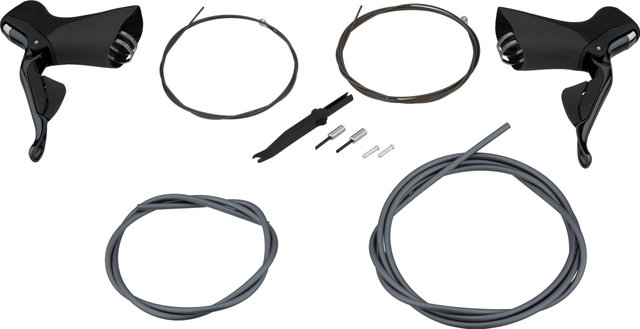

Contents:

• 1 x pair Shimano Dura-Ace Di2 ST-9070 Shift/Brake Levers
• 1 x Shimano BC-9000 1000 mm brake cable
• 1 x Shimano BC-9000 2000 mm brake cable
• 1 x Shimano 800 mm cable housing
• 1 x Shimano 1800 mm cable housing
• 1 x Shimano TL-EW02 plug tool
