Shimano Dura-Ace FC-R9200 12-speed Chainring

The Shimano Dura-Ace 12-speed chainring for the FC-R9200 crankset

This chainring is a spare part for the Shimano Dura-Ace FC-R9200 2x12-speed road crankset. It is also compatible with the FC-R9200-P model with power meter. The chainring has four asymmetrically arranged arms and a 110 mm bolt circle diameter. The 54, 52 and 50 tooth versions are made of an aluminium-carbon composite, the other variations are purely aluminium. All versions have an anodised finish.

Specifications:

Application:

Road, Triathlon & Time Trial

Mount:

110 mm bolt circle, 4-arm asymmetrical

Teeth:

34 t, 36 t, 40 t, 50 t, 52 t, 54 t

Gearing:

2x12-speed

Technical Information:

Combinations:

34-50 t, 36-52 t, 40-54 t

Material:

aluminium / carbon (50 - 54 t), aluminium (34 - 40 t)

Compatibility:

• Dura-Ace FC-R9200
• Dura-Ace FC-R9200-P
• 34-, 36-, 50- and 52-tooth chainrings are also suitable for Ultegra FC-R8100(-P)

Features:

• suitable for cranksets with and without power meter
• large chainring made of aluminium-CFRP composite
• small chainring made of aluminium
• anodised

Models:

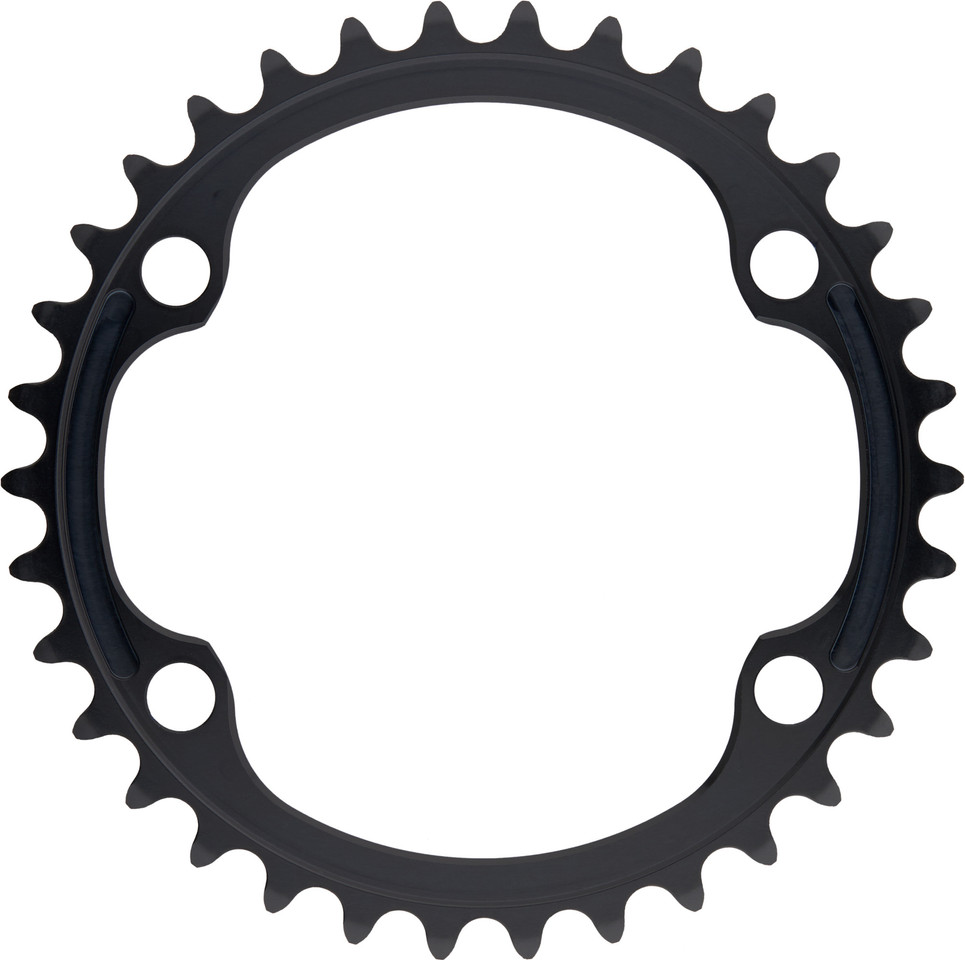

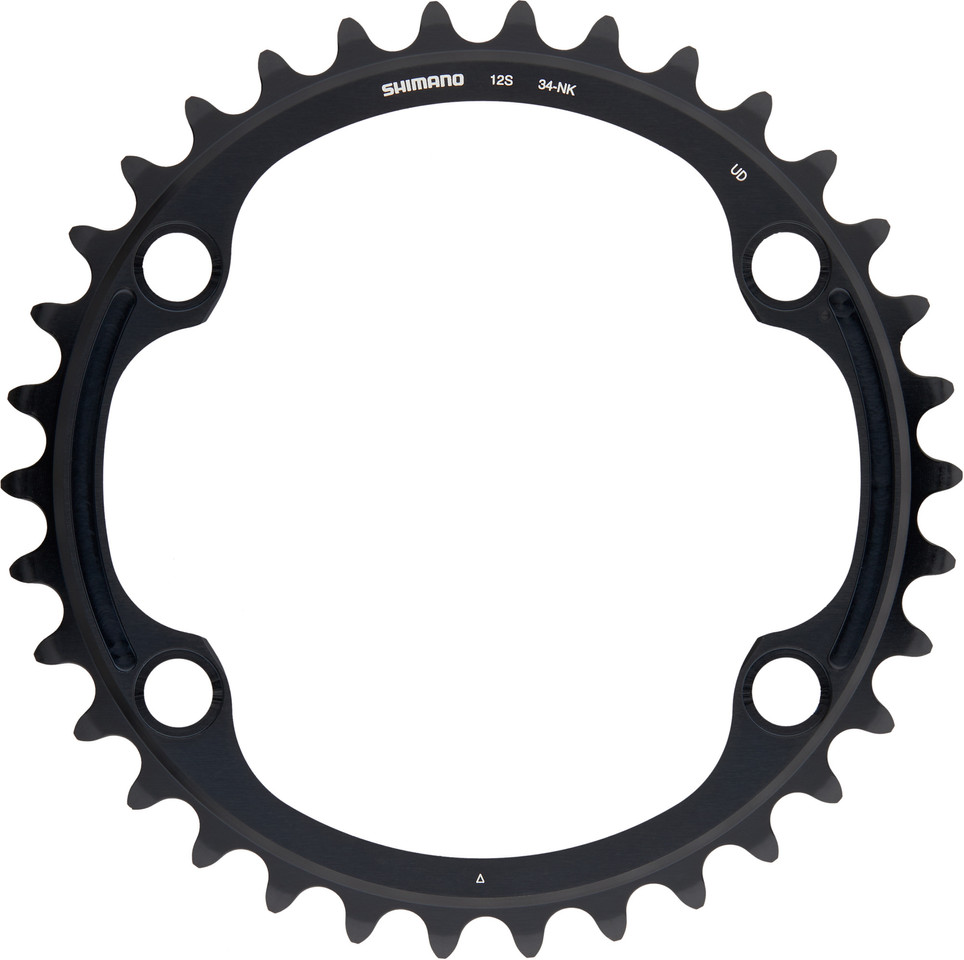

34 tooth:

Type:

NK

Manufacturer Number:

Y0MZ34000

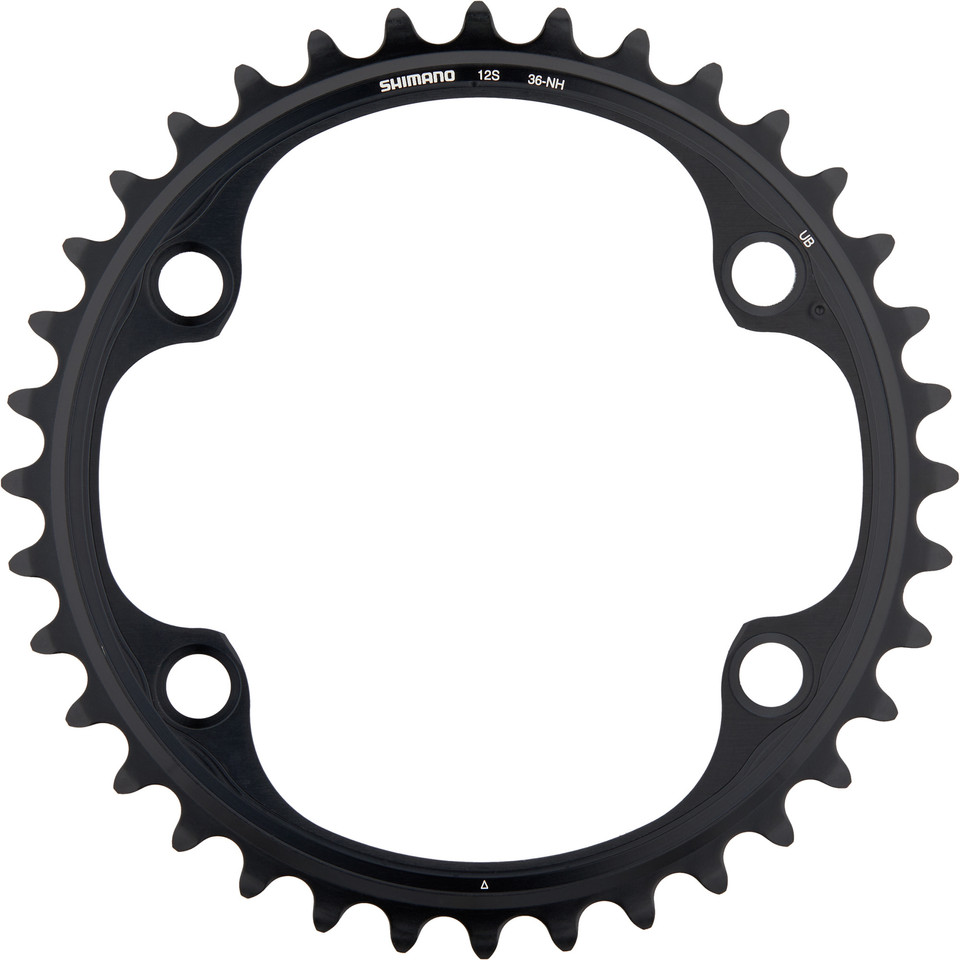

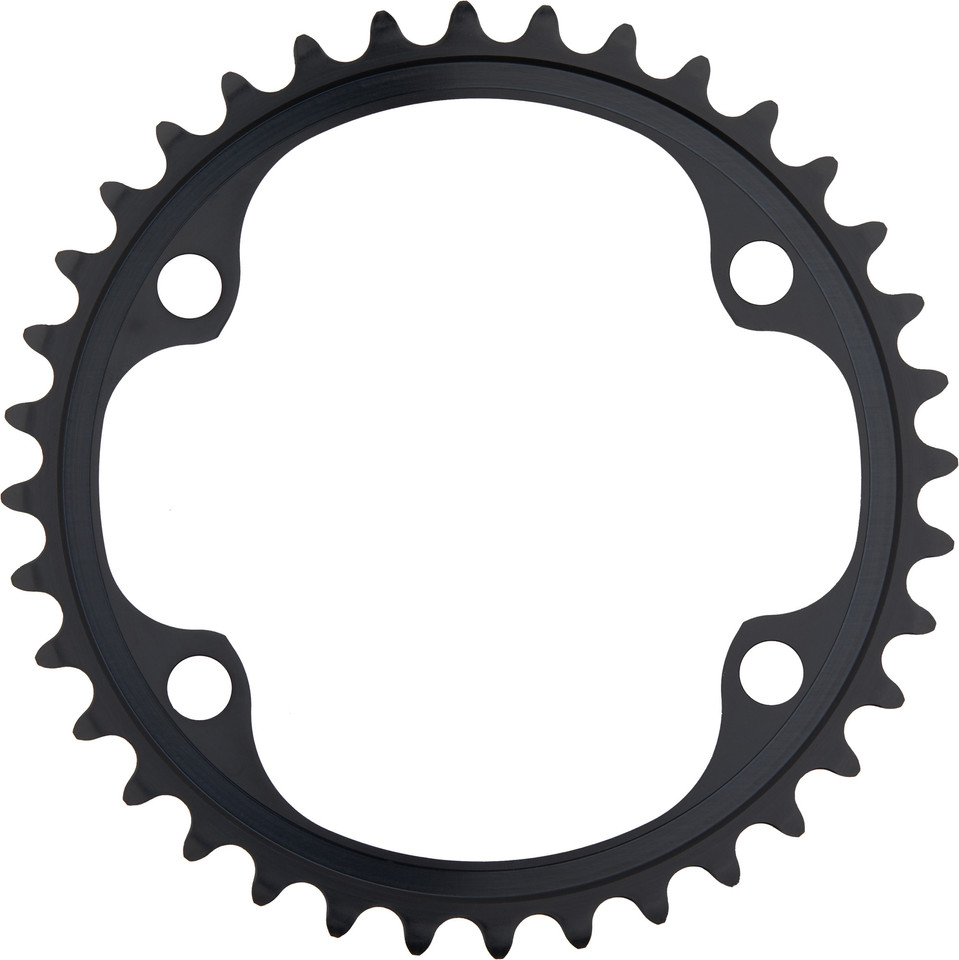

36 tooth:

Type:

NH

Manufacturer Number:

Y0MZ36000

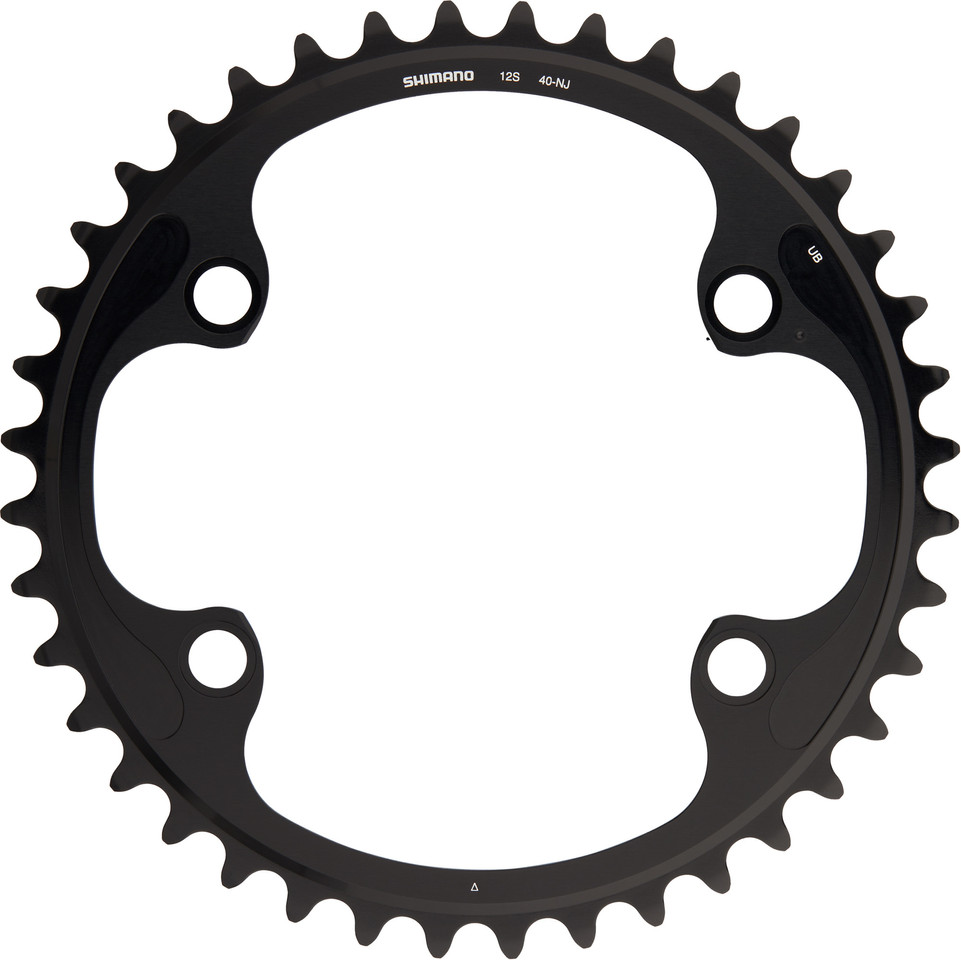

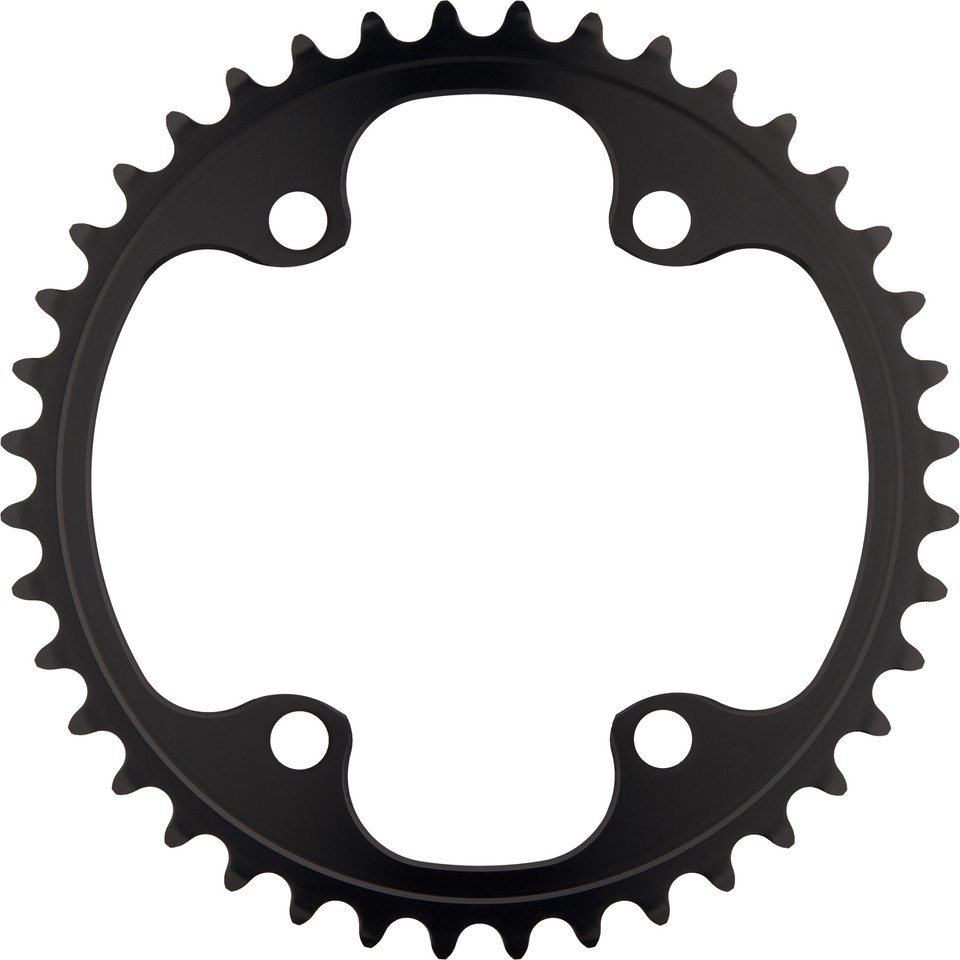

40 tooth:

Type:

NJ

Manufacturer Number:

Y0MZ40000

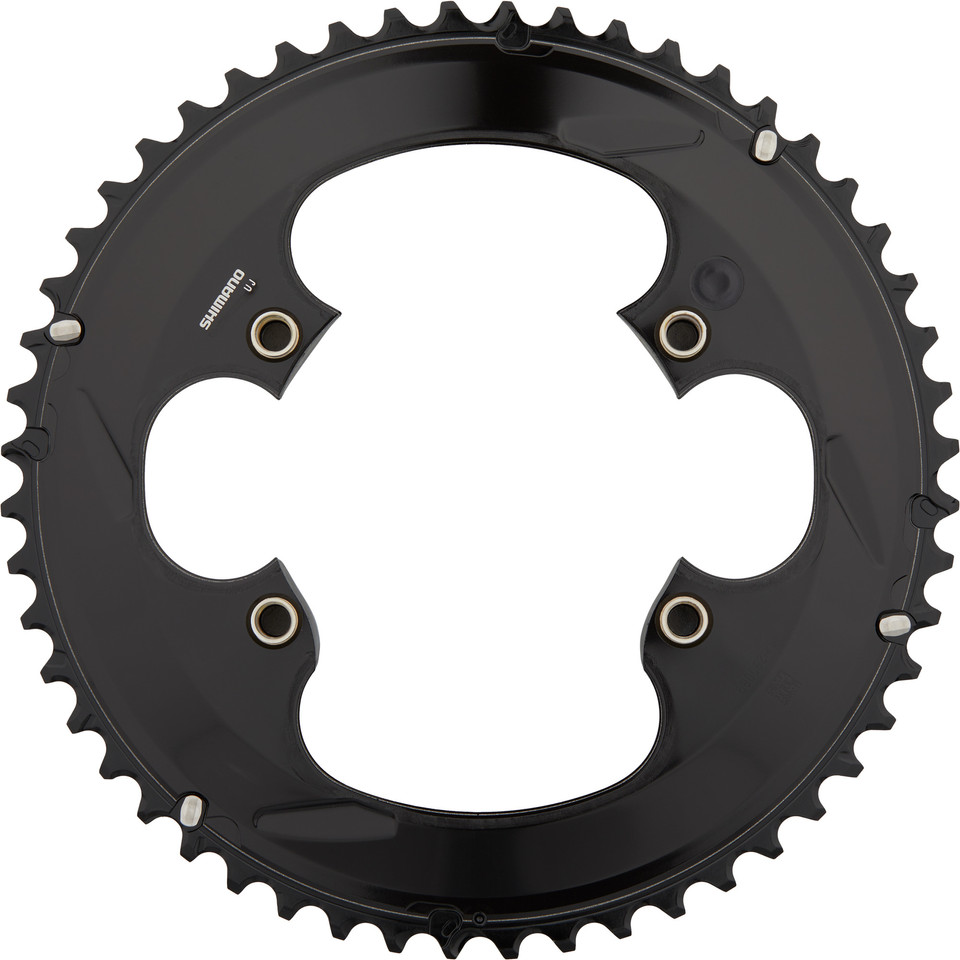

50 tooth:

Type:

NK

Manufacturer Number:

Y0MZ98010

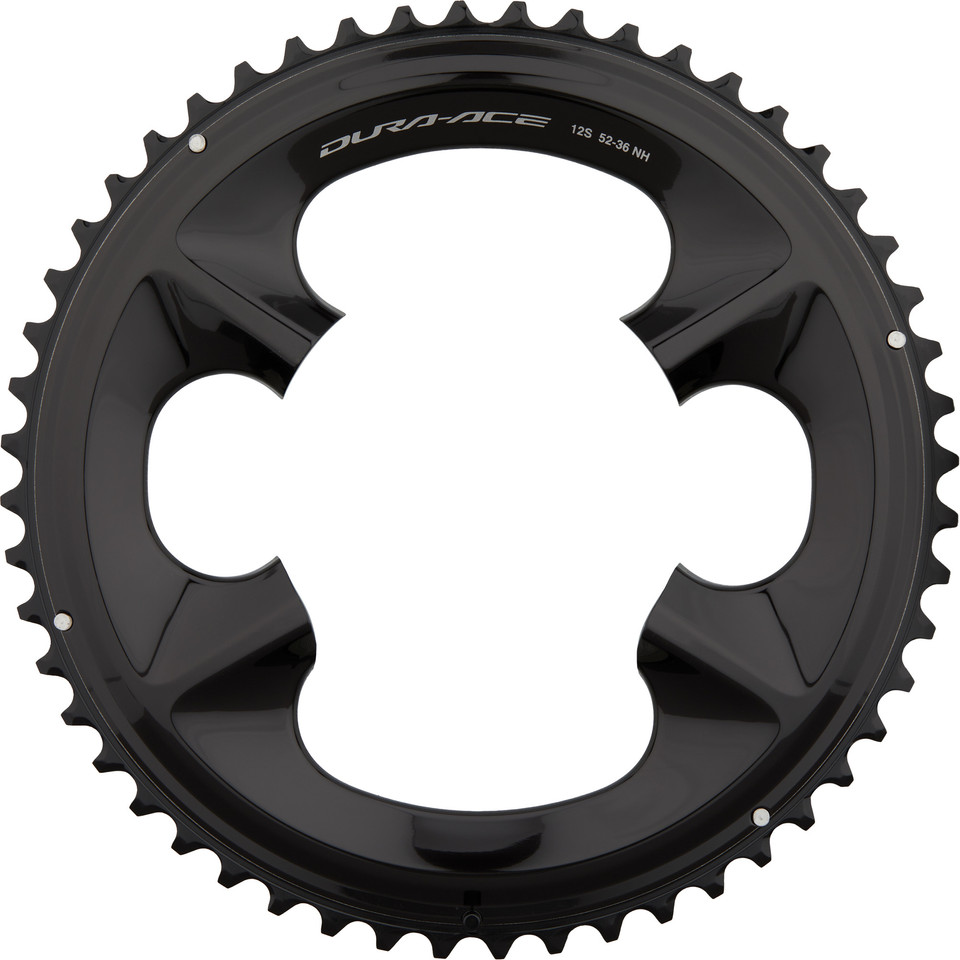

52 tooth:

Type:

NH

Manufacturer Number:

Y0MZ98020

54 tooth:

Type:

NJ

Manufacturer Number:

Y0MZ98030

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano Dura-Ace FC-R9200 chainring
