Shimano FC-MT500-3 Crankset

The Shimano FC-MT500-3 Crankset - Gradation for a wide spectrum of use

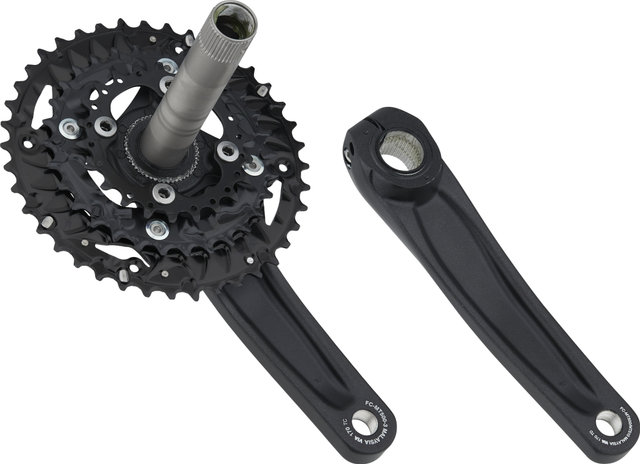

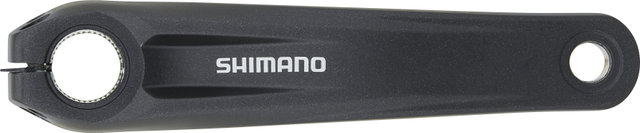

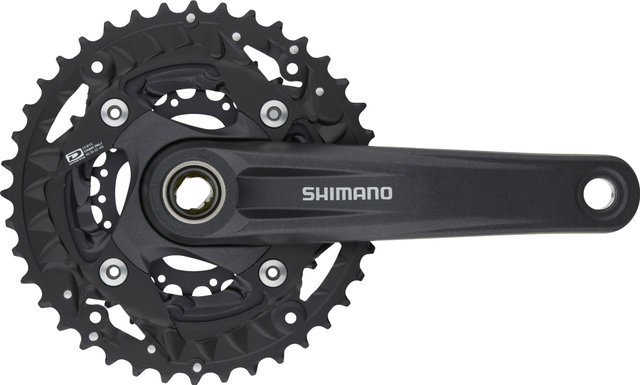

The FC-MT500-3 from Shimano is a groupless crank on Deore level with three chainrings for city & touring as well as mountain bikes with 10-speed shifting. Due to its wide but narrowly set gradation of 22-30-40 teeth, it is just as suitable for tours over steep mountains as for relaxed excursions on paved roads. Thanks to the 2-piece design, the crank also scores with stiffness, power transmission efficiency and durability. The high-quality appearance is also impressive. The crank arms and the large chainring are made of lightweight aluminium, the other two chainrings are made of steel. They have a symmetrical bolt circle diameter of 96/64 mm and are mounted via a 4-arm spider.

Specifications:

Application:

All Mountain, Touring

Compatibility:

Shimano 3x10-speed

Chainring Mount:

96/64 mm bolt circle diameter, 4-arm

Technical Information:

Crank Arm Material:

aluminium

Chainring Material:

aluminium, steel

Axle Material:

steel

Gradation:

22-30-40 tooth

Crank Arm Length:

170.0 mm, 175.0 mm

Chainline:

50 mm

Q-Factor:

177 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

BB-MT501, SM-BB52 (E-Type) or BB-MT500-PA press fit Hollowtech II (not included)

Recommended Chain:

HG-X 10-speed (e.g. CN-HG54)

Compatibility:

MTB 3x10-speed drivetrain:
Rear Over Locknut Dimension:

• quick release: 135 mm
• thru-axle: 142 mm

Shifter:

SL-M7000-L, SL-M7000-IL, SL-M7000-B-IL, SL-M6000-L, SL-M6000-IL, SL-M610-L, SL-M610-IL

Front Derailleur:

FD-M7000-10, FD-M7005-10, FD-M611, FD-M610, FD-M6000

Bottom Bracket:

SM-BB93, SM-BB80, BB-MT801, BB-MT800, SM-BB52, BB-MT501, BB-MT500, SM-BB94-41A, BB-MT800-PA, BB-MT500-PA

Chain:

CN-HG95, CN-HG54

Features:

• efficient power transmission and consistent shift function
• balance of stability and light weight
• wide range, low gear ratio and suitable gear gradation for 27.5 and 29 inch wheels
• wide range of use from asphalt roads to steep mountains
• high-quality look
• large chainring made of anodized aluminium
• small and medium chainring made of painted and plated steel respectively
• stainless steel chainring bolts

Technology:

2-Piece Crankset
With the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets.

Manufacturer Numbers:

170.0 mm 22-30-40:

E-FCMT500CX002X

175.0 mm 22-30-40:

E-FCMT500EX002X

Contents:

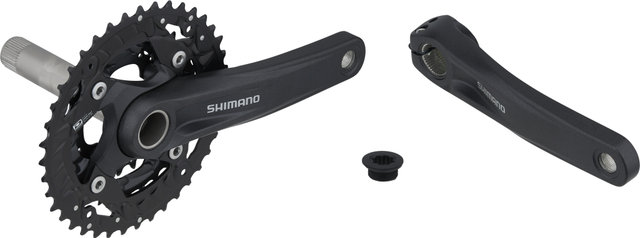

• 1 x Shimano FC-MT500-3 crankset (22-30-40 tooth)
• 1 x Shimano crank bolt
