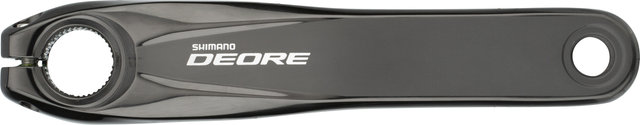

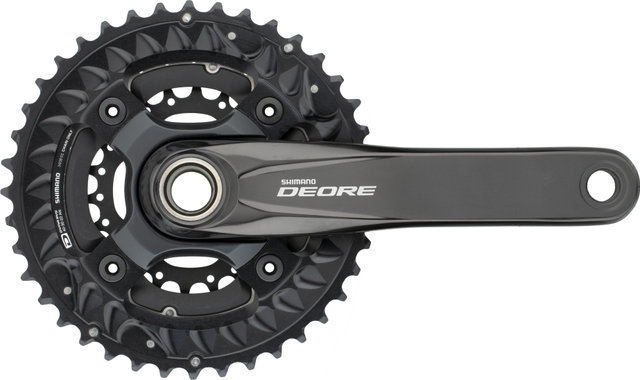

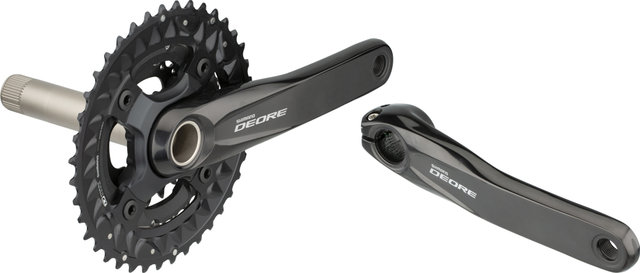

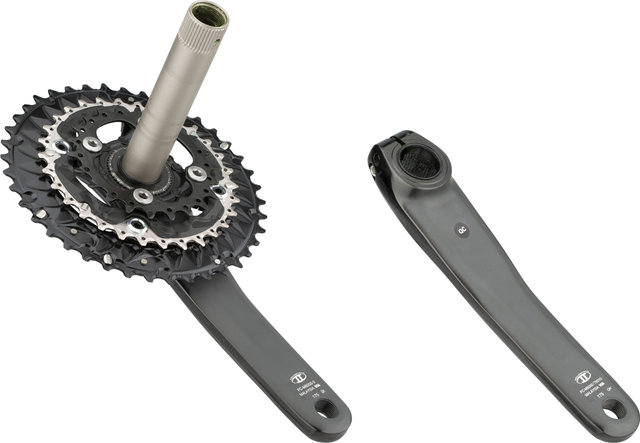

Shimano Deore FC-M6000-3 Hollowtech II Crankset

Item number: 56754
from 61.34€

excl. shipping cost
to the delivery destination: USA

Choose model

Delivery to USA is not possible.

Shimano Deore FC-M6000-3 Hollowtech II Crankset - black/175.0 mm 22-30-40
Shimano Deore FC-M6000-3 Hollowtech II Crankset - black/175.0 mm 22-30-40
Shimano Deore FC-M6000-3 Hollowtech II Crankset - black/175.0 mm 22-30-40
Shimano Deore FC-M6000-3 Hollowtech II Crankset - black/175.0 mm 22-30-40
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.84 / 5.00
Due to unknown delivery times, certain varieties of this article are currently not available. More information about the current situation

Shimano Deore crankset FC-M6000-3 - now with Hollowtech II construction

With the Deore FC-M6000-3 Shimano has for the first time presented a crankset with Hollowtech II design on the Deore level. This ensures a balance between the stiffness and strength of the construction on the one hand and the weight on the other. The aluminium crank has become slimmer than the predecessor model and is reminiscent of the SLX FC-M7000 introduced a year earlier. Deore FC-M6000-3 is still compatible with 10-speed drivetrains. The all-round crank with three chainrings presents itself as a solid choice for all MTB styles from Cross Country to All Mountain.


Application: Trail, All Mountain, Cross Country
Compatibility: Shimano 3x10-speed
Chainring Mount: 96/64 mm bolt circle diameter, 4-arm

Technical Information:

Series: Deore M6000
Crankarm Material: aluminium
Chainring Material: aluminium / steel, fibreglass composite / steel
Axle Material: steel
Gradation: 22-30-40
Crankarm Length: 170.0 mm, 175.0 mm
Chainline: 50 mm
Q-Factor: 176 mm
Axle Diameter: 24 mm
Compatible BSA Shell Width: 68 mm, 73 mm
Recommended Bottom Bracket: SM-BB52 or BB-MT500-PA Pressfit Hollowtech II (not incl.)
Recommended Chain: HG-X 10-speed (e.g. CN-HG54)


- efficient power transfer
- Hollowtech II 70° 4-arm construction
- optimise gear jumps for trail riding
- smooth shifting maintains speed on demanding terrain
- compatible with 142 mm rear over locknut dimensions
- anodised crankarms
- big chainring anodised, middle chainring plated (teeth), small chainring painted
- stainless steel chainring bolts
- not incl. chain guard
- not chaincase compatible


Hollowtech II
What matters is the overall balance of the crankset. With regard to the entire crankset, an optimum ratio between the strength of the crank arms, the stiffness of the axle, the bearing position and other features is very important. During the development of the crankset, the overall balance of all individual elements was carefully considered in order to ensure maximum stability.
Outer bearing: On most 68 mm bottom bracket housings, the Hollowtech II 24 mm axle can be mounted outside the frame for better weight distribution and stability.
High-quality precision seals: The Hollowtech II set also features high quality precision seals in the bearing area to extend durability and maintain excellent rotation efficiency over time.
The axle and the 24 mm diameter bearings ensure optimum balance of the crankset and optimum transmission of power to the bicycle.

Manufacturer Part Numbers:

170.0 mm 22-30-40: E-FCM6000CX002X
175.0 mm 22-30-40: E-FCM6000EX002X


- 1 x Shimano Deore FC-M6000-3 crankset (22-30-40 tooth)
- 1 x Shimano crank bolt
- not incl. bottom bracket


in stock 2 to 7 days up to 10 days Out of stock inform me
  • black/170.0 mm 22-30-40
  • black/175.0 mm 22-30-40
