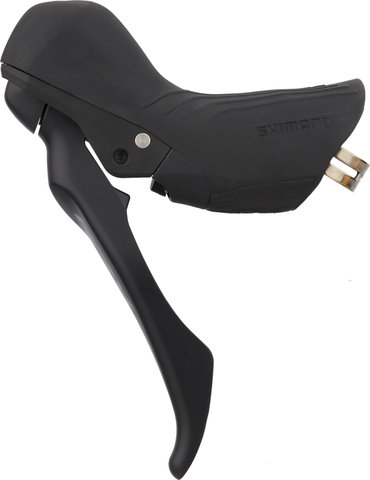

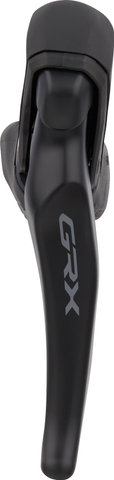

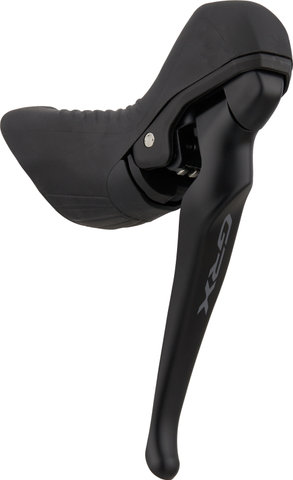

Shimano GRX BL-RX610 Brake Lever

Shimano GRX BL-RX610 brake lever - gravel-specific ergonomics and anti-slip coating

The hydraulic BL-RX610 brake lever from Shimano's GRX RX610 Gravel series gives you more control on changing surfaces and weighs only a few grams more than the more expensive BL-RX820. It is mounted on the left side of the drop bars and is therefore perfect for 1x setups, which only require a shift/brake lever on the right. The lever and grip body ergonomics have been specially adapted to gravel use. The aluminium lever has a textured coating to prevent slipping. The reach of the lever can be adjusted with the help of a hex key. Please note: unlike the BL-RX820, BL-RX610 has neither pressure point adjustment nor servo wave technology.

Specifications:

Series:

GRX RX610

Application:

Gravel

Type:

hydraulic

Actuation:

mineral oil

Hose:

SM-BH90-JK-SSR (not included)

Technical Information:

Adjustment Options:

reach adjust (bolt)

Mount:

clamp (closed)

Design:

left (side-specific)

Brake Lever Material:

aluminium

Brake Lever Housing Material:

composite

Hose Connection:

straight

Compatibility:

Handlebar Type:

Dropbars

Clamp Diameter:

23.8 - 24.2 mm

Brake Caliper:

BR-RX400 (recommended), BR-R9270, BR-R8170, BR-R7170, BR-RX820, BR-RX820-LE, BR-RX400

Additional Brake Lever:

BL-RX812

Features:

• hydraulic disc brake lever for gravel use
• for left-hand mounting on drop bars with 1x drivetrains
• better brake control on mixed terrain
• gravel-specific lever and lever body ergonomics
• reach adjustment (13.3 mm) with 2.5 mm hex tool
• anti-slip brake lever
• weighs only 543 g in the set with ST-RX610
• funnel venting with M7 funnel (TL-BR002)
• lacquered brake lever

Manufacturer Number:

IBLRX610L

Contents:

• 1 x Shimano GRX BL-RX610 brake lever
