Shimano GRX FC-RX600 / FC-RX610 4-arm Chainring Bolts

Shimano Chainring Bolts 4-arm GRX FC-RX600 - For 10-speed and 11-speed versions

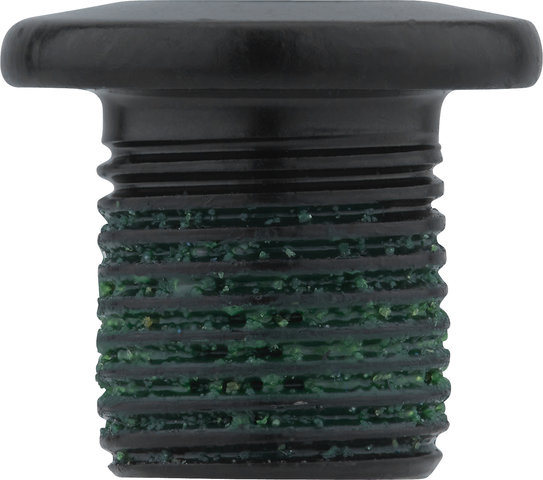

These four chainring bolts are spare parts for the Shimano GRX FC-RX600 crankset for gravel use. They fit both the 11-speed version with one or two chainrings and the 10-speed version. In this case, however, they are only used on the large chainring, for the small chainring you need other bolts. These bolts are also compatible with the successor model FC-RX610. They are made of stainless steel and have an 8.5 mm long M8 thread. Tighten them firmly with a 5 mm hex tool 16 to 17 Nm.

Specifications:

Type:

Chainring Bolts

Threads:

M8

Drive:

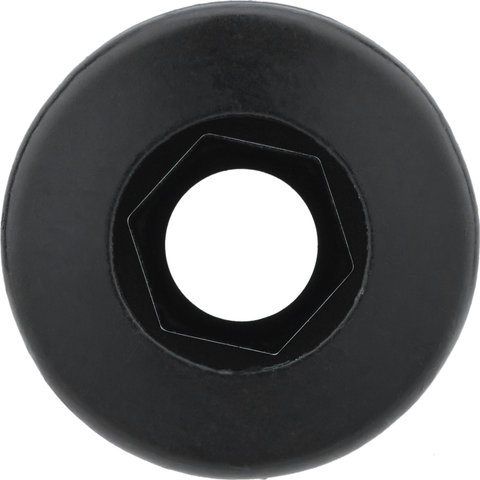

5 mm hex

Material:

stainless steel

Technical Information:

Thread Length:

8.5 mm

Torque max.:

17 Nm

Compatibility:

• GRX FC-RX600-1
• GRX FC-RX600-10 (large chainring only)
• GRX FC-RX600-11
• GRX FC-RX610-1
• GRX FC-RX610-2
• CUES FC-U8000-1

Manufacturer Number:

Y1WD98050

Contents:

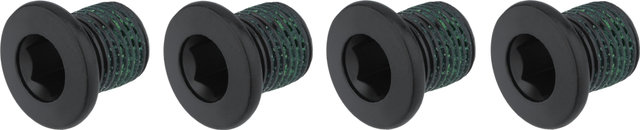

• 4 x Shimano FC-RX600 chainring bolts

Order Together:

Optional accessories:

• inner chainring bolts for FC-RX600-10
