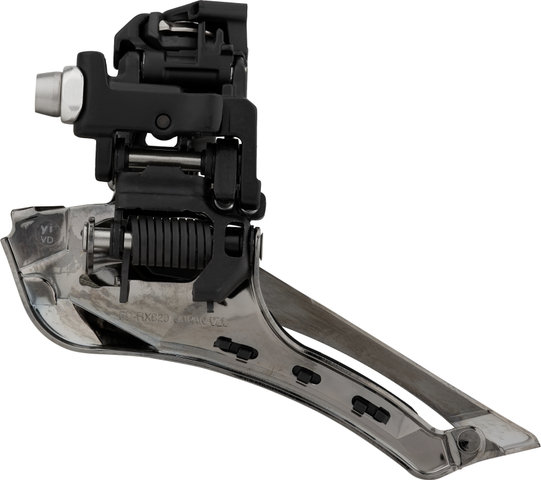

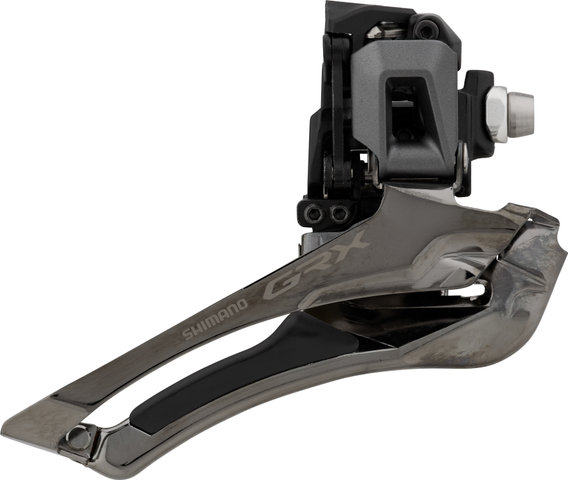

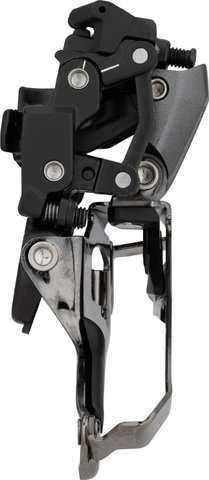

Shimano GRX FD-RX820 2-/12-speed Front Derailleur

Shimano GRX FD-RX820 front derailleur - easy shifting on gravel bikes with 2x12-speed set-up

The Shimano GRX FD-RX820 2x front derailleur for gravel use with 12-speed shifting impresses with its smooth function and simple set-up. Even on rough surfaces you can enjoy natural and smooth gear changes. The innovative toggle link construction gives you more cable routing options and the integrated tensioner makes adjustment easy. In keeping with the intended application, FD-RX820 has generous tyre clearance and is compatible with a chainline of 47 mm, a difference of about +3 mm compared to conventional road bike front derailleurs. The capacity of the front derailleur is 17 teeth, so it is compatible with chainring sizes up to 48 T. The model is designed for braze-on mounting, but can also be retrofitted with a clamp for frames without a socket. It is partly made of steel and partly of plastic, which provides more durability and keeps the weight low.

Specifications:

Series:

GRX RX820

Application:

Gravel

Gearing:

2x (combined w/ 12-speed)

Chainstay Angle:

63 - 66°

Chainline:

47 mm

Chainring Size (max.):

46 - 48 teeth

Capacity:

17-tooth

Cable Routing:

down pull

Movement:

down-swing

Mount:

braze-on

Compatibility:

HG 12-speed chains

Technical Information:

Outer Body Material:

composite material (GFRP)

Inner Body Material:

steel

Cage Material:

steel

Compatibility:

Shifter:

ST-RX820, ST-RX610, ST-R7120

Crank:

FC-RX820-2, FC-RX610-2

Chain:

CN-M8100, CN-M9100, CN-M7100, CN-M6100

Clamp Adapter:

SM-AD91

Features:

• mechanical front derailleur for use on gravel bikes with 2x12-speed gears
• smooth shifting and easy set-up for riding on mixed terrain
• natural and smooth gear changes
• toggle link design opens up more cable routing options (e.g. simple shift cable or with integrated cable stop)
• precise and simplified adjustability with integrated tensioner
• large tyre clearance and chainline 2.5 mm more to the outside
• generous 17-tooth capacity
• 7 joint bushings
• parallelogram painted outside, plated inside
• chrome-plated cage plates

Manufacturer Number:

IFDRX820F

Contents:

• 1 x Shimano GRX FD-RX820 front derailleur

Order Together:

Optional accessories:

• clamp adapter SM-AD91
