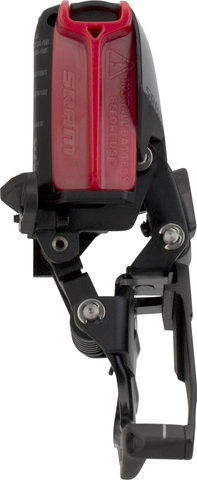

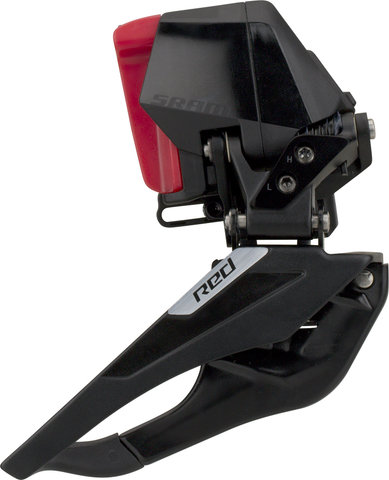

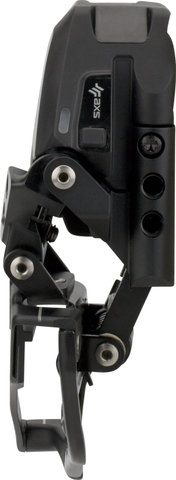

SRAM Red E1 AXS 2x Front Derailleur

The electronic Red E1 AXS front derailleur from SRAM for 2x road bike drivetrains

SRAM has improved the design of the Red E1 AXS 2x front derailleur and further refined the cage shape. This results in precise, smooth and direct gear changes, without any wiring. Yaw technology with automatic trim eliminates the need for manual fine adjustments. Thanks to the AXS connection, your drivetrain can be conveniently connected and personalised via a smartphone app.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Series:

Red

Application:

Road

Gearing:

2x (combined w/ 12-speed)

Chainstay Angle:

61 - 66°

Chainring Size (max.):

56-tooth

Capacity:

13-tooth

Movement:

down-swing

Mount:

braze-on

Compatibility:

SRAM Road 2x12-speed groupsets, chainring set with 33-46 / 35-48 / 37-50 / 39-52 / 41-54 / 43-56 teeth

Technical Information:

Outer Body Material:

aluminium

Inner Body Material:

aluminium

Cage Material:

aluminium

Features:

• electronic 2x front derailleur for 2x12-speed drivetrains on road bikes with AXS drivetrains
• automatic trim for smooth chain running and fast, precise gear changes
• classic SRAM Yaw cage technology with optimised architecture for a new chainring combination
• easy personalisation with SRAM AXS
• adjustment gauge included in the scope of delivery

Technology:

eTap
SRAM's eTap is a simple, unambiguous and intuitive shifting logic. With the shift lever on the left-hand side you move the rear derailleur inwards to a larger sprocket, with the shift lever on the right-hand side you move the derailleur outwards to a smaller sprocket. With the shift lever pressed down, you can directly shift several gears. Pressing both shift levers at the same time causes a front derailleur movement in 2x shifting systems.

AXS
AXS is SRAM's electronic integration platform that combines electronic bicycle components and software. The SRAM AXS app allows you to view battery status, change component behaviour, adjust controls, receive maintenance reminders and update firmware.

Yaw
The Yaw technology allows trim-free shifting, as the front derailleur cage describes an arc and is therefore at a constant angle to the chain. Shifting transitions are thus more direct and precise, providing unprecedented performance when shifting up front.

Manufacturer Number:

00.7618.180.000

Contents:

• 1 x SRAM Red E1 AXS 2x front derailleur

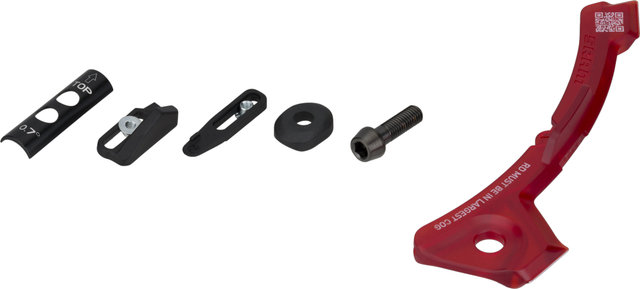

• 1 x adjustment gauge for front derailleur, 46 - 50 T

Order Together:

• SRAM battery for eTap / AXS
