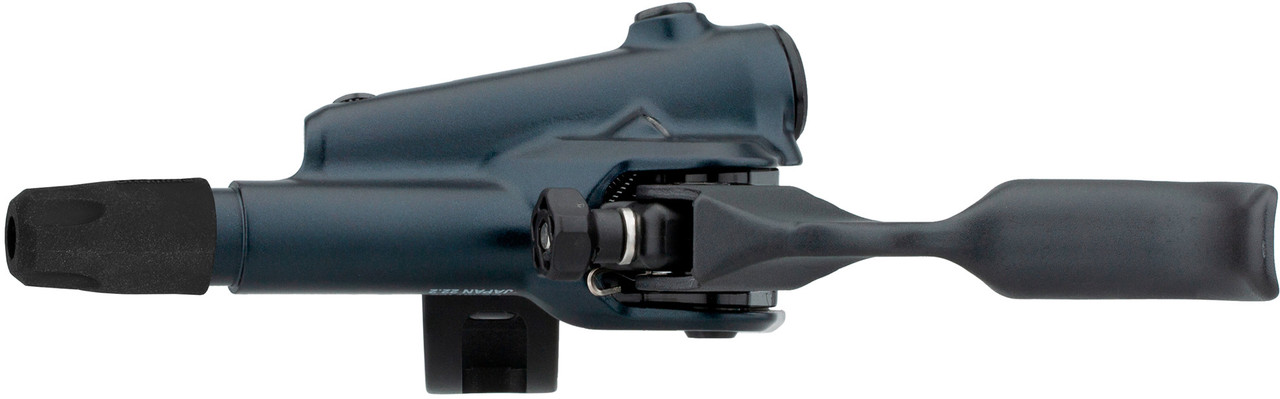

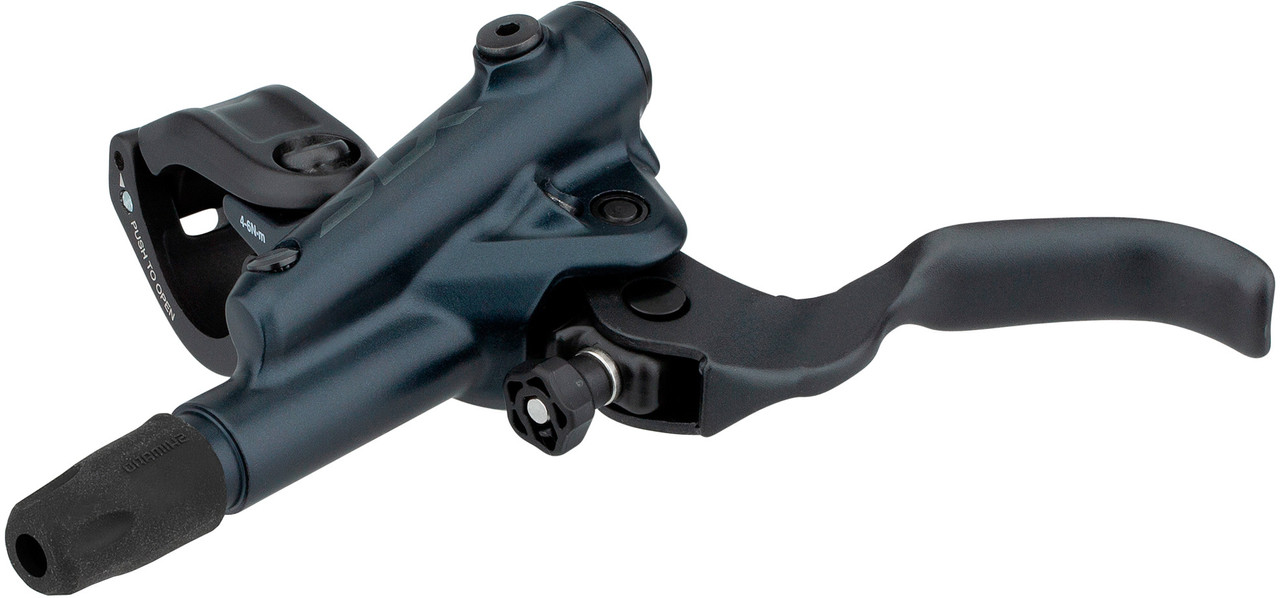

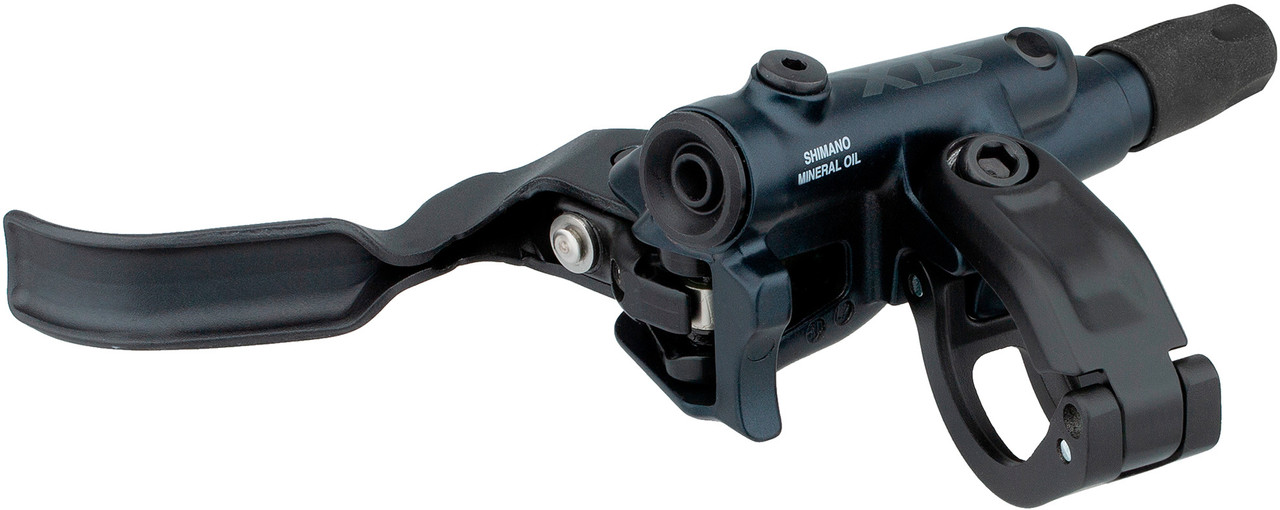

Shimano SLX BL-M7100 Brake Lever

SLX BL-M7100 brake lever by Shimano - optimized design for more performance

The Shimano BL-M7100 brake lever has a new design for more stiffness, more direct feedback and more brake power. It is equipped with the proven Servo Wave technology. This means that more power is available with shorter empty travel and reduced reaction time.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

SLX M7100

Application:

All Mountain, Enduro, Cross Country

Type:

hydraulic

Actuation:

mineral oil

Hose:

SM-BH90-SBM (not included)

Technical Information:

Lever Length:

2-finger

Adjustment Options:

reach adjust (no tools required)

Mount:

clamp (split), I-Spec EV

Design:

right (side-specific), left (side-specific)

Brake Lever Material:

Aluminium

Brake Lever Housing Material:

Aluminium

Hose Connection:

straight

Features:

• stable and versatile high-performance brake control
• easy and quick installation
• direct braking power, promotes rider concentration and increases fun
• optimised lever axis position with additional contact point and revised ergonomics
• 10 % stiffer than M7000, even when hot
• faster braking with less empty pull
• flexible, action-optimised cockpit layout thanks to I-Spec EV
• rotation adjustment angle for compatible shift lever: 20°
• recommended brake caliper: BR-M7100, BR-M7120
• funnel venting with M5 funnel (TL-BR003)
• anodised lever, painted body
• stainless steel clamp bolts

Technology:

Servo Wave
Shimano Servo Wave technology optimises the travel of your brake levers. During the braking process, the brake pads are guided quickly to the brake rotor with very short lever travel. The greater part of the lever travel is reserved for the actual braking force. In this way, you can apply your braking power in a more targeted manner and use it more effectively.

I-Spec EV
I-Spec EV describes a variant of the connection between brake lever and shift lever on Shimano MTB derailleurs. This type of mounting allows the shifter to be adjusted both horizontally and vertically in relation to the brake lever, and ensures a tidy cockpit by reducing the number of clamps required. Compared to I-Spec and I-Spec II, I-Spec EV offers a much wider adjustment range. 14 mm adjustment range the longitudinal direction and up to 60° rotation allow an optimal ergonomic adjustment to your riding style, your sitting position and your anatomy.

Manufacturer Numbers:

Left:

I-BLM7100L

Right:

I-BLM7100R

Contents:

• 1 x Shimano SLX BL-M7100 brake lever, left or right
• 1 x brake cable cover for brake lever

Order Together:

• connection set for brake hose
