Shimano SM-RT54 Center Lock Brake Rotor w/ External Teeth

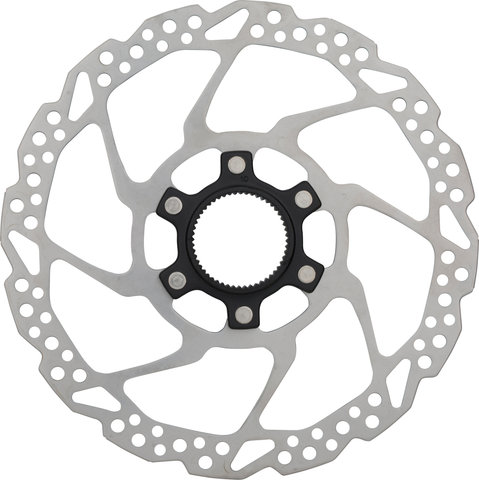

Shimano SM-RT54 Center Lock brake rotor with external toothed lockring

The Shimano SM-RT54 brake rotor comes with a new type of lockring, which is serrated on the outer edge. It may only be used with resin pads. Its body is made of stainless steel, the spider is made of aluminium. SM-RT54 is compatible with disc brakes from the XTR, XT, SLX, Deore, Saint, ZEE, Alfine series and many other groupless MTB and City & Touring brakes.

Technical Information:

Mount:

Center Lock

Diameter:

180 mm

Design:

2-piece

Rotor Material:

stainless steel

Spider Material:

aluminium

Approved For:

Brake Compatibility:

BR-M9100, BR-M9120, BR-M9000, BR-M9020, BR-M8100, BR-M8120, BR-M8110-R, BR-M8000, BR-M8020, BR-M7100, BR-M7120, BR-M7110-R, BR-M7000, BR-M6100, BR-M6120, BR-M6000, BR-MT520, BR-MT420, BR-M820, BR-M640, BR-U8000, BR-U8020, BR-S7000, BR-S700, BR-MT410, BR-T675, BR-T615, BR-M4050, BR-MT500, BR-M446, BR-MT400, BR-M3050, BR-M395, BR-M375, BR-MT200, BR-M365, BR-M355, BR-M315, BR-TX805, BR-UR300, BR-R9170-F, BR-R8170, BR-R8070, BR-R7170, BR-R7070, BR-4770, BR-RS805, BR-R785, BR-RS785, BR-RS505, BR-RS405, BR-RX820, BR-RX820-LE, BR-RX810, BR-RX400

Brake Pad Compatibility:

organic

Compatibility:

• for brake pads with wide and narrow pad shape
• lockring with external gear teeth: also compatible with 15 mm and 20 mm thru-axles (as well as with 12 mm thru-axles and quick releases)

Features:

• performance indicator: Select (level 1 out of 3)
• heat-treated

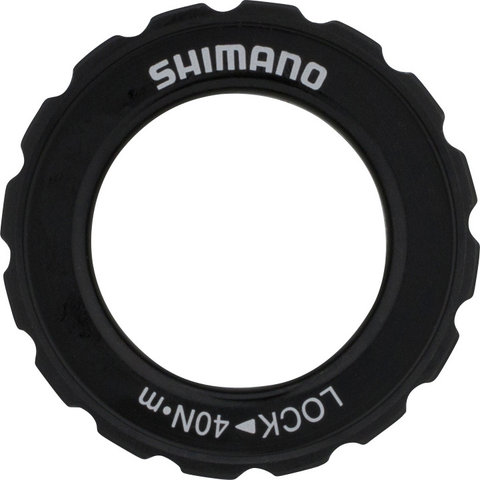

• lacquered spider, polished rotor, lockring made of steel, plated (external gear teeth)

Manufacturer Number:

180 mm:

E-SMRT54ME

Contents:

• 1 x Shimano SM-RT54 brake rotor
• 1 x lockring
