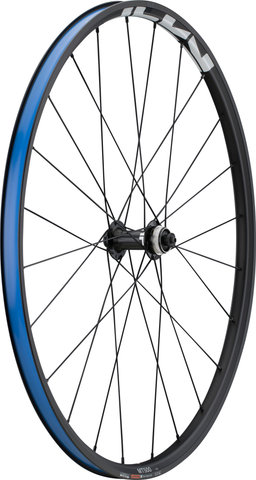

Shimano WH-MT500-CL-B / WH-MT501-CL-B Center Lock Disc 27.5" Wheel

The WH-MT500/MT501-CL-B 27.5" wheel by Shimano - Micro-Spline at the rear

Shimano WH-MT500-CL-B and WH-MT501-CL-B are 27.5" wheels are for All Mountain use with an over locknut dimension of 110 mm at the front and 148 mm at the rear. Unlike previous models, the rear wheel now comes with the new Micro-Spline freehub, which is why Shimano has given it the name WH-MT501. The aluminium rims are 24 mm wide on the inside and are each fitted with 24 double-butted stainless steel spokes. Sealed and greased cone bearings are used in the aluminium hubs, which are characterised by resilience and smooth running. The tried-and-tested Shimano E-Thru thru axle system ensures torsional rigidity and strength under all conditions. Please note that these wheels must be used with a tube.

Specifications:

Application:

All Mountain

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc (Boost)

Wheel Standard:

Boost

Tubeless System:

none

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

24-584

Inner Width:

24 mm

Outer Width:

29.6 mm

Depth:

21 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Aluminium

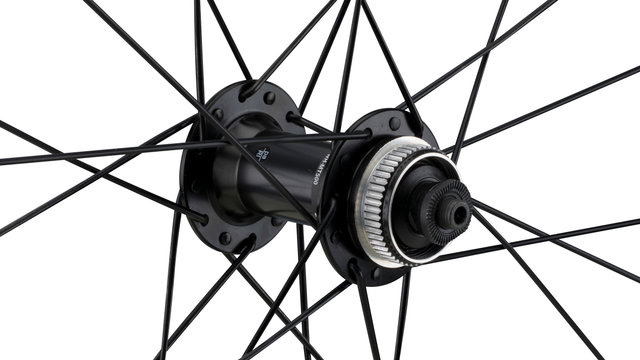

Technical Information - Front Hub:

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

cup & cone

Body Material:

Aluminium

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

cup & cone

Body Material:

Aluminium

Freehub Body Material:

steel

Freehub Body:

pawls

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

J-Bend / double butted (2.3)

Spoke Size:

272 mm (front), 269 mm/267.5 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Material:

brass

Approved For:

Recommended Tyre Width:

2.0" - 2.4"

Features:

• anodised aluminium rim, sleeved
• painted hubs
• hub axles made of aluminium (front) or steel (rear)
• labyrinth and contact seals
• internal grease coating
• please use with rim tape (24-584, included)

Models:

27.5" front 15x110 Boost:

Model Designation:

WH-MT500

Manufacturer Number:

E-WHMT500FEBD7X

27.5" rear 12x148 Boost Shimano Micro Spline:

Model Designation:

WH-MT501

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

E-WHMT501REBD7

Contents:

• 1 x Shimano WH-MT500-CL-B wheel or WH-MT501-CL-B (front or rear wheel)
• 1 x roll of rim tape
