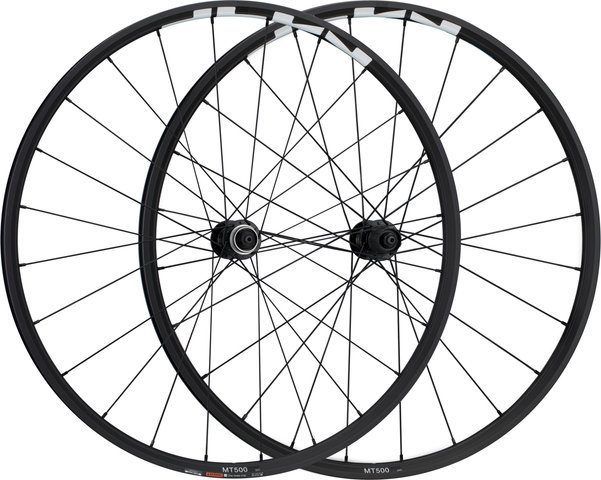

Shimano WH-MT500-CL 27.5" Wheelset - Quick release, thru-axle or both


With the Shimano WH-MT500-CL 27.5" wheelset you get affordable aluminium wheels that are suited for All Mountain use. The rims have a 24 mm inner width and are compatible with tyres measuring up to 2.4" . Included are painted aluminium hubs, a steel freehub, stainless-steel double-butted spokes - 24 both in front and rear - and brass nipples. Sealed and greased cone bearings ensure low-friction running. You can choose between a version with quick releases on the front and rear wheel, a thru-axle version or a mixed version with thru-axle at the front and quick release at the rear. The WH-MT500-CL have to be used with a tube.

Specifications:

Application:
All Mountain
Wheel Size:
27.5" (650B)
Tyre Type:
clincher tyre
Number of Spokes:
24
Brake Type:
Center Lock Disc
Tubeless System:
none

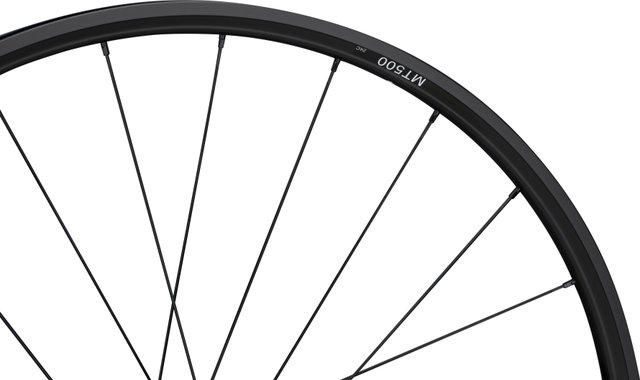

Technical Information - Rim:

Rim Flange:
with hook
Dimensions (ETRTO):
24-584
Inner Width:
24 mm
Outer Width:
29.6 mm
Depth:
21 mm
Valve Hole Diameter:
SV / Presta (6.5 mm)
Rim Material:
Aluminium

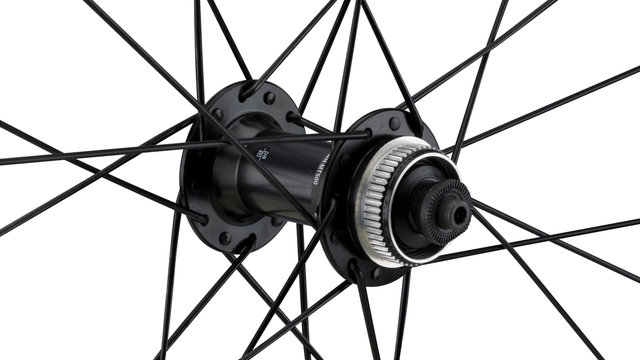

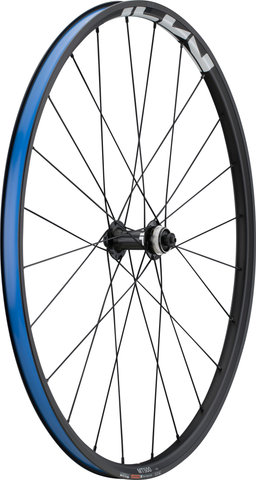

Technical Information - Front Hub:

Over Locknut Dimension:
9 x 100 mm quick release, 15 x 100 mm thru-axle
Bearings:
cup & cone
Body Material:
Aluminium

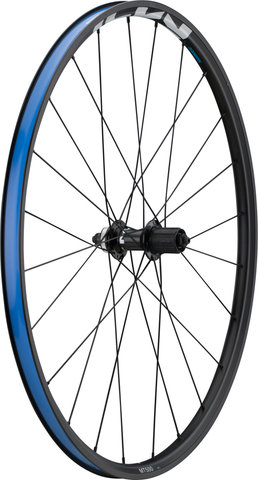

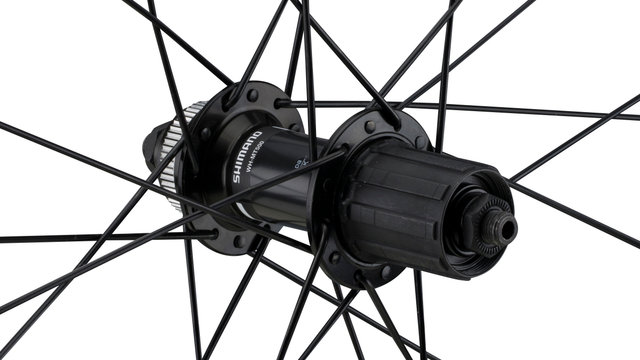

Technical Information - Rear Hub:

Over Locknut Dimension:
10 x 135 mm quick release, 12 x 142 mm thru-axle
Bearings:
cup & cone
Body Material:
Aluminium
Freehub Body Material:
steel
Freehub Body:
pawls

Technical Information - Lacing:

Front Lacing Pattern:
2-cross
Rear Lacing Pattern:
2-cross
Spoke Type:
J-Bend / double butted (2.3)
Spoke Size:
272 mm (front), 272 mm/270 mm (rear l/r)
Spoke Material:
stainless steel
Nipple Material:
brass

Approved For:

Recommended Tyre Width:
2.0" - 2.4"

Features:

  • anodised aluminium rim, sleeved
  • painted hubs
  • hub axles made of steel (front/rear for quick release version, rear for thru-axle version) or aluminium (front for thru-axle version)
  • labyrinth and contact seals
  • internal grease coating

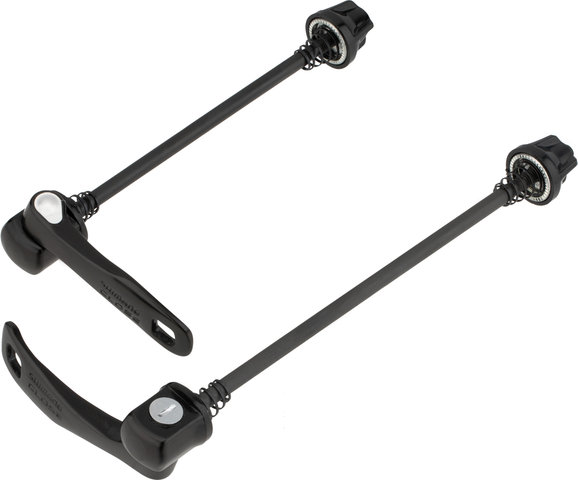

  • quick release length (for quick release version) 133 mm (front) and 168 mm (rear), lever made of aluminium
  • please use with rim tape (24-584, included)

Models:

27.5" set (front 9x100 + rear 10x135) Shimano:
Freehub:
Shimano MTB
Gearing:
8-/9-/10-/11-speed
Manufacturer Number:
E-WHMT500FD7 + E-WHMT500RD7C

27.5" set (front 15x100 + rear 12x142) Shimano:
Freehub:
Shimano MTB
Gearing:
8-/9-/10-/11-speed
Manufacturer Number:
E-WHMT500F15D7X + E-WHMT500R12D7

27.5" set (front 15x100 + rear 10x135) Shimano:
Freehub:
Shimano MTB
Gearing:
8-/9-/10-/11-speed
Manufacturer Number:
E-WHMT500F15D7X + E-WHMT500RD7C

Contents:

  • 1 x Shimano WH-MT500-CL wheelset (front & rear)
  • 2 x Shimano quick releases (front 9x100 only + rear 10x135) or 1 x quick release (front 15x100 only + rear 10x135)
  • 2 x roll of rim tape


Weight:

  • black/27.5" set (front 15x100 + rear 10x135) Shimano: 2083 g (Satz)
  • black/27.5" set (front 15x100 + rear 12x142) Shimano: 2069 g (Satz)
  • black/27.5" set (front 9x100 + rear 10x135) Shimano: 2109 g (Satz)
