TRP Disc Brake Adapter for 160 mm Rotors

The disc brake adapter from TRP for a brake rotor with 160 mm diameter

With the TRP disc brake adapter, you can mount the brake caliper on your bike to fit a 160 mm brake rotor. Please note the mounting standards of your components.

Technical Information:

Adapter Material:

aluminium

Bolt Material:

steel (CrMo)

Rotor Size:

160 mm

Models:

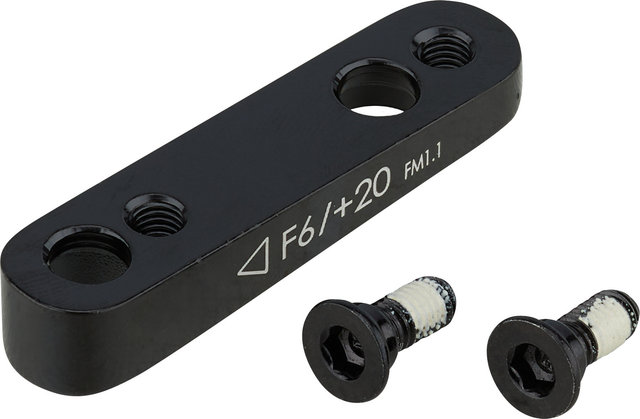

rear FM to FM:

Manufacturer Designation:

FF-6

Frame Mount:

Flat Mount 140 mm / 160 mm

Caliper Mount:

flat mount

Compatibility:

rear wheel

Manufacturer Number:

F6 Adapter

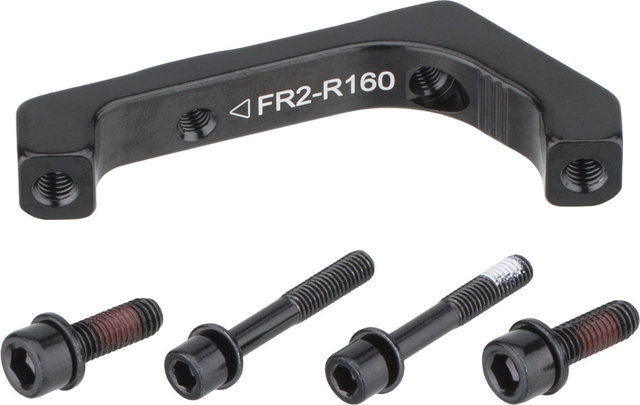

rear FM to PM:

Manufacturer Designation:

FR-2

Frame Mount:

Flat Mount 140 mm / 160 mm

Caliper Mount:

post mount

Compatibility:

rear wheel

Manufacturer Number:

FR2 Adapter

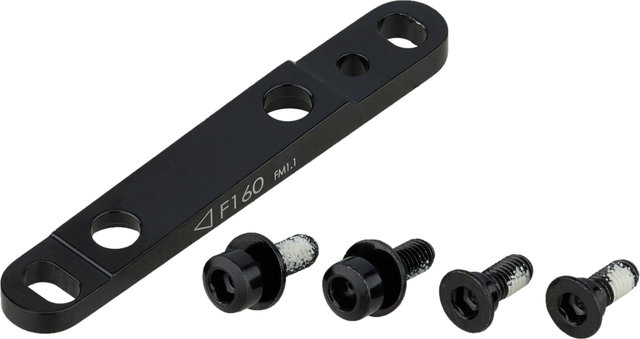

front FM to FM:

Manufacturer Designation:

FF-5

Fork Mount:

Flat Mount 140 mm / 160 mm

Caliper Mount:

flat mount

Compatibility:

front wheel

Manufacturer Number:

F5 Adapter

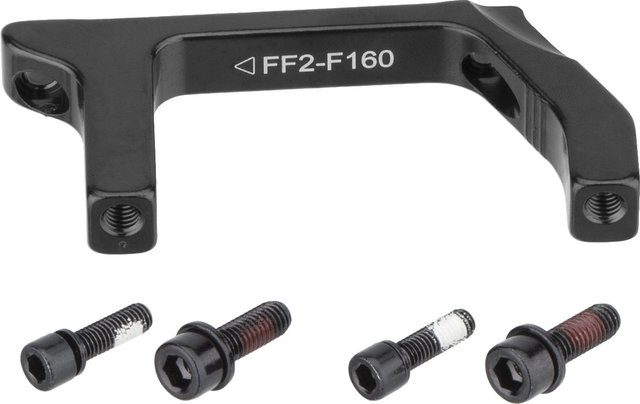

front FM to PM:

Manufacturer Designation:

FF-2

Fork Mount:

Flat Mount 140 mm / 160 mm

Caliper Mount:

post mount

Compatibility:

front wheel

Manufacturer Number:

FF2 Adapter

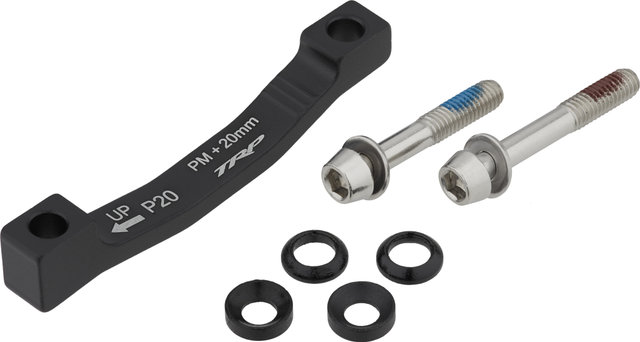

PM 5" to PM +20 mm:

Manufacturer Designation:

P20

Frame Mount:

post mount 5"

Fork Mount:

post mount 5"

Caliper Mount:

post mount

Increased Height:

20 mm

Manufacturer Number:

ABAD000143

Contents:

• 1 x TRP disc brake adapter
• 2 x bolts (for rear FM to FM, PM 5" to PM +20 mm)
• 4 x washers concave / convex (for PM 5" to PM +20 mm)
• 4 x bolts (for rear FM to PM, front FM to FM, front FM to PM)
