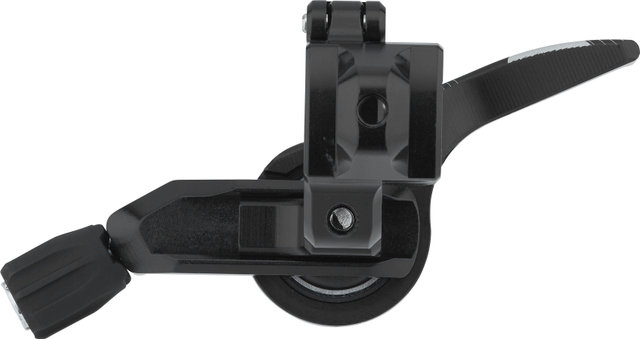

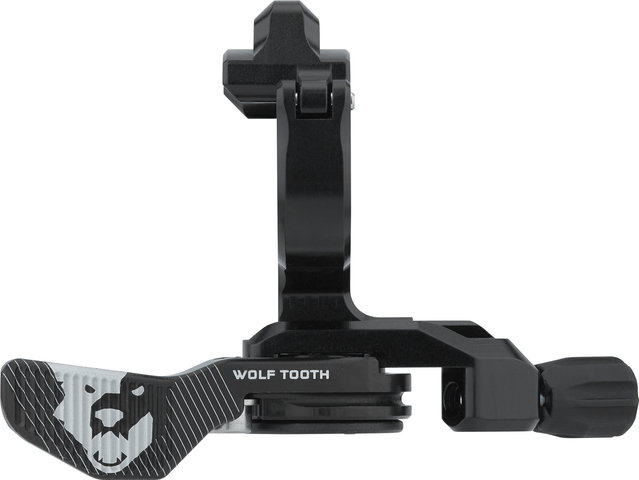

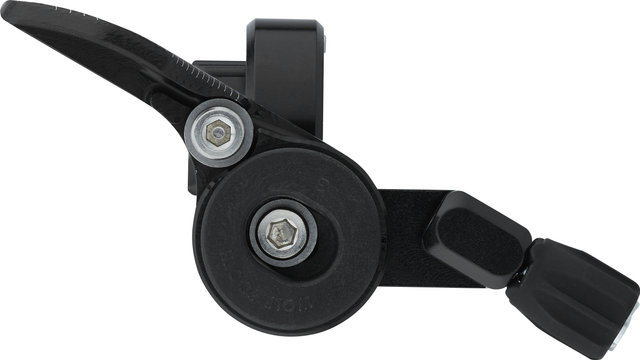

Wolf Tooth Components ReMote BellTower Remote Lever

Wolf Tooth Components ReMote BellTower remote lever with clamp for SPURCYCLE bells

The ReMote BellTower from Wolf Tooth Components is a remote lever for mechanically actuated dropper seatposts. A bell from SPURCYCLE can be attached to the 22.2 mm clamp. The bell itself is not included. The lever impresses with its user-friendly installation, smooth ball bearings and flat profile.

Specifications:

Application:

All Mountain, Enduro, Cross Country

Actuation:

mechanical

Mount:

clamp (split)

Technical Information:

Body Material:

Aluminium (6061-T6), composite (Delrin)

Lever Material:

aluminium (6061-T6)

Compatibility:

• MTB handlebars / flat bars with 22.2 mm clamp diameter
• all mechanically controlled dropper posts
• see below for individual posts recommendations
• SPURCYCLE Original bells (not Compact)

Features:

• Wolf Tooth ReMote remote lever with clamp for directly attaching a SPURCYCLE bell
• can also be used without mounted bell
• cable mount at the lever, for easy and quick setup
• 46.3 mm long lever (standard length)
• large cartridge ball bearing joint (21 mm, sealed) for smooth operation
• gentle clamping of the cable
• flat profile, easy to reach with the thumb
• integrated cable adjustment
• predetermined breaking point between lever and base
• grip-optimised surface of the lever
• bell is fastened with a 2.5 mm hex wrench

Compatibilities and Recommendations in Detail:

*

• 9point8 Fall Line: compatible, but Light Action BellTower ReMote is recommended
• BikeYoke Revive: compatible and recommended
• Bontrager Line: compatible and recommended
• DVO Garnet: compatible and recommended
• Easton Haven: compatible, but Light Action BellTower ReMote is recommended
• Fox Transfer: compatible and recommended
• Giant Contact: compatible and recommended
• Gravity Dropper: compatible and recommended
• Kind Shock: compatible and recommended
• PNW Bachelor: compatible and recommended
• OneUp Components: compatible, but Light Action BellTower ReMote is recommended
• Race Face Turbine: compatible, but Light Action BellTower ReMote is recommended
• RockShox Reverb Stealth B1: not compatible
• RockShox Reverb Stealth A2: not compatible
• RockShox Reverb Stealth A1: not compatible
• RockShox Reverb (external): not compatible
• Shimano (PRO) Koryak: compatible and recommended
• Specialized Command: compatible and recommended
• Thomson: compatible, but Light Action BellTower ReMote is recommended
• TransX: compatible and recommended

* For dropper posts not listed here, you can find out for yourself whether the Standard or Light Action version of the ReMote fits better. Measure the distance from the centre of the joint to the end of your current remote lever. If the distance is more than 52 mm, Light Action is recommended. If it is smaller than 52 mm, the standard version is recommended.

Manufacturer Number:

REMOTEBELL

Contents:

• 1 x Wolf Tooth Components ReMote BellTower remote lever
