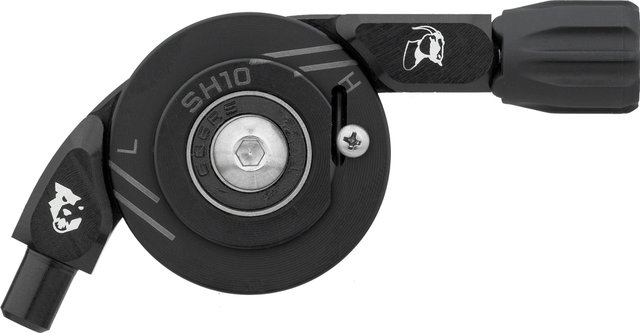

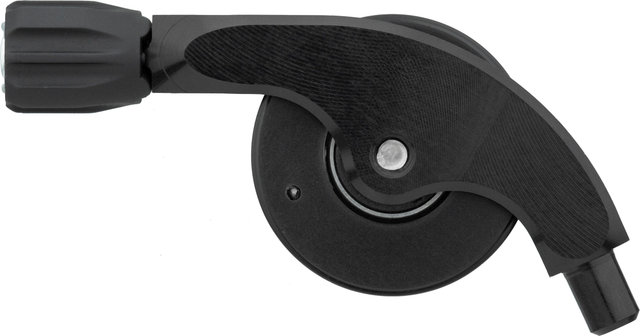

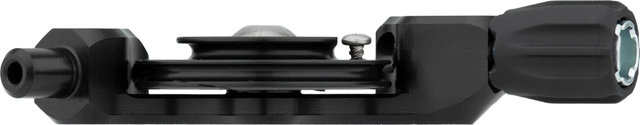

Wolf Tooth Components Tanpan Shimano 10-speed Inline Drivetrain Converter

Crossing boundaries, breaking down walls: the Tanpan drivetrain converter by Wolf Tooth Components

The Lindarets x Wolf Tooth Tanpan brings the range and security of Shimano MTB rear derailleurs to Road bikes with Shimano drivetrains. This means a wider range of gears for greater adventures, more chain retention on rough terrain and less weight and complexity for daily riding.
To achieve these advantages, the Tanpan increases the cable pull of the Road shifter cable and allows easy combination with MTB rear derailleurs. Ideal for riders who want to convert their Road, Gravel, Cyclocross or commuter bike to 1x because of the simplicity and weight savings - or for anyone who needs lower gears than are possible with the typical 2x drivetrain. In combination with a clutch Shadow+ rear derailleur the Tanpan guarantees unique chain retention on Shimano Road drivetrains.

Technical Information:

Material:

aluminium (6061), composite, stainless steel

Compatibility:

• most Road, Gravel, CX bikes
• 10-speed Shimano Road shifters
• 10-speed Shimano MTB rear derailleurs (11-speed with slight loss of shifting performance)
• not compatible with Tiagra 4700
• note the capacity of the rear derailleur specified by the manufacturer
• shifter cables with 1.1 mm diameter recommended

Combinations:

Rear Derailleur:

Shimano MTB 10-speed or 11-speed GS cage

Cassette:

10-Speed 11-32 or smaller

Shifters & Derailleurs:

1-speed or 2-speed

Rear Derailleur:

Shimano MTB 10-speed or 11-speed SGS cage

Cassette:

10-Speed 11-32 or smaller

Shifters & Derailleurs:

1-speed or 2-speed

Rear Derailleur:

Shimano MTB 10-speed or 11-speed GS cage

Cassette:

10-speed 11-34

Shifters & Derailleurs:

1-speed or 2-speed

Rear Derailleur:

Shimano MTB 10-speed or 11-speed SGS cage

Cassette:

10-speed 11-34

Shifters & Derailleurs:

1-speed or 2-speed

Rear Derailleur:

Shimano MTB 10-speed or 11-speed GS cage

Cassette:

10-speed 11-36

Shifters & Derailleurs:

1-speed or 2-speed

Rear Derailleur:

Shimano MTB 10-speed or 11-speed SGS cage

Cassette:

10-speed 11-36

Shifters & Derailleurs:

1-speed or 2-speed

Rear Derailleur:

Shimano MTB 10-speed or 11-speed GS cage

Cassette:

10-speed 11-40 (with cassette extension)

Shifters & Derailleurs:

1-speed

Rear Derailleur:

Shimano MTB 10-speed or 11-speed SGS cage

Cassette:

10-speed 11-40 (with cassette extension)

Shifters & Derailleurs:

1-speed or 2-speed*

Rear Derailleur:

Shimano MTB 10-speed or 11-speed GS cage

Cassette:

10-speed 11-42 (with cassette extension)

Shifters & Derailleurs:

1-speed

Rear Derailleur:

Shimano MTB 10-speed or 11-speed SGS cage

Cassette:

10-speed 11-42 (with cassette extension)

Shifters & Derailleurs:

1-speed or 2-speed*

* Wolf Tooth GoatLink recommended for 10-speed rear derailleurs

Features:

• developed through collaboration between Lindarets and Wolf Tooth Components
• recommended mounting (" Inline" ) with end cap on the 4 mm cable housing near the handlebars (mandatory if the rear derailleur cable runs inside the chainstay and exits at the end above the axle)
• with index barrel adjuster
• sealed cartridge bearings
• CNC manufactured
• Made in the USA

Manufacturer Number:

TANPANSH10INLINE

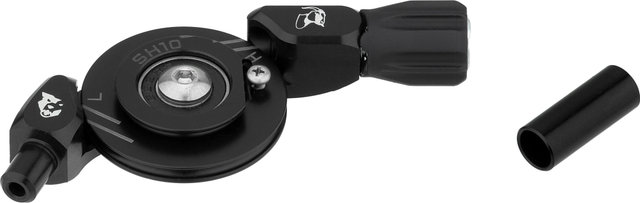

Contents:

• 1 x Wolf Tooth Components Tanpan 10-speed rear derailleur converter
• 1 x Wolf Tooth Components Inline adapter end cap

• black: 18 g
