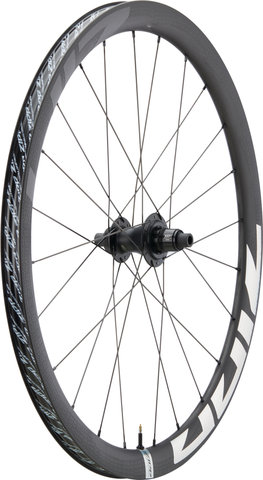

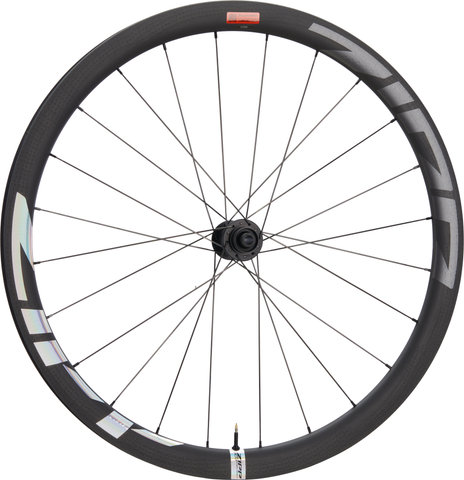

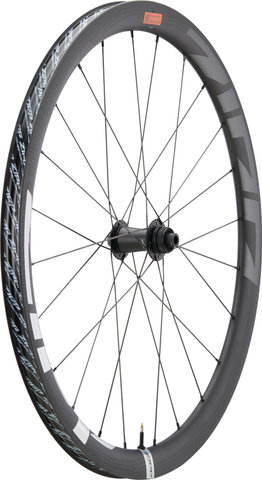

Zipp 303 Firecrest® Force Ed. Carbon Tubeless Center Lock Disc Wheelset

The Zipp 303 Firecrest® Disc carbon wheelset in the Force Edition with updated rim design

The 303 Firecrest road bike wheelset from Zipp impresses with a modern design that matches the Force groupsets from SRAM. From a technical point of view, it has all the advantages of the standard edition, from the 25 mm wide and 40 mm deep, hookless carbon rim, which is of course tubeless-compatible, to the ZR1 Center Lock Disc hub set, which scores points for durability and transmission efficiency. The 303 Firecrest wheels have been designed to minimise wind and rolling resistance and help you to enjoy a comfortable, energy-saving ride on a variety of surfaces.

Specifications:

Application:

Road, Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

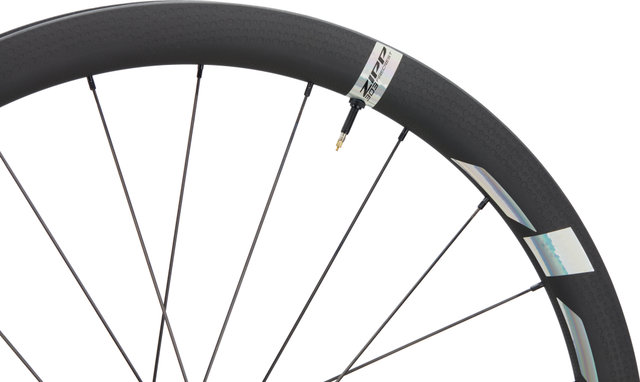

Technical Information - Rim:

Type:

Zipp Firecrest

Rim Flange:

hookless

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

30 mm

Depth:

40 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon

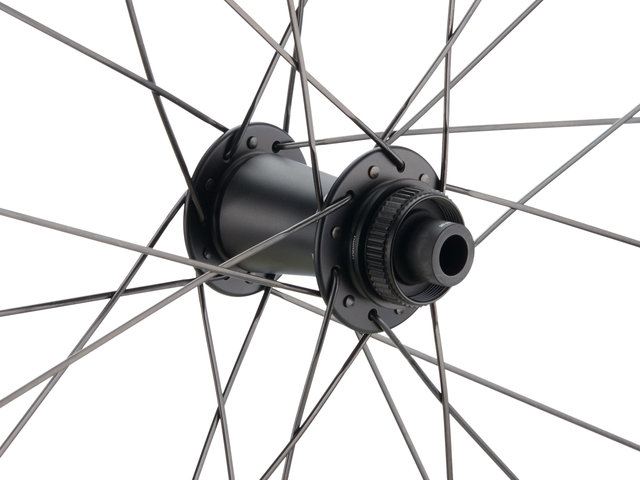

Technical Information - Front Hub:

Type:

Zipp ZR1 Disc

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

Cartridge bearings (steel)

Body Material:

aluminium

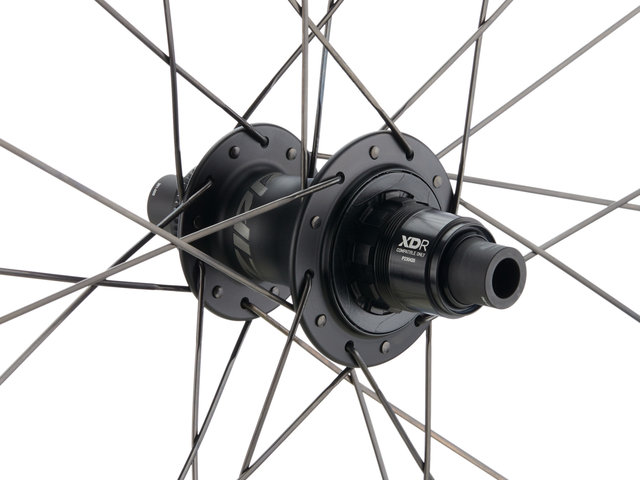

Technical Information - Rear Hub:

Type:

Zipp ZR1 Disc

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

Cartridge bearings (steel)

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

6 pawls (66 engagement points)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

Sapim CX-Sprint

Spoke Size:

270 mm/272 mm (front l/r), 270 mm/266 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

Sapim Secure-Loc

Nipple Material:

aluminium

Approved For:

Weight Limit:

114 kg total weight

Air Pressure (max.):

5 bar or the maximum pressure indicated on the tyre sidewall (the lower pressure applies in each case)

Recommended Tyre Width:

from 28 mm

Tyre Type:

The Firecrest 303 Tubeless Disc is approved for the use with tubeless and Tubeless Ready tyres only, due to the hookless rims. Please make sure that the tyre manufacturer's approval is given for hookless rims. An inner tube can be used with a tubeless/tubeless-ready tyre which is compatible with hookless rims. Follow the installation recommendations of the tyre manufacturer.

Features:

• versatile long-distance wheelset with tubeless and hookless rim profile

for modern road bikes

• revised rim design to match SRAM Force groupsets
• low weight for nimbleness and speed
• tubeless made easy: optimised shape of the rim bed allows easy installation and removal without tools and without the need for a compressor to bead the tyre
• ultra-wide 25 mm rim profile creates a better transition to the tyre for fast on and off-road performance
• 40 mm rim depth makes the wheel aerodynamic in every situation without adding too much weight
• ZR1 DB hub (manufactured in Germany) with revised seal design for improved durability and faster response
• aluminium hub axles
• front can be converted to 9 x 100 mm quick release or 15 x 100 mm thru-axle (adapter not included)
• rear convertible to 10 x 135 mm quick release (adapter not included)

Technology:

Firecrest®
Through the pioneering use of software to analyse numerical fluid mechanics and the power of a supercomputer, Zipp is able to understand exactly what makes wheels go fast. Zipp then tests the most promising rim shapes in the wind tunnel and on the road. This process led to the creation of Firecrest rim technology, which allows the wheel's airflow and centre of gravity to be controlled more effectively, resulting in better aerodynamics, better handling in crosswinds and an overall better cycling experience.

ABLC SawTooth
This patented rim shape achieves what conventional aero wheels cannot: it simultaneously reduces aerodynamic drag and lateral wind forces, providing the ultimate AeroBalance. In addition, the ABLC recesses ensure improved air flow. The result is lower aerodynamic drag and reduced lateral wind forces at any angle of attack. This is important because the steeper the wind angle, the larger the influence on the handling of the bike.

Colour Info:

black:

• Rims: black (carbon) with Force Edition graphics
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

To mount XD cassettes on an XDR rotor, a 1.8 mm spacer is required.

Manufacturer Number:

00.1918.529.003 (front) + 00.1918.530.004 (rear)

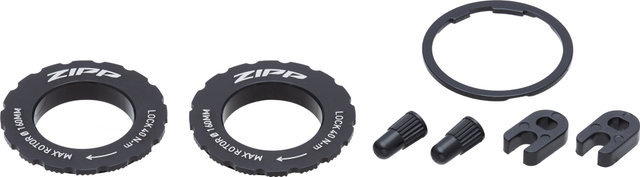

Contents:

• 1 x Zipp 303 Firecrest Carbon Tubeless Centre Lock Disc wheelset (front and rear)
• 2 x Center Lock lockrings
• 2 x valve core removers
• 2 x tubeless rim tape (pre-installed)
• 2 x tubeless valves (pre-installed)

Order Together:

Optional accessories:

• front end caps 9 x 100 mm
• front end caps 15 x 100 mm
• rear end caps 10 x 135 mm
• QUARQ TyreWiz Tyre Pressure Sensor
