Zipp 303 S Carbon Tubeless Disc Centre Lock Wheelset - black/28" set (front 12x100 + rear 12x142) SRAM XDR

Zipp 303 S Carbon Tubeless Disc Centre Lock Wheelset

Item number: 77048
12
12
The Zipp 303 S Carbon Tubeless Center Lock Disc wheelset stands for speed on all surfaces and relies on an innovative, widened rim shape that has been optimised for 28 mm tyres with lower tyre pressures and minimises both wind and rolling resistance.

Specifications:

Application:
Road, Gravel
Wheel Size:
28"
Tyre Type:
clincher tyre
Number of Spokes:
24
Brake Type:
Center Lock Disc
Tubeless System:
Tubeless Ready

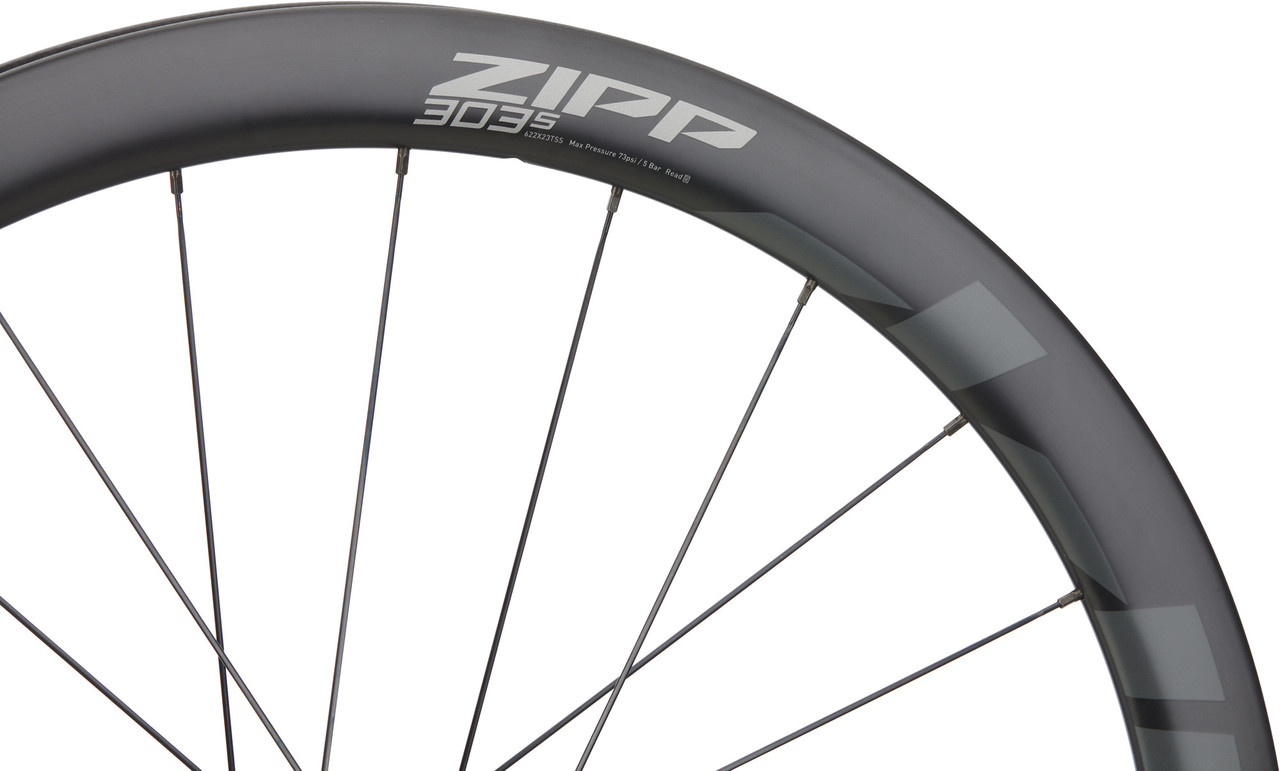

Technical Information - Rim:

Rim Flange:
hookless
Dimensions (ETRTO):
23-622
Inner Width:
23 mm
Outer Width:
27 mm
Depth:
45 mm
Valve Hole Diameter:
SV/Presta (6.5 mm)
Rim Material:
Carbon

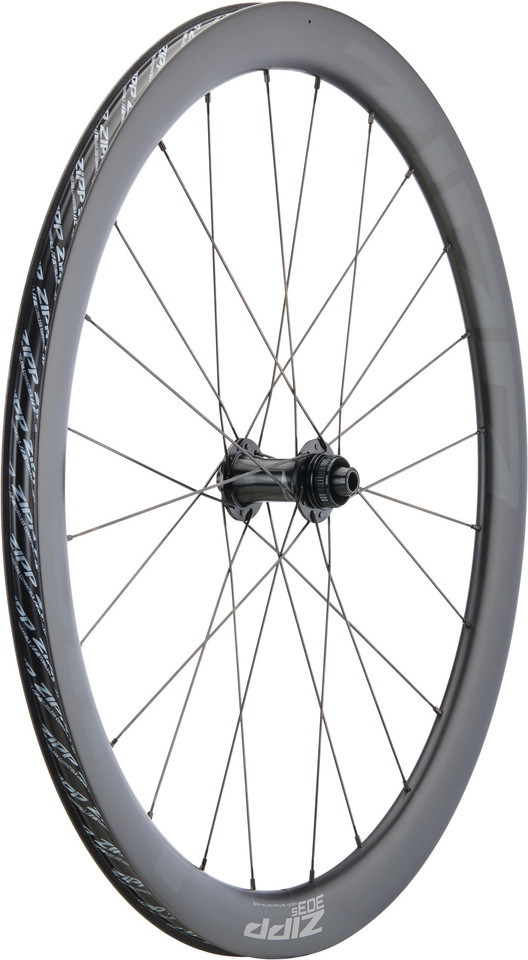

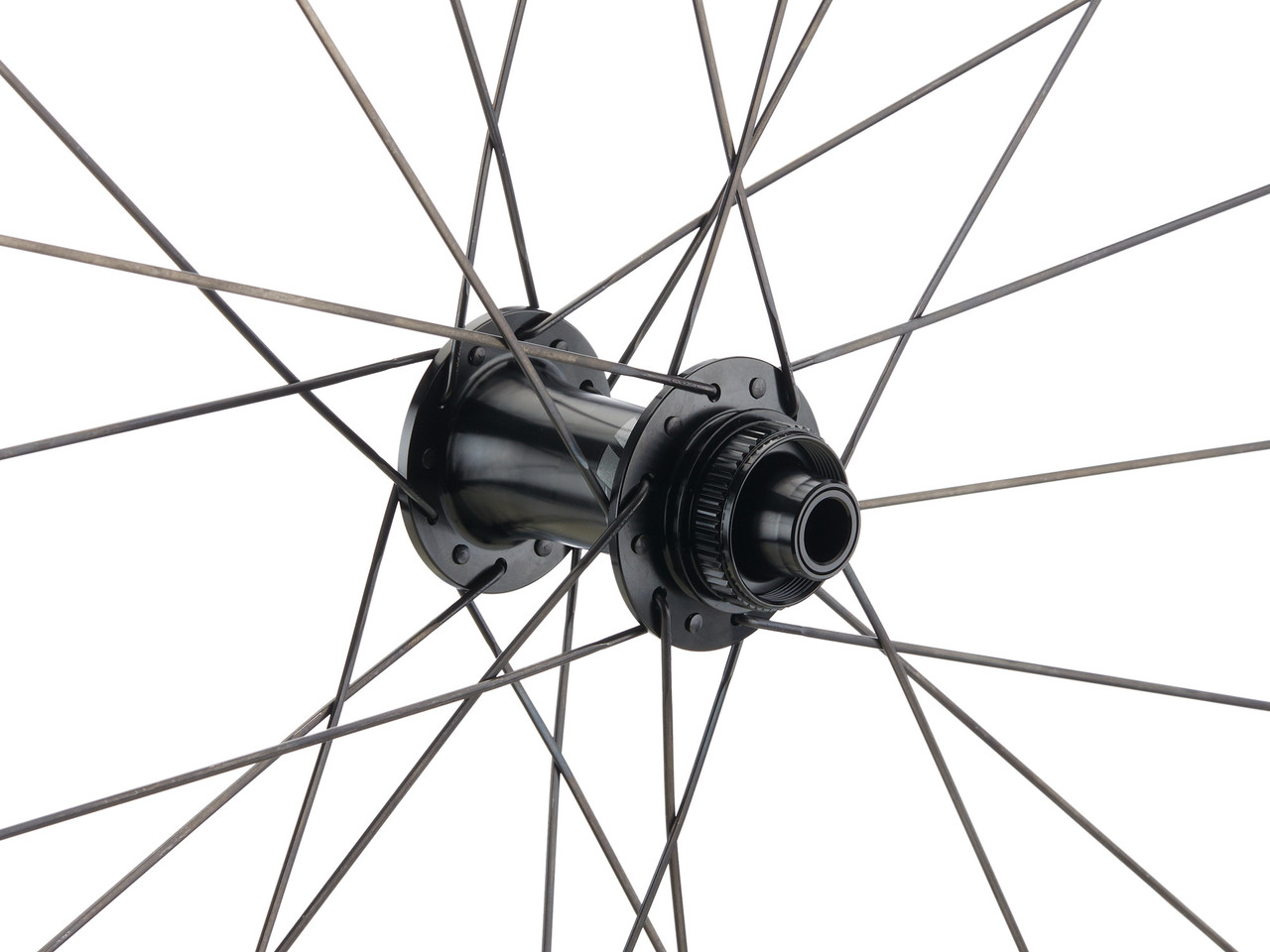

Technical Information - Front Hub:

Type:
Zipp 76D
Over Locknut Dimension:
12 x 100 mm thru-axle
Bearings:
cartridge (stainless steel)
Body Material:
aluminium

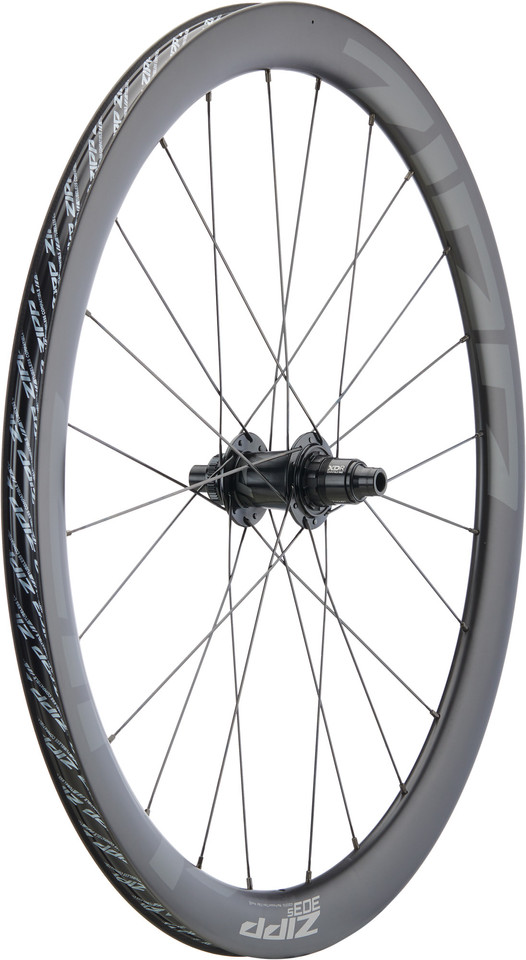

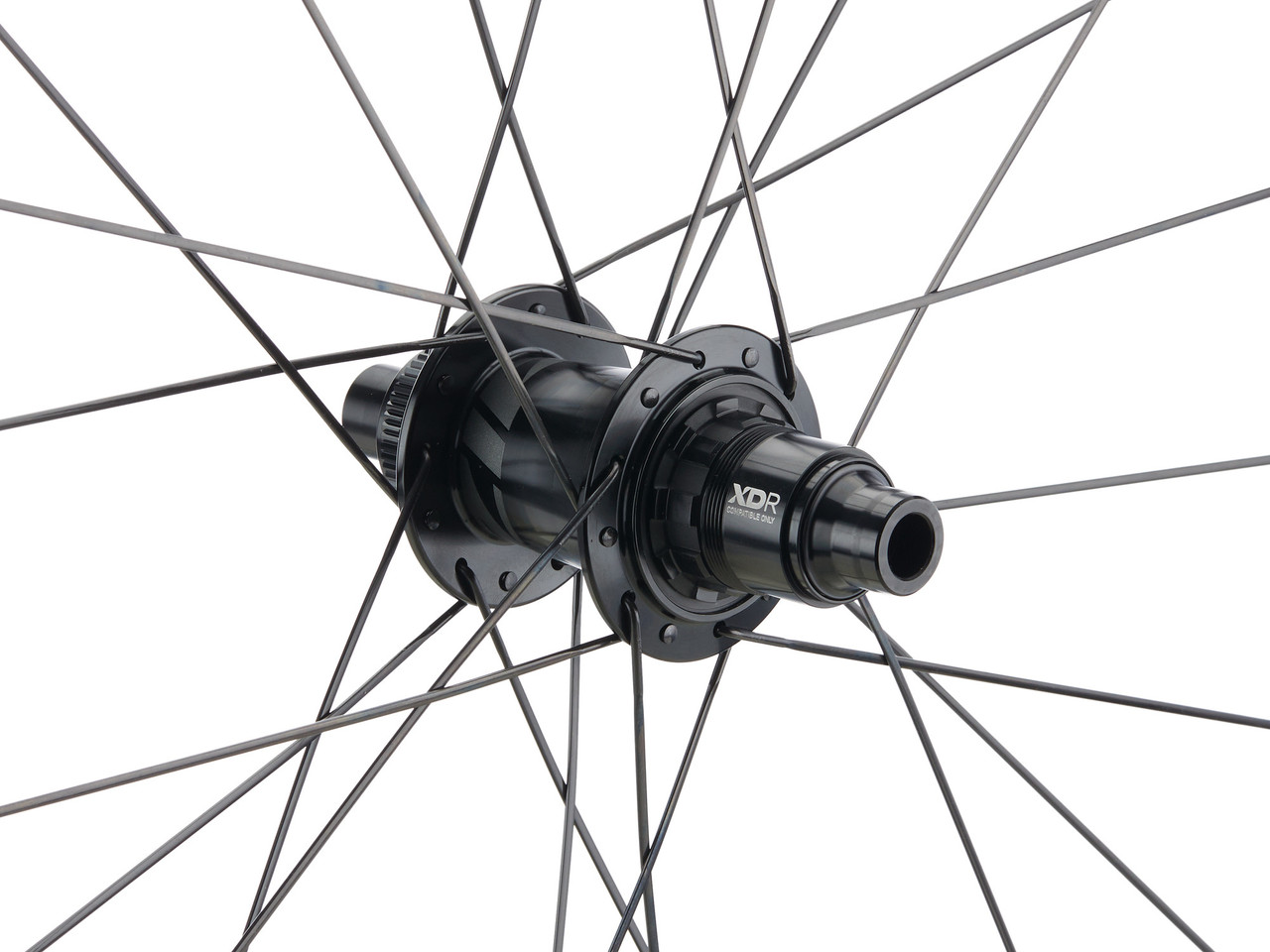

Technical Information - Rear Hub:

Type:
Zipp 176D
Over Locknut Dimension:
12 x 142 mm thru-axle
Bearings:
cartridge (stainless steel)
Body Material:
aluminium
Freehub Body Material:
aluminium
Freehub Body:
3 pawls

Technical Information - Lacing:

Front Lacing Pattern:
2-cross
Rear Lacing Pattern:
2-cross
Spoke Type:
Sapim CX-Sprint
Spoke Size:
268 mm/266 mm (front l/r), 266 mm/264 mm (rear l/r)
Spoke Material:
stainless steel
Nipple Type:
Sapim Secure-Loc
Nipple Material:
brass

Approved For:

Weight Limit:
115 kg total weight
Air Pressure (max.):
5 bar or the maximum pressure indicated on the tyre sidewall (the lower pressure applies in each case)
Recommended Tyre Width:
28 - 50 mm
Tyre Type:
The 303 S Tubeless Disc is approved for use with tubeless and tubeless ready tyres only, due to the hookless rims. Please make sure that the tyre manufacturer's approval is given for hookless rims. An inner tube can be used with a tubeless/tubeless-ready tyre which is compatible with hookless rims. Follow the installation recommendations of the tyre manufacturer.

Features:

  • new Zipp graphics for a speedy look
  • fastest with 28 mm tyres, but also suitable for wide Gravel tyres
  • wide rims allow lower tyre pressure, especially with tubeless tyres
  • larger contact surface for more grip and therefore more safety in curves, descents and when handling on wet roads
  • lower tyre pressures and a larger volume ensure a more comfortable ride and less vibration
  • significant watt savings when using wider tyres at lower pressures
  • wide hookless rims create a seamless transition to the tyre and reduce air resistance
  • aluminium axles

Colour Index:

black:
  • Rims: black (carbon) with standard decals
  • Hubs: black
  • Spokes: black
  • Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:
Freehub:
Shimano Road
Gearing:
8-/9-/10-/11-/12-speed
Note:
Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.
Manufacturer Number:
00.1918.527.000 (front) + 00.1918.527.000 (rear)

28" set (front 12x100 + rear 12x142) SRAM XDR:
Freehub:
SRAM XDR
Gearing:
11-/12-speed
Note:
A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.
Manufacturer Number:
00.1918.527.000 (front) + 00.1918.528.001 (rear)

Contents:

  • 1 x Zipp 303 S Carbon Clincher Tubeless Disc Centre Lock wheelset (front and rear)
  • 2 x Center Lock lockrings
  • 1 x cassette spacer (Shimano rear only)
  • 2 x valve core removers
  • 2 x tubeless rim tape (pre-installed)
  • 2 x tubeless valves (pre-installed)

Weight:

  • black/28" set (front 12x100 + rear 12x142) SRAM XDR: 1530 g (Satz)
