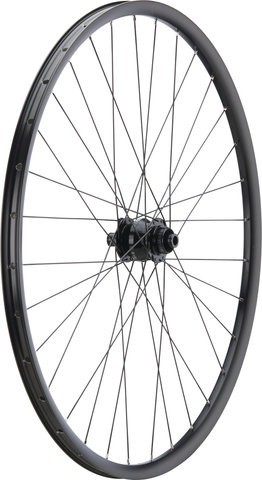

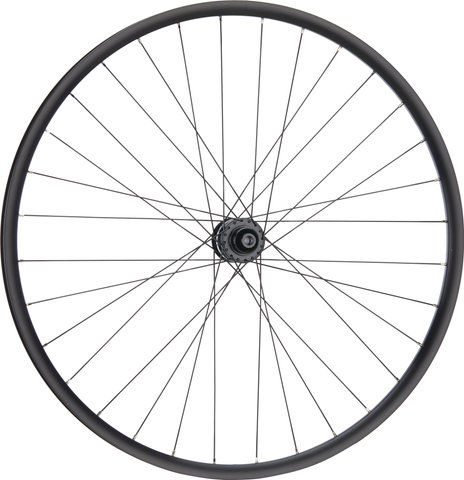

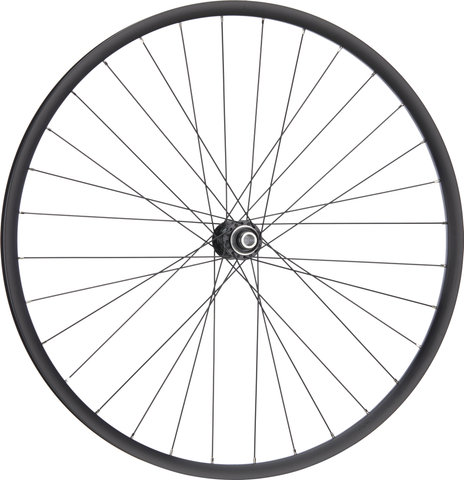

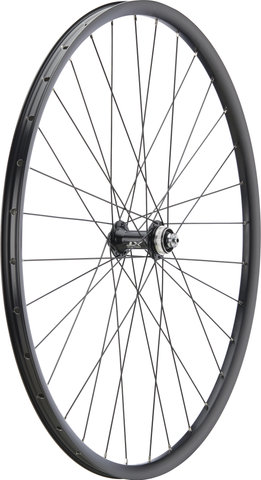

bc basic Urban XT Heavy Duty Disc Center Lock P-22 28" Wheel
Item number: 83817
Product Description

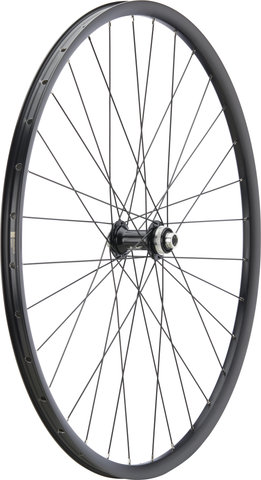

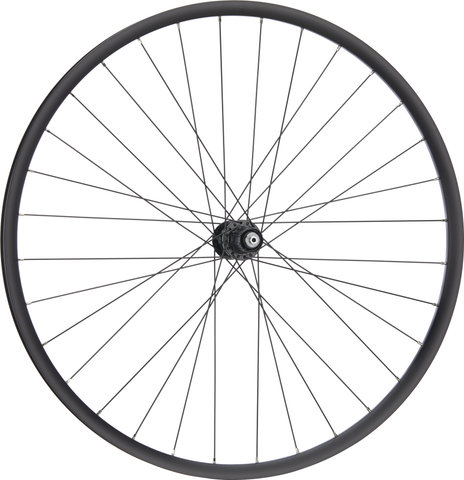

The 28" Urban wheel from bc basic with P-22 disc rim and Shimano XT hub

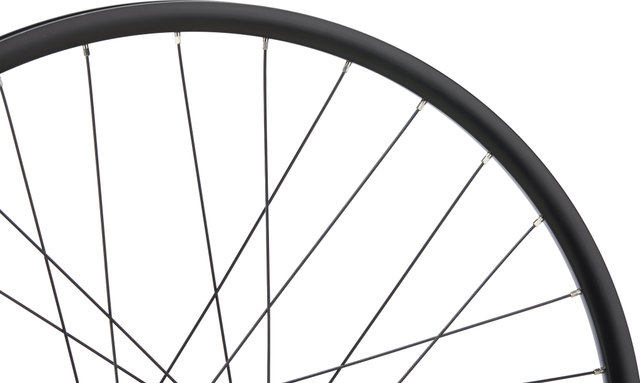

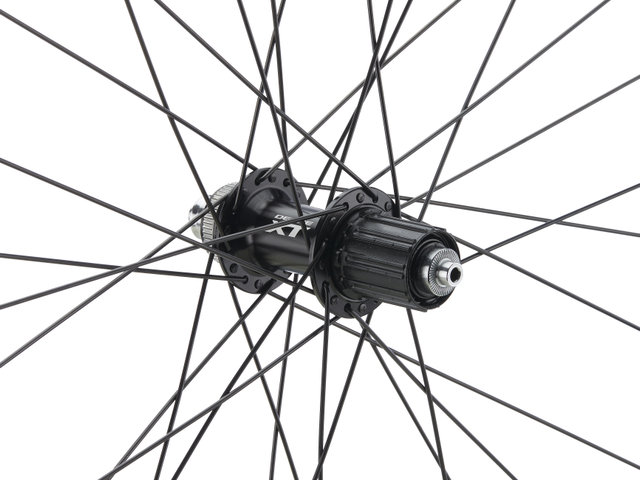

The bc basic Heavy Duty 28" wheel for city and touring use is based on the P-22 aluminium rim, a new development by NEWMEN for bc. The P-22 is 22 mm wide and lives up to its name - P stands for "Performance" - with its durability and light weight. Tyre mounting without an inner tube is also possible. The centre of the wheel has a Shimano XT or 105 disc centre-lock hub for quick-release or thru-axle mounting, which ensures reliable function. Depending on the version, the rear wheel is equipped with a conventional MTB 11-speed freehub or a Micro Spline 12-speed freehub. The front wheel is also available with a hub dynamo from Shutter Precision, so that you can fit a lighting system that conforms to road traffic regulations. All versions are laced with round DT Factory spokes.
The bc basic Heavy Duty 28" wheel for city and touring use is based on the P-22 aluminium rim, a new development by NEWMEN for bc. The P-22 is 22 mm wide and lives up to its name - P stands for "Performance" - with its durability and light weight. Tyre mounting without an inner tube is also possible. The centre of the wheel has a Shimano XT or 105 disc centre-lock hub for quick-release or thru-axle mounting, which ensures reliable function. Depending on the version, the rear wheel is equipped with a conventional MTB 11-speed freehub or a Micro Spline 12-speed freehub. The front wheel is also available with a hub dynamo from Shutter Precision, so that you can fit a lighting system that conforms to road traffic regulations. All versions are laced with round DT Factory spokes.
Product Specifications:
- Rim flange:
- With hook
- Brake system:
- Disc Center Lock
- Tubeless system:
- Tubeless Ready
- Number of spokes:
- 32
- Inner rim width:
- 22 - 22 mm
- Power output connection:
- 2-pin plug
- Freehub body material:
- Steel
- Valve hole (diameter):
- SV (6.5 mm)
- Tire type:
- Clincher tire/folding tire
- Application:
- City & Touring, City
- Rim material:
- Aluminum
- Tubeless system:
- Tubeless Ready
- Hub Dynamo Present:
- Yes
- Rim height front:
- 20 mm
- Rim height rear:
- 20 mm
black | 28" front 15x100:
- Wheel size:
- 28"
- Dimension (ETRTO):
- 22-622
- Installation width FW:
- 100 mm
- Rim height:
- 20 mm
Technical Information:
- Rear spoke pattern:
- 3-cross
- Hub shell material:
- Aluminum
- Efficiency:
- at least 30%
- Front spoke pattern:
- 3-cross
- Nipple size:
- 12 mm (length) / 2 mm (diameter)
- Nipple material:
- Brass
- Axle type front:
- Thru-axle
- Diameter mm:
- 622 mm
black | 28" front 15x100:
- Front installation width:
- 100 mm
- Installation Width:
- 100 mm
- Axle diameter front:
- 15 mm
Approved For:
- Test number:
- K~~845 (PL-8), K~~1867 (PL-7)
Product Features:
- 28" front or rear wheel for demanding use in everyday life and on tour

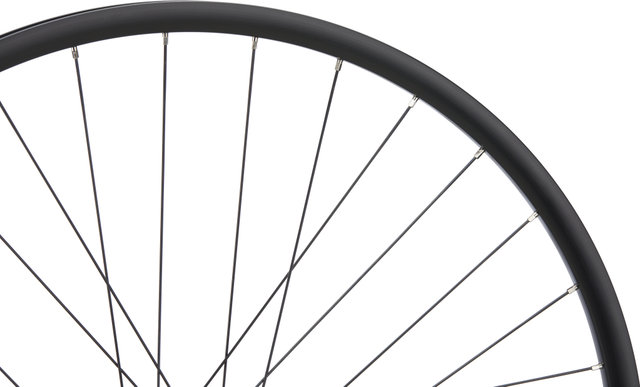

- rim developed by NEWMEN with durable, lightweight design

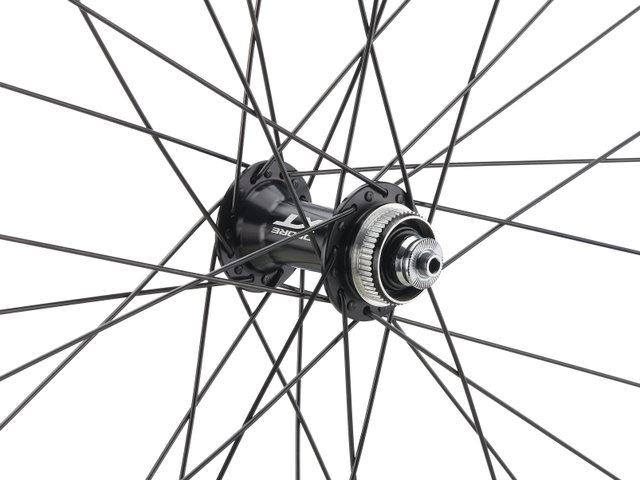

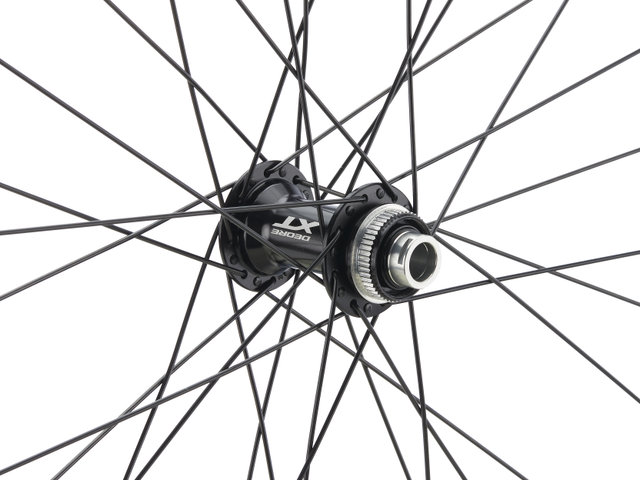

- Shimano XT or 105 Disc Center Lock hub

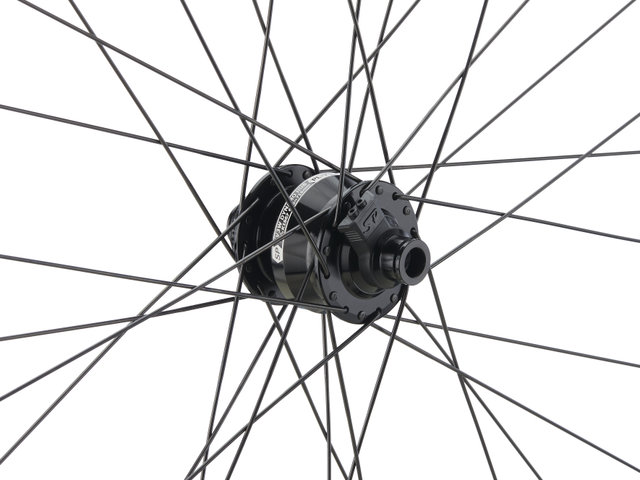

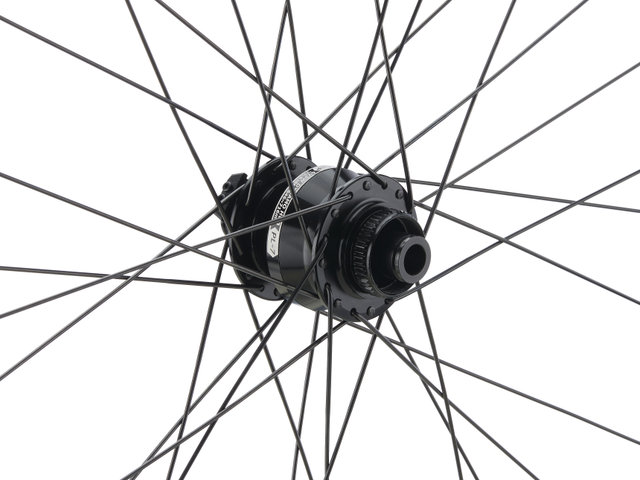

- front wheel also available with hub dynamo from Shutter Precision
- round DT Swiss spokes

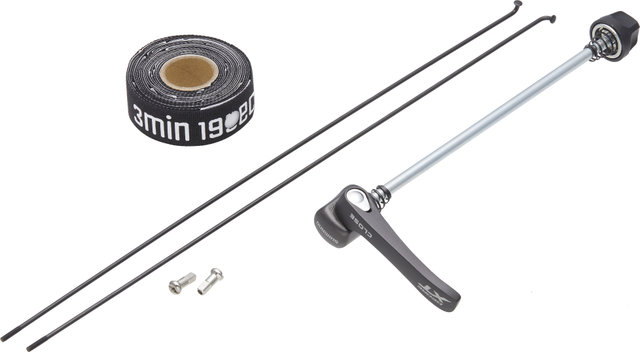

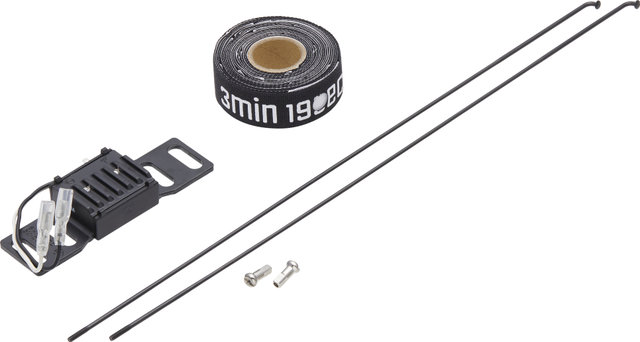

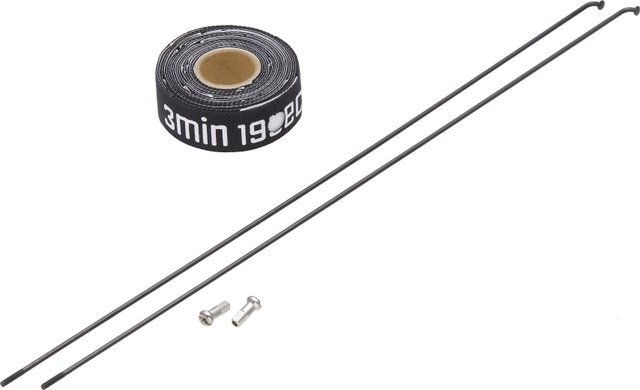

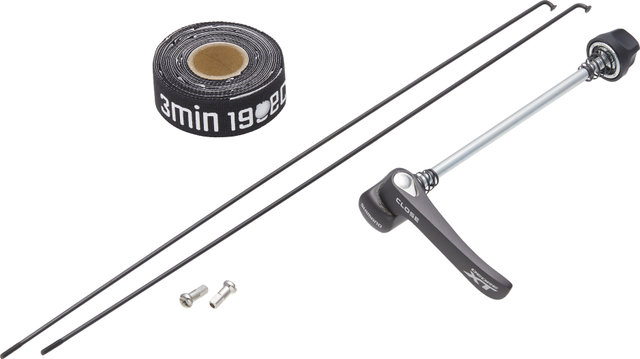

Contents:
- 1 x bc basic Urban XT Heavy Duty Disc Center Lock P-22 28" wheel (front wheel or front wheel with dynamo hub or rear wheel, laced and trued)
- 1 x quick releases (only for front 9x100 and rear 10x135)
- 1 x roll of bc rim tape
- 2 x spare spokes with nipples
- 1 x connector (only with the front dynamo hub wheel)
- 1 x overvoltage protector (only with the front dynamo hub wheel)
Weight:
- black | 28" front 15x100: 929 g
Manufacturer:
bc GmbH
Carlo-Schmid-Straße 12
52146 Würselen
Germany
