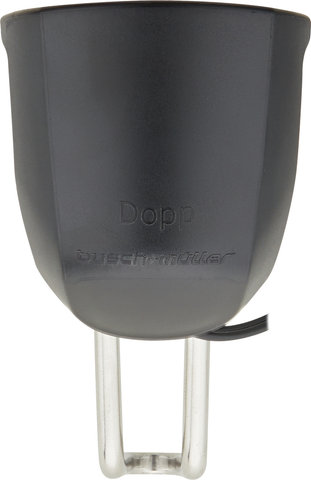

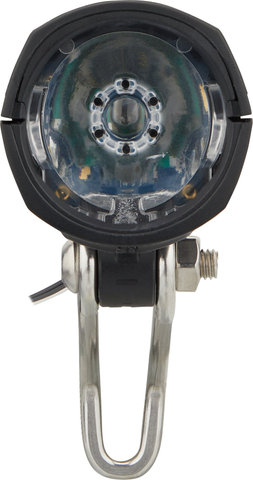

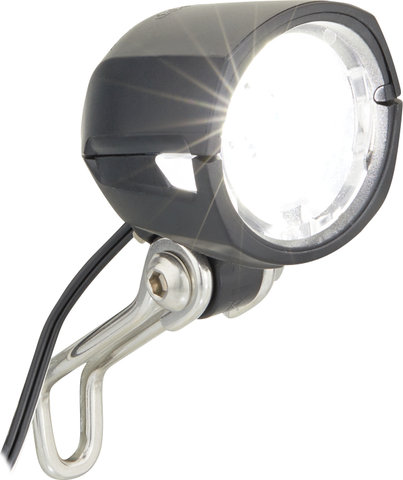

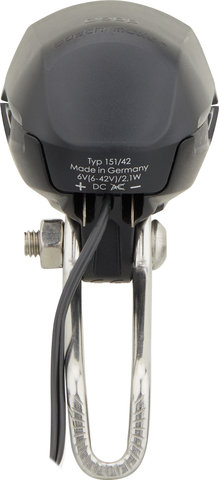

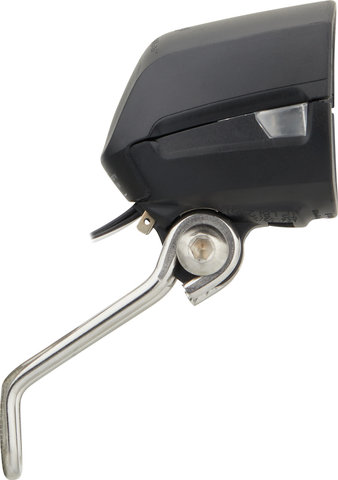

busch+müller Dopp E LED Front Light for E-bikes - StVZO approved

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Type:

front light (white)

Mount:

fork crown

Light Source:

LED (1)

Brightness:

35 lux

Power Source:

E-bike battery

Technical Information:

Voltage:

6 - 42 V

Material:

composite

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1737

Features:

• compact e-bike front light with 35 lux luminous intensity
• uniform light image with illuminated close-up range
• side light openings on the housing for more visibility
• fork mount made of tough stainless steel
• control via e-bike display
• optional front reflector can be mounted on the light housing
• connection option for a rear light
• power consumption 2.2 W

Manufacturer Number:

151R42/6-04

Contents:

• 1 x busch+müller Dopp E front light
• 1 x white front reflector
• 1 x double cable
