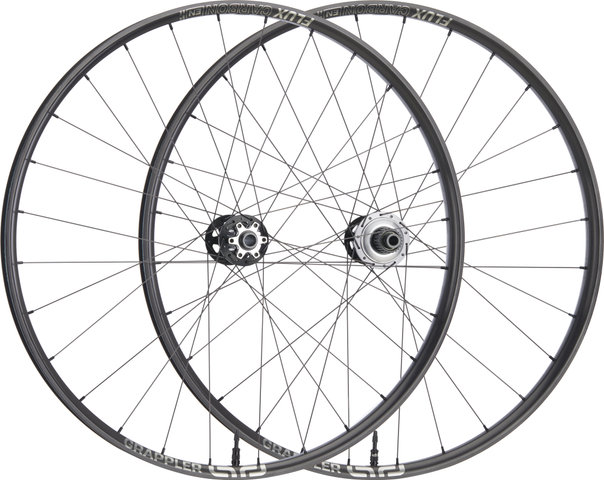

e*thirteen Grappler Sidekick Flux Enduro Carbon Super Boost 29" Wheelset

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please note the guideline for replacing parts on CE-marked e-bikes / pedelecs with pedal assist.

Specifications:

Application:

Enduro

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

6-bolt disc

Wheel Standard:

Boost (FR) / Super Boost (RR)

Tubeless System:

Tubeless Ready

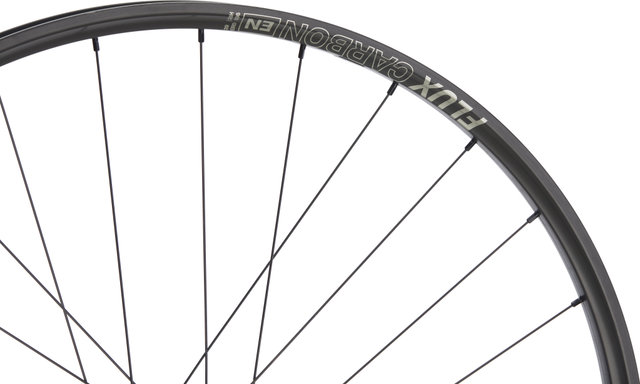

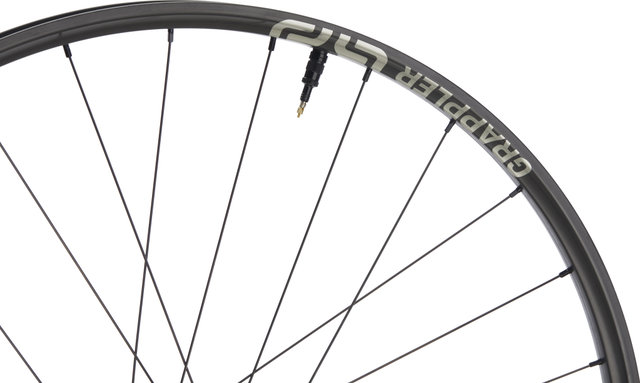

Technical Information – Rim:

Rim Flange:

hookless

Dimensions (ETRTO):

30-622

Inner Width:

30 mm

Depth:

17.5 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon

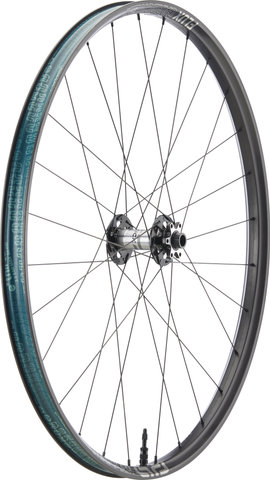

Technical Information – Front Hub:

Type:

e*thirteen Sidekick

Over Locknut Dimension:

15 x 110 mm thru-axle

Body Material:

aluminium

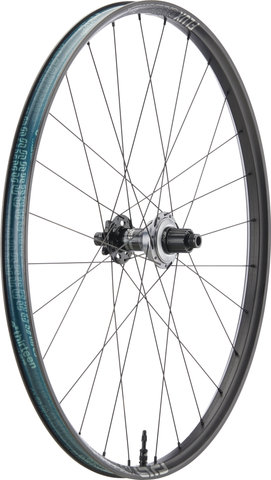

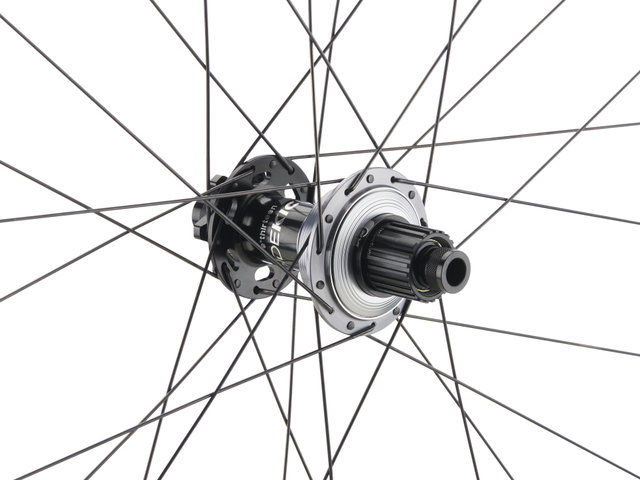

Technical Information - Rear Hub:

Type:

e*thirteen Sidekick

Over Locknut Dimension:

12 x 157 mm thru-axle

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

e*thirteen Sidekick Ratchet, 60 teeth

Technical Information – Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

Sapim D-Light

Nipple Type:

Sapim Secure Lock

Features:

• 29" -wheelset with Boost front and Super-Boost rear for Enduro
• Rims made of carbon
• Sidekick hubs with anti-kickback mechanism
• Freehub with 3-stage adjustable engagement angle reduces vibrations, drag and freehub noise to a minimum
• Lower rolling resistance increases speed and efficiency

Models:

29" Set (FR 15x110 Boost+RR 12x157 Super Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

WH5GKA-300 + WH5GKA-304

29" Set (FR 15x110 Boost + RR 12x157 Super Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Number:

WH5GKA-300 + WH5GKA-303

Contents:

• 1 x e*thirteen Grappler Sidekick Flux Enduro Carbon Super Boost 29" wheelset (front and rear wheel)
