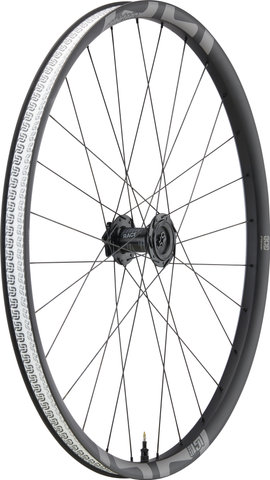

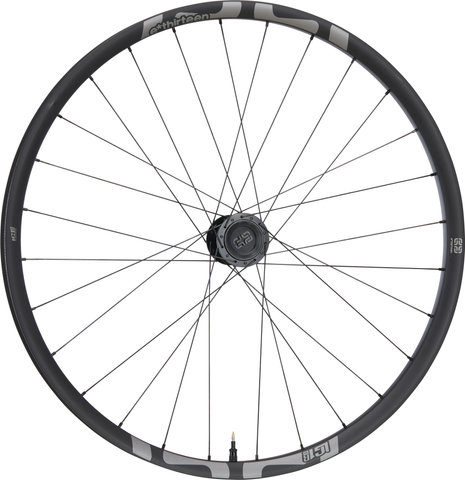

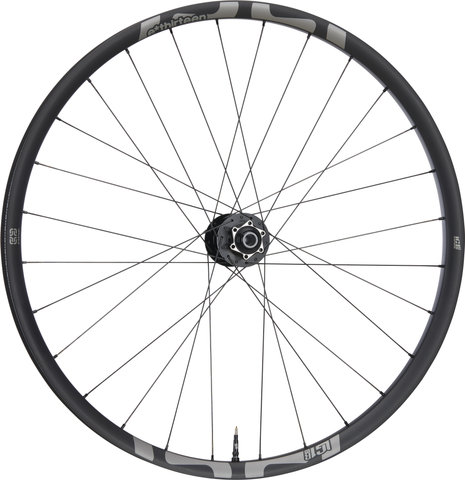

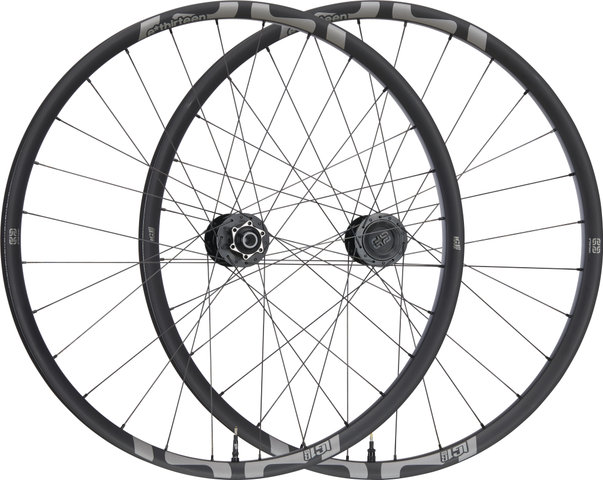

e*thirteen LG1 Race Carbon Enduro Boost 29" Wheelset

Specifications:

Application:

Enduro, All Mountain

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

6-bolt Disc (Boost)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

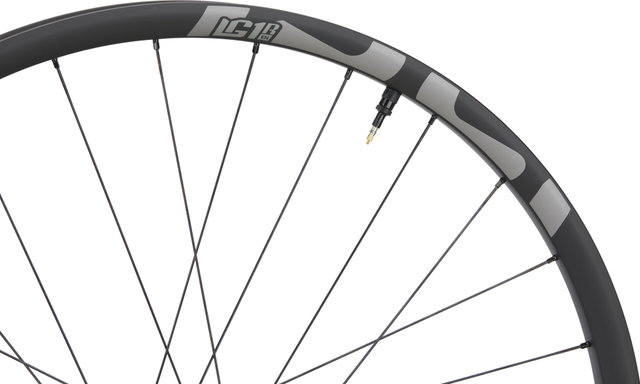

Technical Information - Rim:

Type:

LG1 Race Enduro Carbon

Rim Flange:

hookless

Dimensions (ETRTO):

30-622

Inner Width:

30 mm

Outer Width:

37 mm

Depth:

23.8 mm

ERD:

594 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

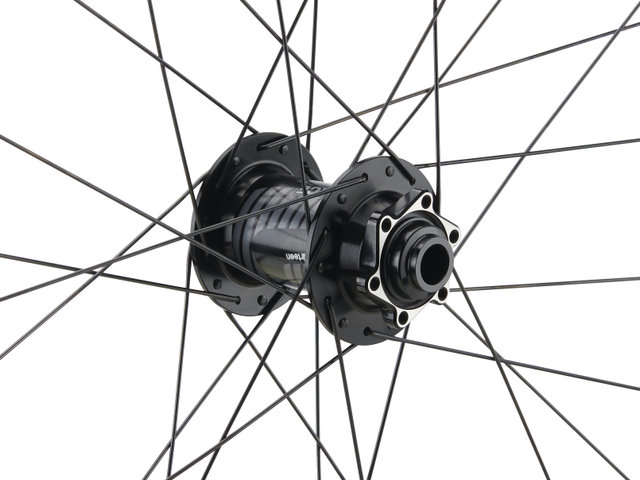

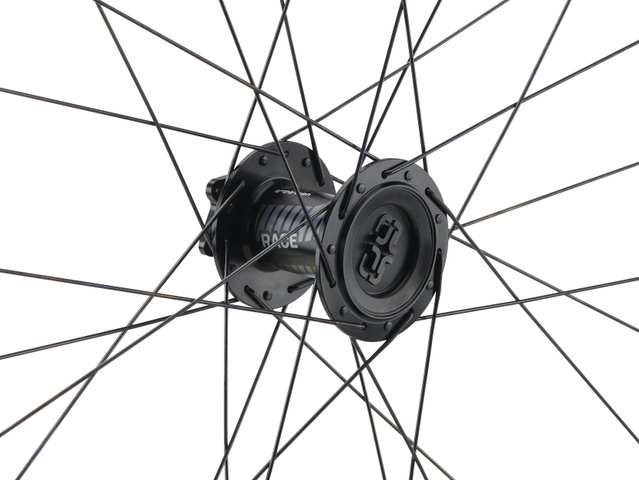

Technical Information - Front Hub:

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

triple sealed cartridge bearings (6804)

Body Material:

aluminium

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

cartridge bearings (6804)

Body Material:

aluminium

Freehub Body:

3 pawls

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

J-Bend / triple butted / round

Spoke Material:

steel

Nipple Size:

12 mm

Nipple Material:

aluminium

Approved For:

Recommended Tyre Width:

2.3" - 2.6"

Colour Info:

• Rims: black with grey decals
• Hubs: black with grey decals
• Spokes: black
• Nipples: black

Models:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

WH3LRA-114 (front) + WH3LRA-119 (rear)

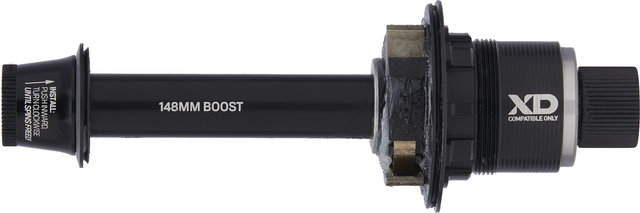

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Numbers:

WH3LRA-114 (front) + WH3LRA-115 (rear)

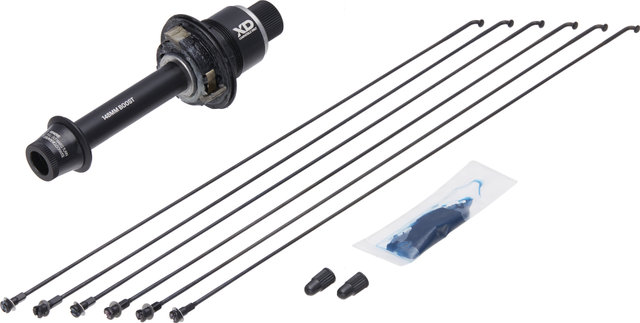

Contents:

• 1 x e*thirteen LG1 Race Enduro Boost 29" wheelset (front- and rear wheel)
• 1 x 15 mm end caps
• 2 x tubeless valve
• 2 x tubeless rim tape
• 6 x spare spokes
• 6 x spare nipples
• 6 x spoke head washer
