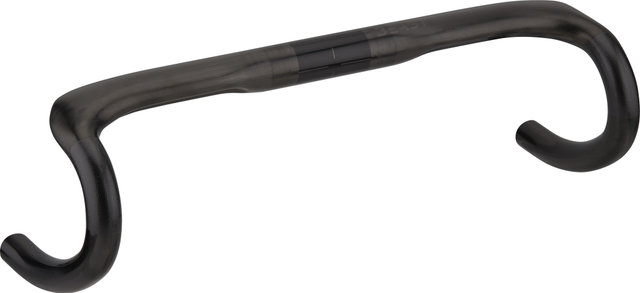

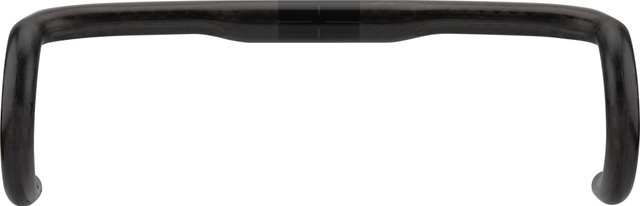

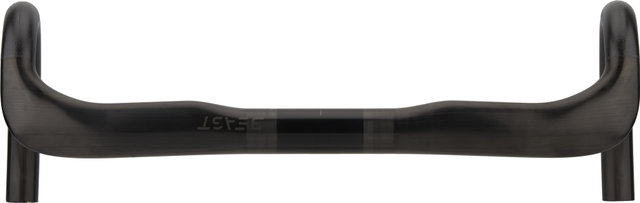

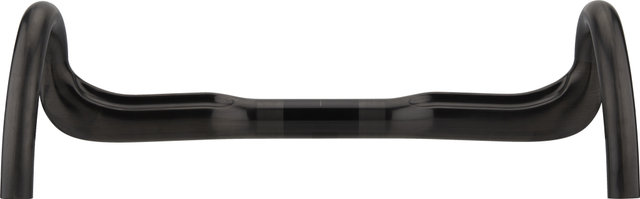

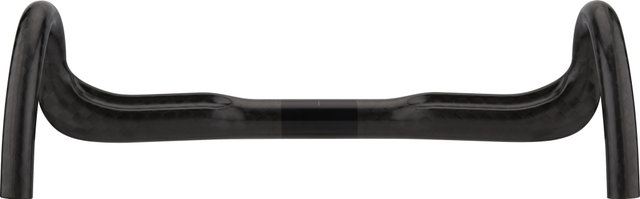

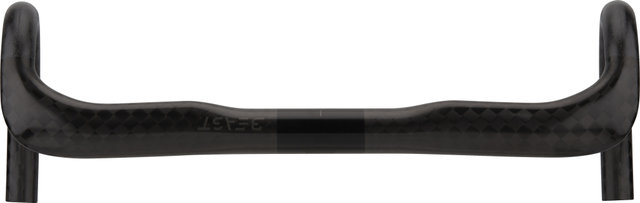

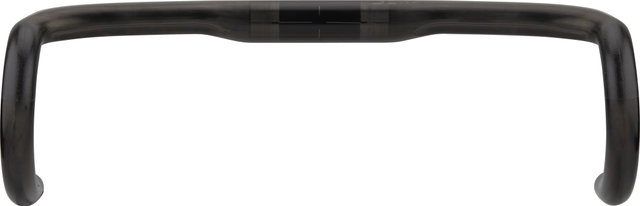

BEAST Components Ultra Bar IR 31.8 Carbon Handlebars

The Ultra Bar IR 31.8 carbon handlebars from BEAST Components for a high-end cockpit

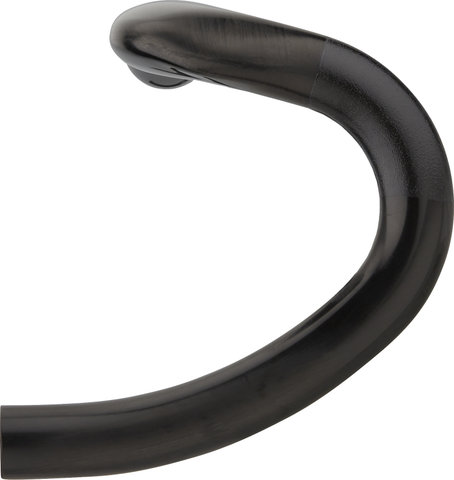

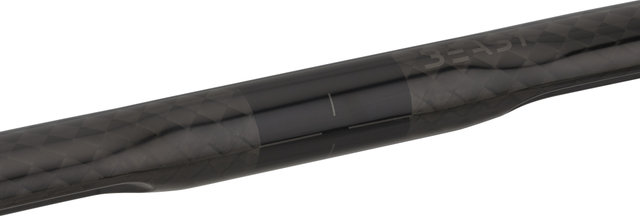

The Ultra Bar IR from BEAST Components are comfortable road bike and gravel handlebars. Interface Reinforcement increases the durability of contact points with other components, such as the stem. The wide contact surface on the upper bar relieves the pressure on the heel of your hand during recovery phases, as the pressure points are larger. The diameter of the drops increases from top to bottom. This also relieves the strain on your hands. They help you to achieve a more ergonomic lower handlebar position, while at the same time preventing numb, tingling fingers.

Specifications:

Application:

Road, Gravel

Width:

380 mm, 400 mm, 420 mm, 440 mm, 460 mm (centre-to-centre)

Note:

With BEAST Components, the handlebar width is measured in the centre of the shift/brake lever attachment.

Stem Clamp:

31.8 mm

Technical Information:

Drop:

128 mm

Reach:

80 mm

Backsweep:

2°

Flare:

4°

Cable Routing:

external

Material:

carbon

Approved For:

Stem Clamp Width:

100 mm

Features:

• carbon handlebars for high-performance road bikes and gravel bikes
• increased safety compared to the predecessor due to Interface Reinforcement at all contact points
• with 128 mm drop, 80 mm reach and 4° flare
• wide contact area on top link
• large-diameter drops
• incremental drop curvature
• handmade in Germany

Technology:

Intended Use Category 2
Suitable for use on paved paths made of sand, gravel or similar surfaces (e.g. forest paths, dirt roads). Roots, thresholds, stones and steps must not be present or only to a small extent. The wheels are in constant contact with the ground. Contact with the ground may be lost briefly due to minor irregularities such as roots.

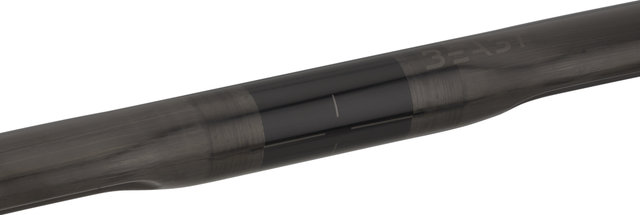

Interface Reinforcement
The contact points of handlebars and seatposts are covered with a protective layer. This withstands punctual loads and higher tightening torques. It also compensates for higher tolerances.

Manufacturer Numbers:

38 cm:

UB31380

40 cm:

UB31400

42 cm:

UB31420

44 cm:

UB31440

46 cm:

UB31460

Contents:

• 1 x BEAST Components Ultra Bar IR 31.8 handlebars
