COMMENCAL Meta TR 29" Rolling Chassis

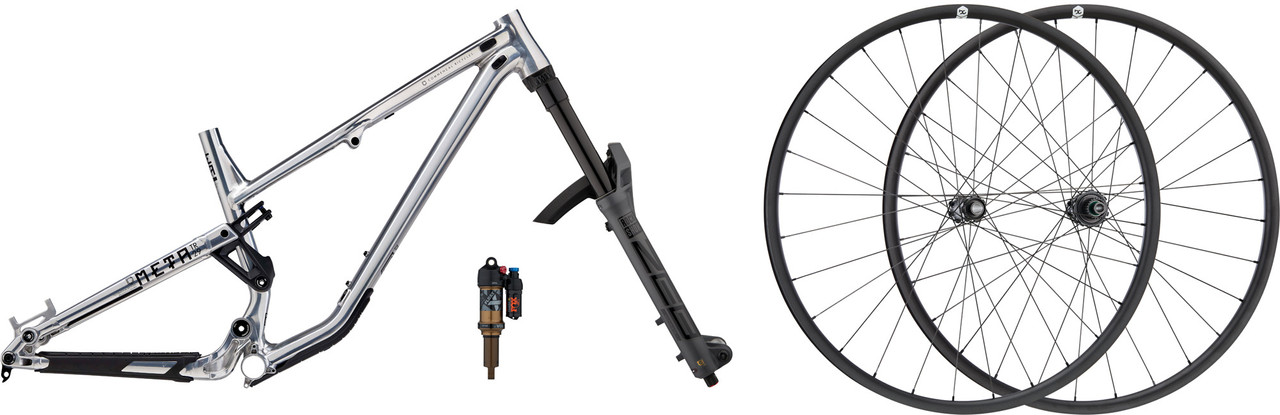

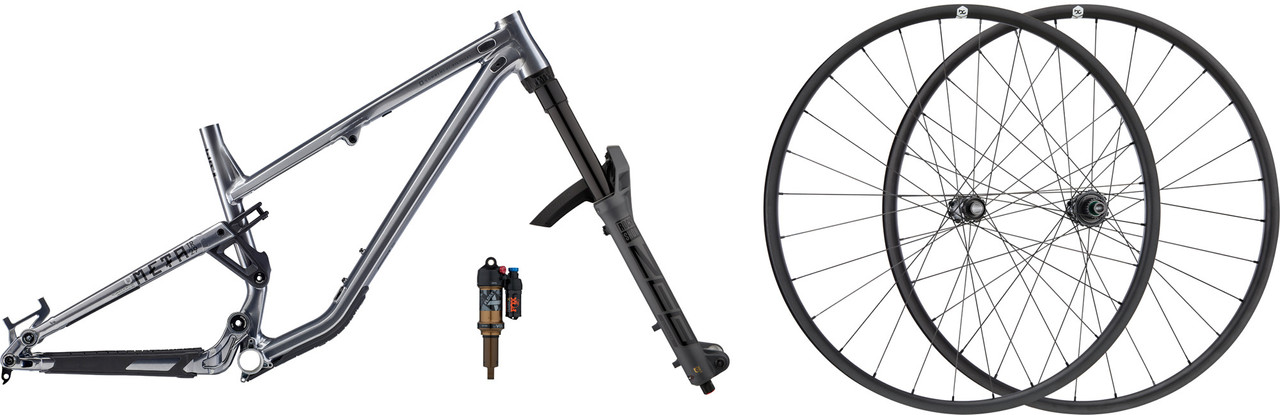

The COMMENCAL Meta TR 29" Rolling Chassis with suspension fork, shock and wheels

The COMMENCAL Meta TR Rolling Chassis for 29" is the right basis for a playful, dynamic trail bike. In addition to the frame, it includes a RockShox ZEB Ultimate suspension fork with 160 mm travel, a Fox Racing Shox X air shock and a bc original Loamer MK2 wheelset with either Shimano Micro Spline or SRAM XD freehub. The components are not pre-assembled. The bc Loamer wheels with aluminium rims stand out for their low weight combined with high stability and durability. With the suspension fork, you can set high- and low-speed compression completely independently of each other, and with DebonAir+ and ButterCups you benefit from outstanding responsiveness. The Fox Float X Factory shock offers you low-speed compression and a 2-position lever for quick adjustments on the go.
Playful kinematics make the Meta TR dynamic, while double-row bearings on the frame prevent loss of rigidity at the joints. The result is a bike that delivers high performance both uphill and downhill, and won't let you down on difficult passages. Shock hardware, a matching headset and a seatpost clamp are also included, so you can start setting up straight away.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

29"

Front Travel:

160 mm

Rear Travel:

140 mm

Size:

S, M, L, XL

Front Triangle Material:

aluminium (6066)

Rear Triangle Material:

aluminium (6066)

Linkage Design:

supported single hinge

Components:

Frame:

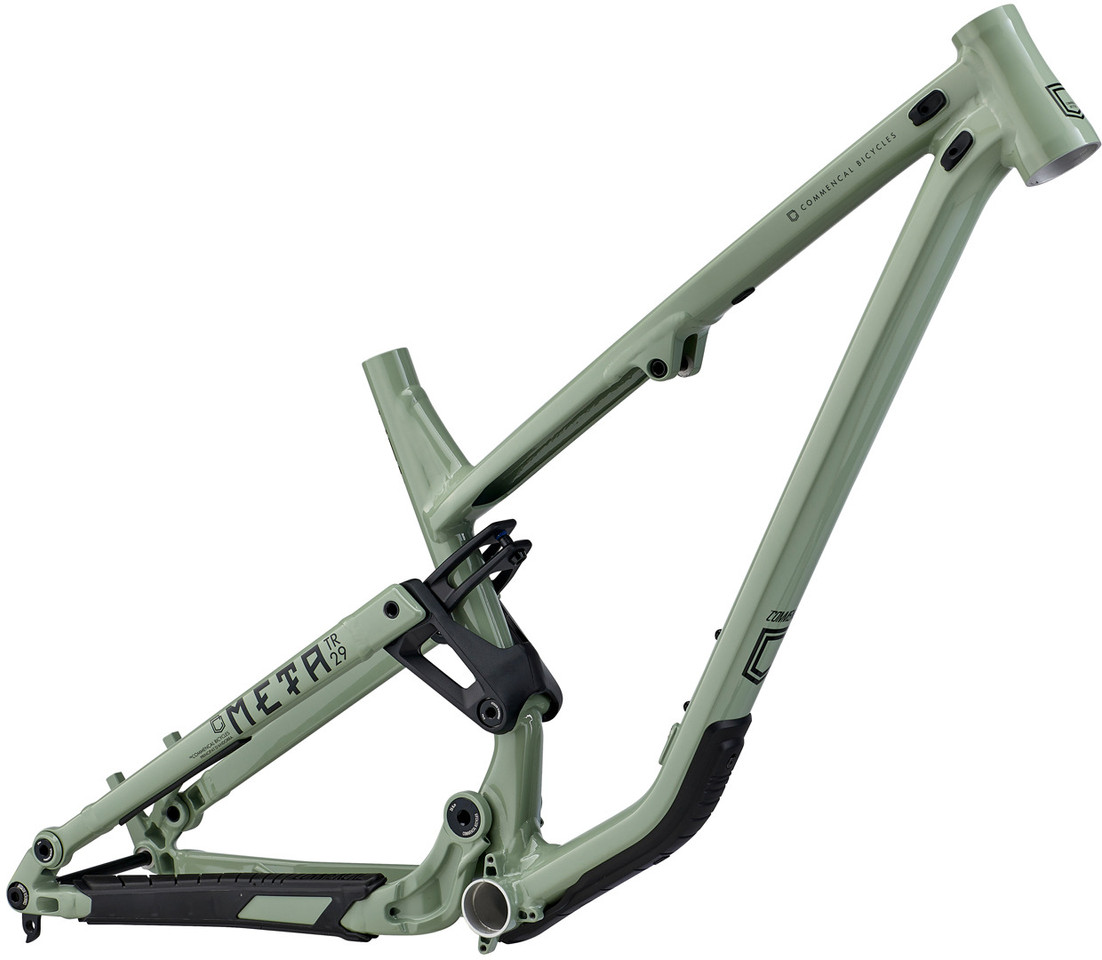

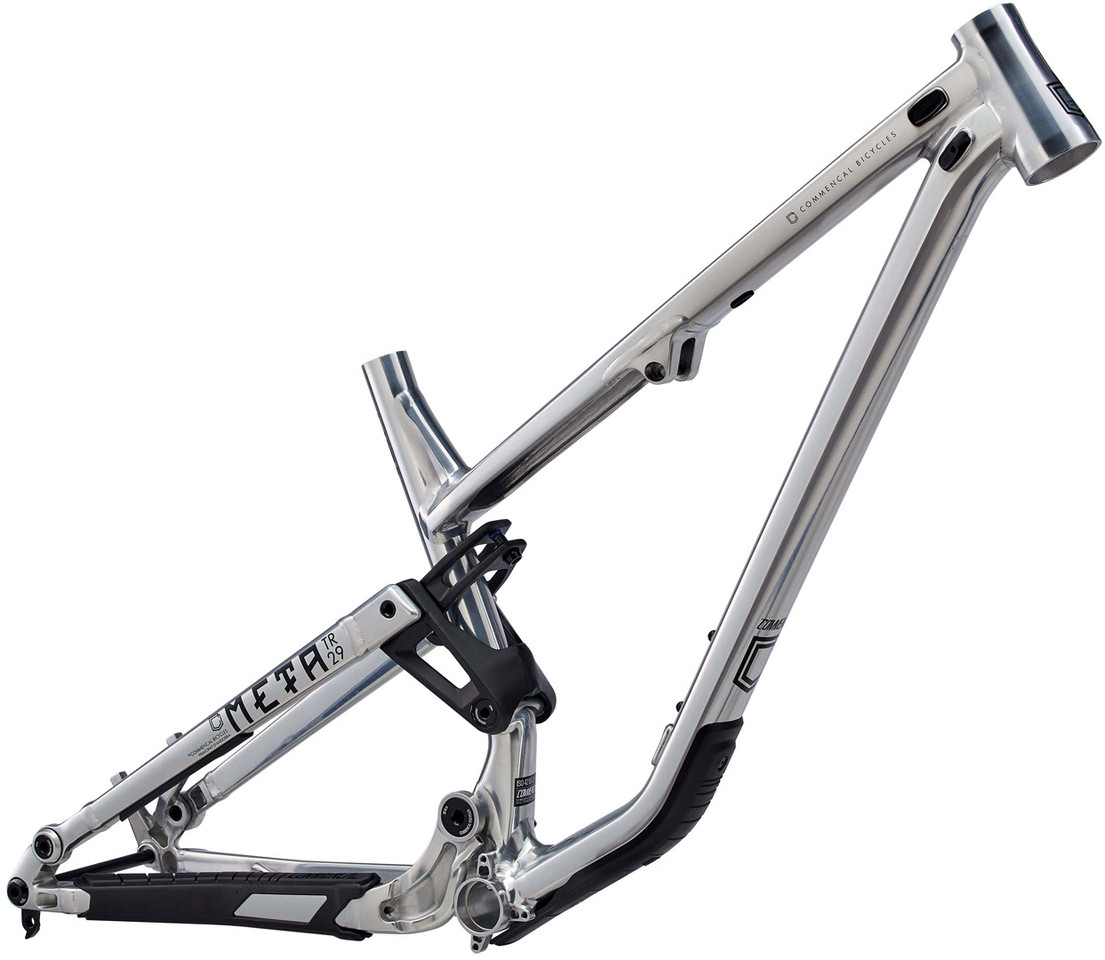

COMMENCAL Meta TR, 12 x 148 mm (Boost)

Fork:

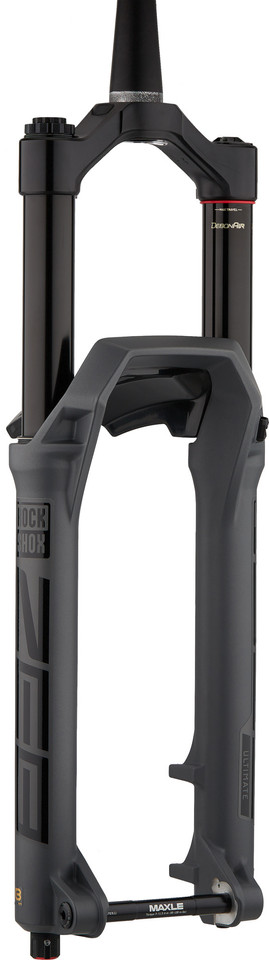

RockShox ZEB Ultimate RC2 DebonAir+, grey, 1.5 tapered, 44 mm offset, Disc PM8 (direct mount 200 mm), ButterCups, 15 x 110 mm (Boost)

Rear Shock:

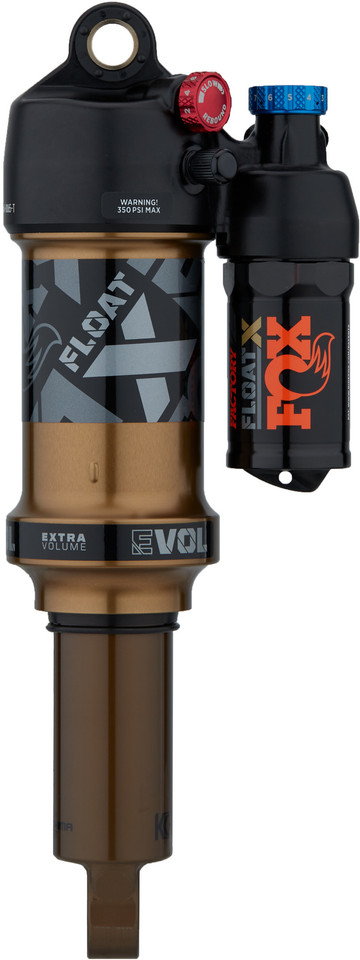

Fox Racing Shox Float X EVOL LV 2POS Factory

Headset:

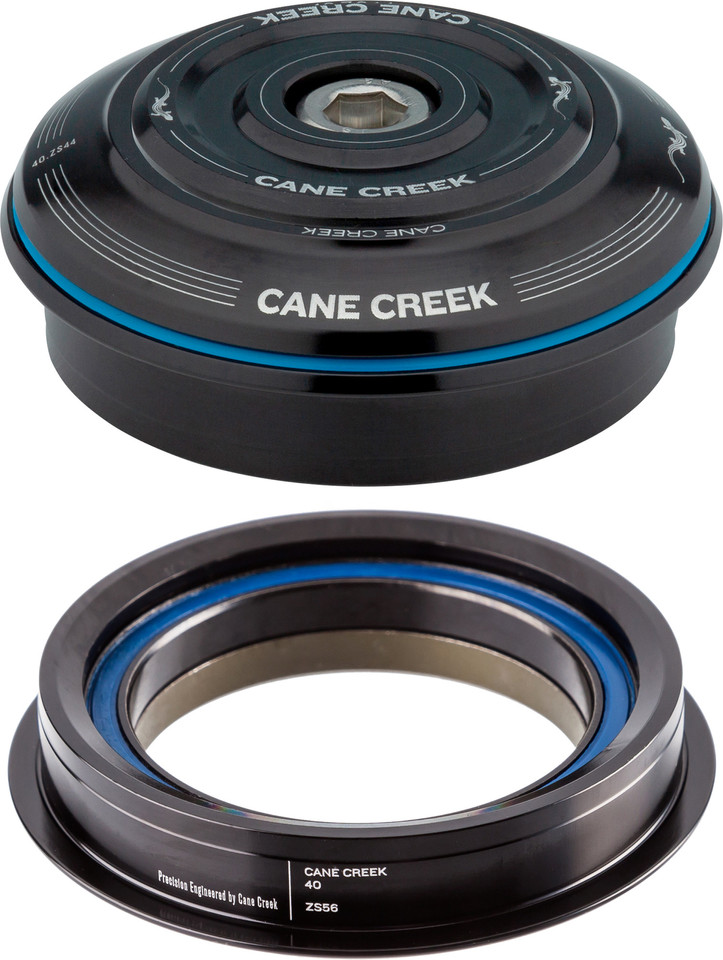

Cane Creek ZS44/28.6 - ZS56/40

Wheels:

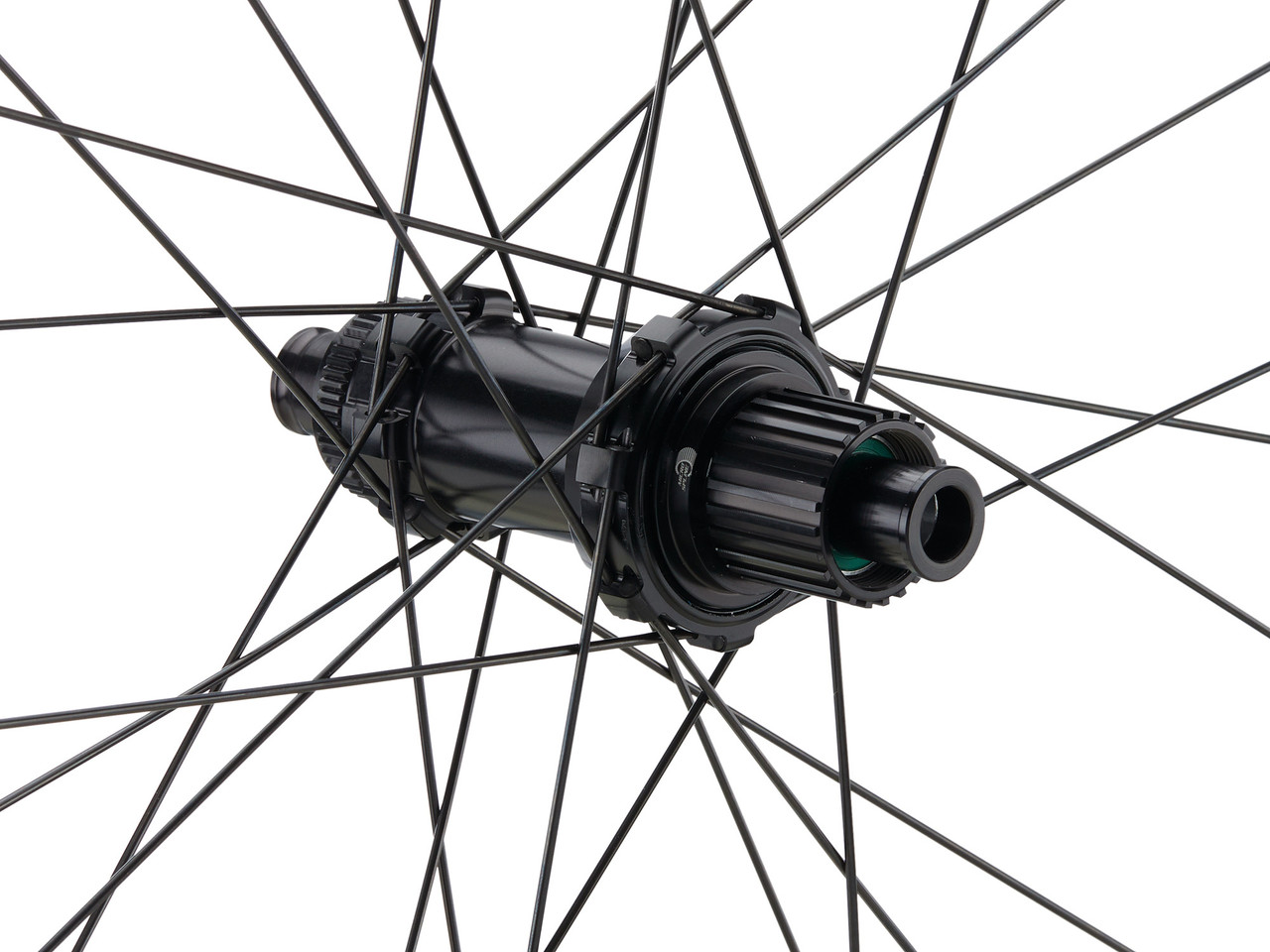

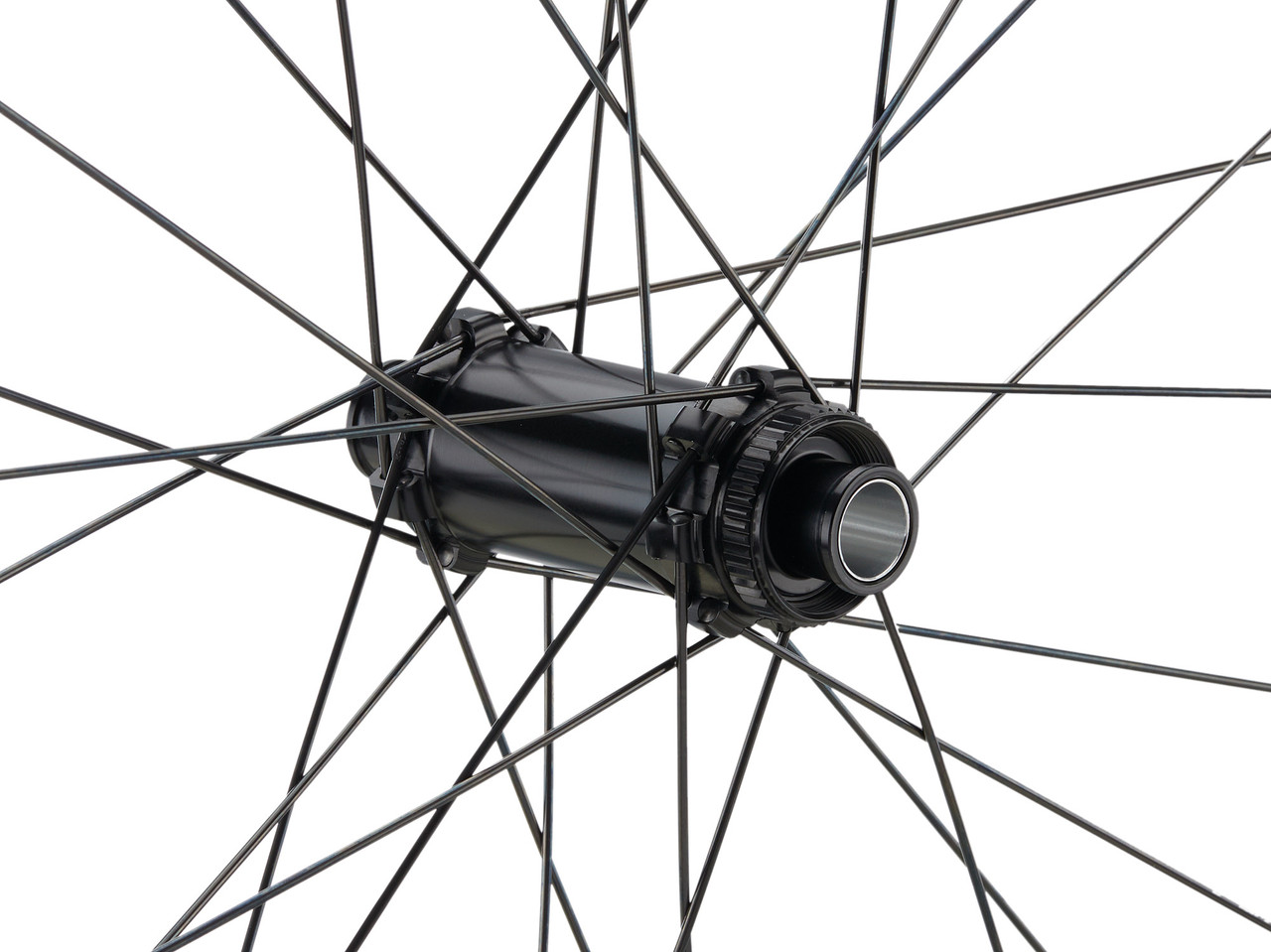

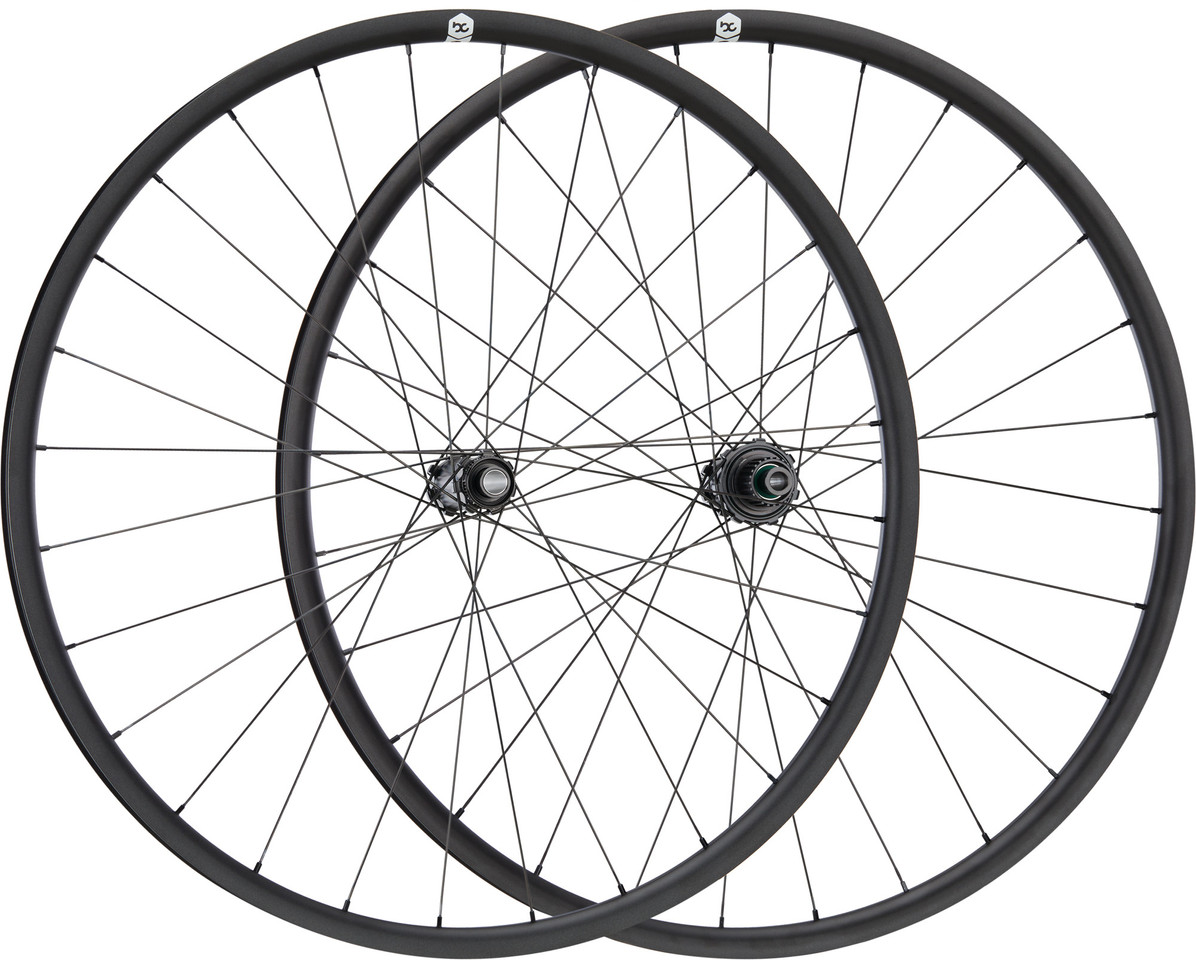

bc original Loamer MK2 Boost, aluminium, hookless, 28 mm jaw width, 6.5 mm Presta valve hole, tubeless ready, Center Lock Disc

Note:

The individual components are not pre-assembled. To install the shock, the supplied bushing set is sufficient for the upper shock eyelet and the mounting bolt on the frame for the lower shock eyelet.

Technical Information - Frame:

Wheel Standard:

12 x 148 mm (Boost)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

34.9 mm

Seatpost Clamp(Ø):

38.5 mm

Head Tube:

1 1/8" - 1.5" tapered

Headset:

ZS44 - ZS56 (top to bottom)

Bottom Bracket Standard:

Press Fit BB92

Shell Width:

92 mm

Chainstay Guide:

ISCG 05

Brake Mount:

disc PM8 (direct mount 200 mm)

Front Derailleur Mount:

not possible

Rear Shock Eye-to-Eye Measurement:

210 mm

Rear Shock Stroke:

55 mm

Rear Shock Bushing Width:

20 mm x 10 mm / 20 mm x 10 mm

Bottle Cage Mounts:

1

Approved For:

Rotor Size (max.):

220 mm

Tyre Size (max.):

29 x 2.5" (rear), 29 x 3.1" (front)

Note:

For individual tyres, tyre clearance must be checked with the fork fully compressed and the tyre fully inflated. It should be at least 6 mm all around.

Chainrings:

1x

Features:

• RockShox ZEB Ultimate suspension fork with vibration-absorbing ButterCups, high- and low-speed compression damping and low-speed rebound
• Fox X Factory shock with low-friction Kashima coating, rebound and low-speed compression settings, additional 2-position lever (Open / Firm)
• sturdy, resilient and lightweight bc Loamer wheelset with aluminium rims
• optimised linkage design for less fatigue
• compact chainstays for heel clearance
• seat tube compatible with dropper seatposts with long travel
• optimised cable routing
• simple bottle holder assembly
• designed for short stems and short fork offset
• high manoeuvrability thanks to flatter head tube angle
• stability through longer reach
• steeper seat tube angle for a good uphill riding position
• frame with Enduro Bearings for high stiffness and reliability

Geometry:

S:

Recommended Height:

151 - 170 cm

Stack:

626 mm

Reach:

440 mm

Seat Tube Length:

380 mm

Effective Top Tube Length:

566 mm

Head Tube Length:

110 mm

Chainstay Length:

435 mm

Wheelbase:

1203 mm

BB Drop:

33 mm

Seat Tube Angle:

78.6°

Head Tube Angle:

64.5°

M:

Recommended Height:

168 - 180 cm

Stack:

630 mm

Reach:

465 mm

Seat Tube Length:

420 mm

Effective Top Tube Length:

592 mm

Head Tube Length:

115 mm

Chainstay Length:

435 mm

Wheelbase:

1230 mm

BB Drop:

33 mm

Seat Tube Angle:

78.6°

Head Tube Angle:

64.5°

L:

Recommended Height:

178 - 190 cm

Stack:

634 mm

Reach:

490 mm

Seat Tube Length:

440 mm

Effective Top Tube Length:

618 mm

Head Tube Length:

120 mm

Chainstay Length:

435 mm

Wheelbase:

1257 mm

BB Drop:

33 mm

Seat Tube Angle:

78.6°

Head Tube Angle:

64.5°

XL:

Recommended Height:

188 - 210 cm

Stack:

638 mm

Reach:

515 mm

Seat Tube Length:

460 mm

Effective Top Tube Length:

644 mm

Head Tube Length:

125 mm

Chainstay Length:

435 mm

Wheelbase:

1284 mm

BB Drop:

33 mm

Seat Tube Angle:

78.6°

Head Tube Angle:

64.5°

Shipping Notice:

The shipment is carried out by a forwarding agent. The delivery time is 2-5 days in addition to the delivery time shown in the online shop.
For individual consultation, please contact our customer service team.

Contents:

• 1 x COMMENCAL Meta TR Race 29" frame
• 1 x RockShox ZEB Ultimate RC2 DebonAir+ Boost suspension fork (not pre-installed)
• 1 x Fox Racing Shox Float X EVOL LV 2POS Factory shock (not pre-installed)
• 1 x bc original Loamer MK2 Disc Boost wheelset (front wheel and rear wheel) (not pre-installed)
• 1 x COMMENCAL bushing set

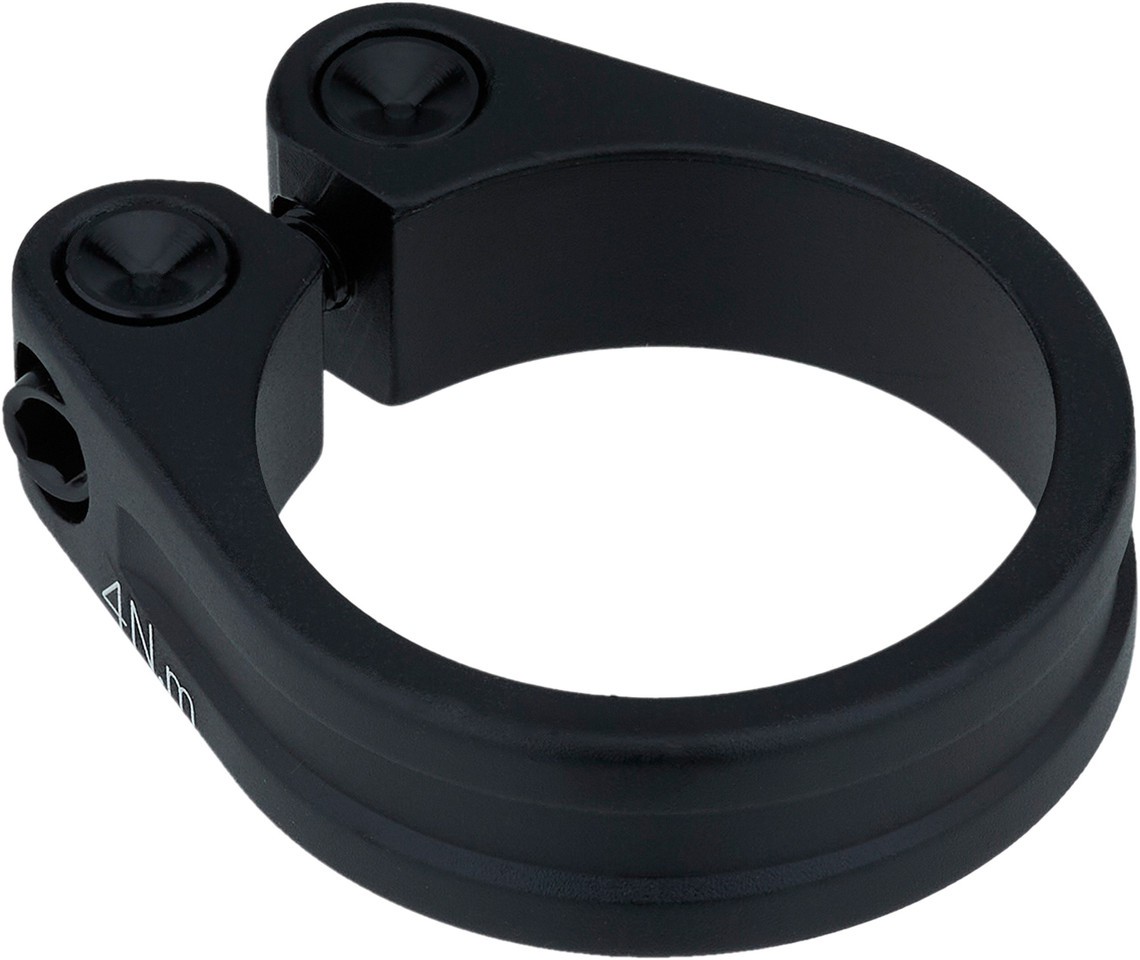

• 1 x 3min19sec SC2 seatpost clamp
• 2 x bc basic tubeless valves
• 1 x rolls bc basic rim tape
• 2 x 304 mm spare spokes
• 2 x spare nipples
• 2 x spare washers
