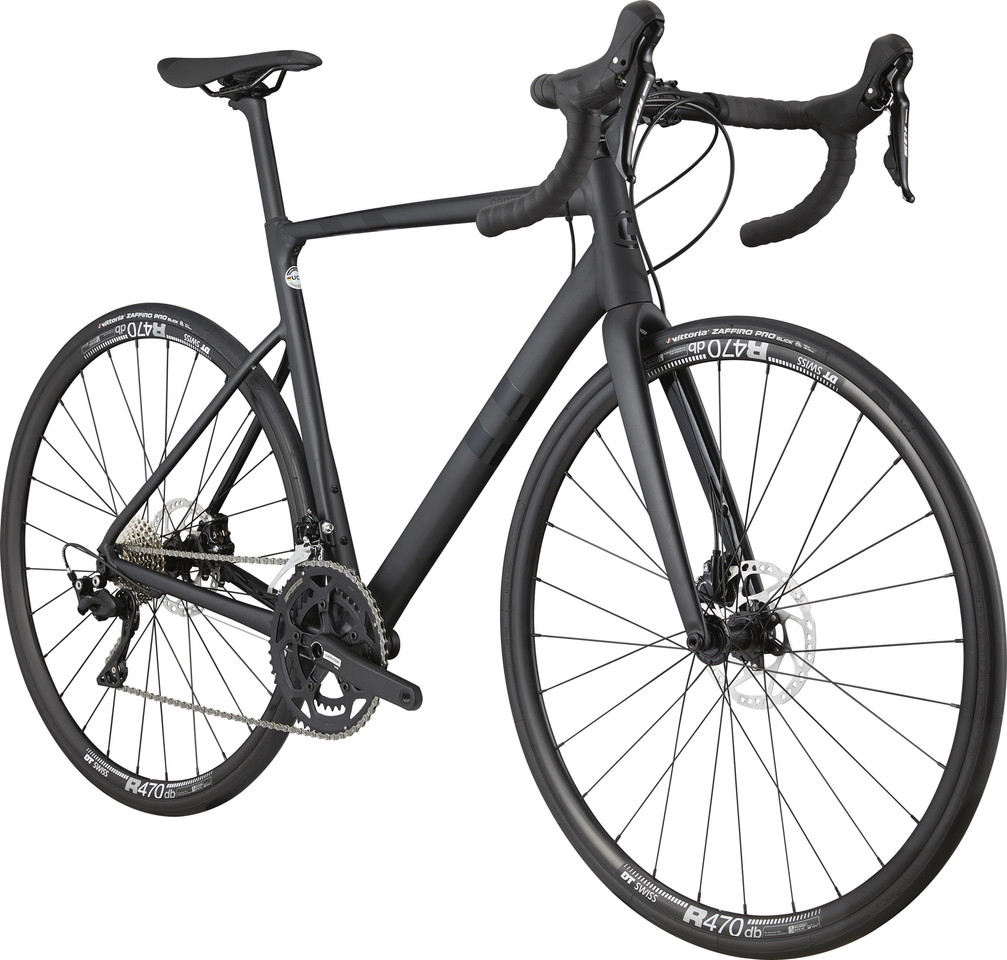

Cannondale CAAD13 Disc 105 Road Bike

Item number: 86899
1
1
CAAD13 Disc 105 Road Bike - matte black/54 cm
CAAD13 Disc 105 Road Bike - matte black/54 cm
CAAD13 Disc 105 Road Bike - matte black/54 cm
CAAD13 Disc 105 Road Bike - matte black/54 cm
CAAD13 Disc 105 Road Bike - matte black/54 cm
CAAD13 Disc 105 Road Bike - matte black/54 cm
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

With the CAAD13 Disc 105 Road Bike by Cannondale you are on the road at high speed

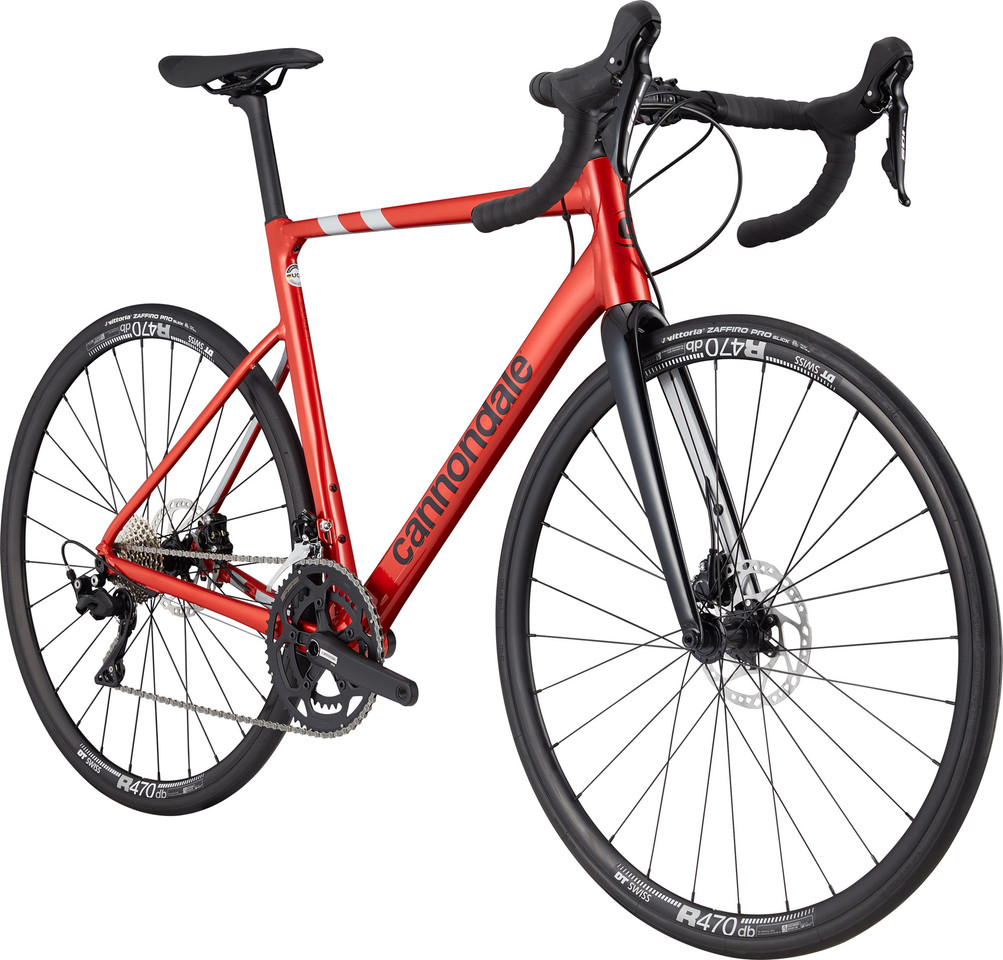

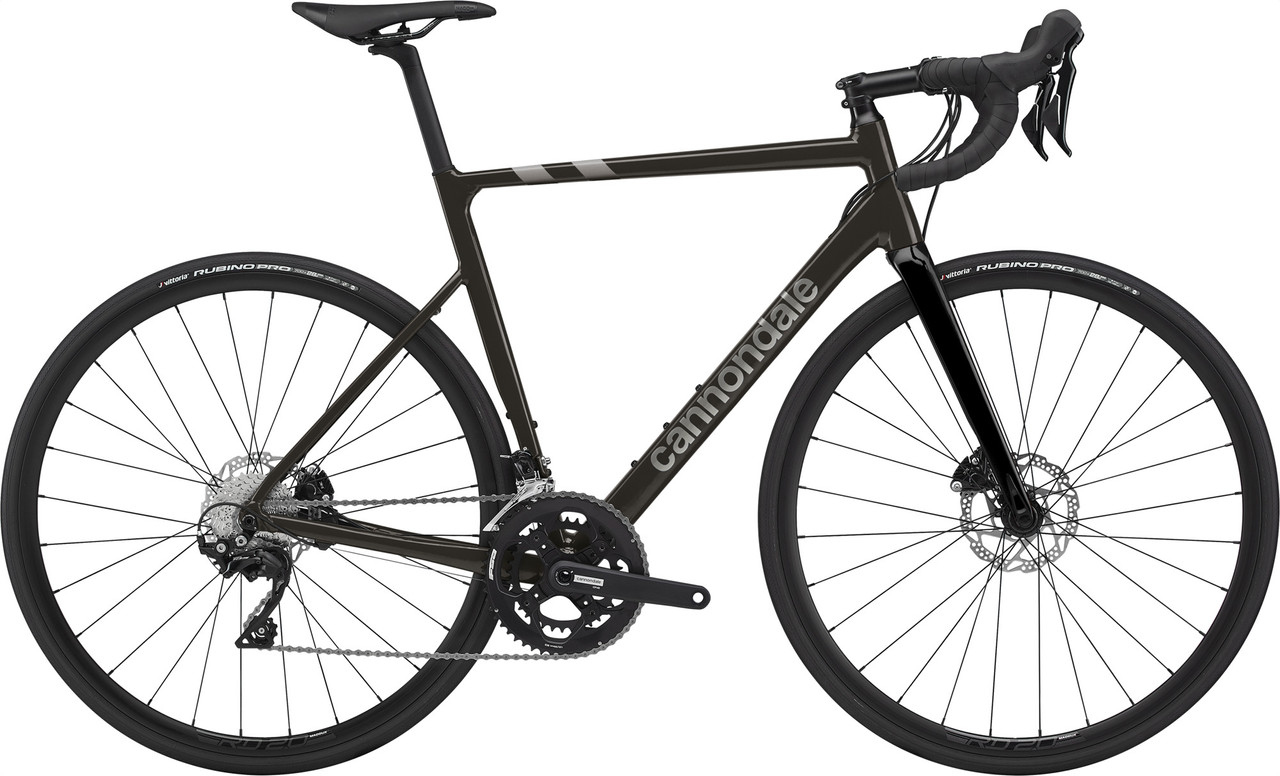

The Cannondale CAAD13 road bike with Shimano 105 drivetrain and disc brakes is a high-performance aluminium racer with carbon fork that scores with speed, efficiency and comfort. The aerodynamic tube shape significantly reduces air resistance and, together with the light weight, makes you very fast on the road. The combination of SAVE technology, deep seat stays and HollowGram KNØT seatpost ensures a comfortable ride. With the removable fender mount, a fender can be quickly attached or removed as required.

Specifications:


Application: Road
Wheel Size: 28"
Sizes: 51 cm, 54 cm, 56 cm, 58 cm, 60 cm, 62 cm
Frame Material: Aluminium
Fork Material: Carbon

Components:


Frame: Cannondale SmartForm C1 Premium aluminium, 12 x 142 mm, internal cable routing with switchplate, SAVE, Di2 ready
Fork: Cannondale Carbon, SAVE, integrated crown race, 12 x 100 mm, Flat Mount, internal cable routing, 55 mm offset (51 cm, 54 cm), 45 mm offset (56-62 cm)
Stem: Cannondale 3, 6061 aluminium, 31.8 mm, 7°

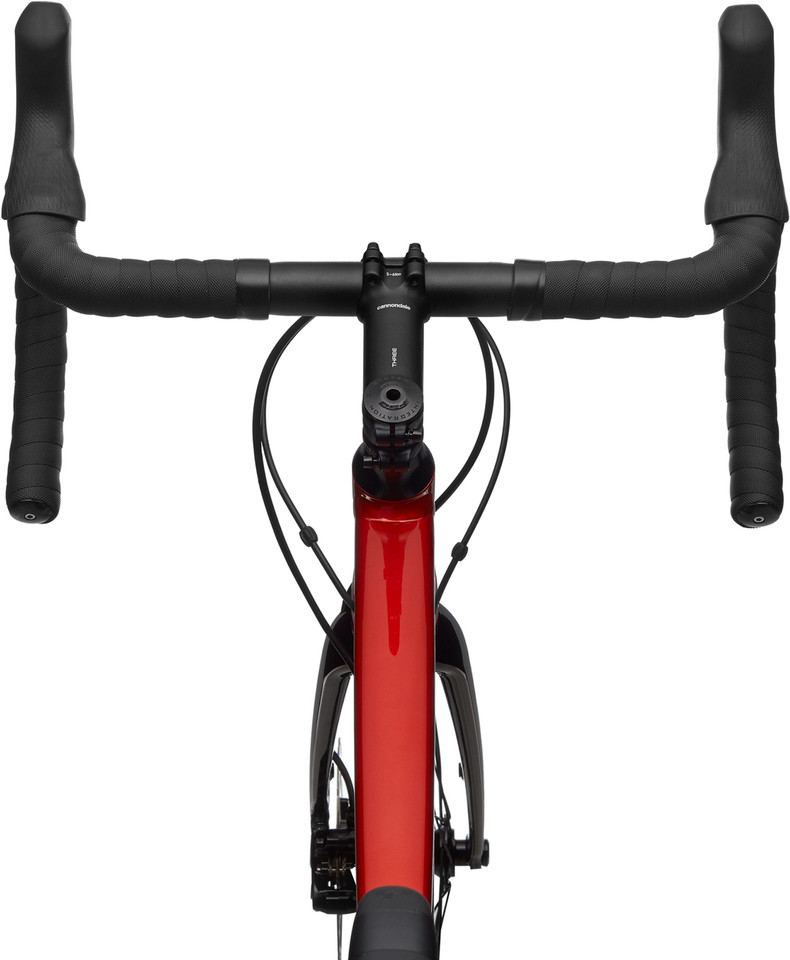

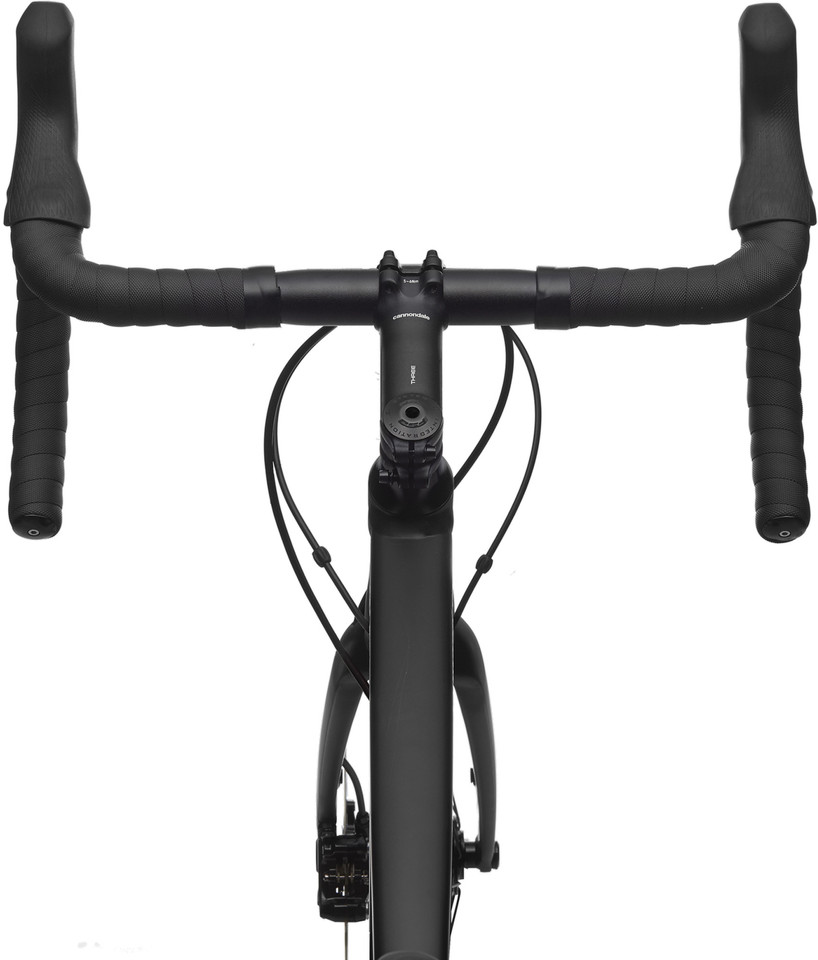

Handlebars: Cannondale 3, 6061 aluminium, compact
Headset: CAAD13, integrated, 1 1/8" - 1 1/4"
Seatpost: Cannondale HollowGram 27 KNØT, aluminium, 330 mm
Saddle: Prologo Nago RS STN

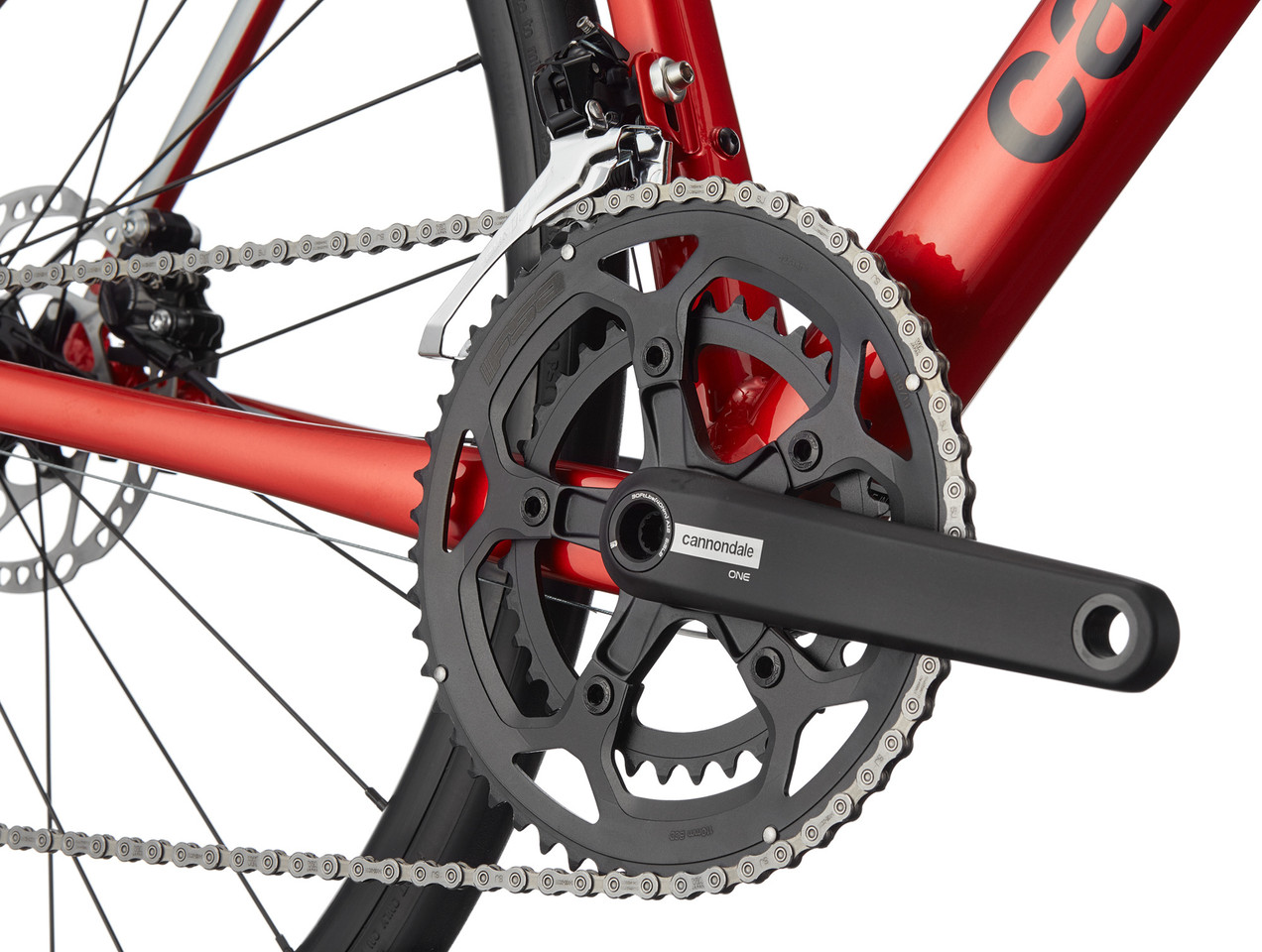

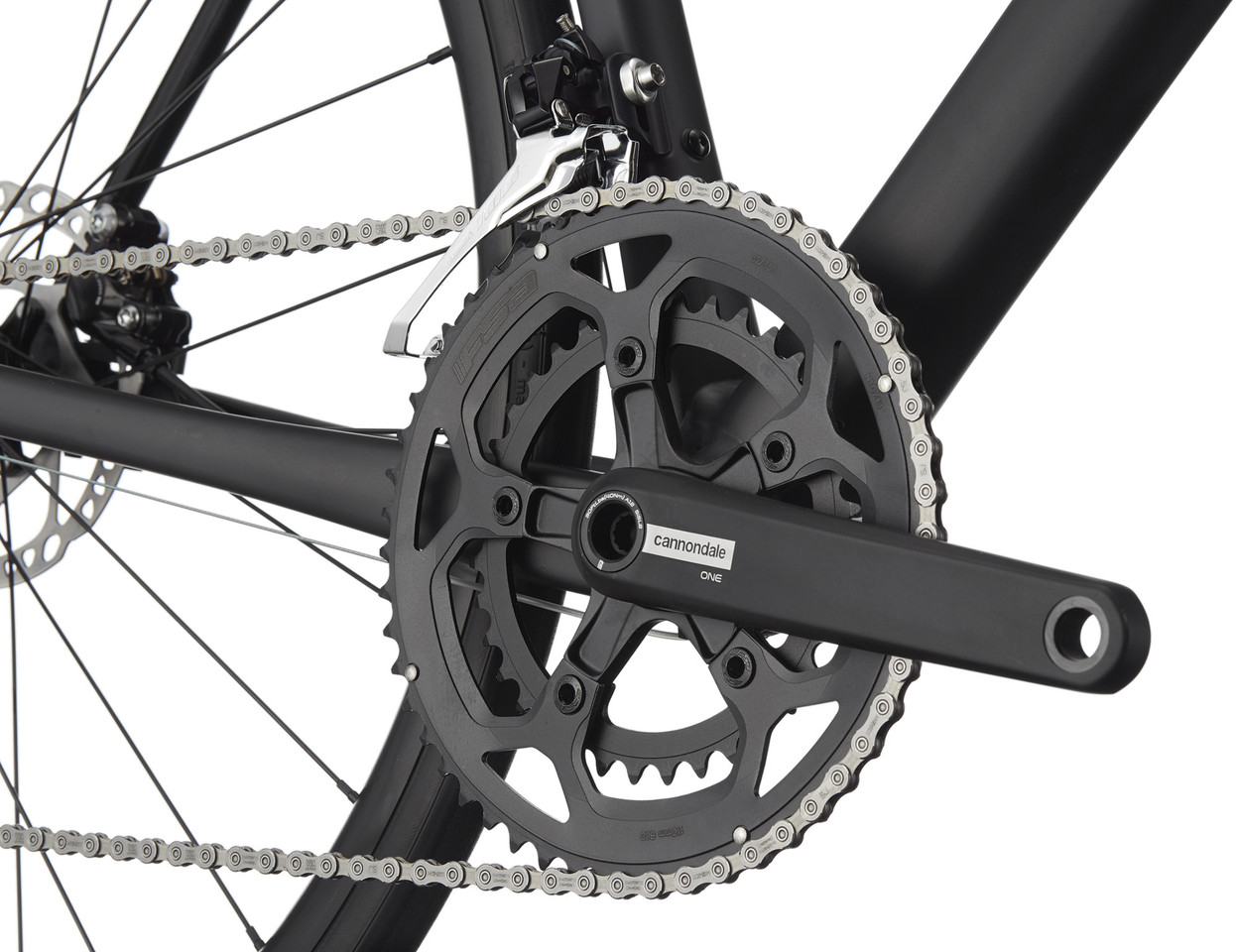

Cranks: Cannondale Hollowgram, 52-36 t
Pedals: none
Brakes: Shimano 105 hydraulic, RT54 brake rotors, 160 mm (front / rear)

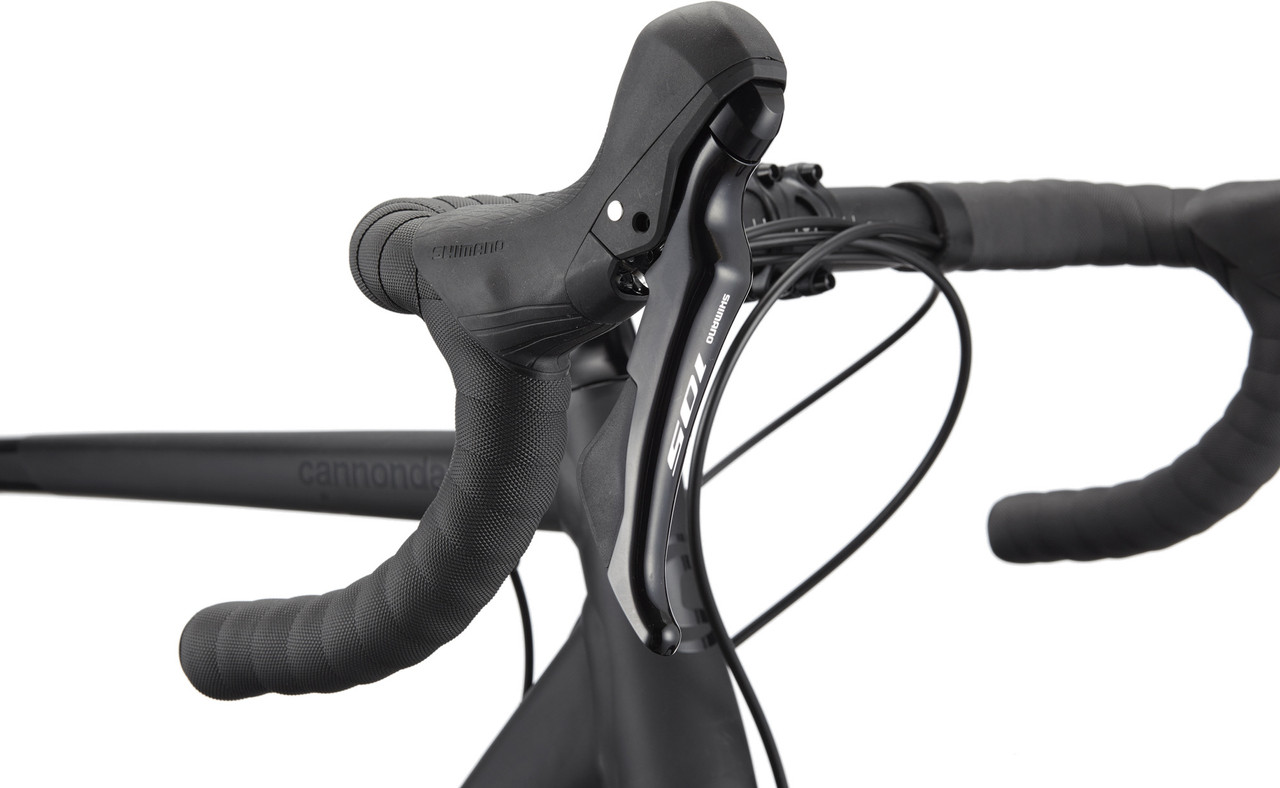

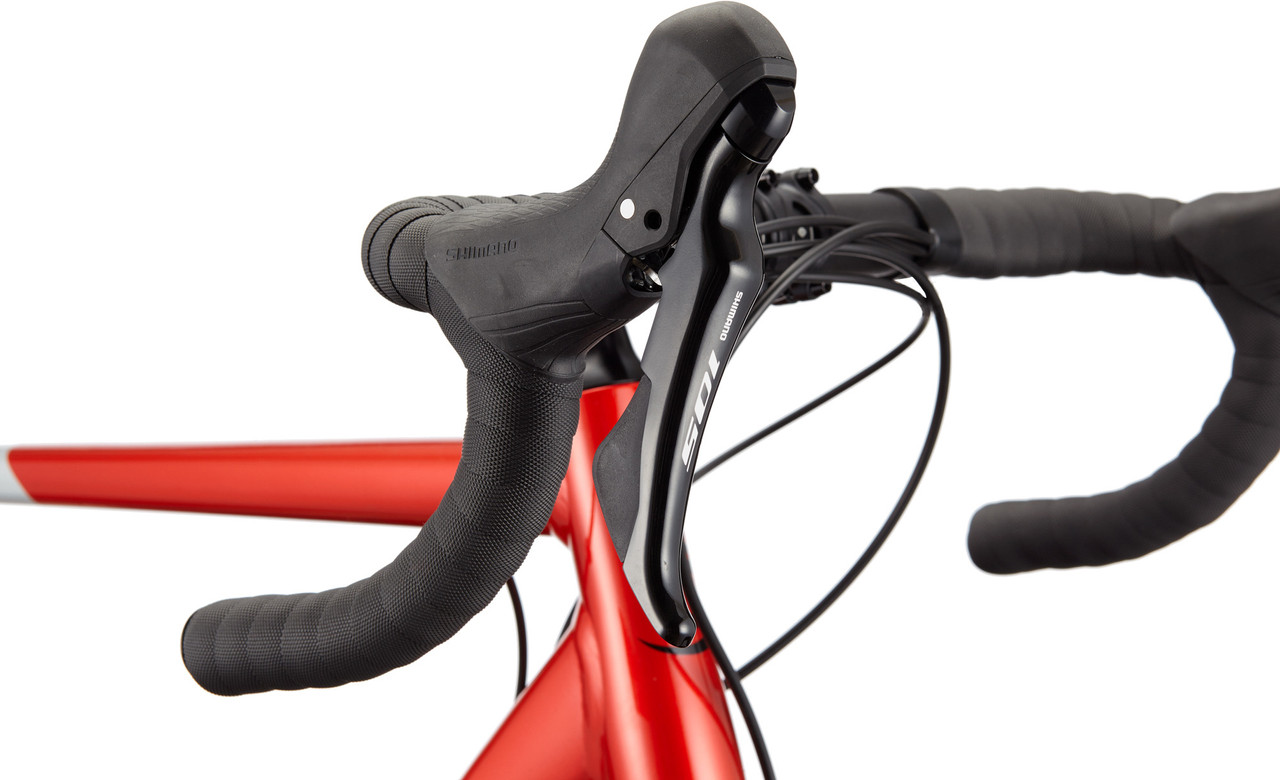

Shift Lever: Shimano 105, 2x11-speed

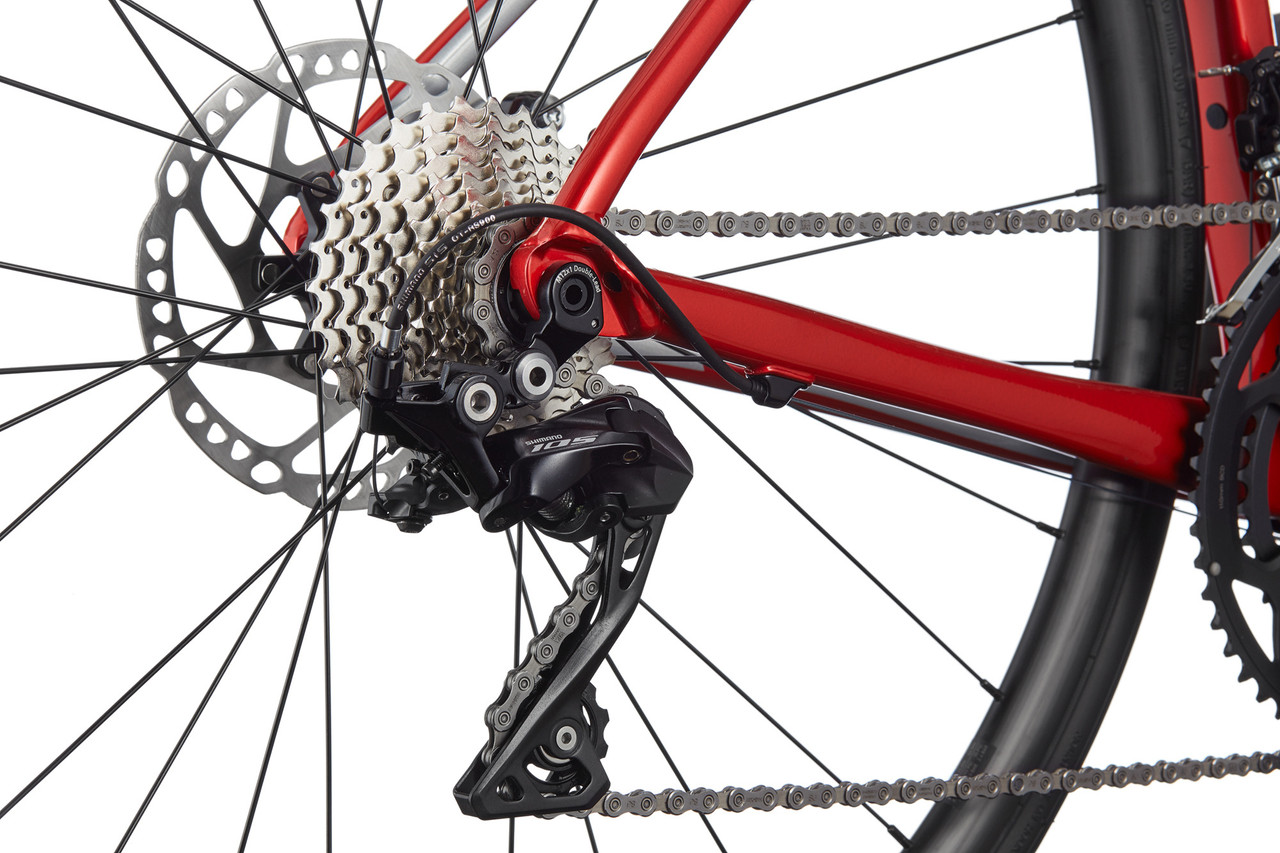

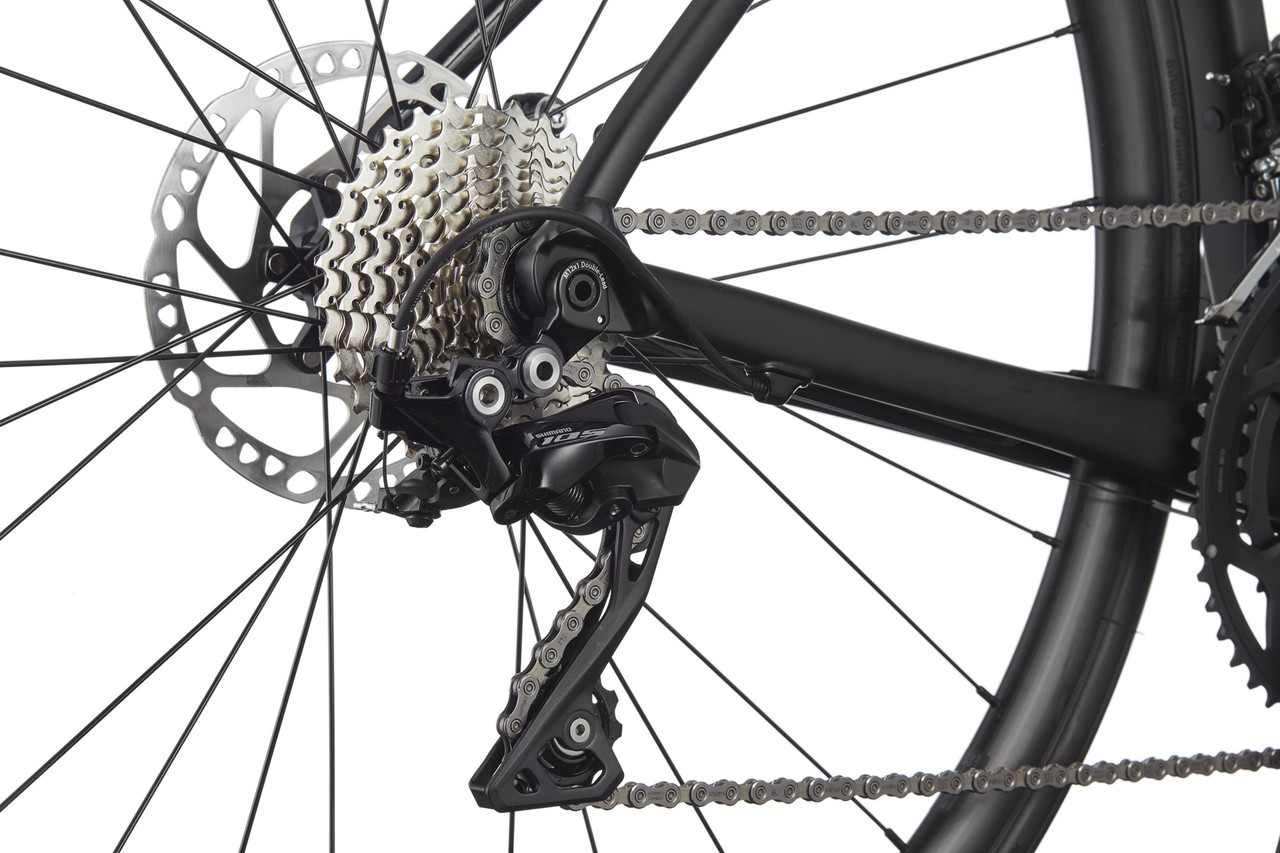

Rear Derailleur: Shimano 105 GS, 11-speed
Front Derailleur: Shimano 105, braze-on, 2-speed
Cassette: Shimano 105, 11-30 teeth, 11-speed
Chain: Shimano HG601, 11-speed
Wheels: DT Swiss R470 db, 28 holes, with Formula CL-712 CL (front) and Formula RXC-400 CL (rear)
Tyres: Vittoria Rubino Pro Bright Black, 700 x 25c

Approved For:


Weight Limit: 129 kg (rider + gear)
Rotor Size (max.): 160 mm
Tyre Size (max.): 30-622
Chainrings: 2x

Features:


- full carbon fork
- particularly aerodynamic Airfoil tube shape and aerofoil-shaped seatpost
- superior comfort due to SAVE areas and lowered seat stays
- agile handling
- lightweight SmartForm C1 aluminium
- integrated seatpost clamp
- removable fender mount between the seat stays
- three-hole bottle cage mount on the down tube, thus low or higher bottle cage attachment possible for more aerodynamics or for combination with a second bottle on the seat tube
- KNØT seatpost reduces air turbulence
- Speed-Release thru-axle for easy wheel change

Technology:


SAVE
SAVE components have well thought-out flex areas. These are compliant in the exact direction in which they absorb vibrations and thus increase comfort and efficiency for you. Otherwise, they are characterised by high rigidity. These areas can be recognised by their flat tube shapes. Several SAVE areas work together optimally.

Geometry:


51 cm:
Recommended Height: 165 cm - 175 cm
Stack: 535 mm
Reach: 378 mm
Seat Tube Length: 481 mm
Effective Top Tube Length: 530 mm
Head Tube Length: 130 mm
Chainstay Length: 408 mm
Wheelbase: 994 mm
Bottom Bracket Height: 268 mm
BB Drop: 74 mm
Seat Tube Angle: 74.1°
Head Tube Angle: 74.1°
Standover Height: 753 mm
Stem Length: 90 mm
Handlebar Width: 400 mm
Crank Arm Length: 170 mm

54 cm:
Recommended Height: 170 cm - 180 cm
Stack: 555 mm
Reach: 384 mm
Seat Tube Length: 519 mm
Effective Top Tube Length: 546 mm
Head Tube Length: 154 mm
Chainstay Length: 408 mm
Wheelbase: 1008 mm
Bottom Bracket Height: 271 mm
BB Drop: 72 mm
Seat Tube Angle: 73.7°
Head Tube Angle: 73.7°
Standover Height: 790 mm
Stem Length: 100 mm
Handlebar Width: 420 mm
Crank Arm Length: 172.5 mm

56 cm:
Recommended Height: 177 cm - 187 cm
Stack: 575 mm
Reach: 389 mm
Seat Tube Length: 540 mm
Effective Top Tube Length: 562 mm
Head Tube Length: 164 mm
Chainstay Length: 408 mm
Wheelbase: 992 mm
Bottom Bracket Height: 271 mm
BB Drop: 72 mm
Seat Tube Angle: 73.3°
Head Tube Angle: 73.3°
Standover Height: 805 mm
Stem Length: 100 mm
Handlebar Width: 420 mm
Crank Arm Length: 172.5 mm

58 cm:
Recommended Height: 182 cm - 193 cm
Stack: 595 mm
Reach: 395 mm
Seat Tube Length: 562 mm
Effective Top Tube Length: 578 mm
Head Tube Length: 188 mm
Chainstay Length: 408 mm
Wheelbase: 1005 mm
Bottom Bracket Height: 273 mm
BB Drop: 69 mm
Seat Tube Angle: 72.9°
Head Tube Angle: 72.9°
Standover Height: 829 mm
Stem Length: 110 mm
Handlebar Width: 440 mm
Crank Arm Length: 175 mm

60 cm:
Recommended Height: 187 cm - 198 cm
Stack: 615 mm
Reach: 400 mm
Seat Tube Length: 583 mm
Effective Top Tube Length: 594 mm
Head Tube Length: 209 mm
Chainstay Length: 408 mm
Wheelbase: 1016 mm
Bottom Bracket Height: 273 mm
BB Drop: 69 mm
Seat Tube Angle: 72.5°
Head Tube Angle: 72.5°
Standover Height: 848 mm
Stem Length: 110 mm
Handlebar Width: 440 mm
Crank Arm Length: 175 mm

62 cm:
Recommended Height: 195 cm - 205 cm
Stack: 635 mm
Reach: 406 mm
Seat Tube Length: 604 mm
Effective Top Tube Length: 611 mm
Head Tube Length: 230 mm
Chainstay Length: 408 mm
Wheelbase: 1028 mm
Bottom Bracket Height: 273 mm
BB Drop: 69 mm
Seat Tube Angle: 72.1°
Head Tube Angle: 72.1°
Standover Height: 868 mm
Stem Length: 110 mm
Handlebar Width: 440 mm
Crank Arm Length: 175 mm

Manufacturer Number:


C13321U

Shipping Notice:


The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:


- 1 x Cannondale CAAD13 Disc 105 Road Bike

Models:

  • matte black/51 cm, out of stock
    2,016.81€
  • matte black/54 cm, out of stock
    2,016.81€
  • matte black/58 cm, out of stock
    2,016.81€
  • matte black/60 cm, in stock
    2,016.81€
  • matte black/62 cm, out of stock
    2,016.81€

Customer Reviews (1)

4

Customer Reviews (1)

4.0/5.0
5
0
4
1
3
0
2
0
1
0

Give us your opinion on this product.

by Gregor B.  on 14.07.2022
verified purchase

Super Rad, kam quasi fahrbereit an (Lenker umdrehen & go).
Telefonsupport sehr bemüht, immer freundlich und entgegenkommend.

Leider aber doch ein Punkt Abzug für die nach wie vor ungeklärte Spezifikation.
Rad kam wie folgt:

- Sattel: Fizik Aliante statt Prologo Nago RS STN
- Kurbel: Cannondale One 50-34 statt Shimano RS510 (ursprünglich angegeben) bzw. Cannondale Hollowgram, 52-36 Z (aktuelle Info)
- Reifen: Vittoria Zaffiro (!) Pro statt Vittoria Rubino Pro Bright Black

Is this review helpful?
