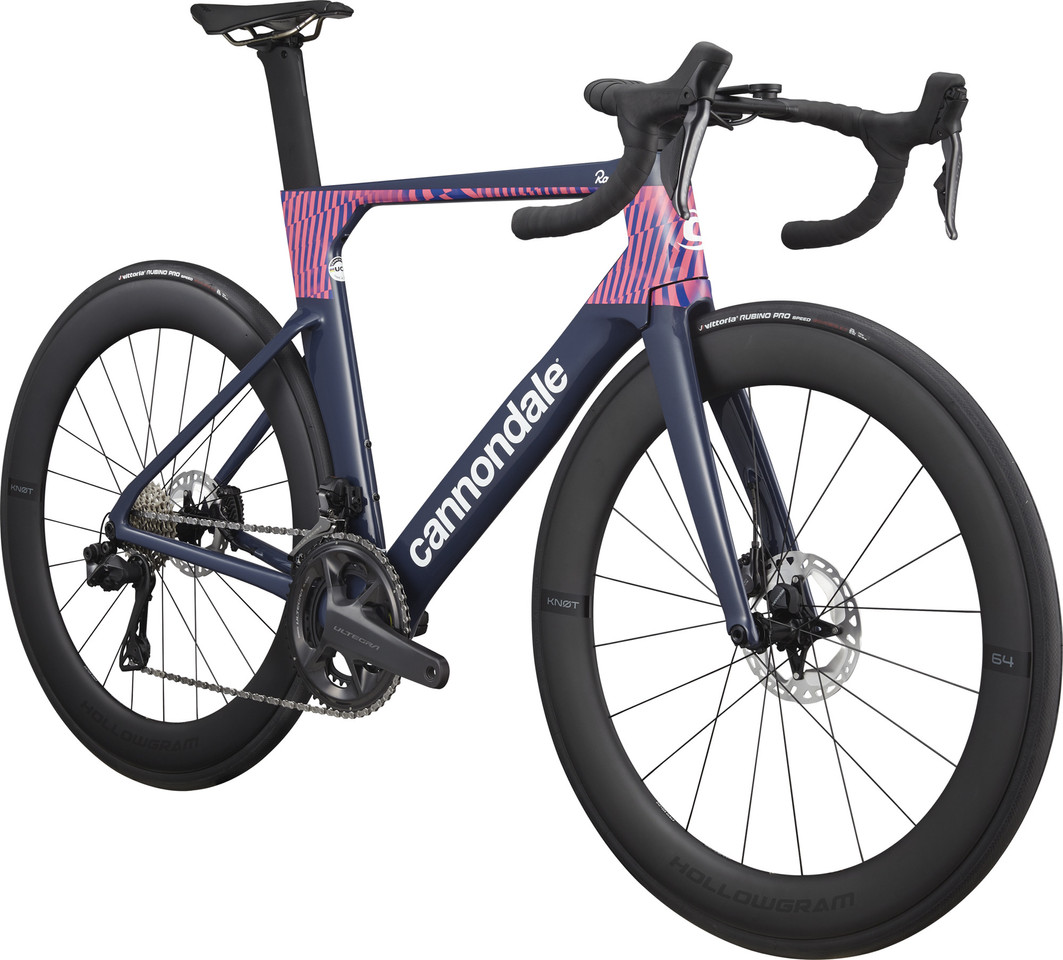

The Cannondale SystemSix Road Bike with Hi-MOD Carbon and Ultegra Di2 equipment is speed-optimised through and through

The SystemSix road bike made of Hi-MOD carbon by Cannondale is equipped with Ultegra Di2 components by Shimano and lets you outrun everyone on the road. Nothing was left to chance in its development; Cannondale systematically determined factors that cause you to ride slower and how they can be eliminated. Their work resulted in a lightweight, efficient, aerodynamically-optimised road bike with coordinated KNØT components, carbon wheels and electronic gears. Smart cable routing through the stem and head tube renders the cables almost invisible. The wheel sensor allows you to track your speed right in the Cannondale app.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Road

Wheel Size:

28"

Sizes:

51 cm, 54 cm, 56 cm, 58 cm, 60 cm, 62 cm

Frame Material:

Carbon

Fork Material:

Carbon

Components:

Frame:

Cannondale SystemSix Hi-MOD BallisTec Carbon, internal cable routing with switchplate, SAVE, 12 x 142 mm, SAVE

Fork:

Cannondale Hi-MOD Carbon, 12 x 100 mm, Flat Mount, 55 mm Offset (51 cm), 45 mm Offset (54-62 cm)

Stem:

Cannondale HollowGram KNØT, aluminium, with cable cover, -17°

Handlebars:

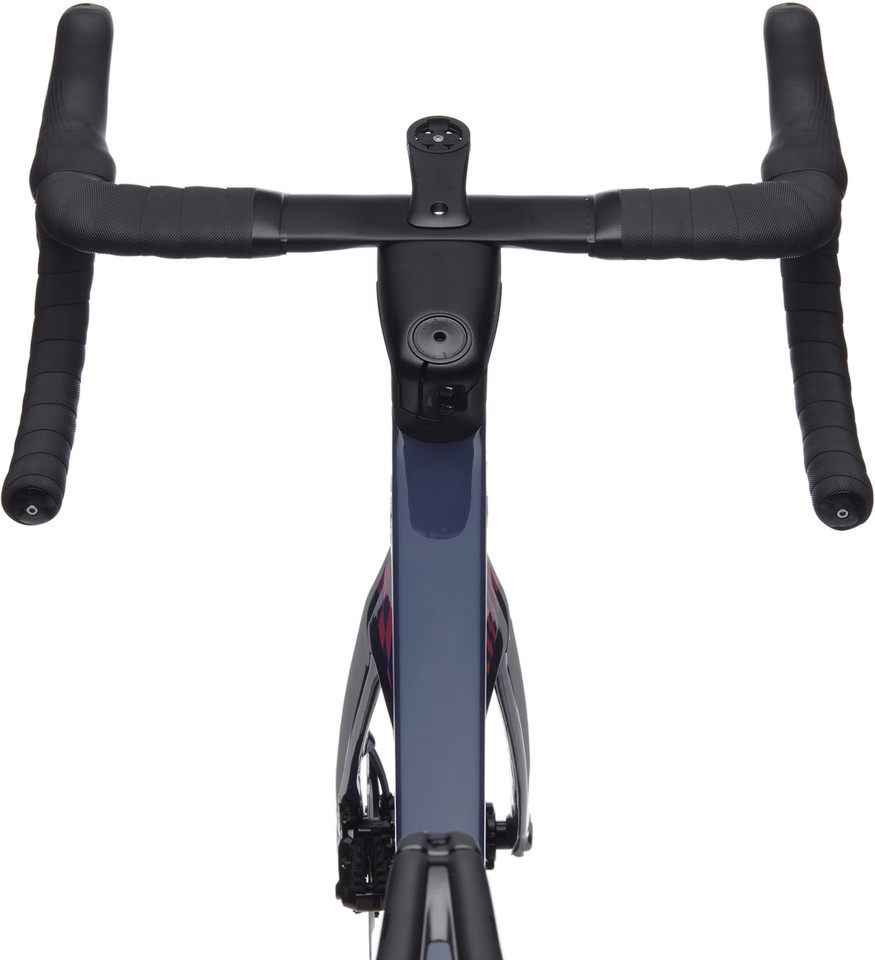

Cannondale HollowGram KNØT SystemBar, Carbon, 8° Pitch Adjust

Headset:

Integrated, 1 1/8" - 1 1/4"

Seatpost:

Cannondale HollowGram 60 KNØT Carbon, 330 mm, 15 mm setback

Saddle:

Fizik Aliante Delta, S-Alloy rails

Crank:

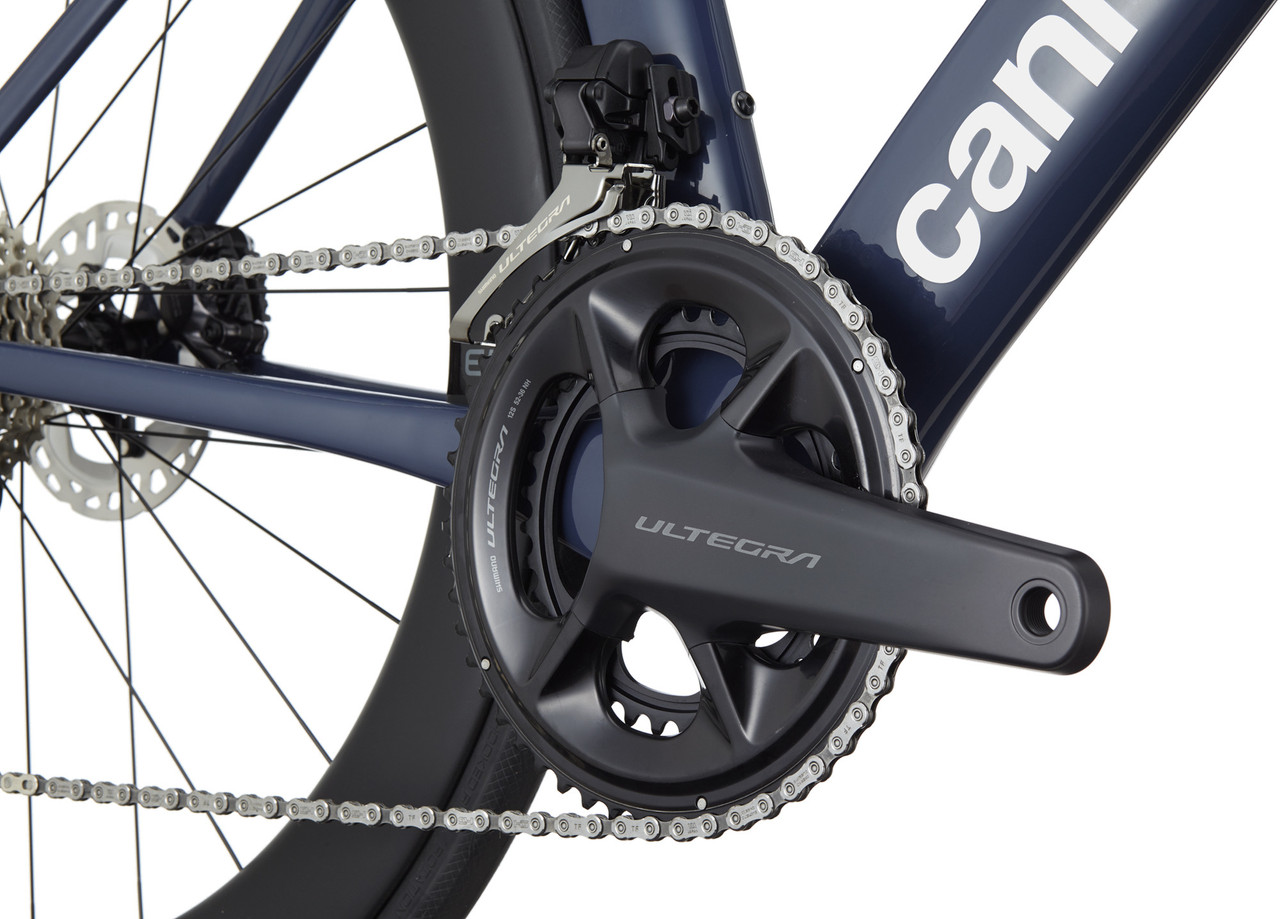

Shimano Ultegra Di2 R8100, 36-52 T

Pedals:

none

Brakes:

Shimano Ultegra Di2 R8170 hydraulic, MT800 brake rotors, 160 mm (front), 140 mm (rear)

Shift/Brake lever:

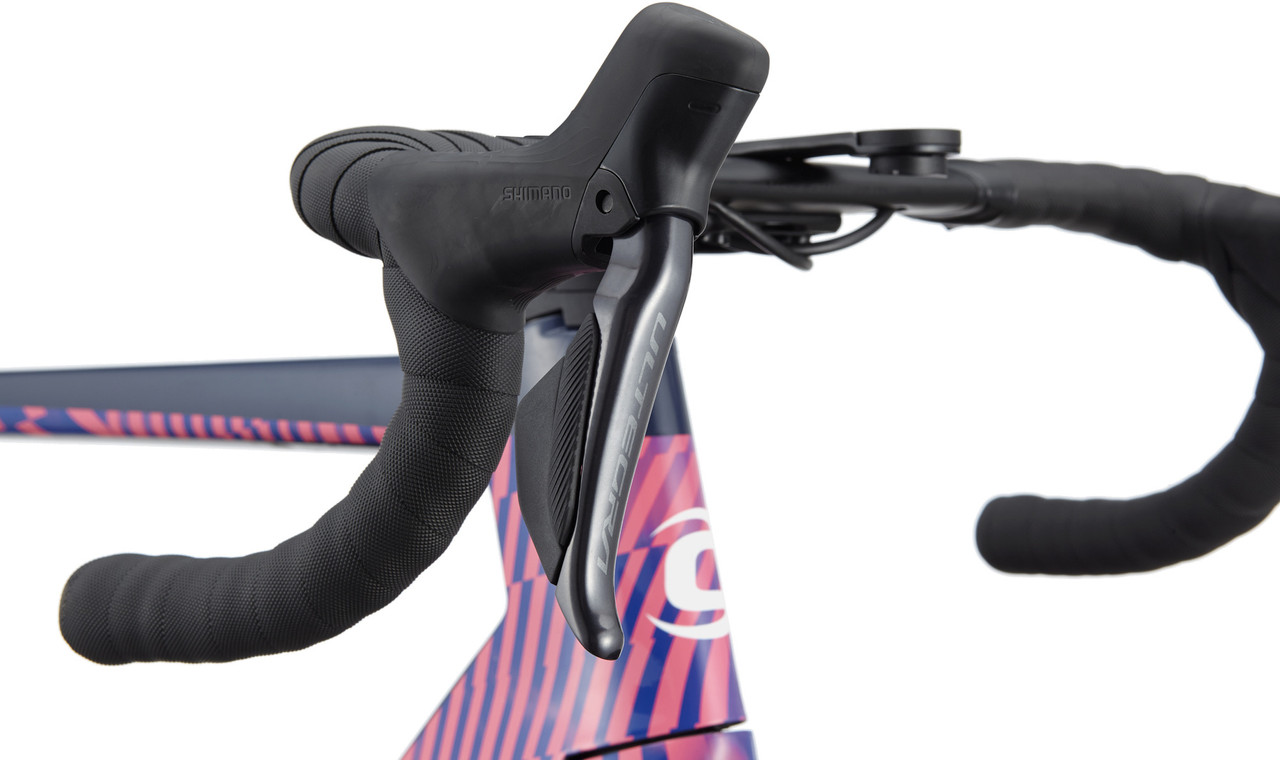

Shimano Ultegra Di2 R8170, 2x12-speed

Rear Derailleur:

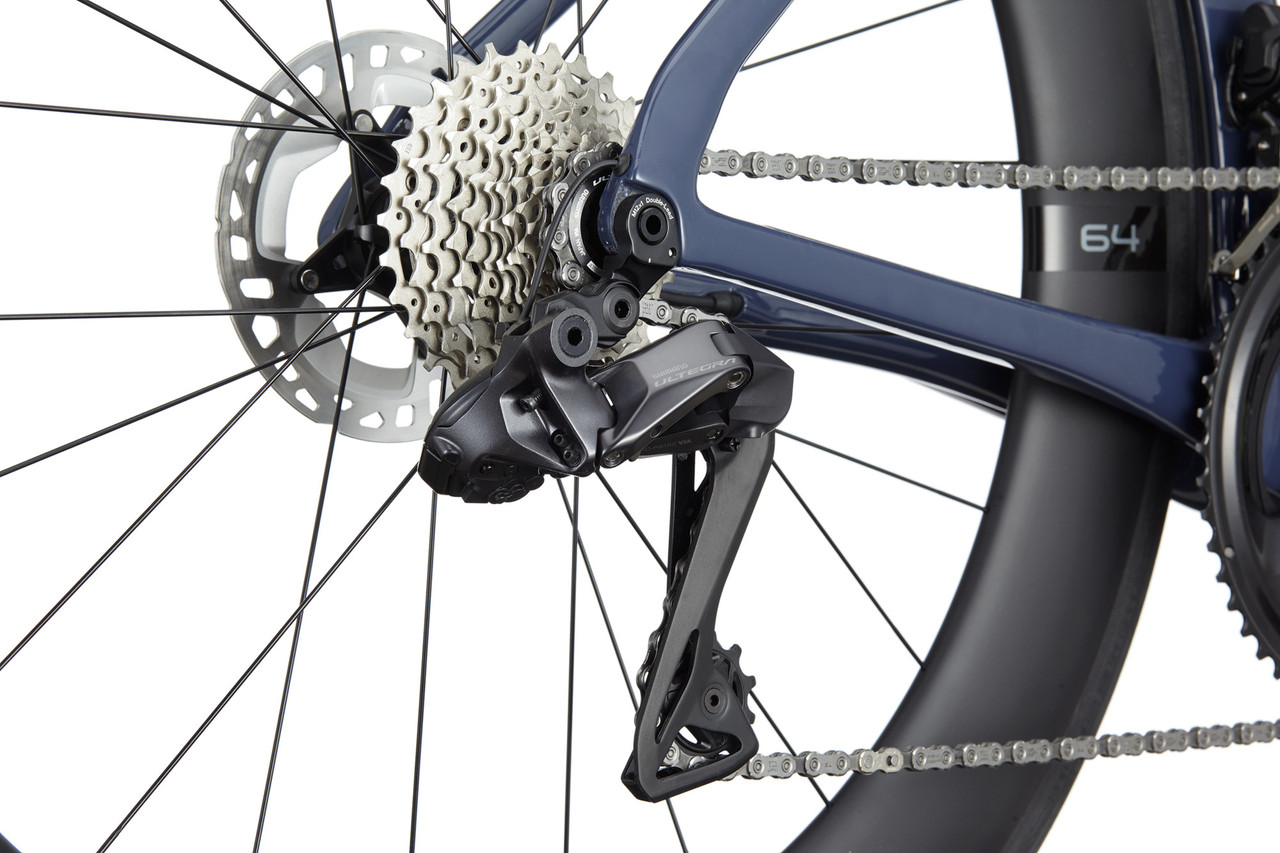

Shimano Ultegra Di2 R8150, 12-speed

Front Derailleur:

Shimano Ultegra Di2 R8150, 2-speed

Cassette:

Shimano Ultegra R8100, 11-30 teeth, 12-speed

Chain:

Shimano Ultegra, 12-speed

Wheels:

Cannondale HollowGram 64 KNØT, carbon, 20 /24 holes, 64 mm rim depth, 21 mm rim width, tubeless ready, with HollowGram KNØT CL hubs

Tyres:

Vittoria Rubino Pro Speed, 700 x 25c

Approved For:

Rotor Size (max.):

160 mm

Tyre Size (max.):

30-622

Chainrings:

2x

Features:

• Proportional Response geometry concept: chainstay lengths and frame design are matched to frame size
• SystemSix: frame, fork, seatpost, handlebars, stem and wheels as coordinated components
• extremely fast in all situations
• efficient and energy-saving
• aerodynamic design with characteristically airfoil-shaped tubes that takes into account airstream in the respective area
• integrated ANT+/Bluetooth wheel sensor for tracking speed and distance travelled, can be paired with Cannondale app, operates with 1 x CR2032 battery
• flat cockpit with clean look thanks to hidden cable routing, steering stop prevents over-winding or bumping of the handlebars against the frame
• handlebar assembly angle adjustable by 8°
• KNØT seatpost reduces air turbulence
• KNØT wheels with relatively wide rim minimise drag from different angles even with wider tyres
• slight asymmetry in frame and fork for direct power transfer and compensation of the imbalance due to the brake rotor
• Speed-Release thru-axle for easy wheel change

Technology:

SAVE
SAVE components have well thought-out flex areas. These are compliant in the exact direction in which they absorb vibrations and thus increase comfort and efficiency for you. Otherwise, they are characterised by high rigidity. These areas can be recognised by their flat tube shapes. Several SAVE areas work together optimally.

Geometry:

51 cm:

Recommended Height:

165 cm - 175 cm

Stack:

520 mm

Reach:

381 mm

Seat Tube Length:

433 mm

Effective Top Tube Length:

529 mm

Head Tube Length:

114 mm

Chainstay Length:

405 mm

Wheelbase:

989 mm

Bottom Bracket Height:

266 mm

BB Drop:

74 mm

Seat Tube Angle (effective):

74.1°

Seat Tube Angle (virtual):

74.7°

Head Tube Angle:

71.2°

Standover Height:

723 mm

54 cm:

Recommended Height:

170 cm - 180 cm

Stack:

540 mm

Reach:

386 mm

Seat Tube Length:

482 mm

Effective Top Tube Length:

544 mm

Head Tube Length:

128 mm

Chainstay Length:

405 mm

Wheelbase:

975 mm

Bottom Bracket Height:

269 mm

BB Drop:

72 mm

Seat Tube Angle (effective):

73.7°

Seat Tube Angle (virtual):

74.3°

Head Tube Angle:

73°

Standover Height:

762 mm

56 cm:

Recommended Height:

177 cm - 187 cm

Stack:

560 mm

Reach:

392 mm

Seat Tube Length:

530 mm

Effective Top Tube Length:

560 mm

Head Tube Length:

149 mm

Chainstay Length:

405 mm

Wheelbase:

987 mm

Bottom Bracket Height:

269 mm

BB Drop:

72 mm

Seat Tube Angle (effective):

73.3°

Seat Tube Angle (virtual):

73.9°

Head Tube Angle:

73°

Standover Height:

798 mm

58 cm:

Recommended Height:

182 cm - 193 cm

Stack:

580 mm

Reach:

398 mm

Seat Tube Length:

553 mm

Effective Top Tube Length:

576 mm

Head Tube Length:

172 mm

Chainstay Length:

405 mm

Wheelbase:

1000 mm

Bottom Bracket Height:

271 mm

BB Drop:

69 mm

Seat Tube Angle (effective):

72.9°

Seat Tube Angle (virtual):

73.5°

Head Tube Angle:

73°

Standover Height:

821 mm

60 cm:

Recommended Height:

187 cm - 198 cm

Stack:

600 mm

Reach:

403 mm

Seat Tube Length:

577 mm

Effective Top Tube Length:

592 mm

Head Tube Length:

193 mm

Chainstay Length:

405 mm

Wheelbase:

1012 mm

Bottom Bracket Height:

271 mm

BB Drop:

69 mm

Seat Tube Angle (effective):

72.5°

Seat Tube Angle (virtual):

73.1°

Head Tube Angle:

72.9°

Standover Height:

843 mm

62 cm:

Recommended Height:

195 cm - 205 cm

Stack:

620 mm

Reach:

409 mm

Seat Tube Length:

600 mm

Effective Top Tube Length:

609 mm

Head Tube Length:

214 mm

Chainstay Length:

405 mm

Wheelbase:

1024 mm

Bottom Bracket Height:

271 mm

BB Drop:

69 mm

Seat Tube Angle (effective):

72.1°

Head Tube Angle:

72.7°

Standover Height:

863 mm

Manufacturer Number:

C11231U

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Cannondale SystemSix Hi-MOD Ultegra Di2 Carbon Road Bike
