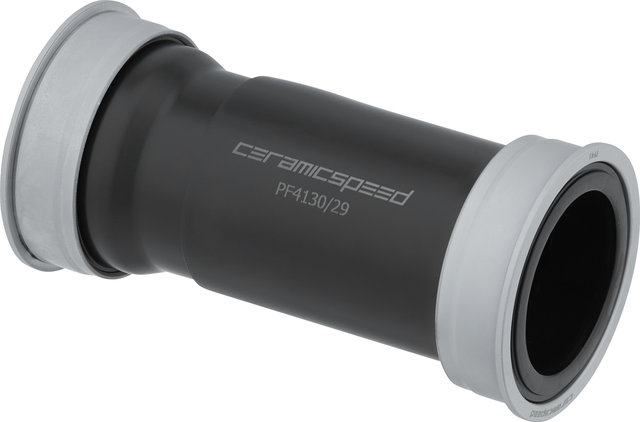

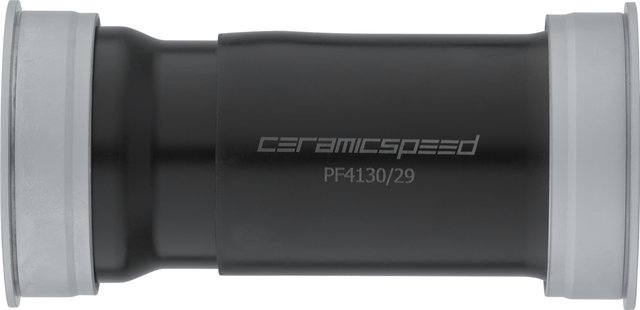

CeramicSpeed BB92 SRAM DUB MTB Coated Bottom Bracket 41 x 92 mm

CeramicSpeed BB92 SRAM DUB MTB coated bottom bracket for 92 mm wide bottom bracket with 41 mm diameter

The BB92 SRAM DUB MTB coated bottom bracket from CeramicSpeed has smooth-running, resilient ceramic bearings and metal-coated races that increase durability. With this you install a DUB crank with 28.99 mm axle in a 92 mm wide press fit bottom bracket with 41 mm diameter.

You can find hazardous substance labelling, safety and application instructions for the included grease under the product description for CeramicSpeed UFO Long Life Grease.

Specifications:

Application:

Cross Country

Type:

PressFit BB92

Shell Diameter:

41 mm

Shell Width:

92 mm

Axle Diameter:

28.99 mm (DUB)

Technical Information:

Bearings:

Ceramic

Compatibility:

• SRAM DUB cranks

Features:

• high-performance bearings with special ceramic balls made of grade 3 silicon nitride (best achievable degree for ceramic bearings)
• CeramicSpeed bearing balls: 15% harder, 100% smoother and 99% more resilient than commercially available ceramic bearing balls
• ball bearing retainer made of reinforced polyamide, race made of hardened steel with polished channel
• additional metal-coated race for more performance and durability
• reduced friction: smoother running
• handmade in Denmark

Technology:

Ceramic Bearings by CeramicSpeed
CeramicSpeed ceramic balls are rounder, harder, smoother, lighter and more resilient than steel balls and ceramic balls from other manufacturers. CeramicSpeed ceramic bearings therefore last 3 to 5 times longer than other bearings on the market. All CeramicSpeed bearings are handmade in Denmark under clean room conditions and subjected to a strict four-stage inspection process. Among other things, the size of the ceramic balls is checked down to the thousandth of a millimetre. Tests are then carried out in the laboratory or preferably by professionals in training and competition. CeramicSpeed products guarantee you the lowest possible friction, optimised power transfer and maximum durability and also help you save watts and reach the finish line faster. It's not about seconds, it's about minutes!

Coated
Coated products from CeramicSpeed offer the ultimate gains in terms of performance and durability. This is due to a unique coating that increases the hardness of the races so that, in combination with the smoothness of CeramicSpeed ball bearings, virtually no wear on the bearings can be detected. The coating is a metal layer that is 75% harder than hardened steel. It is applied very thinly (0.003 mm) and evenly over the entire surface of the race and is used both internally and externally for optimum results.

Manufacturer Number:

105923

Contents:

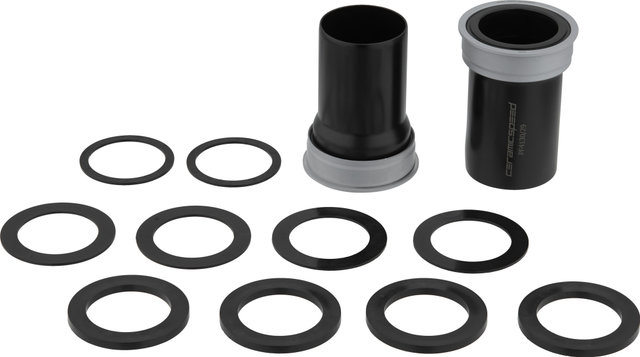

CeramicSpeed BB92 SRAM DUB MTB Coated bottom bracket, consisting of:

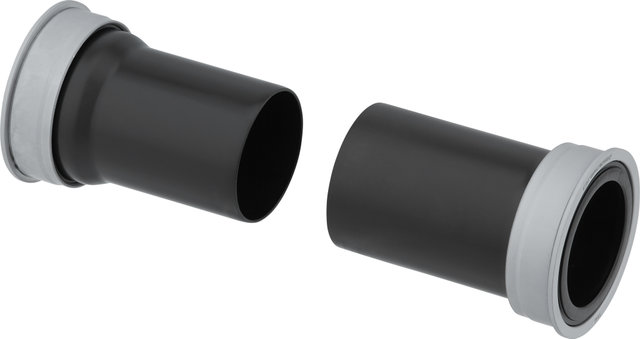

• 1 x bearing cup with coated ceramic bearings, right
• 1 x bearing cup with coated ceramic bearings, left
• 1 x bottom bracket centre sleeve, two-piece
• 2 x dust caps
• 1 x spacer kit

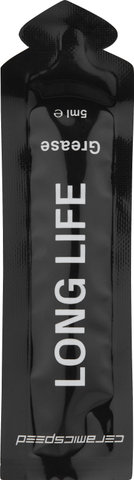

• 1 x UFO Long Life grease
• 1 x sticker sheet
