Chris King InSet i8 ZS44/28.6 - EC44/33 GripLock Headset

Use:

Designed for 1 1/8" upper and lower head tube diameters combined with 1 1/8" - 1 1/4" tapered forks.

Specifications:

Application:

Road, Gravel, Cyclocross, Cross Country, All Mountain, Enduro, Downhill

Design:

zero stack (ZS), external cup (EC)

Top Outer Diameter:

44 mm

Top Inner Diameter:

28.6 mm

Bottom Outer Diameter:

44 mm

Bottom Inner Diameter:

33 mm

Head Tube:

1 1/8"

Steerer Tube:

1 1/8" - 1 1/4" tapered

Technical Information:

Material:

aluminium

Bearings:

cartridge, double-sealed

Upper Insert Depth:

9.5 mm

Lower Insert Depth:

9.5 mm

Top Stack Height:

8.2 mm

Bottom Stack Height:

14.0 mm

Features:

• semi-integrated Ahead headset with only 8.2 mm overall height at the top
• CNC machined aluminium
• multiple sealed Chris King precision bearings
• developed and manufactured in Portland, Oregon (USA)

Manufacturer Numbers:

black:

BDB1

gold:

BDY1

matte jet:

BDB2

matte mango:

BDM2

matte slate:

BDH2

matte turquoise:

BDT2

navy:

BDN1

red:

BDR1

silver:

BDS1

two tone-black-gold:

BDBY

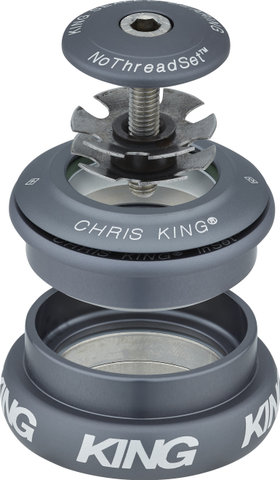

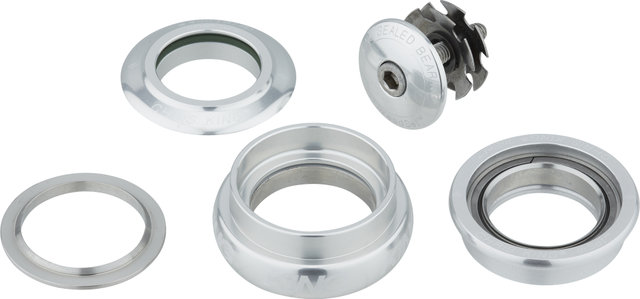

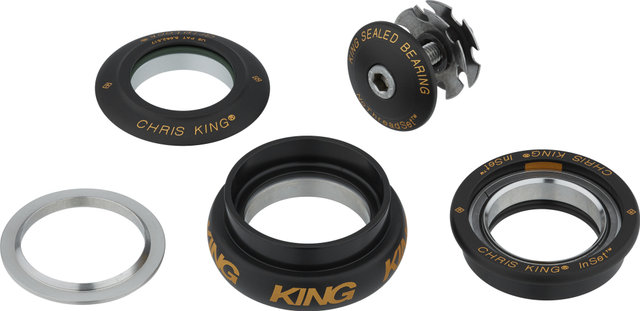

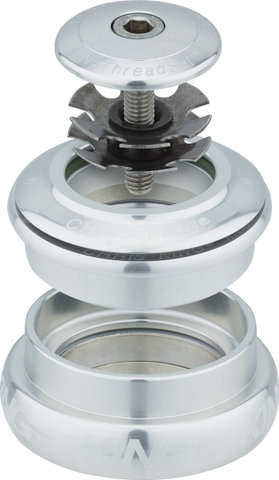

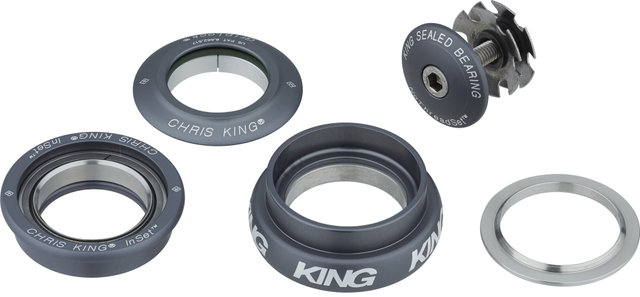

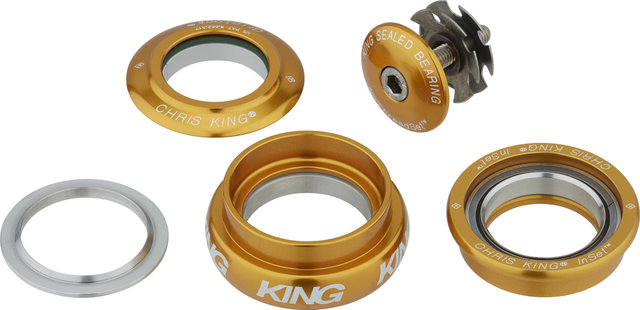

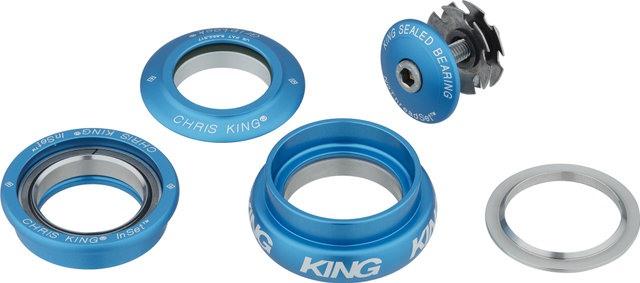

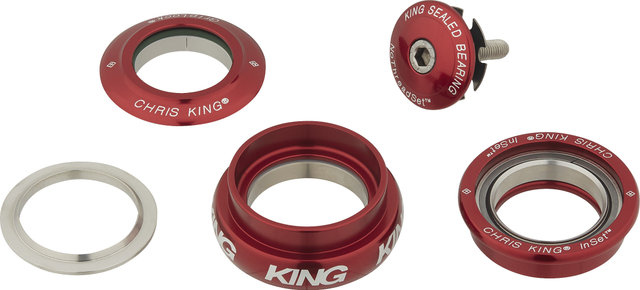

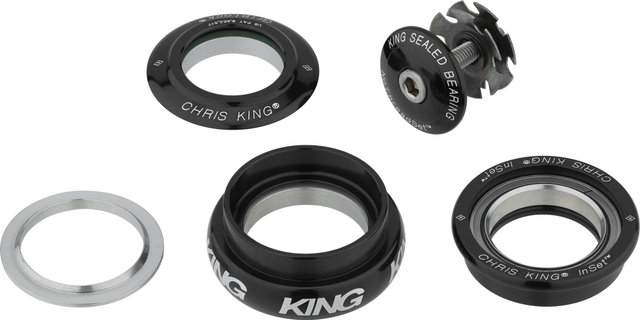

Contents:

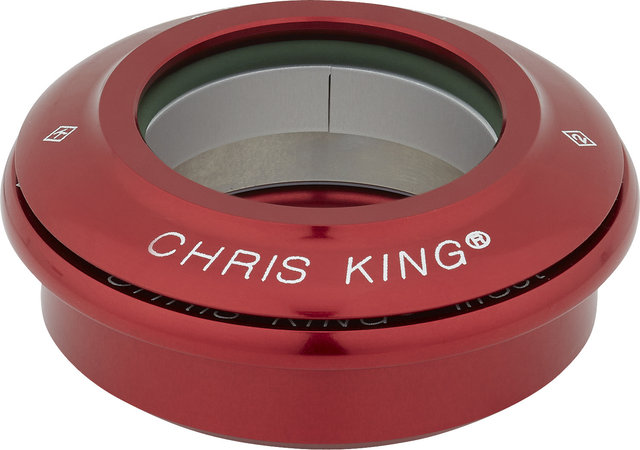

• 1 x Chris King InSet i8 ZS44/28.6 - EC44/33 GripLock upper headset cup

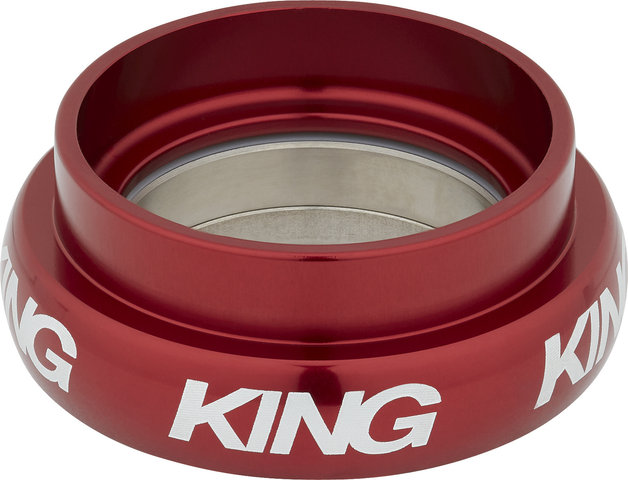

• 1 x Chris King InSet i8 ZS44/28.6 - EC44/33 GripLock lower headset cup
• 1 x Chris King star nut

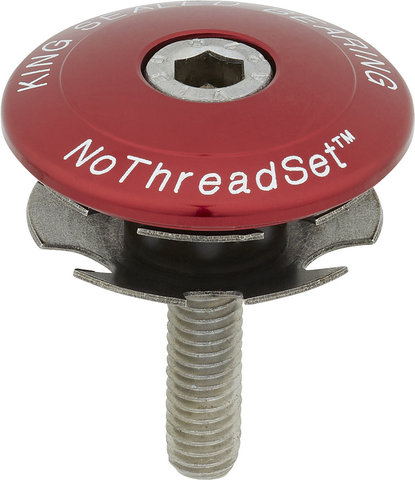

• 1 x Chris King Ahead top cap
