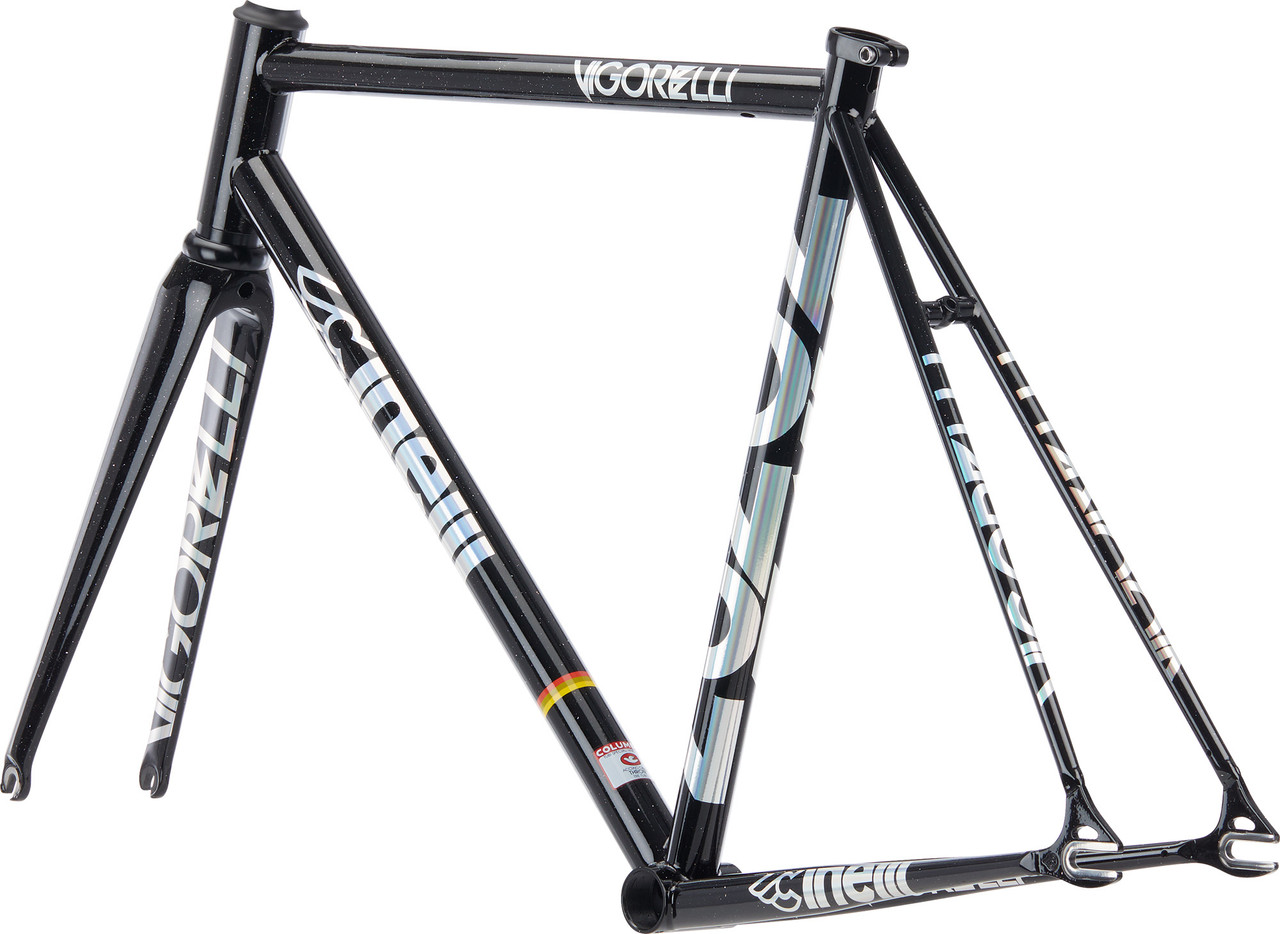

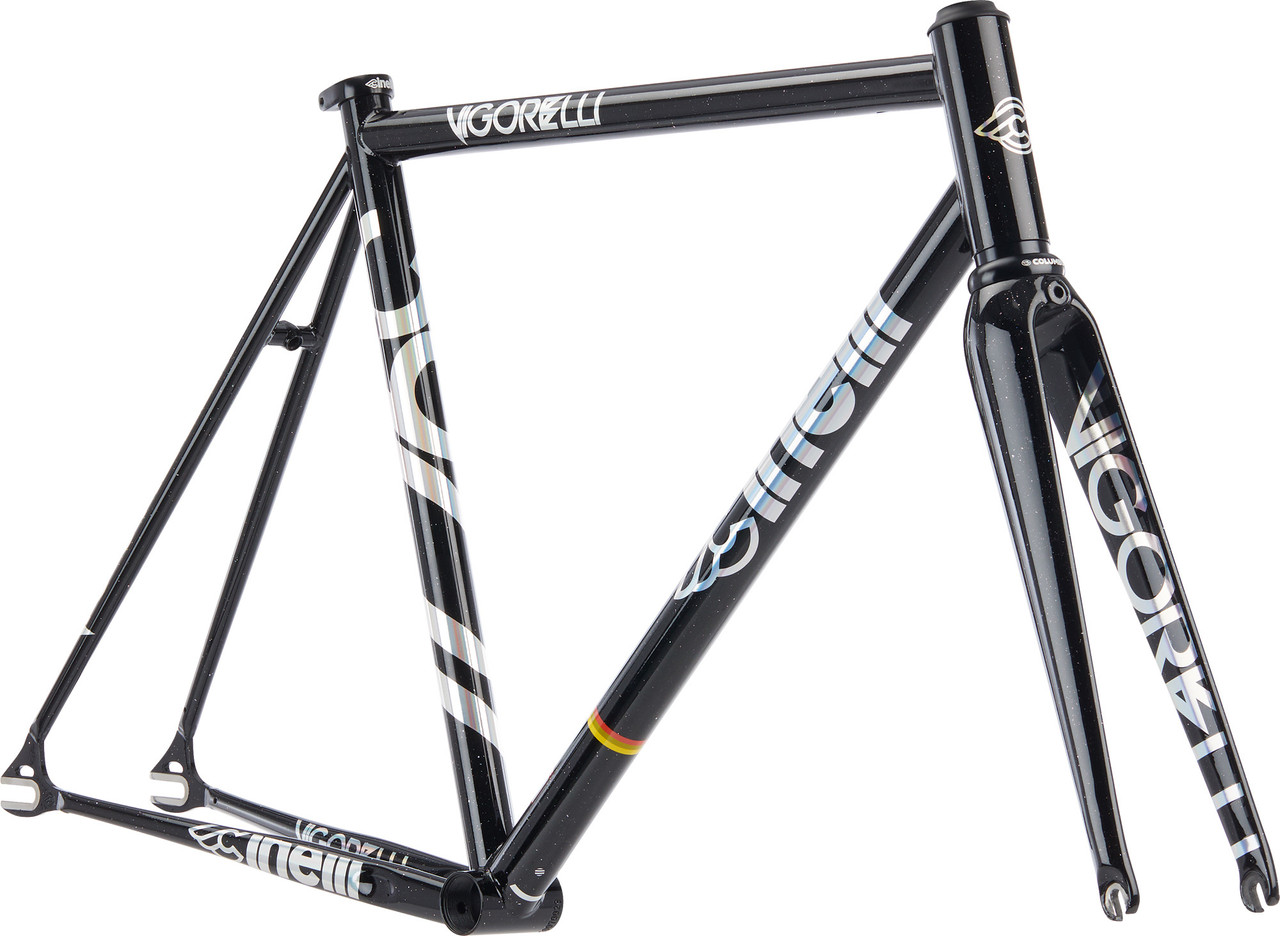

The Vigorelli Track Steel frameset by Cinelli for track riders and fixie afficionados

The Vigorelli frameset is based on classic steel frames for track racing, but has been given a modernized geometry. The higher bottom bracket and larger fork offset gives you more stability, even in technically demanding situations. The Columbus steel tubes favour good steering characteristics of the frame. They absorb vibrations and other effects of uneven surfaces, especially when cornering. For competition-oriented riders, this means an increase in control and stability. Convinced fixie riders benefit from the rim brakes, which can be mounted on the frame as well as on the carbon fork. The possible tyre width of 28 mm is also suitable for a leisure fixie.

Specifications:

Application:

Road, Track

Wheel Size:

28"

Size:

50 cm, 53 cm, 56 cm, 59 cm

Frame Material:

steel (CrMo)

Fork Material:

Carbon

Technical Information - Frame:

Wheel Standard:

10 x 120 mm

Axle Type:

10 mm screw axle

Seatpost (Ø):

31.6 mm

Seatpost Clamp(Ø):

33.5 mm

Headset:

ZS 44 / 28.6|EC 44 / 40

Bottom Bracket Standard:

BSA

Shell Width:

68 mm

Brake Mount:

rim brake

Front Derailleur Mount:

not possible

Cable Routing:

not possible

Bottle Cage Mounts:

none

Technical Information - Fork:

Steerer Tube:

1 1/8" - 1.5" tapered

Wheel Standard:

9 x 100 mm

Axle Type:

9 mm quick release / bolt axle

Brake Mount:

rim brake

Offset:

45 mm

Steerer Tube Length:

300 mm

Axle to Crown:

368 mm

Over Locknut Dimension:

100 mm

Crown Race Diameter:

46 mm

Steerer Tube Material:

Carbon

Blade Material:

Carbon

Approved For:

Tyre Size (max.):

28-622 (700x28c)

Features:

• Columbus Thron steel frame tubes

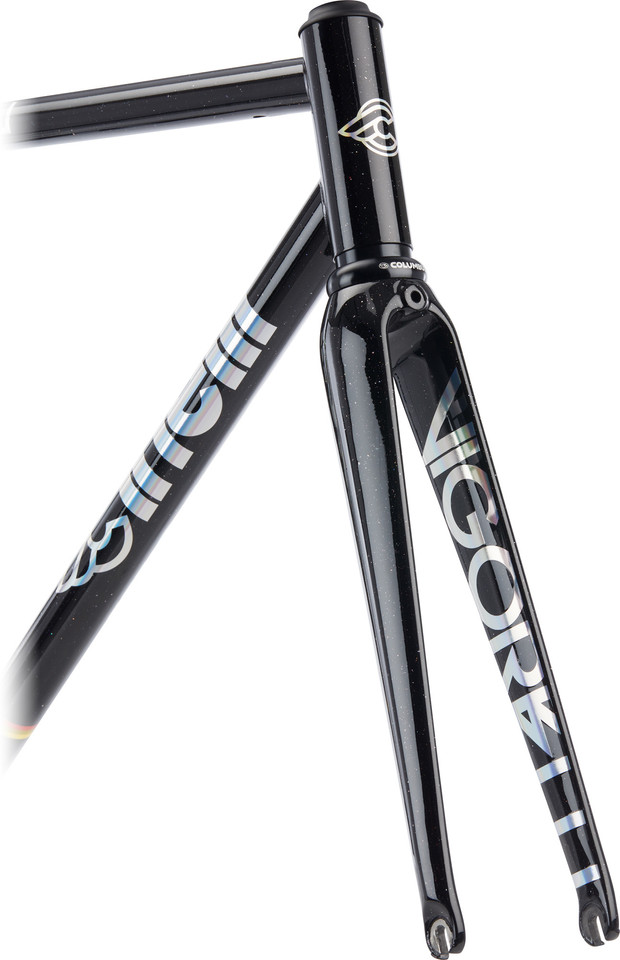

• Columbus Futura Monocoque fork
• competition geometry for criteriums

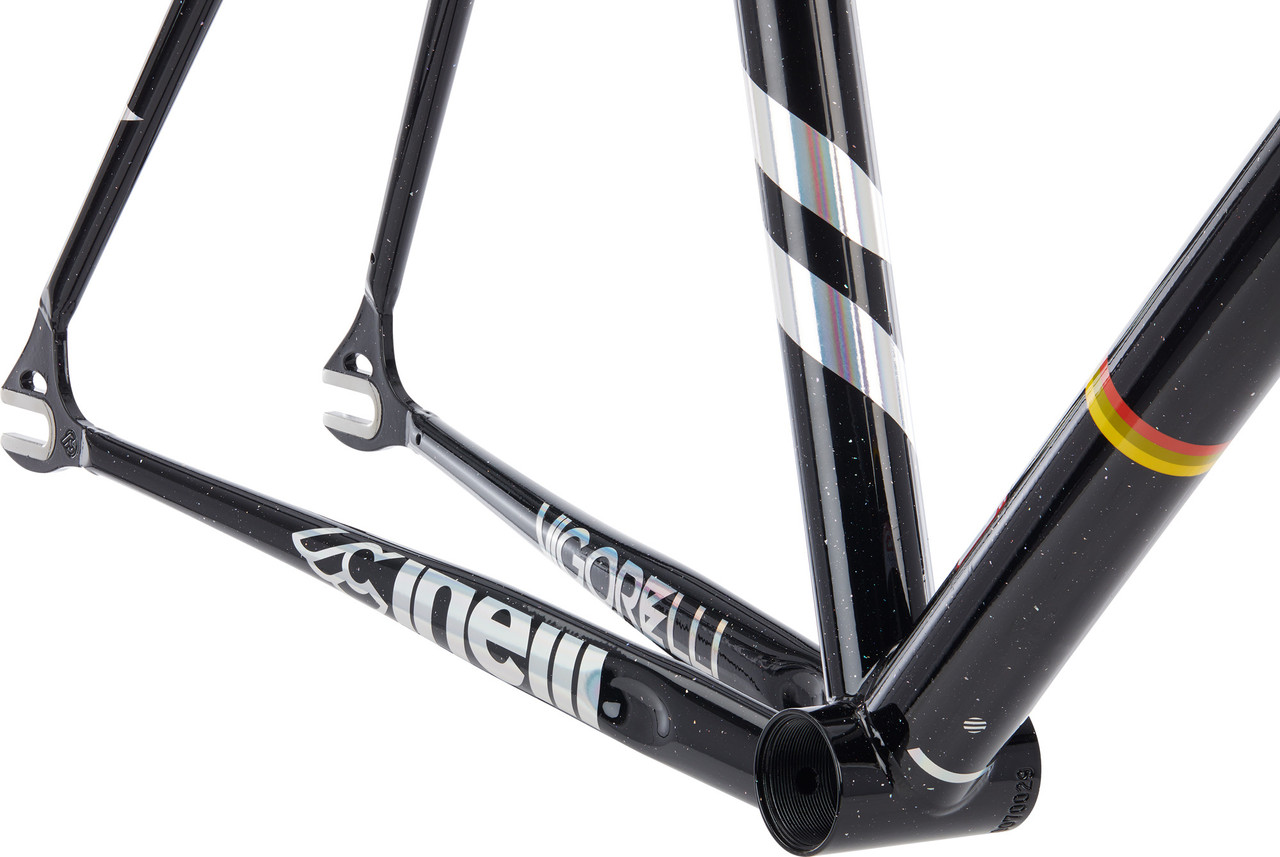

• horizontal dropouts (rear)
• internal brake cable routing
• characteristics: Urban Race (5 out of 6), Criterium (6 out of 6), Velodrome (6 out of 6), Gravel (1 out of 6)

Geometry:

50 cm:

Frame Size:

S

Recommended Height:

149 - 166 cm

Stack:

515 mm

Reach:

392 mm

Seat Tube Length:

500 mm

Top Tube Length:

535 mm

Head Tube Length:

114 mm

Chainstay Length:

391 mm

Wheelbase:

963 mm

BB Drop:

53 mm

Seat Tube Angle:

74.5°

Head Tube Angle:

73.5°

Standover Height:

770 mm

53 cm:

Frame Size:

M

Recommended Height:

166 - 182 cm

Stack:

533 mm

Reach:

397 mm

Seat Tube Length:

530 mm

Top Tube Length:

550 mm

Head Tube Length:

136 mm

Chainstay Length:

392 mm

Wheelbase:

976 mm

BB Drop:

50 mm

Seat Tube Angle:

74.0°

Head Tube Angle:

73.5°

Standover Height:

796 mm

56 cm:

Frame Size:

L

Recommended Height:

171 - 187 cm

Stack:

552 mm

Reach:

399 mm

Seat Tube Length:

560 mm

Top Tube Length:

562 mm

Head Tube Length:

156 mm

Chainstay Length:

393 mm

Wheelbase:

984 mm

BB Drop:

50 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

73.5°

Standover Height:

820 mm

59 cm:

Frame Size:

XL

Recommended Height:

177 - 193 cm

Stack:

571 mm

Reach:

400 mm

Seat Tube Length:

590 mm

Top Tube Length:

575 mm

Head Tube Length:

174 mm

Chainstay Length:

395 mm

Wheelbase:

989 mm

BB Drop:

50 mm

Seat Tube Angle:

74.0°

Head Tube Angle:

73.0°

Standover Height:

840 mm

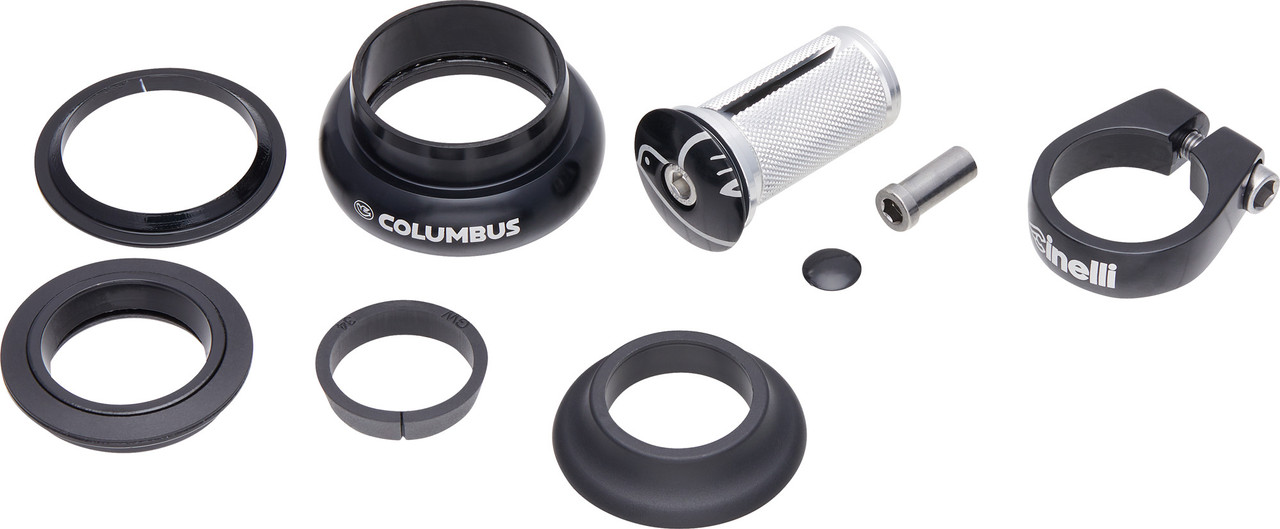

Contents:

• 1 x Cinelli Vigorelli frame
• 1 x Columbus Futura fork
• 1 x seatpost clamp
• 1 x headset expander
