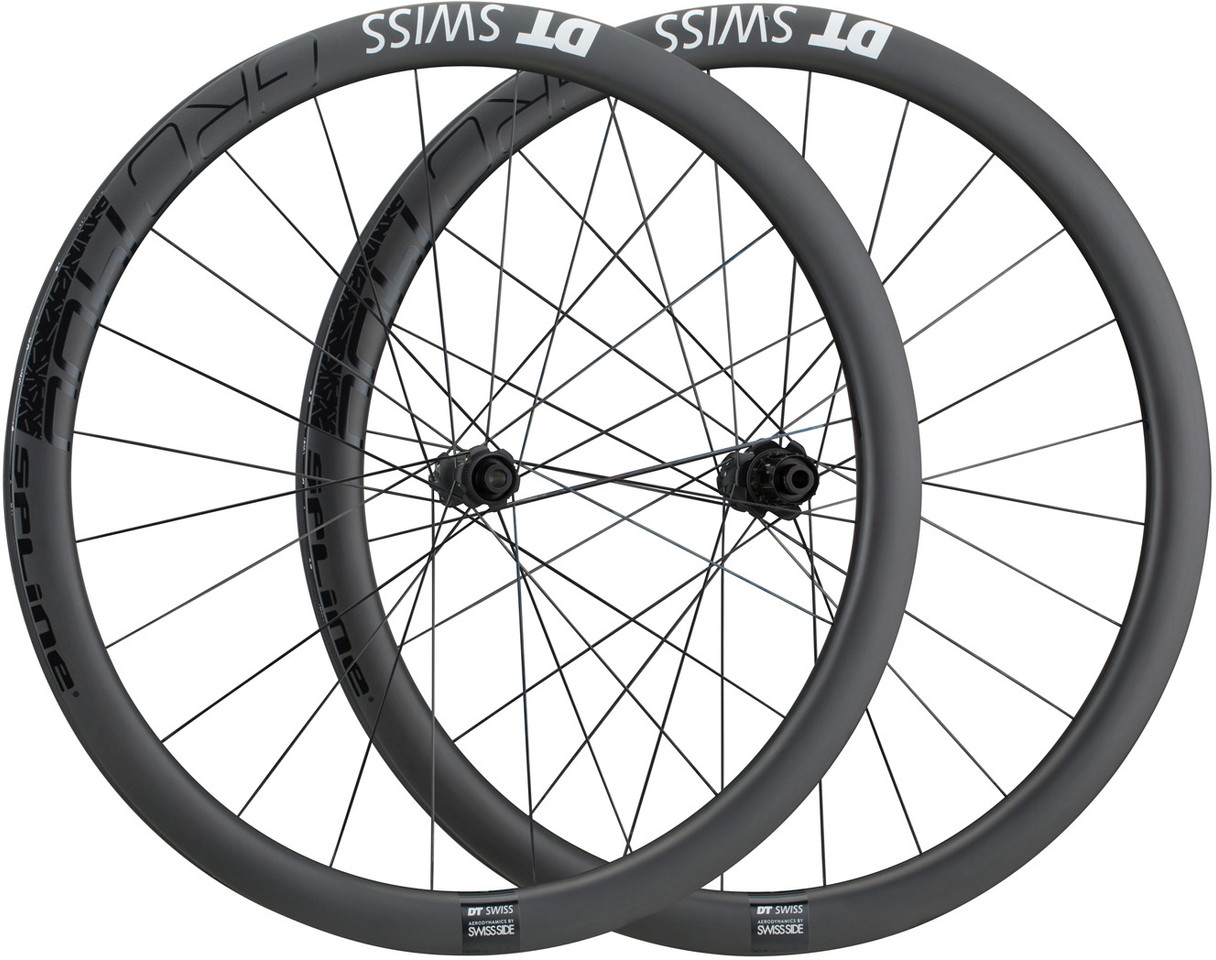

DT Swiss GRC 1400 SPLINE 42 Center Lock Disc Carbon 28" Wheelset

The perfect companion: the GRC 1400 SPLINE DB Carbon 42 wheelset from DT Swiss

The GRC 1400 SPLINE® DB Carbon 42 wheelset is the racing king of the DT Swiss gravel family. Wide rims and aerodynamic efficiency provide comfort and can ride off-road. It is THE wheelset for your next gravel tour.

Specifications:

Application:

Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

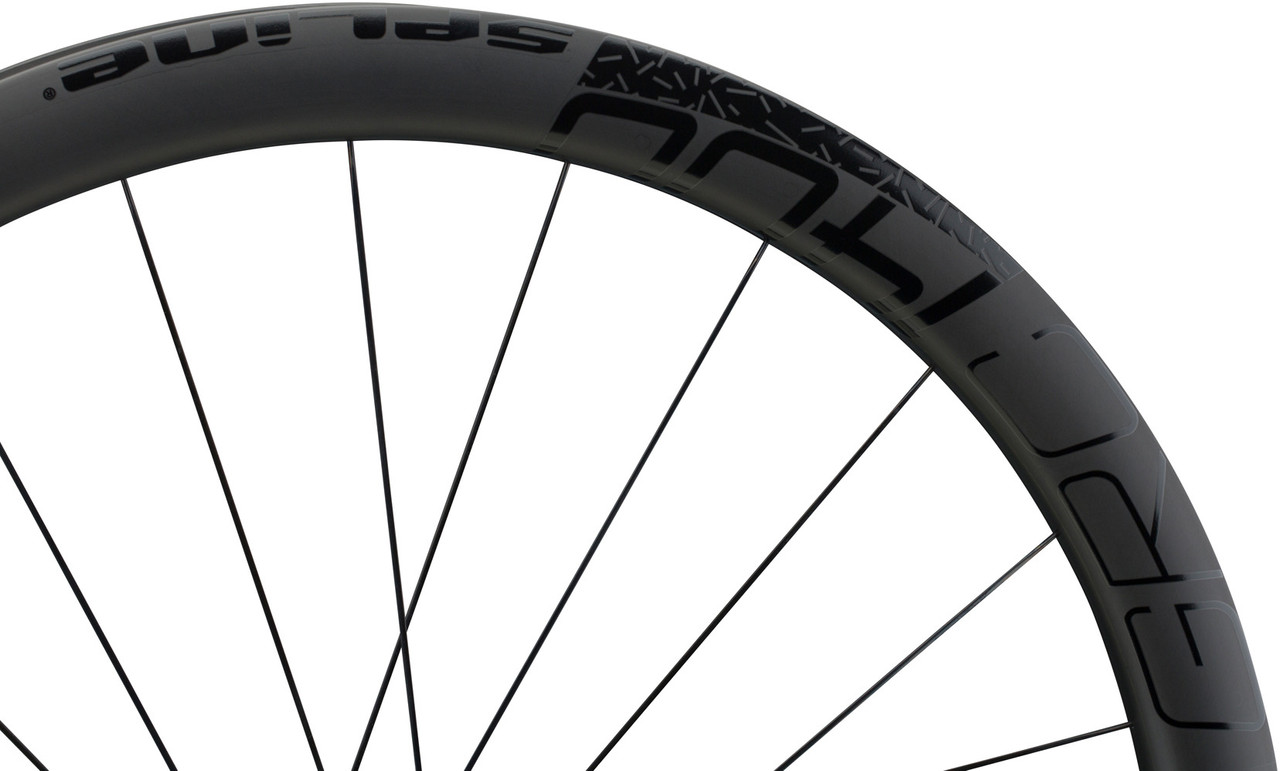

Technical Information - Rim:

Dimensions (ETRTO):

24-622

Inner Width:

24 mm

Outer Width:

32 mm

Depth:

42 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

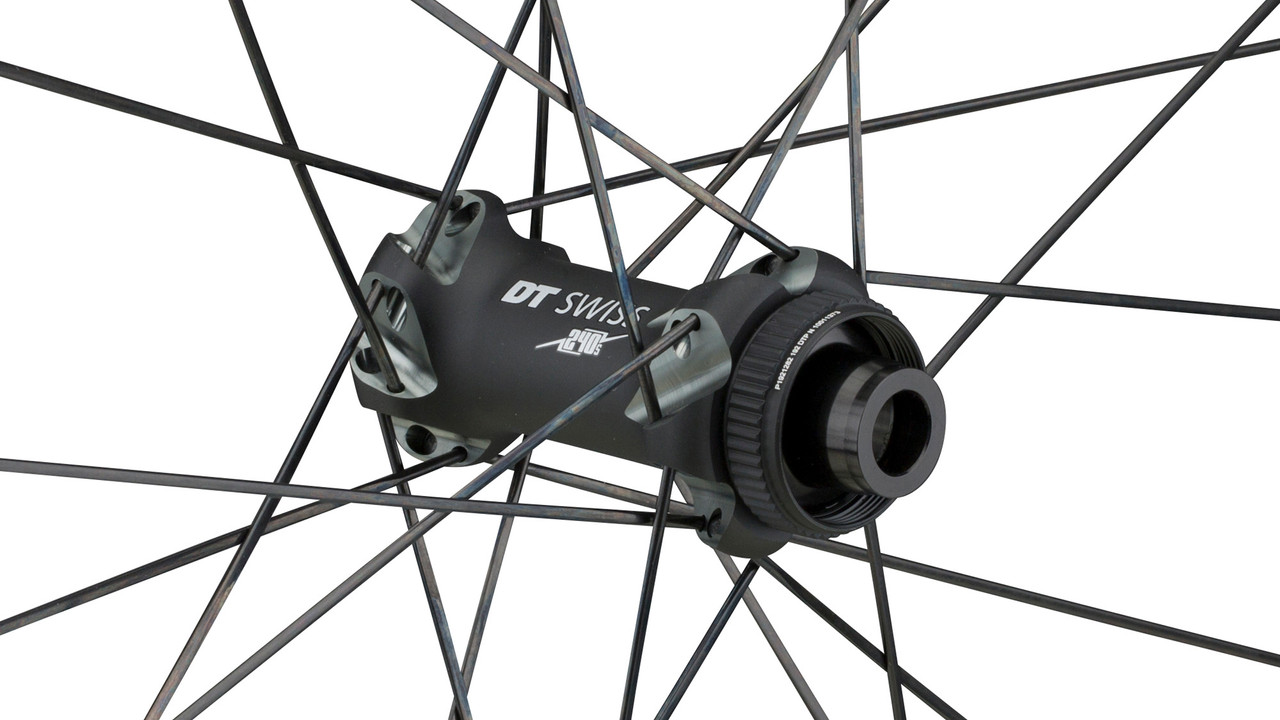

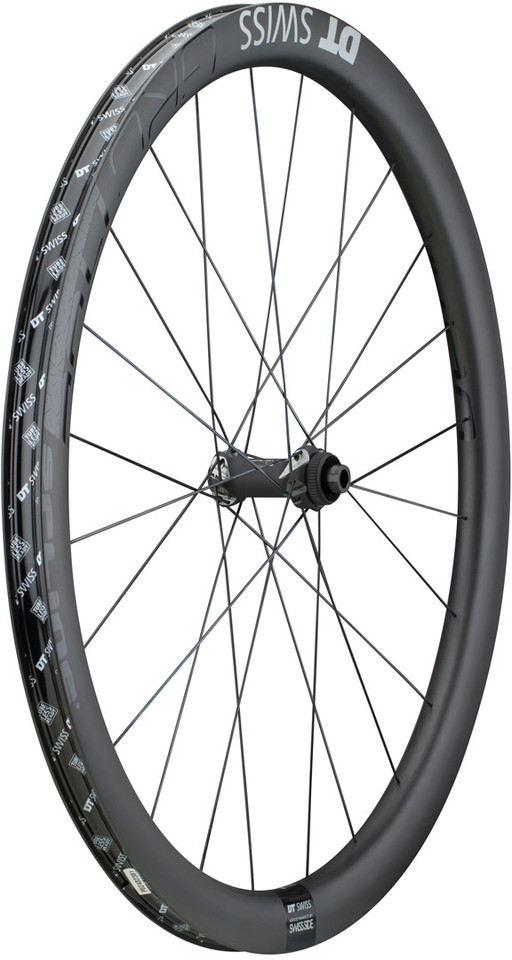

Technical Information - Front Hub:

Type:

240s

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

precision bearings, sealed

Body Material:

aluminium

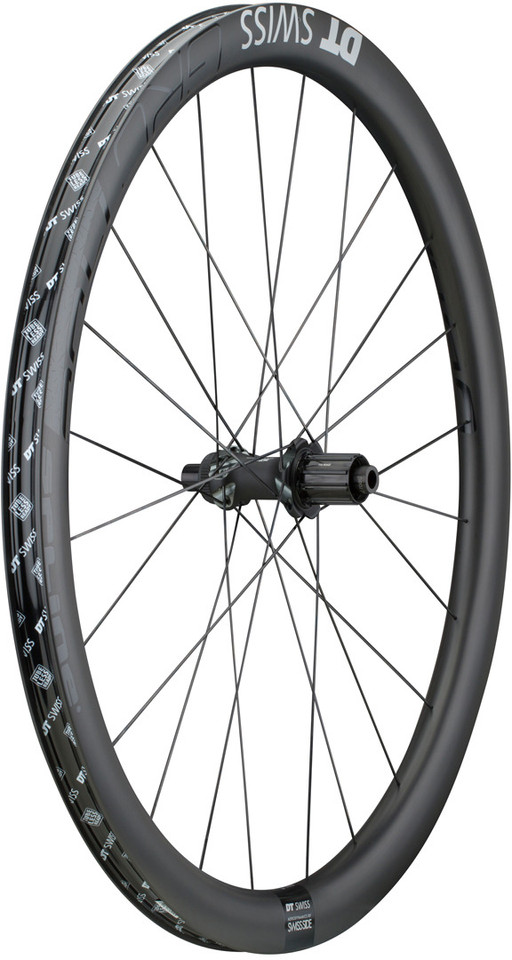

Technical Information - Rear Hub:

Type:

240s

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

precision bearings, sealed

Body Material:

aluminium

Freehub Body Material:

aluminium / steel

Freehub Body:

DT Swiss Ratchet System® (36 SL)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Aero Comp®, straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock hidden

Nipple Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

https://www.dtswiss.com/pmt/00/00/00/00/00/00/00/10/00/00/00/85/8/MAN_WXWXXXXXX1610S_WEB_ZZ_001.pdf

Recommended Tyre Width:

https://www.dtswiss.com/pmt/00/00/00/00/00/00/00/10/00/00/00/85/8/MAN_WXWXXXXXX1610S_WEB_ZZ_001.pdf

Features:

• internal nipples for optimal aerodynamics
• Waterslide adhesive type
• 24 mm jaw width

Technology:

SPLINE
The SPLINE line features new and lightweight straight pull hubs with well-known DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE wheel the perfect training and competition partner.

Pro Lock
The screw-locking system injected into the nipples enables the construction of extremely durable wheels.

Ratchet System
The patented freehub system with high-precision star ratchets guarantees maximum load capacity and reliability. Thanks to the no-tool concept, the system is very easy and quick to maintain.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Colour Info:

• Rims: black w/ white accents
• Hubs: black
• Spokes: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Numbers:

WGRC140AIDXCA10662 (front) + WGRC140NIDJCA10663 (rear)

28" set (front 12x100 + rear 12x142) Campa N3W:

Freehub:

Campagnolo N3W

Gearing:

12-/13-speed

Manufacturer Numbers:

WGRC140AIDXCA10662 (front) + WGRC140NID8CA19552 (rear)

Contents:

• 1 x DT Swiss GR 1400 Spline DB 42 wheelset (front and rear wheel)
• 2 x tubeless tape, 25 mm
• 2 x DT Swiss aluminium black tubeless valves, 36- 48 mm
• 1 x SRAM XDR Road freehub body (rear)
