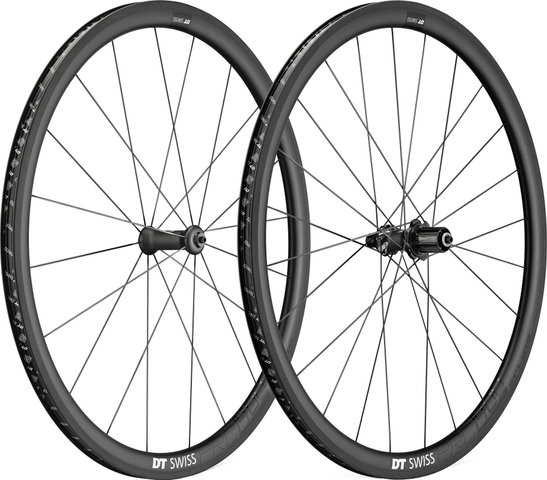

DT Swiss PRC 1400 SPLINE® 35 Wheelset

Where to go next? Into the mountains, across a few hills or over a flat road? No matter where you go, the PRC 1400 SPLINE® 35 is the perfect companion. The reliable SPLINE® hub with Ratchet® System technology and high-quality straight pull spokes paired with the 35 mm deep tubeless ready rim deliver a truly efficient riding experience. Its perfect mix of comfort, grip and low rolling resistance is achieved by pairing wider tyres with a 18 mm wide rim. Disc or rim brake version? The choice is up to you. The PRC 1400 SPLINE 35 is ready to go!

Specifications:

Application:

Road, Flat, Mixed, Climbing, Race, TT, Triathlon

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

20 (front), 24 (rear)

Brake Type:

rim brake

Tubeless System:

Tubeless Ready

Freehub Compatibility:

Shimano Freehub:

8/9/10/11-speed Shimano/SRAM (Road)

Technical Information - Rim:

Dimensions (ETRTO):

18-622

Inner Width:

18 mm

Outer Width:

25 mm

Depth:

35 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

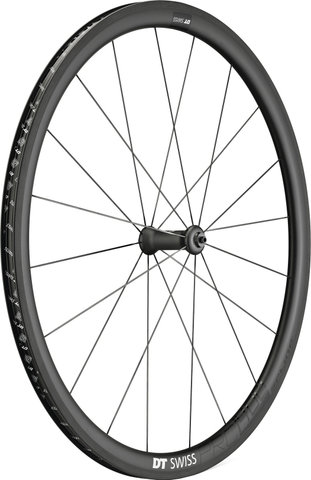

Technical Information - Front Hub:

Over Locknut Dimension:

9 x 100 mm quick release

Body Material:

aluminium

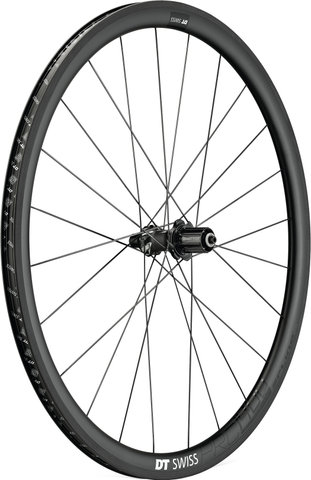

Technical Information - Rear Hub:

Over Locknut Dimension:

10 x 130 mm quick release

Body Material:

aluminium

Freehub Body:

DT Swiss Ratchet System® / 36 T

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Aerolite®, DT Aero Comp® / straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock®

Nipple Material:

aluminium

Approved For:

Weight Limit:

100 kg (system weight)

Air Pressure (max.):

9.0 bars

Recommended Tyre Width:

23 - 60 mm

Technology:

Bladed:
The central part of the spoke is forged flat for better aerodynamics. A combination of butted and bladed spokes makes it possible to the meet ever-increasing demands for strength and weight reduction.

Double Butted:
These spokes have two different diameters. The spoke is partially butted by cold forging. As a result, the diameter is smaller and thus enables a reduction in weight while at the same time improving the strain values.

Pro Lock:
The screw-locking system injected into the nipples enables the construction of extremely durable wheels.

Ratchet System:
The patented freehub system with high-precision star ratchets guarantees maximum load capacity and reliability. Thanks to the no-tool concept, the system is very easy and quick to maintain.

RWS:
Patented wheel fastening system. Stiffer, safer and easier to use than a quick release. 100% disc brake compatible.

SPLINE®:
The SPLINE® line is characterised by straight pull hubs with famous DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE® wheel the perfect training and competition partner.

Straight Pull:
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready:
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Manufacturer Numbers:

Contents:

• 1 x DT Swiss PRC 1400 SPLINE® 35 wheelset (front and rear wheel)
• 2 pairs of DT Swiss Carbon brake pads
• 2 x DT Swiss tubeless valves
• incl. DT Swiss rim tape
• incl. quick releases

• UD carbon/Non Boost/Non Boost/130 mm/100 mm/28"/Shimano Road/100 mm/Shimano Road/100 mm/130 mm: 1476 g
