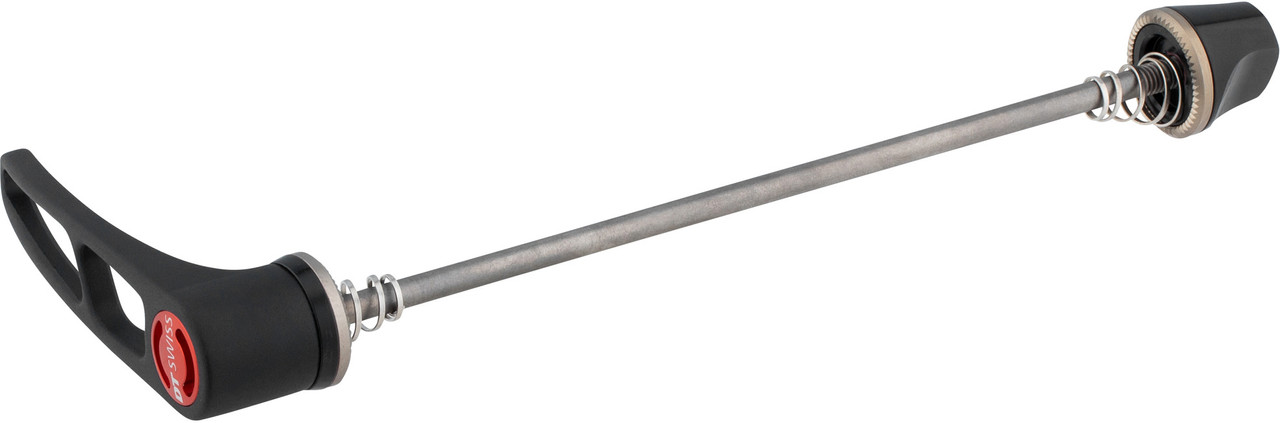

DT Swiss RWS Road Titanium Quick Release w/ Aluminium Lever

The RWS Road titanium quick release with aluminium lever by DT Swiss - maximum performance and safety

With the innovative DT Swiss RWS Road quick release with titanium axle and aluminium lever, wheels can be mounted quickly and safely. The Ratchet Wheelmounting System combines the speed and clamping principle of a quick release with the strength and security of a bolted connection. The high-precision toothing enables full tightening and ideal positioning of the lever. The ideal solution for those looking for maximum performance and safety.

Specifications:

Over Locknut Dimension:

Rear: 130 mm

Axle Diameter:

5 mm

Technical Information:

Use:

rear: 9 x 130 mm

Type:

quick release, RWS

Axle Material:

titanium

Lever Material:

aluminium

Features:

• safe and simple operation
• up to 50% more clamping force than a conventional quick release
• freely selectable lever adjustment without influence on the clamping force
• use of exclusively high-quality metal parts

Technology:

RWS System:
With the RWS system, wheels can be fastened quickly, with outstanding clamping force and absolutely secure. When it comes to installing a wheel quickly and safely, the RWS system is unrivalled. It combines the speed of a quick-release with the strength and safety of a bolt-on connection. The high-precision toothing enables full tightening and ideal positioning of the lever. The RWS system is available for a wide range of axle systems for all applications - from Road to MTB to tandem.

RWS Operation:

Close the RWS:
1. Turn the lever clockwise and tighten it as firmly as possible by hand (min. 15 Nm). If present, hold the nut on the opposite side.
2. Lift the lever of the RWS, turn it to the desired position and release it.
3. Check that the wheel is securely fastened in the fork or frame.

Open the RWS:
1. Turn the lever of the RWS counterclockwise. If present, hold the nut on the opposite side.

Manufacturer Number:

HWQASM00S1052S

Contents:

• 1 x DT Swiss RWS titanium quick release
