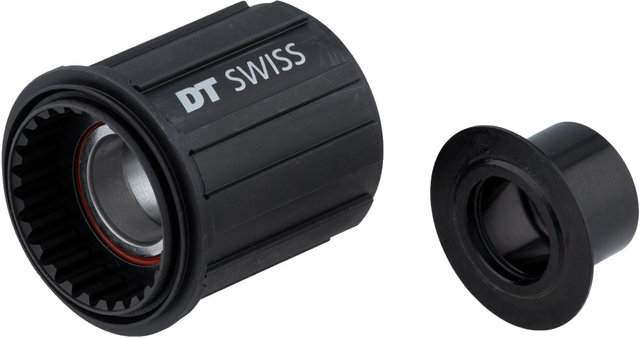

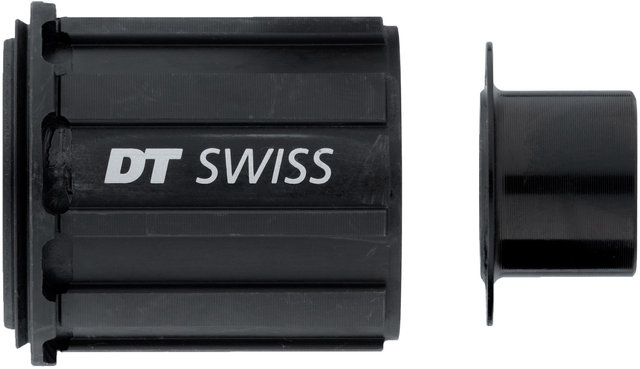

DT Swiss Shimano MTB Hybrid Ratchet System Freehub Conversion Kit

The conversion kit with freehub body Shimano MTB Hybrid Ratchet System by DT Swiss is made for E-MTBs

With the DT Swiss Hybrid Ratchet System® freehub body you can convert wheels and hubs to the Shimano MTB 8-/9-/10-/11-speed freehub standard. To cope with the high torques generated by modern e-MTB drives, all Hybrid freehub bodies are made of steel and provide an extremely durable mount for each cassette. All ball bearings in the hubs are oversized to withstand the high loads and to run perfectly under the toughest conditions. The Hybrid-specific hardened 24 T steel ratchets provide ultimate durability, have a small engagement angle and guarantee a crisp ride.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

E-Bike, All Mountain

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Freehub Body Type:

DT Swiss Ratchet System (24 T)

Technical Information:

Freehub Body Material:

steel

Bearings:

2 deep groove ball bearings, 6902

Seals:

external, internal ring

Note:

converting from 12 x 142 mm to 12 x 148 mm is not possible w/ this kit

Features:

• external precision seal
• inner ring
• freehub seal lies in the hub shell

Compatibility:

Wheels:
12 x 148 mm:

• HXC 1200 SPLINE
• HX 1501 SPLINE ONE
• H 1700 SPLINE

Hubs:
12 x 148 mm:

• 240s Classic HYBRID DB Disc 6-hole
• 350 Classic HYBRID DB Disc 6-hole

Manufacturer Number:

HWYABX00S5569S

Contents:

• 1 x DT Swiss freehub body
