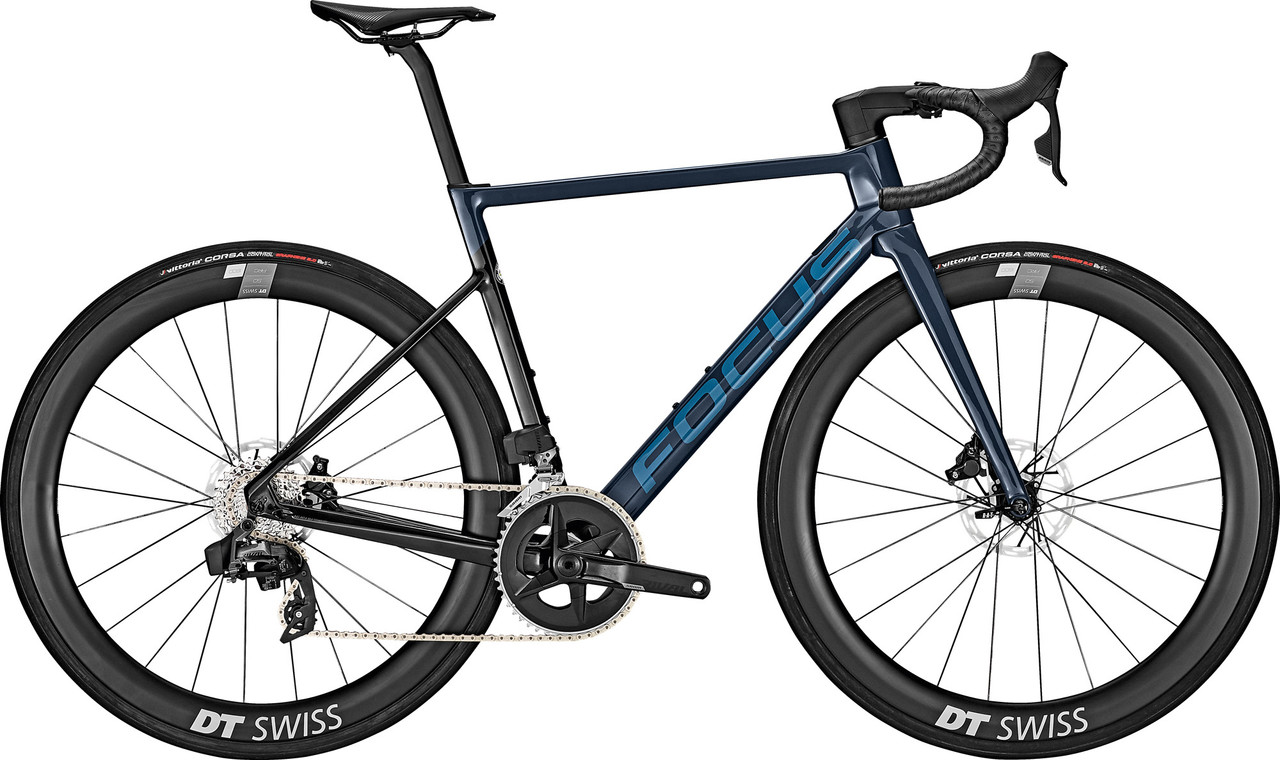

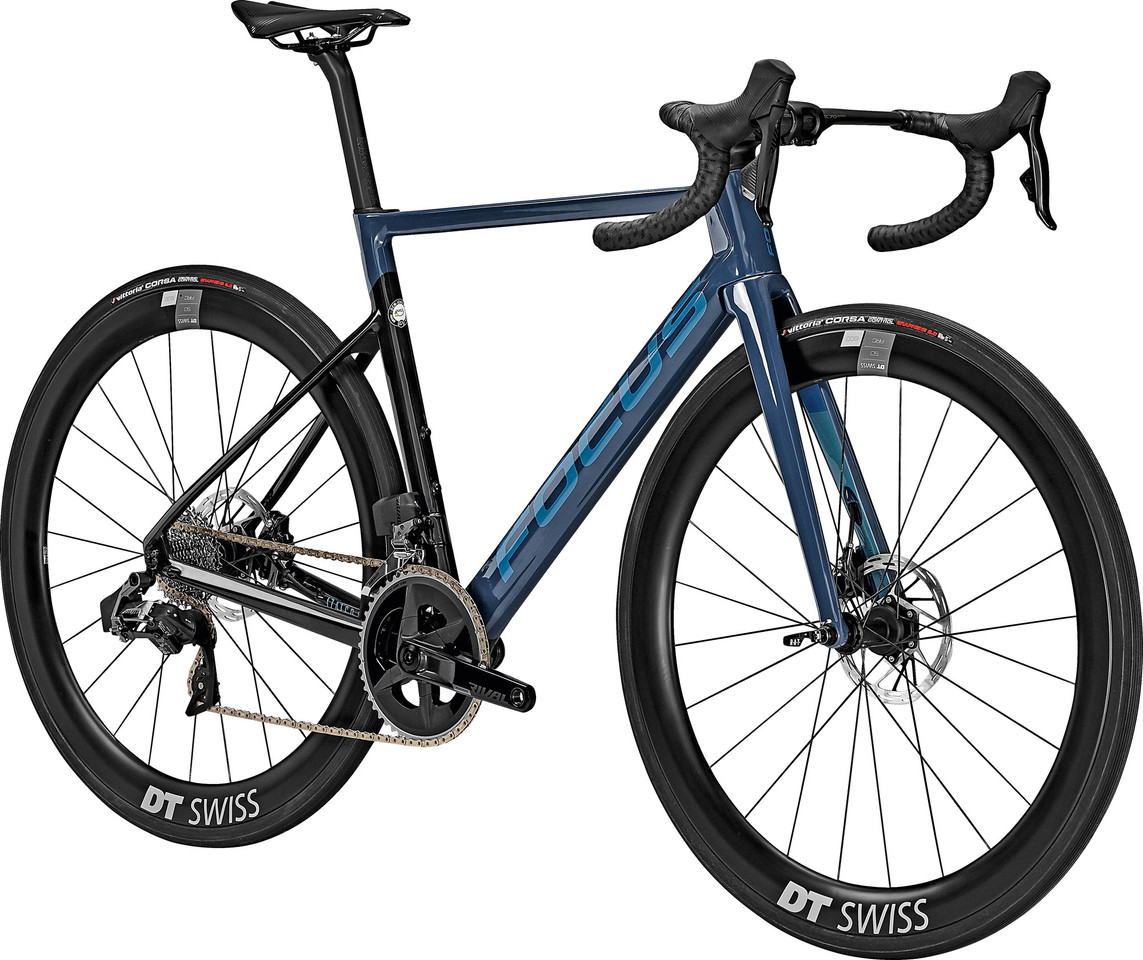

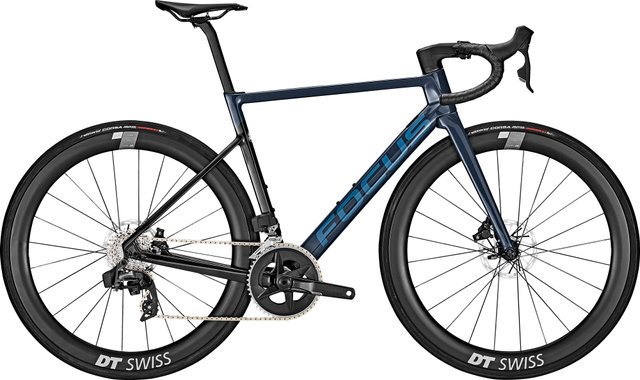

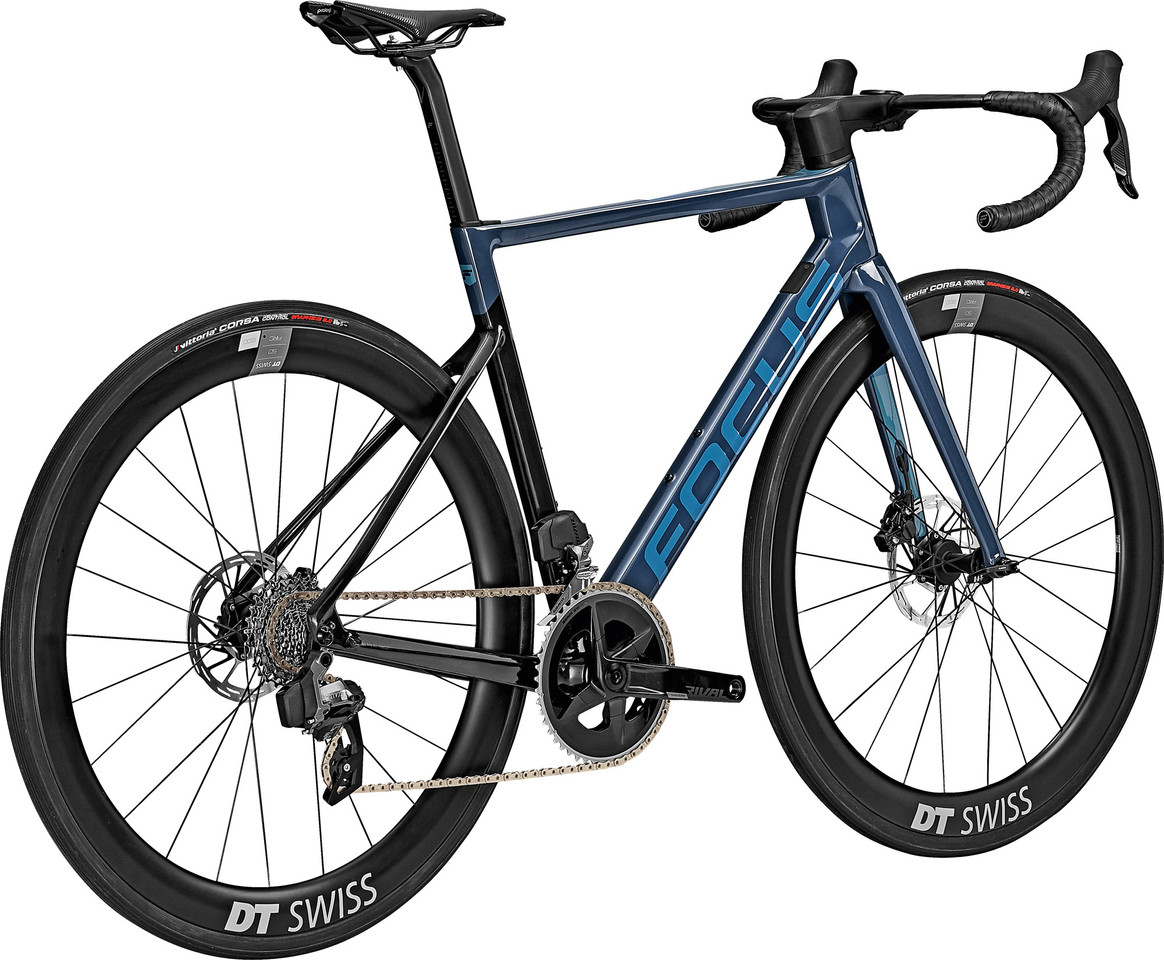

The Izalco Max 9.7 is an aerodynamic road bike from FOCUS, based on a very lightweight carbon frame, equipped with SRAM Rival eTap AXS 2x12-speed electronic shifting and DT Swiss ARC 1600 wheels. Its Race geometry was optimised in the wind tunnel and designed to bring your power directly to the road. 28 mm wide tyres provide more comfort, while the disc brakes increase safety at top speeds and in bad weather.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Road

Wheel Size:

28"

Sizes:

S, M, L, XL, XXL

Frame Material:

Carbon

Fork Material:

Carbon

Components:

Frame:

FOCUS Izalco Max, MAX Technology Carbon, Disc Flat Mount, R.A.T. Evo Technology, 12 x 142 mm thru-axle

Fork:

FOCUS Izalco Max, MAX Technology Carbon, integrated, Disc Flat Mount, R.A.T. Evo Technology, 392 mm installation length, 46 mm front travel, 12 x 100 mm thru axle

Stem:

FOCUS C.I.S. integrated, aluminium, 31.8 mm

Handlebars:

Easton EC70 Aero, carbon, 125 mm drop, 80 mm reach, 31.8 mm

Headset:

Acros IS52/28.6-IS52/40, FOCUS integrated C.I.S.

Seatpost:

FOCUS Aero Carbon, D-Shape, 360 mm, 15 mm setback, insertion depth min. 100 mm

Saddle:

Fizik Antares Versus EVO R5

Crank:

SRAM Rival AXS, 12-speed, Shimano Press Fit Road B86 bottom bracket, 35-48 T

Pedals:

none

Brakes:

SRAM Rival eTap AXS, 160 mm/160 mm

Shift/Brake lever:

SRAM Rival eTap AXS, 12-speed

Rear Derailleur:

SRAM Rival eTap AXS, 12-speed

Front Derailleur:

SRAM Rival eTap AXS, 2x12-speed

Cassette:

SRAM XG-1250, 12-speed, 10-30 tooth

Chain:

SRAM Rival AXS, 12-speed

Wheels:

DT Swiss ARC 1600, carbon, 20-622, 48 mm rim height, 12 x 100 mm / 12 x 142 mm

Tyres:

Vittoria Corsa Control, Tubeless Ready, 700 x 28C

Approved For:

Weight Limit:

110 kg

Rotor Size (max.):

160 mm

Tyre Size (max.):

28-622 (700 x 28c)

Chainrings:

2x

Chainring Size (max.):

2-speed 42-55 T with chainline 43.5 mm (Shimano), 2-speed 37-50 T with chainline 45 mm (SRAM)

Features:

• optimal blend of aerodynamics, light weight, comfort and style
• aero carbon frame (890 g) with aero seatpost
• Race geometry, optimised in the wind tunnel, for high power efficiency and speed
• fully integrated cable routing, innovative C.I.S. aero stem with computer mount
• wide 28 mm tyres for comfort and more puncture protection on poor surfaces
• SRAM Rival eTap AXS 12-speed groupset and disc brake, only compatible with electronic shifters
• DT Swiss ARC 1600 DICUT wheels with 48 mm high carbon rims, R.A.T. thru-axles
• FOCUS SL handlebar tape
• suitable for trainers with direct drive
• EN classification 6: bicycle for paved surfaces, for sport and competition riding with high effort, drops of no more than 15 cm, high average speeds of 30 - 55 km/h, riding skills and practice required

Technology:

C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.

S.S.P.S.
The Stable Stiffness per Size (S.S.P.S.) process means that each frame size receives a specially-tuned carbon lay-up and is individually constructed. This is the only way to ensure an optimal stiffness-to-weight ratio and equal riding characteristics for each size.

R.A.T.
FOCUS has developed its own patented Rapid Axle Technology (R.A.T.) for Mountain bikes, Road bikes and Cyclocross bikes. When developing the R.A.T. thru-axle, the focus was clearly on quick and easy operation when changing the wheel. As a result of the development, Rapid Axle Technology combines the stability and rigidity of a thru-axle with the advantages of quick releases.

Geometry:

S:

Frame Size:

52 cm

Recommended Height:

171 - 175 cm

Stack:

528 mm

Reach:

378 mm

Seat Tube Length:

490 mm

Effective Top Tube Length:

534 mm

Head Tube Length:

100 mm

Chainstay Length:

410 mm

Wheelbase:

985 mm

BB Drop:

78 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

71.5°

Standover Height:

760 mm

Stem Length:

100 mm

Handlebar Width:

42 cm

Crank Arm Length:

170.0 mm

Seatpost Insertion Depth (max.):

220 mm

M:

Frame Size:

54 cm

Recommended Height:

176 - 180 cm

Stack:

544 mm

Reach:

390 mm

Seat Tube Length:

510 mm

Effective Top Tube Length:

551 mm

Head Tube Length:

115 mm

Chainstay Length:

410 mm

Wheelbase:

997 mm

BB Drop:

78 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72°

Standover Height:

778 mm

Stem Length:

100 mm

Handlebar Width:

42 cm

Crank Arm Length:

172.5 mm

Seatpost Insertion Depth (max.):

240 mm

L:

Frame Size:

56 cm

Recommended Height:

181 - 185 cm

Stack:

554 mm

Reach:

400 mm

Seat Tube Length:

530 mm

Effective Top Tube Length:

564 mm

Head Tube Length:

125 mm

Chainstay Length:

410 mm

Wheelbase:

1010 mm

BB Drop:

78 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72°

Standover Height:

791 mm

Stem Length:

110 mm

Handlebar Width:

42 cm

Crank Arm Length:

172.5 mm

Seatpost Insertion Depth (max.):

240 mm

XL:

Frame Size:

58 cm

Recommended Height:

186 - 190 cm

Stack:

579 mm

Reach:

410 mm

Seat Tube Length:

550 mm

Effective Top Tube Length:

582 mm

Head Tube Length:

150 mm

Chainstay Length:

410 mm

Wheelbase:

1024 mm

BB Drop:

78 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72.5°

Standover Height:

814 mm

Stem Length:

120 mm

Handlebar Width:

42 cm

Crank Arm Length:

172.5 mm

Seatpost Insertion Depth (max.):

280 mm

XXL:

Frame Size:

61 cm

Recommended Height:

191 - 199 cm

Stack:

613 mm

Reach:

420 mm

Seat Tube Length:

590 mm

Effective Top Tube Length:

602 mm

Head Tube Length:

185 mm

Chainstay Length:

410 mm

Wheelbase:

1044 mm

BB Drop:

78 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72.5°

Standover Height:

850 mm

Stem Length:

120 mm

Handlebar Width:

44 cm

Crank Arm Length:

175.0 mm

Seatpost Insertion Depth (max.):

320 mm

Manufacturer Numbers:

S:

644012022

M:

644012023

L:

644012024

XL:

644012025

XXL:

644012026

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x FOCUS Izalco Max Disc 9.7 Carbon 28" Road Bike
