Specifications:

Application:

Cross Country

Wheel Size:

29"

Suspension Type:

air

Travel:

120 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

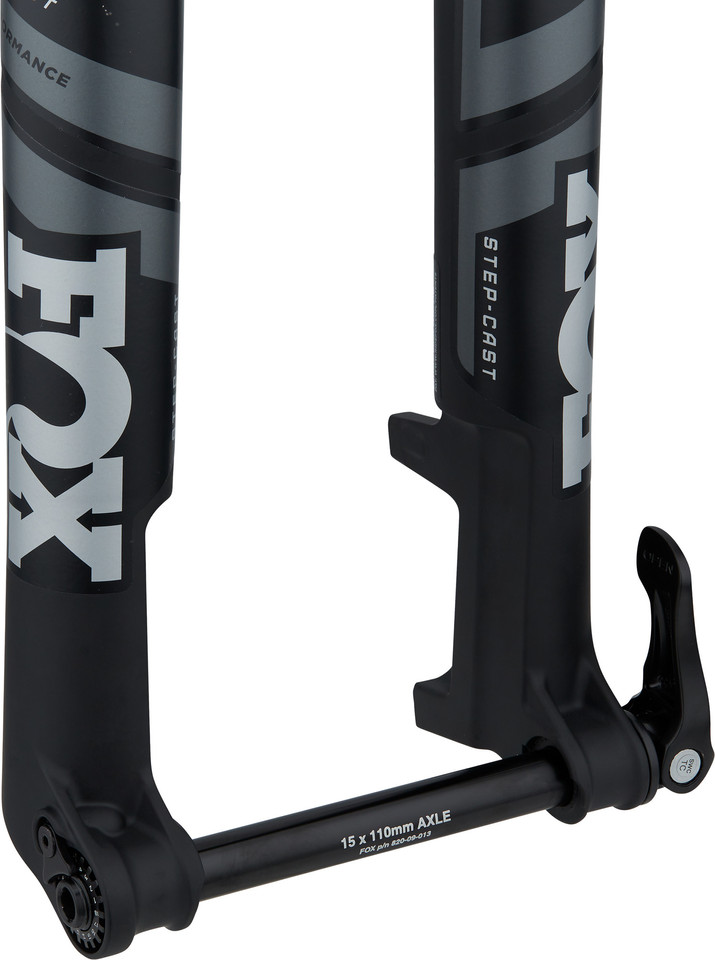

thru-axle with quick release lever

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

44 mm

Steerer Tube Length:

264 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

530 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

34 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

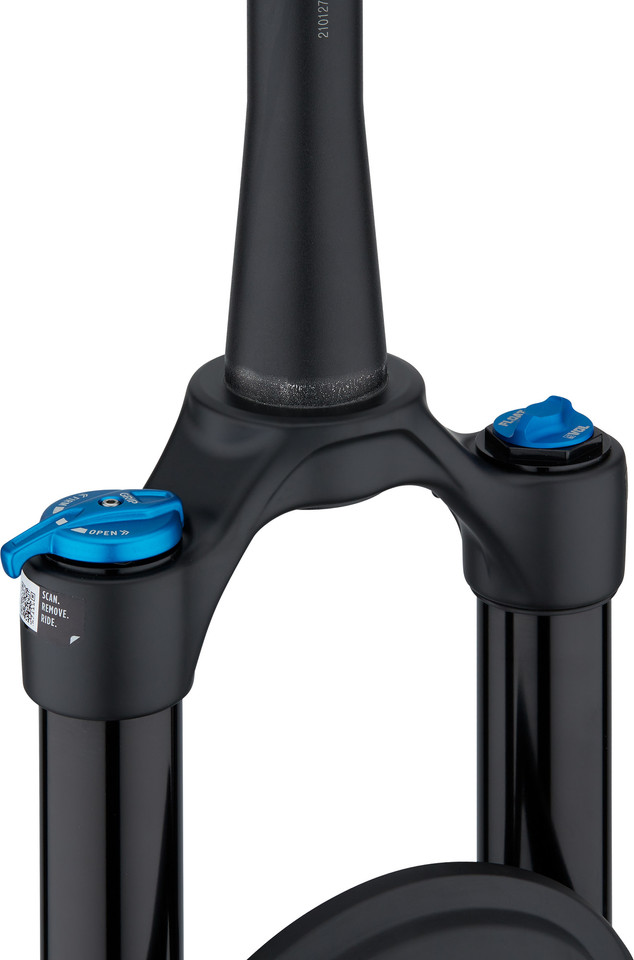

3-position lever (Open / Medium / Firm) with Micro Adjust

Rebound:

yes (10 levels)

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 2.4"

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

180 mm

Weight Limit:

121 kg (system weight)

Air Pressure (max.):

120 psi (8.3 bar)

Features:

• GRIP damping cartridge with three-position lever

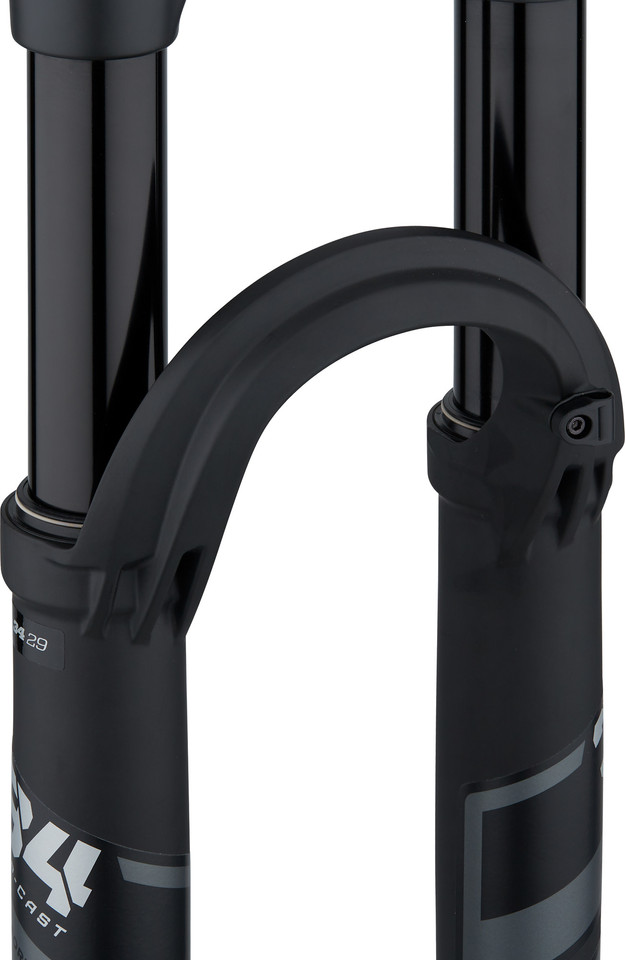

• narrow, weight-saving step-cast design with recesses above the axle for brake rotor and spokes
• Micro Adjust: rasters between Open, Medium and Firm mode allow for intermediate settings
• fork crown design optimised for more stiffness, more space in the head tube area and shorter offset
• air and oil channels in the dip tubes for continuous lubrication of the foam rings and prevention of excessive pressure increase
• performance series with black anodised uprights
• Float EVOL air suspension for sensitive response, more linear spring characteristics and optimum support through the entire spring travel

Manufacturer Number:

Contents:

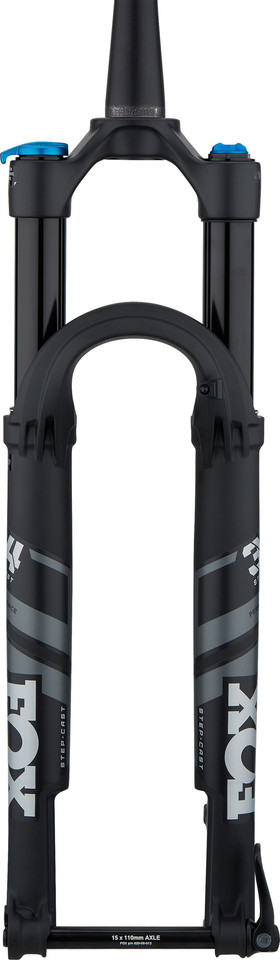

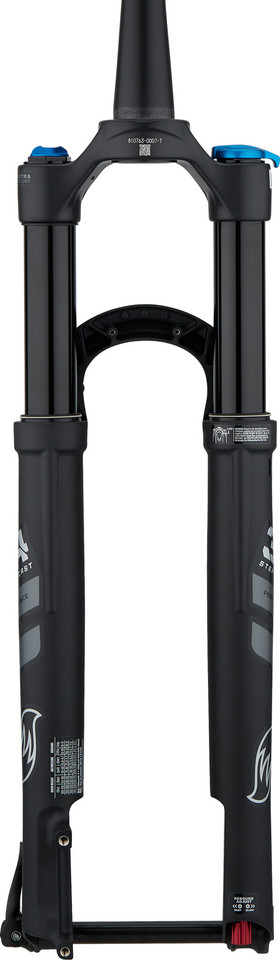

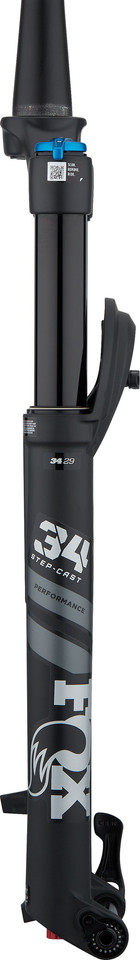

• 1 x Fox Racing Shox 34 Float SC 29" GRIP Performance Boost suspension fork
• 1 x Fox Racing Shox thru-axle with quick release

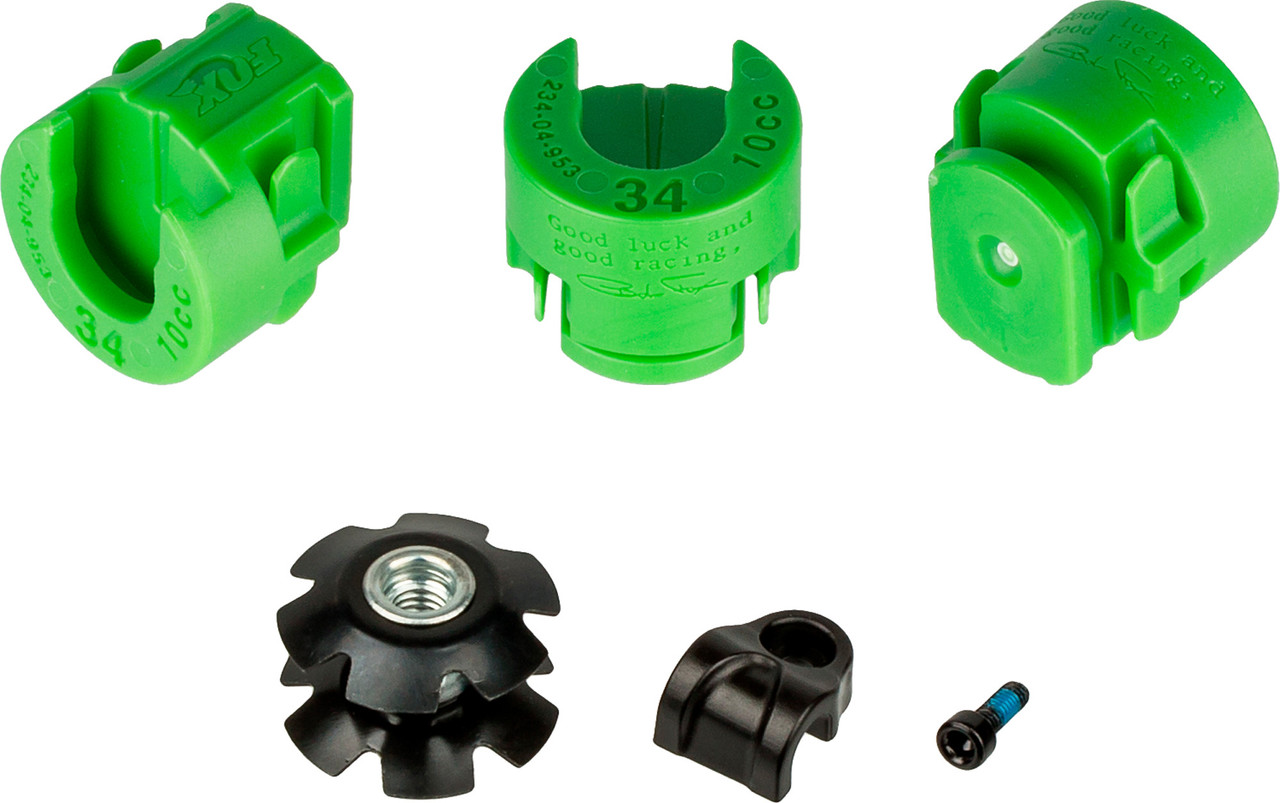

• 3 x Fox Racing Shox volume spacers
• 1 x cable routing
• 1 x star nut
